Niton XL3t XRF Analyzer
Niton XL3t XRF Analyzer for sale, scrap metal recycling, casting and fabrication, manufacturing QA/QC and positive material identification.
$11,000
Niton XL3t XRF Analyzer for sale, definitive tool for scrap metal recycling, casting and fabrication, manufacturing QA/QC and positive material identification.
Get real-time compliance testing, including screening of incoming materials and outgoing finished goods, for the Consumer Product Safety Improvement Act (CPSIA), Proposition 65, Restriction of Hazardous Substances (RoHS) and other regulations.

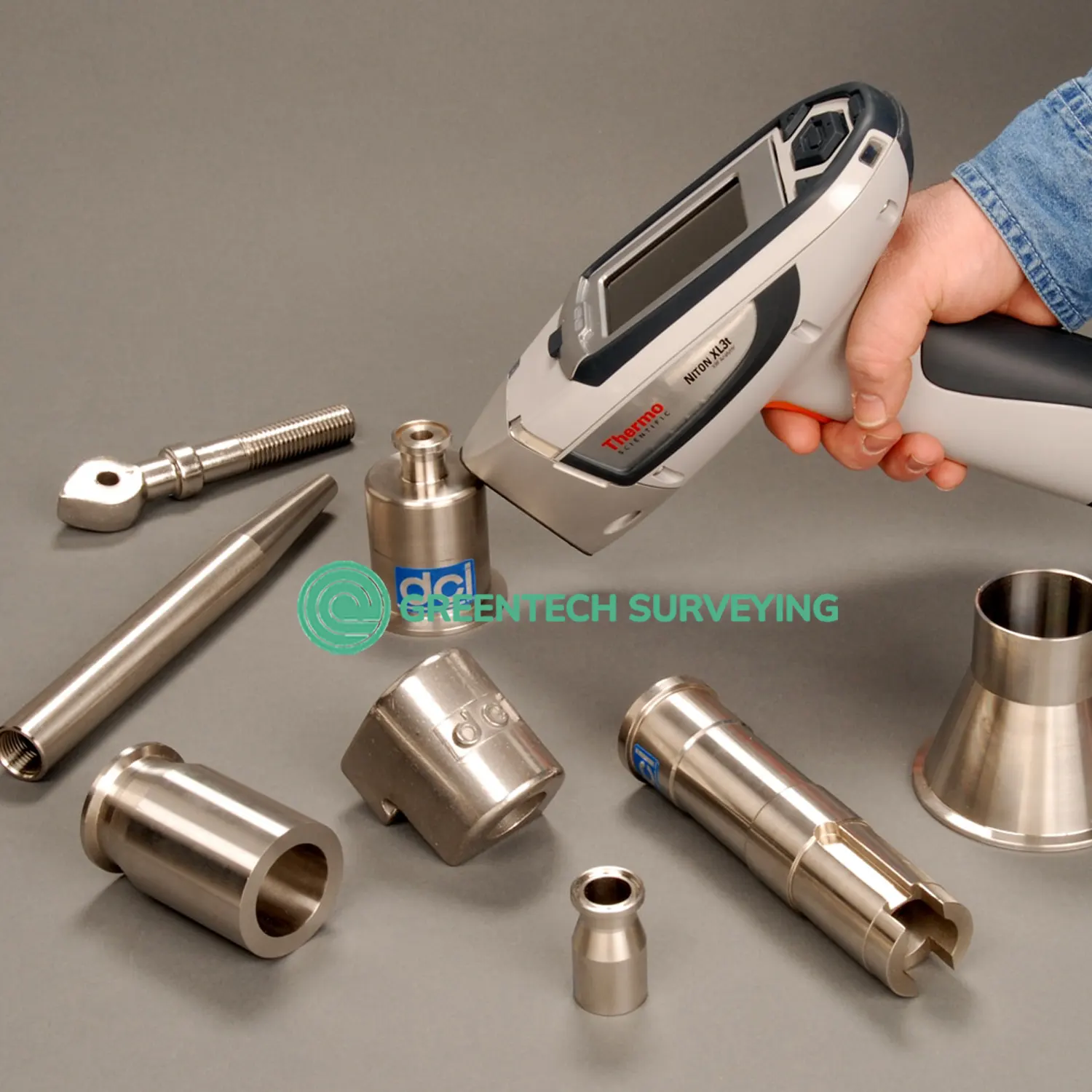

The Niton XL3t is a lightweight, hand-held X-Ray Fluorescence (XRF) analyzer that enables users to obtain real-time, quantitative sample analysis in the field for a fraction of the cost of lab-based sampling. Environmental testing applications range from brownfield site assessments and remediation to emergency response, occupational safety, and health (OSHA) compliance testing and elevated blood lead (EBL) investigations. The XL3t can also be used to test electrical components for both RoHS and WEEE directive compliance. Supplied with the Niton Data Transfer software to generate reports, the XL3t features a tilting color touch-screen display for easy viewing, analysis of all major contamination elements from Mg to U, down to PPM levels and easy to use touch-screen controls.
The feature-leading, handheld Niton XL3t XRF Analyzer offers features engineered to improve your productivity and profitability.
- High sensitivity and measurement accuracy.
- Lower detection limits for higher-Z elements, with additional elements Mg, Al, Si and P via helium purge.
- Standard analytical range: 25 elements from S to U.
- Optional CCD camera for visually identifying and recording images of samples.
- A user-selectable 3mm small spot to locate areas of interest on a sample.

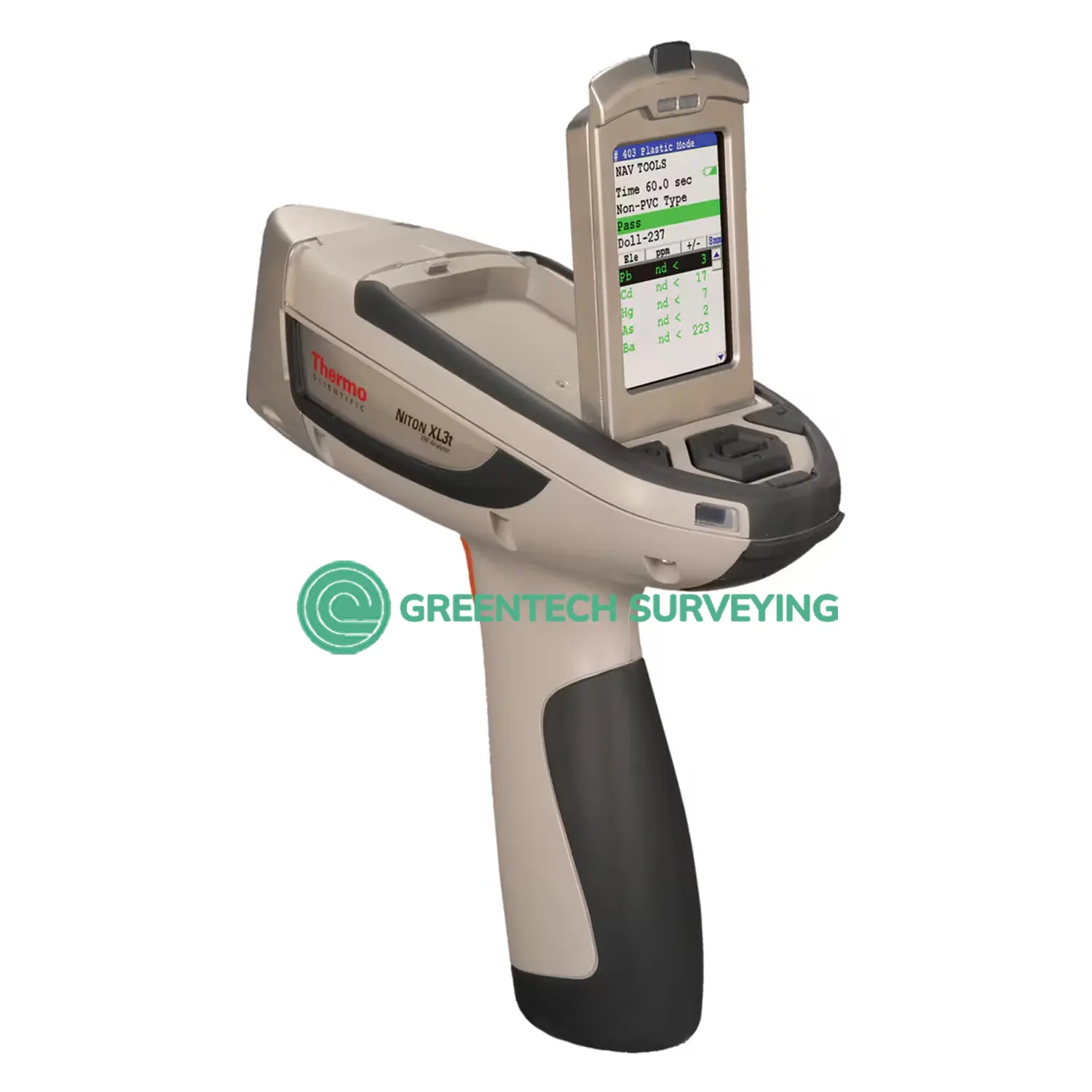

- Flip-up, color, touch-screen display.
- Ergonomic design.
- Easy-to-use software.
- 50 kV x-ray tube provides approximately twice the x-ray flux of a 40 kV x-ray tube.
- Hotfoot hot surface adaptor allows testing in petrochemical refineries up to 842°F (450°C).
Connectivity
- Standard Thermo Scientific™ Niton Data Transfer (NDT™) PC software suite allows you to set operator permissions, generate custom reports, print certificates of analysis, or remotely monitor, and operate the instrument hands-free from your PC.
- Integrated USB and Bluetooth™ communications provide direct data transfer to your PC or networked storage device. Optional accessories include Bluetooth barcode reader, Bluetooth printer, and Bluetooth GPS.
Specifications
| Applications | Elemental Analysis |
| Available Analytical Modes | Varies by ApplicationAlloy Modes: Metal Alloy, Electronics Alloy, Precious MetalsBulk Modes: Mining, SoilPlastic Modes: RoHS Plastics, Toy and Consumer Goods Plastics, TestAll Painted ProductsOther Modes: Lead Paint, Thin SampleCustom Modes: |
| Data Memory | 32Mb internal system memory/ 128Mb internal user storage |
| Description | Niton XL3t XRF Analyzer |
| Detector Type | High-performance semiconductor |
| Display Type | Adjustable angle, color, touch-screen display |
| Item Description | XL3t Analyzer; Portable |
| Height (English) | 3.75 in. |
| Height (Metric) | 95.5 mm |
| Length (English) | 9.6 in. |
| Length (Metric) | 244 mm |
| Width (English) | 9.05 in. |
| Width (Metric) | 230 mm |
| Optional Accessories | Portable test stand, stationary test stand, tripod stand; Extend-a-Pole™ extension pole; Welding Mask; HotFoot™ hot surface adapter; Soil testing guard; Internal CCD sample imaging system; Variable spot size aperture |
| Power Consumption | 100 μA |
| Security Features | Password-protected user security |
| Standard Accessories | Locking shielded carrying case, RFID reader, Shielded belt holster, Two 4 (or optional 6) -cell lithium-ion battery packs, Spare battery pack, 110/220 VAC battery charger/AC adaptor, PC connection cables (USB and RS-232), Niton Data Transfer (NDT™) PC software Safety lanyard Check samples/standards |
| Tube Type | Au anode 50kV maximum, 200μA maximum |
| Tube Voltage | 50 kV |
| Weight (English) | 3 lb. |
| Weight (Metric) | 1.3kg |
| Voltage | 50kV |
| Dimensions (L x W x H) | 9.6 x 9.05 x 3.75 in. (244 x 230 x 95.5 mm) |
| Certifications/Compliance | CE, RoHS |
| Unit Size | Each |
