GeoSLAM ZEB Horizon Scanner for sale
Includes:
- ZEB-HORIZON scanner
- ZEB-HORIZON HDD datalogger (CPU)
- ZEB-HORIZON Cables Set
- ZEB-HORIZON Battery pack
- GeoSLAM Hub & Draw Start license
- USB3 memory stick containing Installation & User Guide
- ZEB-HORIZON Backpack
- Additional ZEB-CAM-HORIZON
- 1 year extended hardware warranty
- 1 year extended GeoSLAM Hub & Draw Start software support
Additional GeoSLam ZEB-HORIZON Accessories :
- 14.8V lithium-ion battery (CT-REVO-RT-BAT): Spare battery for ZEB-HORIZON, This is the same battery as ZEB-REVO RT battery
- Drone mount kit for M600 (CT-HORIZON-M600-MNTKIT, Mount kit for mounting ZEB-HORIZON on DJI drone Matrice600
- 1.5m main cable (CT-GS-610098): 1.5m cable to connect the data logger with the scanner head. LEMO multi-pin connectors on both ends
- 5m main cable (CT-GS-610142) : 5m cable to connect the data logger with the scanner head. LEMO multi-pin connectors on both ends
- Vertical mounting plate (CT-GS-610143): Mounting plate for vertical mounting
- Horizontal mounting plate (CT-GS-610144): Mounting plate for horizontal mounting
- Cradle (CT-GS-610137) : A cradle for attaching a scanner and data logger to measure the three-dimensional structure of the space below or on the wall by hanging ZEB-HORIZON with a crane or rope.
- 2.90m pole (CT-GS-610151) : Pole kit (including mount plate) made of lightweight elastic carbon fiber. Extends to 2.90m
- Highly durable carry case (CT-GS-610145) : A highly durable carry case that can store a complete set of ZEB-HORIZON. When sending to a remote location, you can send it with confidence.
- Backpack with frame to fix the scanner (CT-GS-610054 CT-GS-610143) : Backpack with backpack type frame that fixes the scanner part of ZEB-HORIZON using the vertical mounting mount plate (CT-GS-610143). Because you can scan while carrying your back, you can reduce the burden on your body and at the same time free your hands.

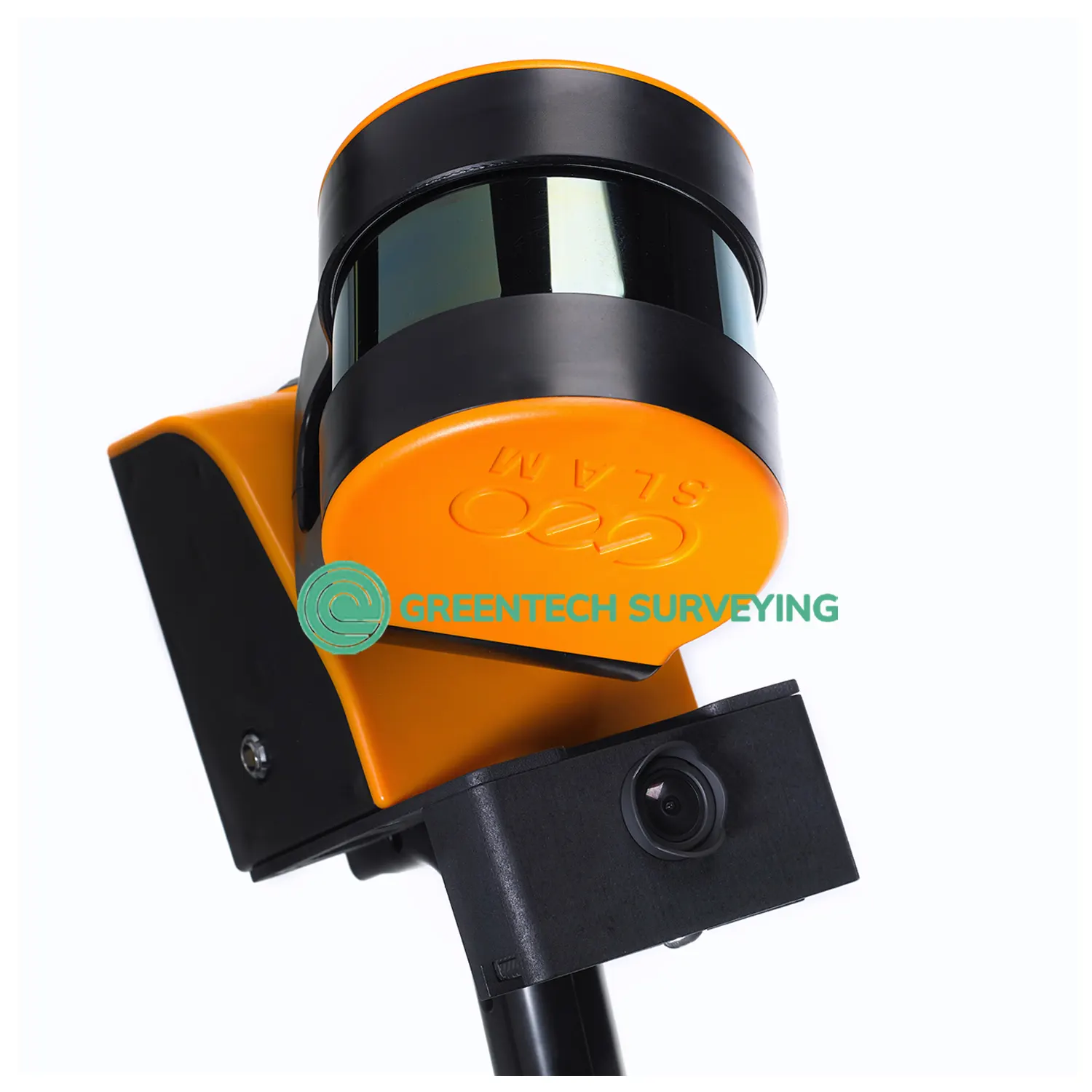

GeoSLAM ZEB Horizon | The ultimate mobile mapping solution
Your versatile tool to capture, process and understand the world around you.
A handheld LiDAR scanner, suitable for drone mapping applications as well as indoor use. This powerful tool helps make the mapping process simple. With a range of 100m, the ZEB Horizon is great for outdoor use including spaces where features are positioned further apart.
GeoSLAM ZEB-Horizon powerful SLAM (Simultaneous, Localisation And Mapping) technology, the ZEB-HORIZON can be used in outdoor areas with limited GPS signal, such as underground or in dense forest environments. With a collection rate of 300,000 points per second and an accuracy of 1-3cm (depending on what scan environment), the ZEB-HORIZON is also ideal for those working in construction, architecture, engineering and surveying.
The versatility of the ZEB-HORIZON allows data to be collected for all projects including 2D floor plan generation, 3D volumetric calculations, measured building calculations, scan-to-BIM and object identification. The simple ‘walk-and-scan’ method of data collection, allows even the most inexperienced operator to create accurate results at speed.
Complete versatility
The versatility of the scanner allows the system to be used in combination with different equipment to suit any type of survey, including:
- Aerial surveys when mounted on a UAV for difficult-to-reach or potentially hazardous locations.
- Underground surveys using the GeoSLAM Cradle to reach more difficult to access areas such as through manholes.
- Increased-range surveys when attached to an extendable pole, which also allows access to higher, inaccessible areas like ceiling voids.
Technical Specification
- Range: 100m
- Protection Class: IP54
- Scanner Weight: 1.3kg
- Points per Second: 300,000
- Relative Accuracy: 1 – 3cm
- Raw Data File Size: 100-200MB a minute
- Processing: Post Processing
- Battery Life (scanner): 3.5hrs
