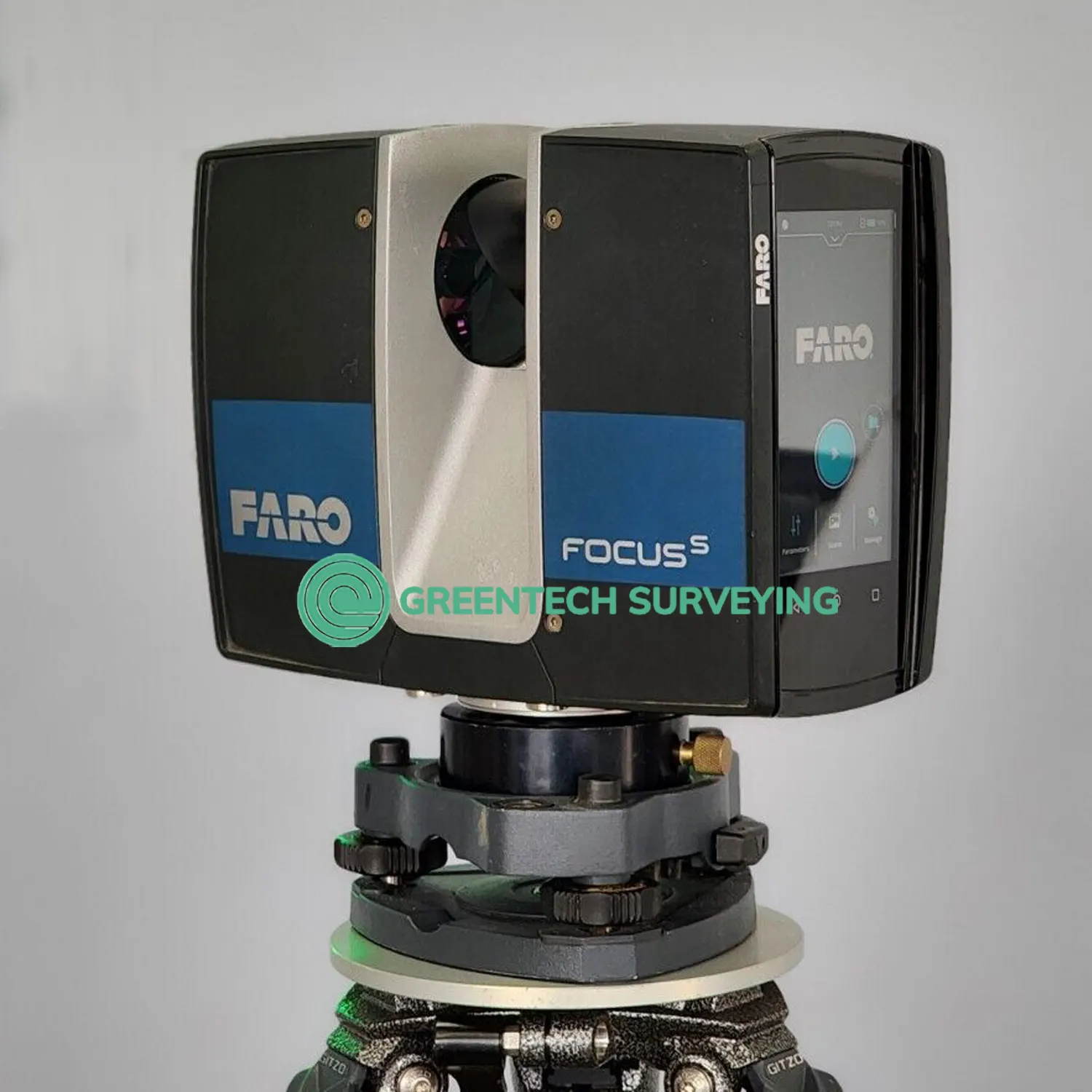

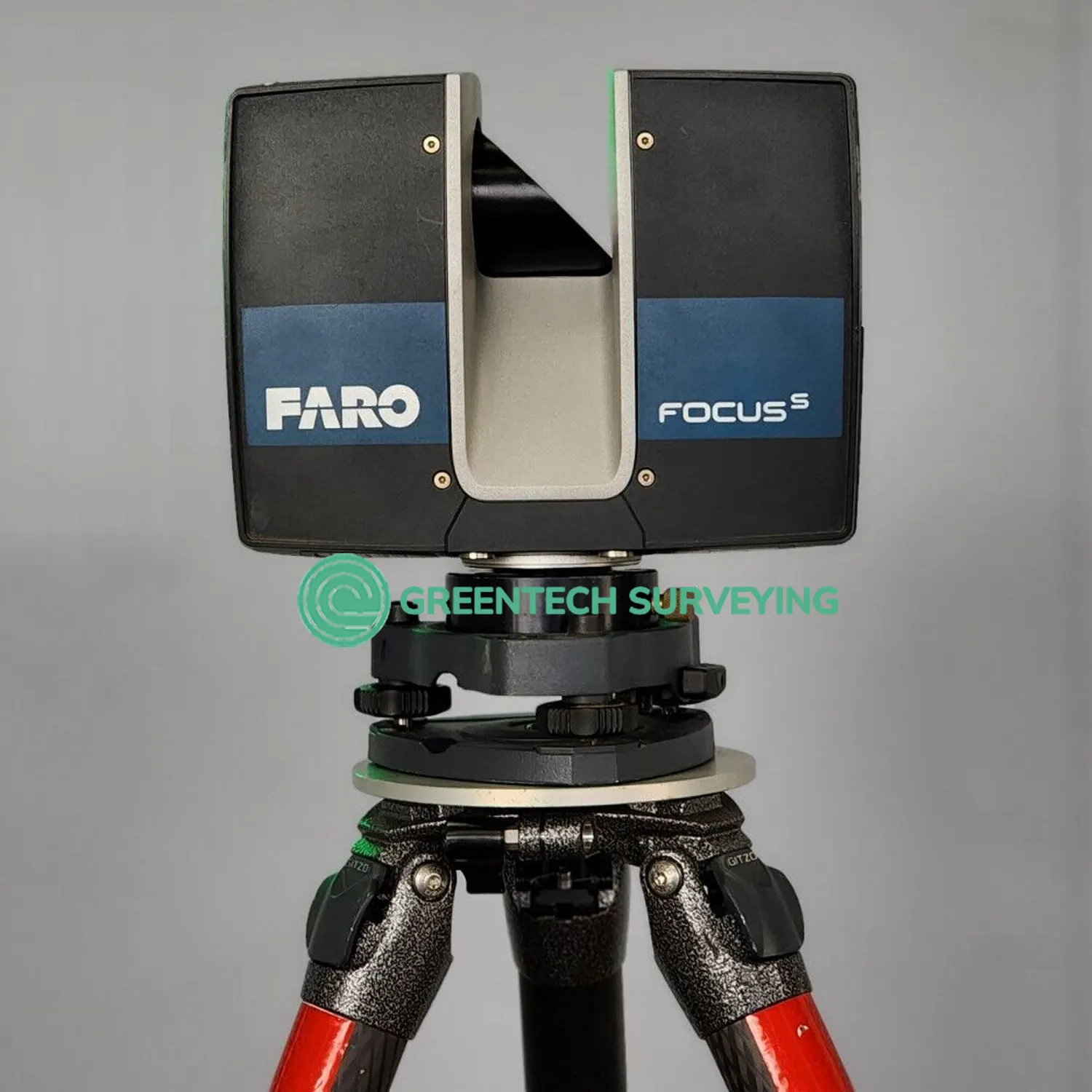

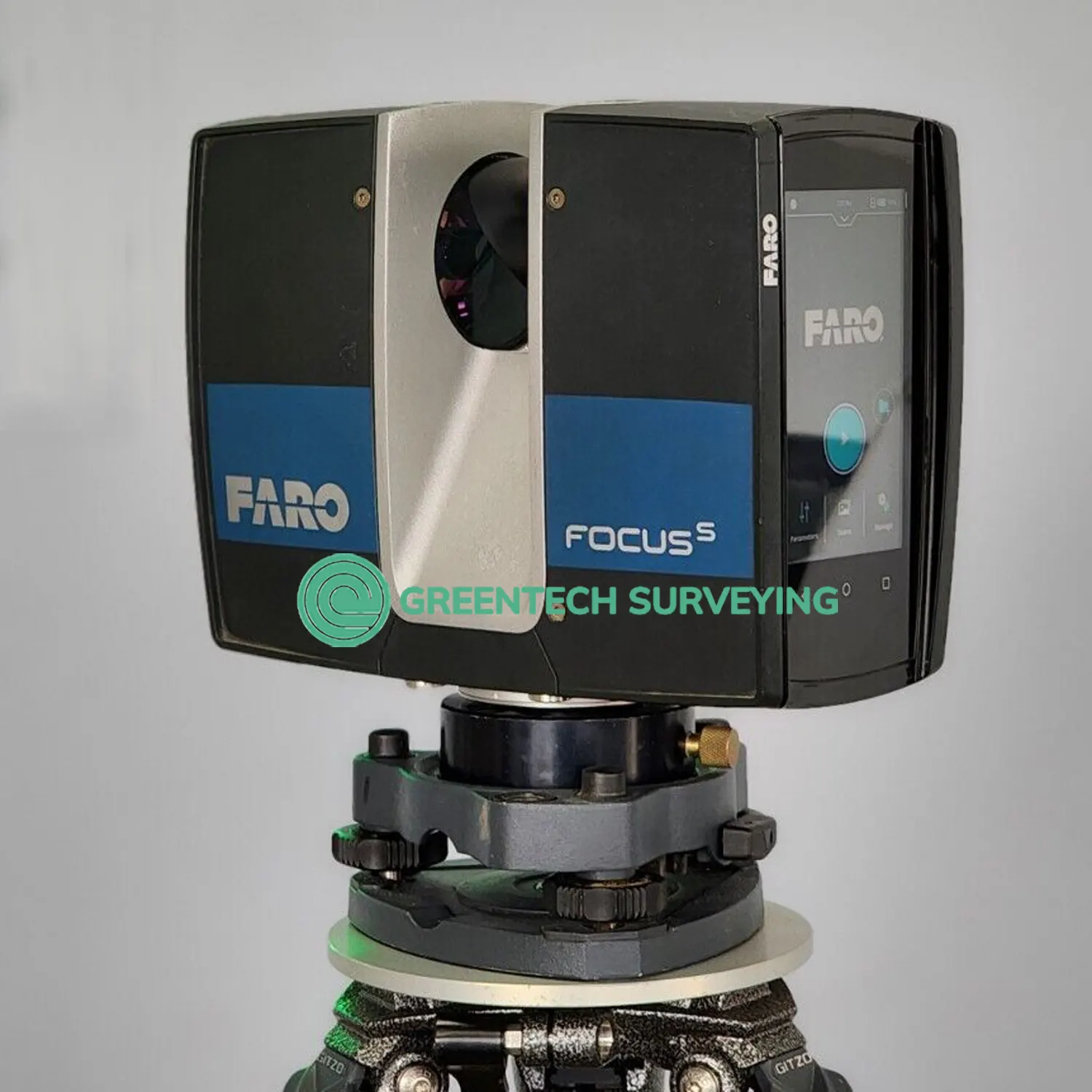

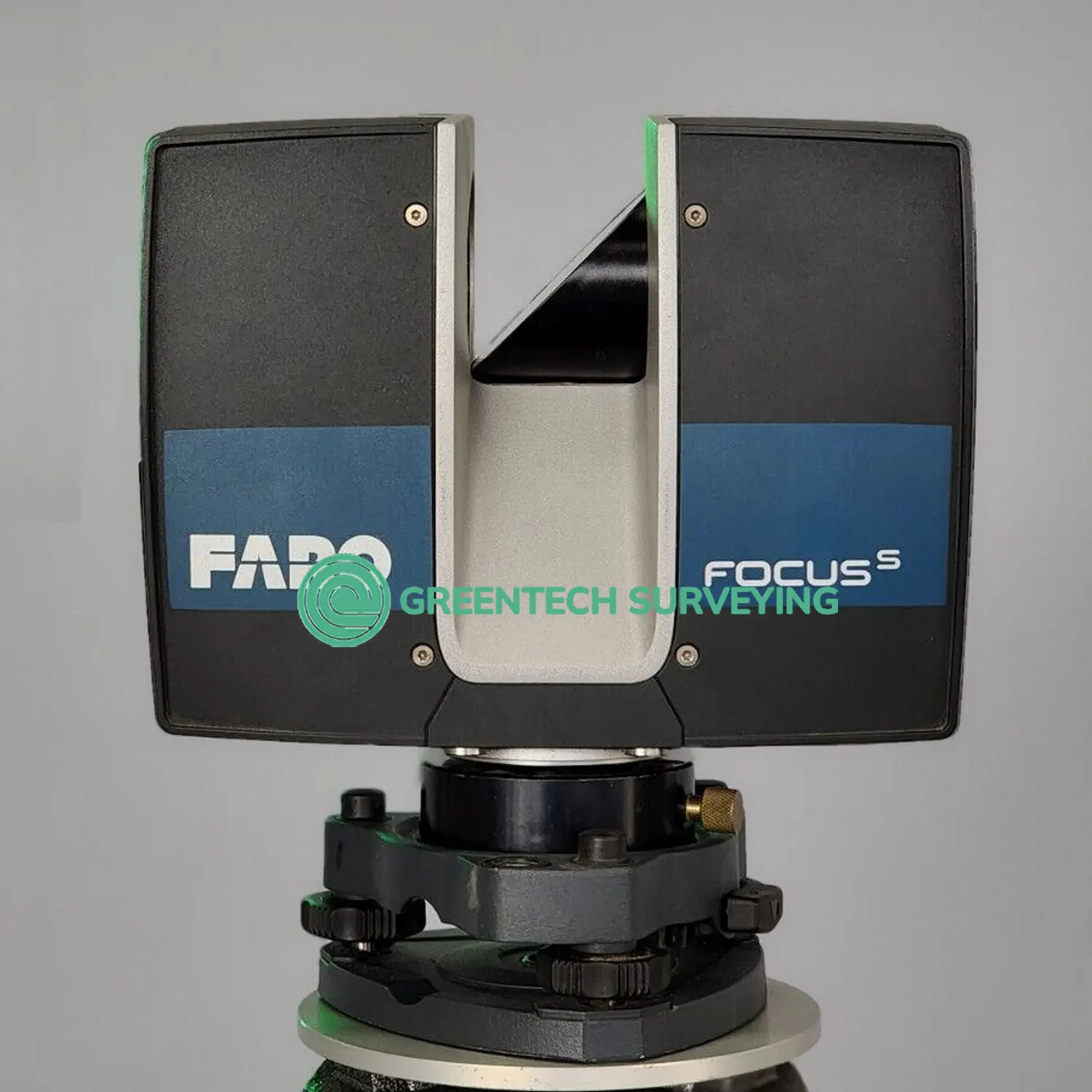

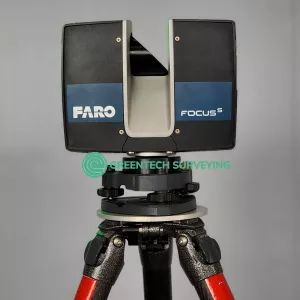

Used Faro Focus S350 Laser Scanner

Used Faro Focus S350 Laser Scanner for sale, clean unit and everything is in correct operating and excellent cosmetic condition. Latest firmware, Faro SCENE Dongle License

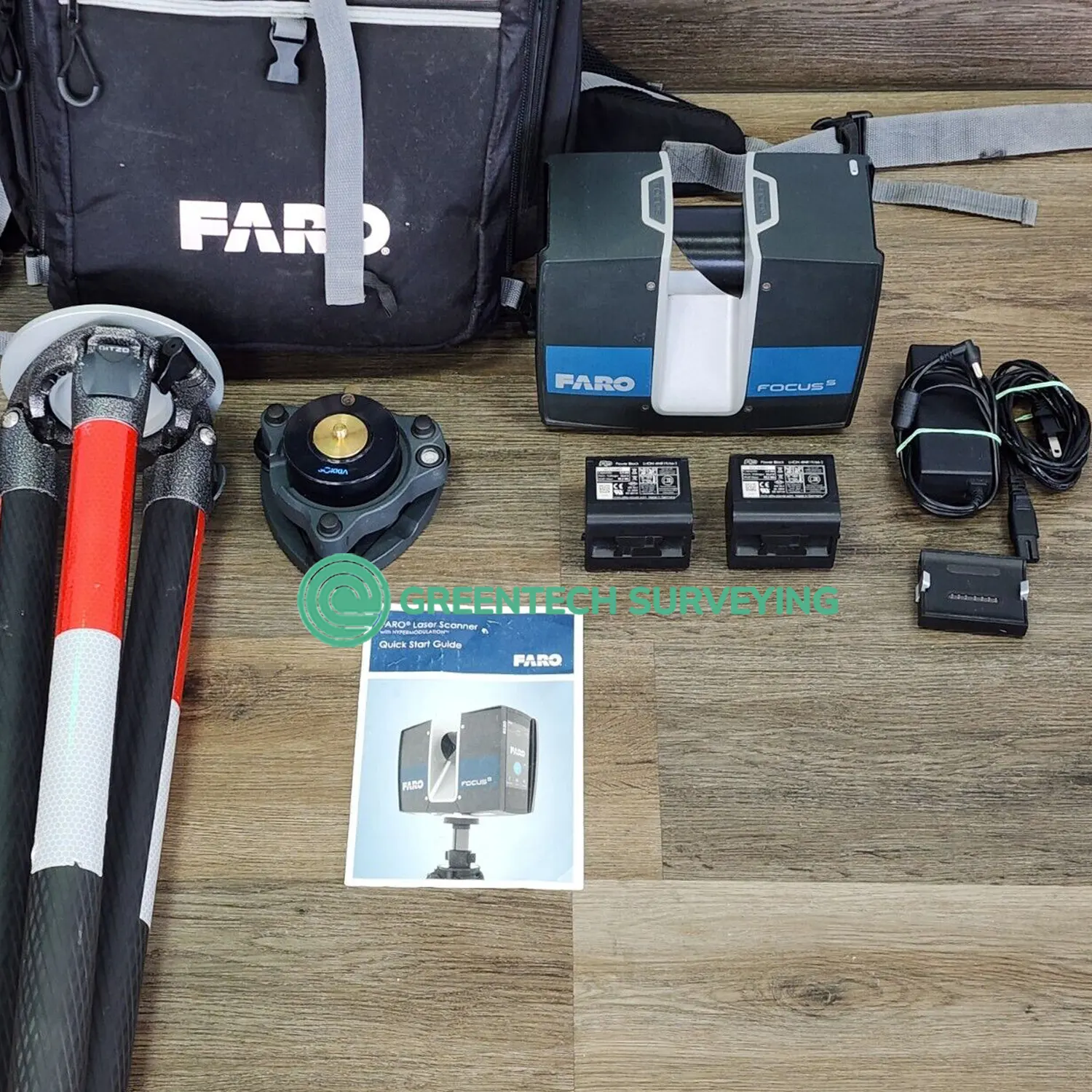

Includes:

• Faro Focus S350 3D Laser Scanner
• Faro SCENE software with FARO Laser-HDR and High Detail Scanning (Dongle license)
• Faro Power Dock battery charger
• 2x Faro Battery Packs
• Faro Foam Fitted Backpack Carrying Case
• Tribrach with adapter
• Gitzo Carbon Fiber Tripod
• 30-day money back guarantee

Faro Focus S350 Laser Scanners is the most complete series bundled with incredible new features including IP rating, on-site compensation and future proof accessory bay. Designed for BIM/CIM, product design and public safety applications, this new line of laser scanners brings together several key features such as an International Protection Rating for scanning in dusty or humid environments, a specified angular accuracy value, an internal accessory bay providing a convenient integration of versatile accessories and an on-site compensation routine.

Both models deliver tremendous power, a reworked compact design, and the flexibility to perform laser scanning in both indoor and outdoor. With an increased scanning range of 150 meter and 350 meter, the laser scanners are ideal for various applications such as architectural design, Building Information Modeling (BIM) documentation, forensic investigation, reverse engineering and CAD-based design.

”The FocusS models set a new standard for laser scanners, loaded with advanced features all self-contained within an aesthetically, yet durable design. The Focus S350 contains all the most innovative and relevant features for AEC and law enforcement professionals who strive to maximize their efficiencies using laser scanning

With their sealed design, the Focus S model are certified via the industry standard International Protection (IP) Rating, and classified in Class 54 for environmental endurance. Both products will not only be protected from water splashes from all directions, fog or rain, but also from other outdoor elements such as dirt and dust particles that typically occur in extreme scanning conditions.

The Laser Scanner Focus S 350 now include a specified value for angular accuracy. The maximum deviation of the first angle, perpendicular to the second angle, are defined and increase the traceability of the scanning results for all users.

The newly added on-site compensation feature now makes it possible for users to verify the accuracy values of the laser scanner and correct deviations automatically on-site. The Focus S350 devices will always be established to scan in the best possible accuracy. By exporting the on-site compensation report, a comprehensive accuracy document can be provided to each scan project.

With the integrated accessory bay located at the scanner's top chassis, additional accessories can be connected to the scanner easily. This plug-and-play connection offers not only a future-proof concept to expand the scanner's performance spectrum, but also provides scanner customization built to the needs of each user.

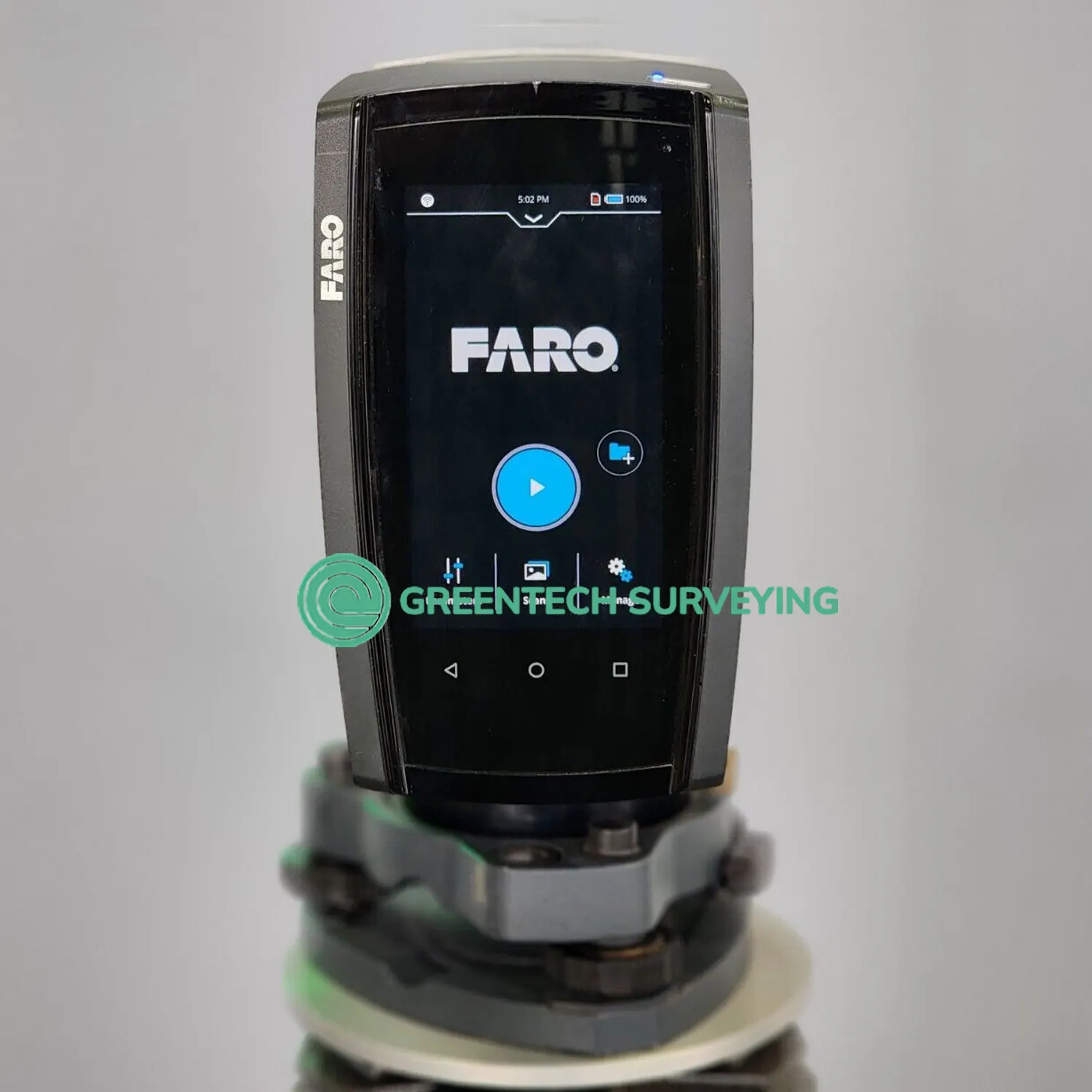

The ultra-portable Focus S350 enables fast, straightforward, and accurate measurements of objects and buildings by sending out a fully eye-safe Class 1 laser beam. The touch-screen of the Focus S350 has been increased in size and clarity and delivers an extraordinary user interface experience. A built-in 8 mega-pixel, HDR-camera makes it even easier to capture great imagery, to provide a natural color overlay in extreme lighting situations to the scan data. The Focus' light weight, small size and battery runtime of 4.5 hours per charge makes the scanner truly mobile and enables scanning of accident sites, architectural façades, complex structures, large-volume components, production and supply facilities fast, secure and reliable.

FARO FOCUS S350 LASER SCANNER FEATURES

• ACCURACY: The FocusS now captures environments with increased accuracy regarding distance, dualaxis compensator and angular measurement.
• TEMPERATURE: Extended temperature range allows scanning in challenging environments
• ON-SITE COMPENSATION: With the on-site compensation functionality users can verify and adjust the FocusS compensation on-site
• IP RATING - CLASS 54: With the sealed design, the FocusS is certifed with the industry standard Ingress Protection (IP) Rating and classifed in class 54 against environmental infuences.
• HDR PHOTO OVERLAY: The HDR camera captures detailed imagery easily while providing a natural color overlay to the scan data captured under extreme brightness gradients
• ACCESSORY BAY: With this future-proof interface users can connect additional accessories to the scanner, which offers an option for user specifc customization.

FARO FOCUS S350 Specifications

1. For a Lambertian scatterer.
2. Ranging noise is defined as a standard deviation of values about the best-fit plane for measurement speed of 122,000 points/sec.
3. Ranging error is defined as a systematic measurement error at around 10m and 25m.
4. It is recommended to perform on-site compensation in the event the unit is exposed to exceptional temperature or mechanical stress.
5. For distances larger 25m add 0.1mm/m of uncertainty.
6. 2x150°, homogeneous point spacing is not guaranteed.
