Artec Metrology Kit Professional

For sale Artec Metrology Kit, A professional photogrammetry solution with metrology-grade precision and high-end volumetric accuracy for inspection, reverse engineering, etc

$29,500

Brand new condition

Contact to buy

For sale Artec Metrology Kit, A professional photogrammetry solution with metrology-grade precision and high-end volumetric accuracy for inspection, reverse engineering, and other industrial measurement applications.

The Artec Metrology Kit Professional version is a 3D optical coordinate measuring system for high-precision industrial applications (deformation analysis, testing, and inspection). The Metrology Kit can operate as a standalone optical measurement solution, or as a referencing tool for even higher 3D scanning accuracy over distance. Using the Metrology Kit plugin, you get the entire 3D scanning + photogrammetry workflow right inside Artec Studio. This 3D metrology solution is flexible enough to integrate into your workflow, delivers perfect results both in your workshop and outdoors, and is compatible with major software like Control X and PolyWorks.

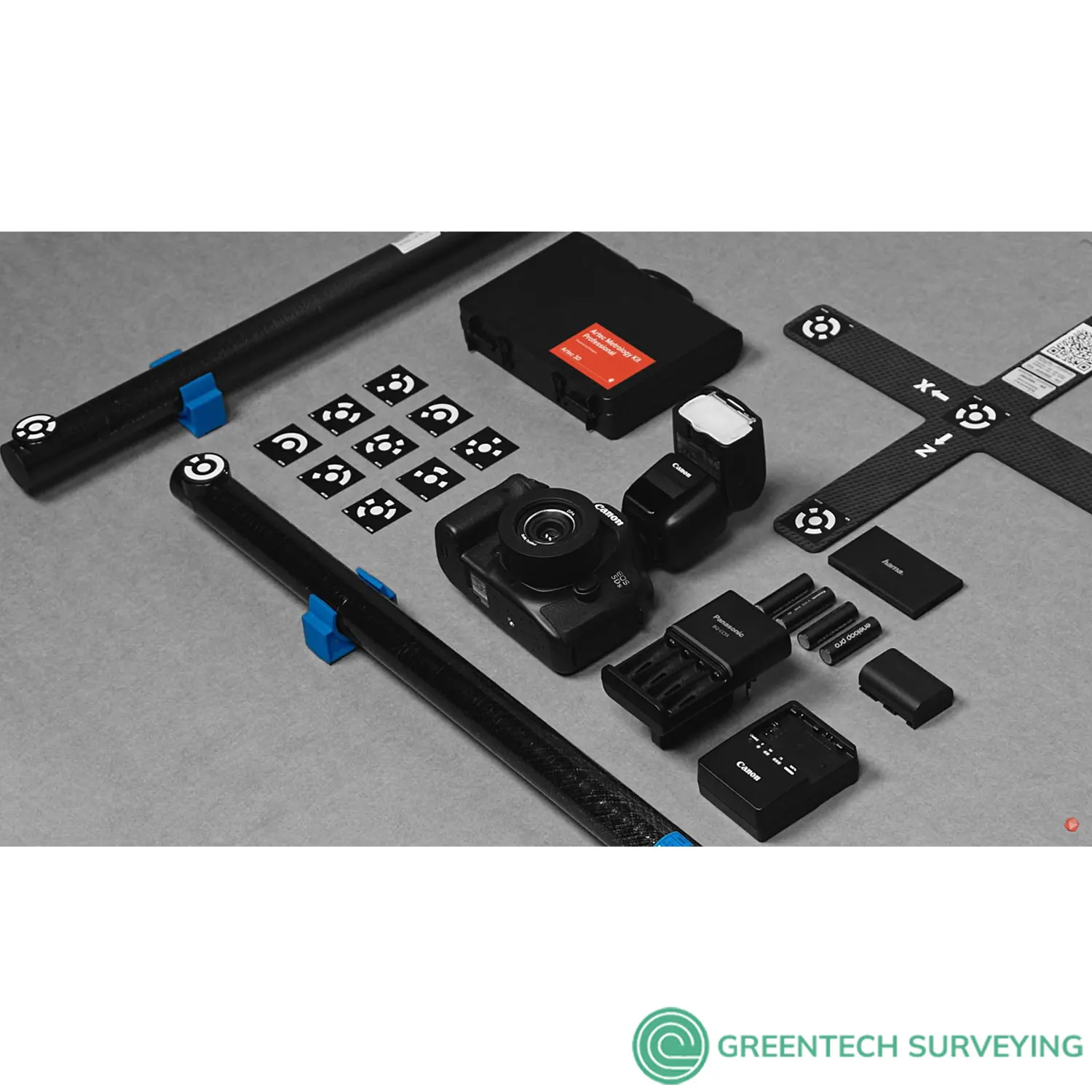

Artec Metrology Kit Professional Package;

  • 30.3-megapixel digital camera
  • Point-based accuracy (RMS) up to 0.002 mm + 0.005 mm/m
  • Length measurement accuracy up to 0.015 mm + 0.015 mm/m
  • Metrology Kit plugin for Artec Studio
  • Adjustable camera settings
    • Additional measurement targets:
      • Adaptors (for features like holes, edges, etc.)
      • Separated reference cross and scale bar for larger and more complex parts

Artec Metrology Kit Entry version package;

  • 20-megapixel digital camera
  • Point-based accuracy (RMS) up to 0.004 mm + 0.006 mm/m
  • Length measurement accuracy up to 0.025 mm + 0.025 mm/m
  • Metrology Kit plugin for Artec Studio
  • Adjustable camera settings
  • Basic range of measurement accessories: targets and scale bars

What is the Artec Metrology Kit?

A 3D optical coordinate measuring system for high-precision industrial applications – think deformation analysis, testing, inspection. The Metrology Kit is flexible enough to integrate into your workflow, delivers perfect results both in your workshop and outdoors, and is compatible with major software like Control X and PolyWorks.

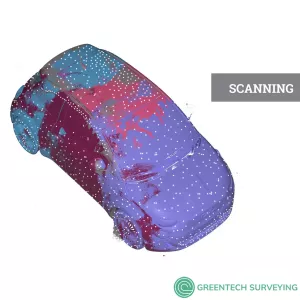

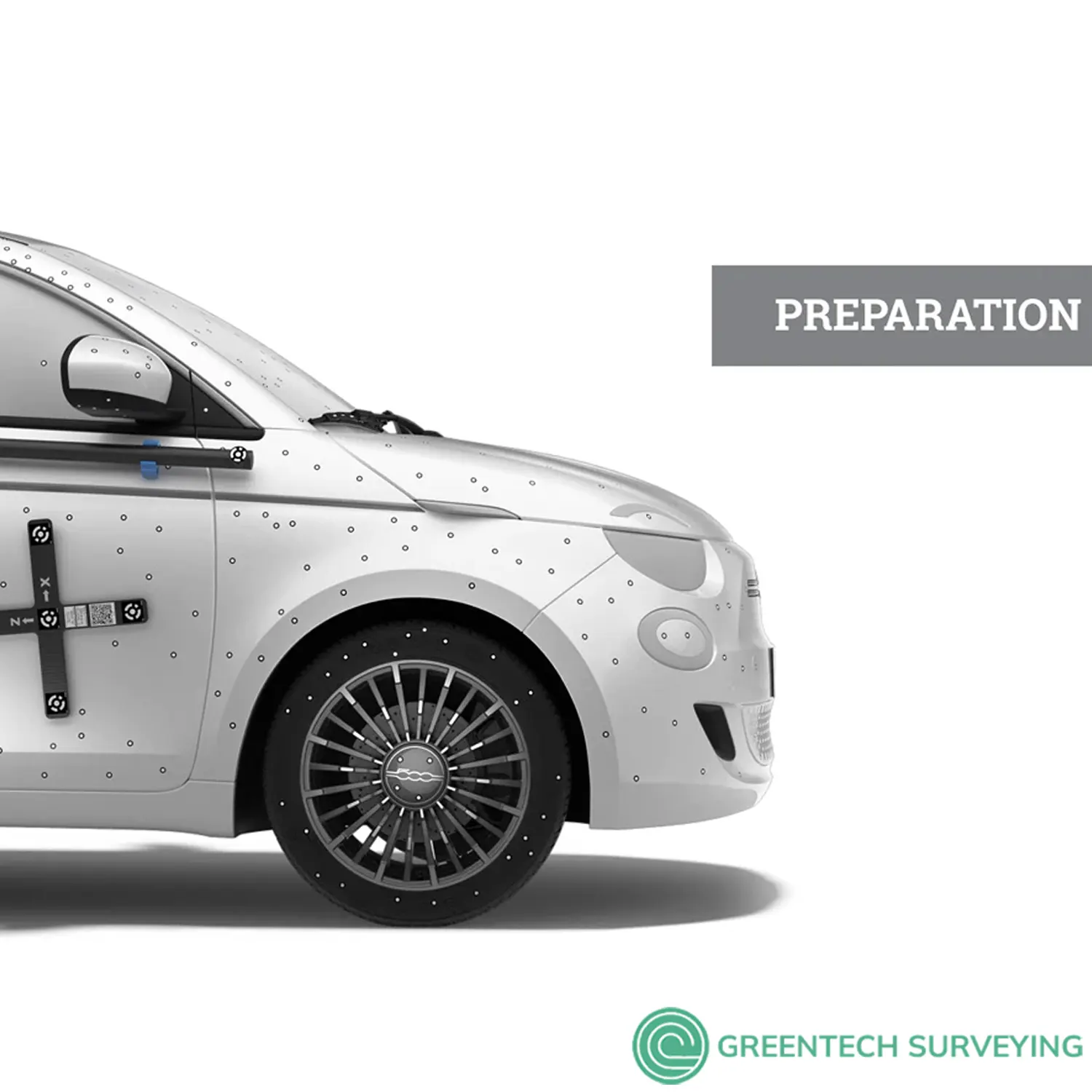

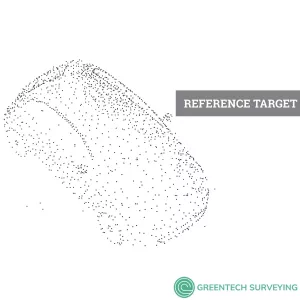

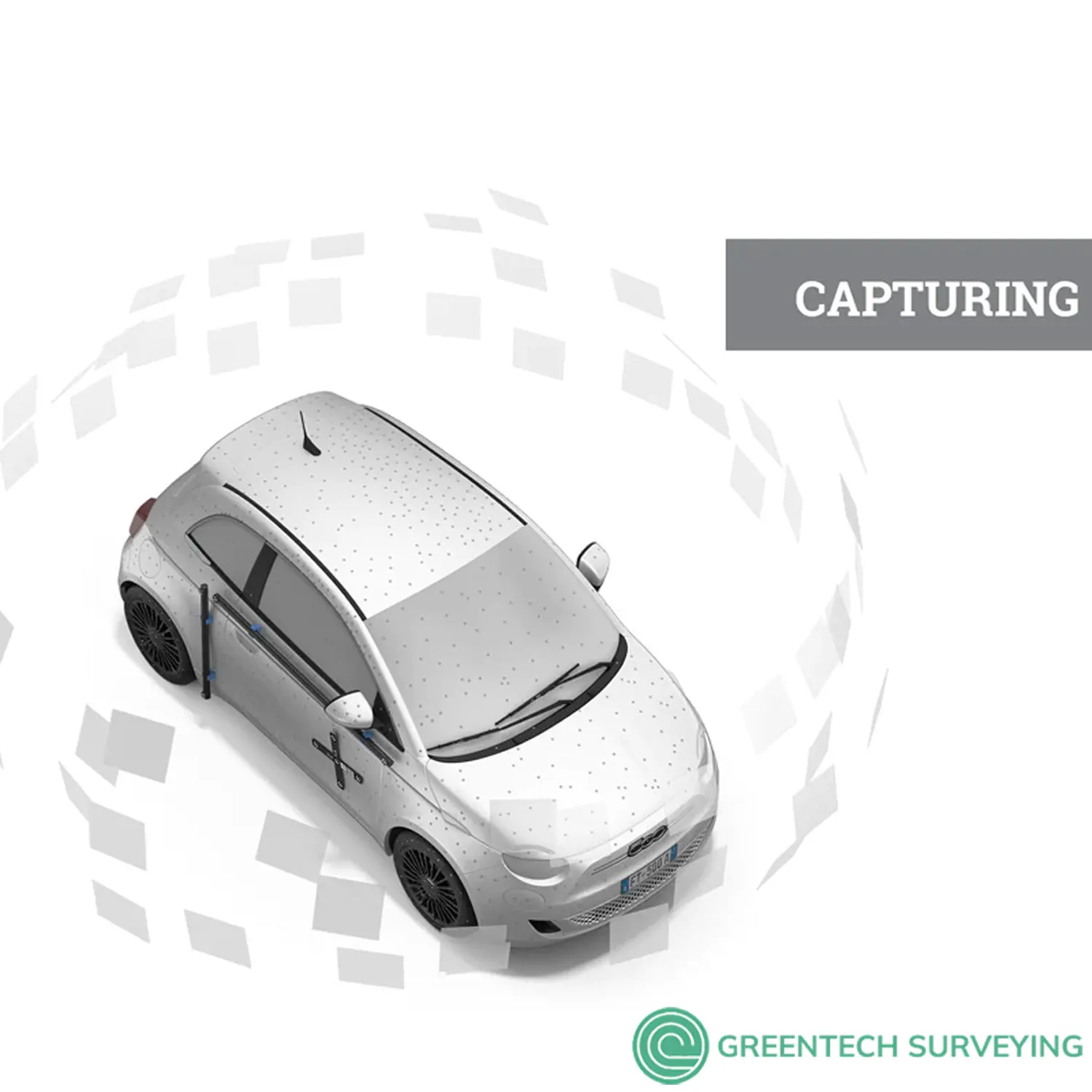

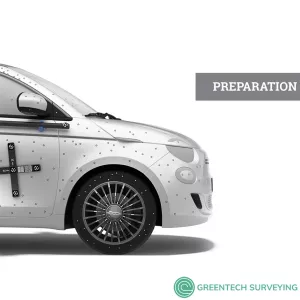

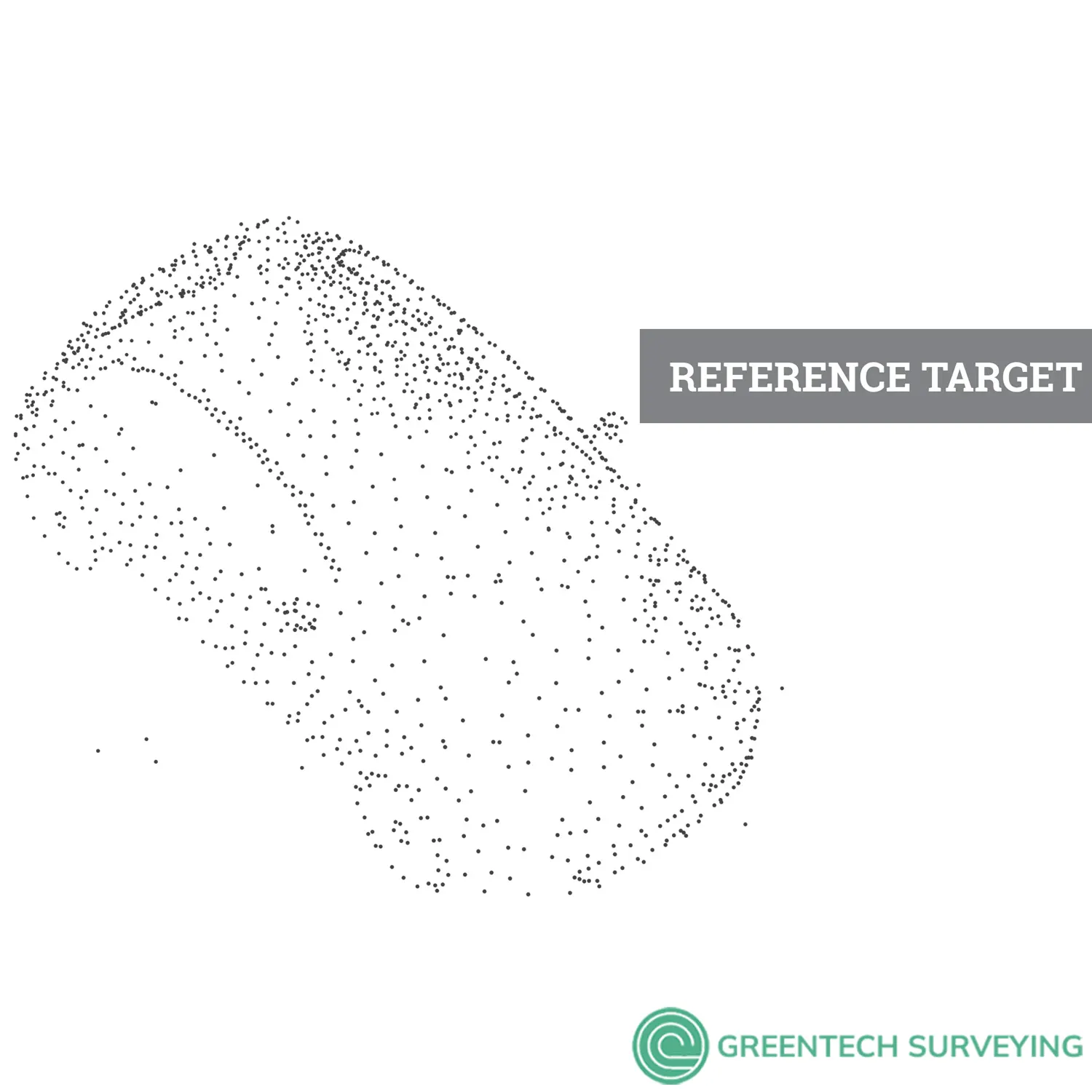

The Metrology Kit can operate as a standalone optical measurement solution, or as a referencing tool for even higher 3D scanning accuracy over distance. Using the Metrology Kit plugin, you get the entire 3D scanning + photogrammetry workflow right inside Artec Studio.

  • DAkkS-certified 6DoF optical measurement: Complete optical coordinate measuring system with accuracy of up to 2 microns. Camera resolution of up to 30.3 megapixels, a 28-mm wide-angle lens, measurement targets, adapters, and scale bars.

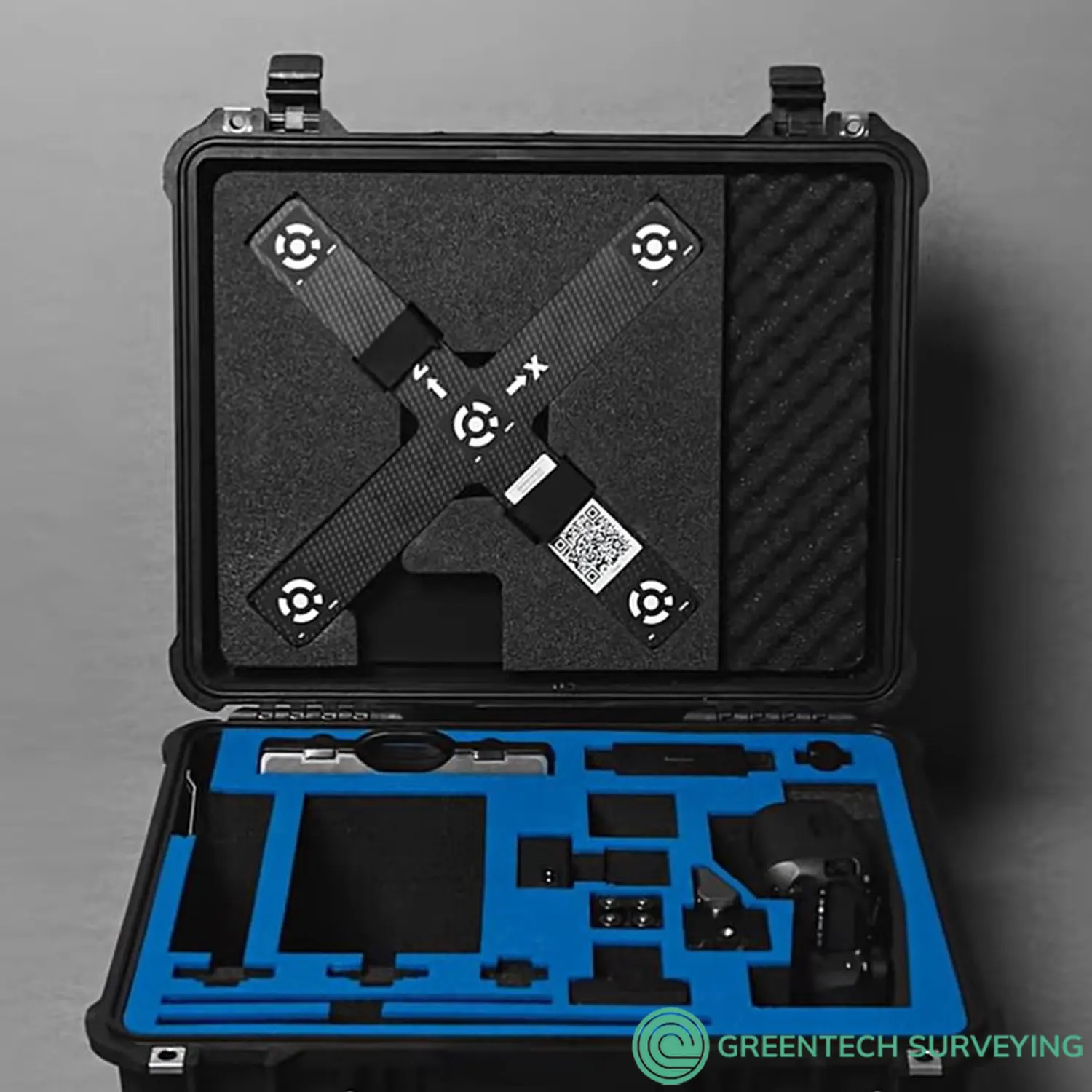

  • Use it anywhere:  The whole kit fits in a rugged, portable case, and with dynamic referencing, you can capture objects in motion – perfect on sites where it’s impractical to use traditional measuring machines and other 3D measurement tools.
  • Compatible with different software: The Artec Metrology Kit is compatible with industry leading software solutions like Geomagic Control X, PolyWorks, and many more.
  • High precision for full confidence: Get much more precise datasets and confidently perform inspection in use cases where requirements on repeatability are high.
  • Incorporate photogrammetry data into your own workflow: Use the Metrology Kit’s data in your own workflow to make comparisons with 3D meshes, CAD entities, and to make highly accurate measurements of distances.
  • Maintain precision in unstable environments: Accurate measurements fulfilling repeatability requirements can be taken during almost any production step – even where the part is in motion. On a hydraulic ramp, for example

Specifications

Technical Eva Eva Lite Space Spider Leo Micro Ray II Metrology Kit Professional Metrology Kit Entry
Scanner type Handheld Handheld Handheld Handheld Desktop Tripod Mobile Mobile
3D point accuracy , up to 0.1 mm 0.1 mm 0.05 mm 0.1 mm 0.01 mm 1.9 mm @10 m
Angular 18” (0.87 mm @ 10 m)
0.002 mm + 0.005 mm/m (RMS)
0.003 mm + 0.007 mm/m (3 sigma)
0.004 mm + 0.006 mm/m (RMS)
0.005 m + 0.009 mm/m (3 sigma)
3D resolution , up to 0.2 mm 0.5 mm 0.1 mm 0.2 mm 0.029 mm 3 / 6 / 12 mm @ 10 m 30.3 megapixels (6720 × 4480) 20.2 megapixels (5472 × 3648)
3D accuracy over distance, up to 0.1 mm + 0.3 mm/m 0.1 mm + 0.3 mm/m 0.05 mm + 0.3 mm/m 0.1 mm + 0.3 mm/m Range noise:
0.4 mm @ 10 m
0.5 mm @20 m
0.003 mm + 0.007 mm/m (3 sigma) 0.005 mm + 0.009 mm/m (3 sigma)
HD Mode Yes No N/A Yes N/A HDR: Automatic, 5 brackets N/A N/A
Hybrid geometry and texture tracking Yes No Yes Yes N/A N/A Targets Targets
Data processing algorithms Geometry and texture based Geometry based Geometry and texture based Geometry and texture based Geometry based Real time registration, Automatic removal of moving objects, Check & Adjust __ __
Working distance 0.4 – 1 m 0.4 – 1 m 0.2 – 0.3 m 0.35 – 1.2 m 0.5 to 130 m __ __
Volume capture zone 61,000 cm³ 61,000 cm³ 2,000 cm³ 160,000 cm³ 324 cm³ 360 degrees 65 × 46° __
Linear field of view, H×W @ closest range 214 × 148 mm 214 × 148 mm 90 × 70 mm 244 × 142 mm __ __ __
Linear field of view, H×W @ furthest range 536 × 371 mm 536 × 371 mm 180 × 140 mm 838 × 488 mm __ __ __
Angular field of view, H×W 30 × 21° 30 × 21° 30 × 21° 38.5 × 23° __ __ __
Ability to capture texture Yes No Yes Yes Yes Yes Yes Yes
Texture resolution 1.3 mp 1.3 mp 2.3 mp 6.4 mp 36 mp 30.3 mp 20.2 mp
Colors 24 bpp 24 bpp 24 bpp 24 bpp 432 MPx raw data 30.3 megapixels (6720 × 4480) 20.2 megapixels (5472 × 3648)
3D reconstruction rate for real-time fusion, up to 16 fps 16 fps 7.5 fps 22 fps __ __ __
3D reconstruction rate for 3D video recording, up to 16 fps 16 fps 7.5 fps 44 fps __ __ __
3D reconstruction rate for 3D video streaming, up to 80 fps __ Up to 8 images per second Up to 4 images per second
Data acquisition speed,
up to
18 mln points/s 2 mln points/s 1 mln points/s 35 mln points/s 1 mln points/s Up to 2,000,000 pts/sec
3D exposure time 0.0002 s 0.0002 s 0.0002 s 0.0002 s Customizable __ __ __
2D exposure time 0.00035 s 0.00035 s 0.0002 s 0.0002 s Customizable __ __ __
3D light source Flashbulb Flashbulb Blue LED VCSEL Blue LED 36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300° spherical image Canon EOS R Canon EOS 6D
2D light source White 12 LED array White 12 LED array White 6 LED array White 12 LED array RGB LED LiDAR White-light flash White-light flash
Position sensors Built-in 9 DoF inertial system Visual Inertial System (VIS), Altimeter, compass, and Global Navigation Satellite System.
Display/touchscreen USB streaming through external computer USB streaming through external computer USB streaming through external computer Integrated 5.5” half HD, CTP. Optional Wi-Fi/Ethernet
video streaming to external device
USB streaming through
external computer
Onboard screen __ __
Multi-core processing On external computer On external computer On external computer Embedded processors: NVIDIA® Jetson™ TX2 Quad-core ARM®
Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS
GPU with 256 NVIDIA® CUDA® Cores
On external computer On external computer __ __
Interface 1 × USB 2.0, USB 3.0 compatible 1 × USB 2.0, USB 3.0 compatible 1 × USB 2.0, USB 3.0 compatible Wi-Fi, Ethernet USB 3.0 Wireless: Integrated wireless LAN (802.11 b/g/n) __ __
Internal hard drive 512 GB SSD AS256, 256 GB/USB 3.0 flash drive __ __
Computer requirements Visit the Artec Support Center for
detailed hardware requirements.
Visit the Artec Support Center for
detailed hardware requirements.
Visit the Artec Support Center for
detailed hardware requirements.
Visit the Artec Support Center for
detailed hardware requirements.
Visit the Artec Support Center for
detailed hardware requirements.
Visit the Artec Support Center for
detailed hardware requirements.
Visit the Artec Support Center for
detailed hardware requirements.
Visit the Artec Support Center for
detailed hardware requirements.
Supported OS Windows 8.1, 10 (x64), Windows 11 Windows 8.1, 10 (x64), Windows 11 Windows 8.1, 10 (x64), Windows 11 Scanning: No computer required
Data processing: Windows 8.1, 10 (x64), Windows 11
Windows 10 (x64) Windows 8.1, 10 (x64), Windows 11 Windows 8.1, 10 (x64), Windows 11 Windows 8.1, 10 (x64), Windows 11
Recommended computer requirements Intel Core i7 or i9, 64+ GB RAM,
NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+
Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+ Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+ Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+ Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+ Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+
Minimum computer requirements HD: Intel Core i7 or i9, 32 GB RAM,
NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM
SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM
Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM Intel Core i5, i7 or i9, 18 GB RAM, GPU with 2 GB VRAM HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM
SD: Intel Core i5, i7 or i9, 32 GB RAM, GPU with 2 GB VRAM
A computer is needed only for data processing. Scanning does not require a computer.
Intel Core i5, i7 or i9, 32GB RAM, GPU with 2 GB VRAM HD: Intel Core i7 or i9, 32 GB RAM,
NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM
SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM
HD: Intel Core i7 or i9, 32 GB RAM,
NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM
SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM
HD: Intel Core i7 or i9, 32 GB RAM,
NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM
SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM
Output formats
3D mesh OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD STEP, IGES, X_T STEP, IGES, X_T STEP, IGES, X_T STEP, IGES, X_T STEP, IGES, X_T STEP, IGES, X_T STEP, IGES, X_T STEP, IGES, X_T
Measurements CSV, DXF, XML CSV, DXF, XML CSV, DXF, XML CSV, DXF, XML CSV, DXF, XML CSV, DXF, XML CSV, DXF, XML CSV, DXF, XML
Power source and dimensions
Power source AC power
or external battery pack
AC power
or external battery pack
AC power
or external battery pack
Built-in exchangeable battery, optional AC power AC power Internal Battery
2 × AEB364 internal, rechargeable Li-Ion batteries, up to 4 hours
Li-ion battery Li-ion battery
Dimensions, H×D×W 262 × 158 × 63 mm 262 × 158 × 63 mm 190 × 140 × 130 mm 231 × 162 × 230 mm 290 × 290 × 340 mm   520 × 430 × 250 mm 870 × 230 × 170 mm
Weight 0.9 kg / 2 lb 0.9 kg / 2 lb 0.8 kg / 1.8 lb 2.6 kg / 5.7 lb 12 kg / 2   5.35 kg / 11.7 lbs, 12 kg / 26.5 lb
