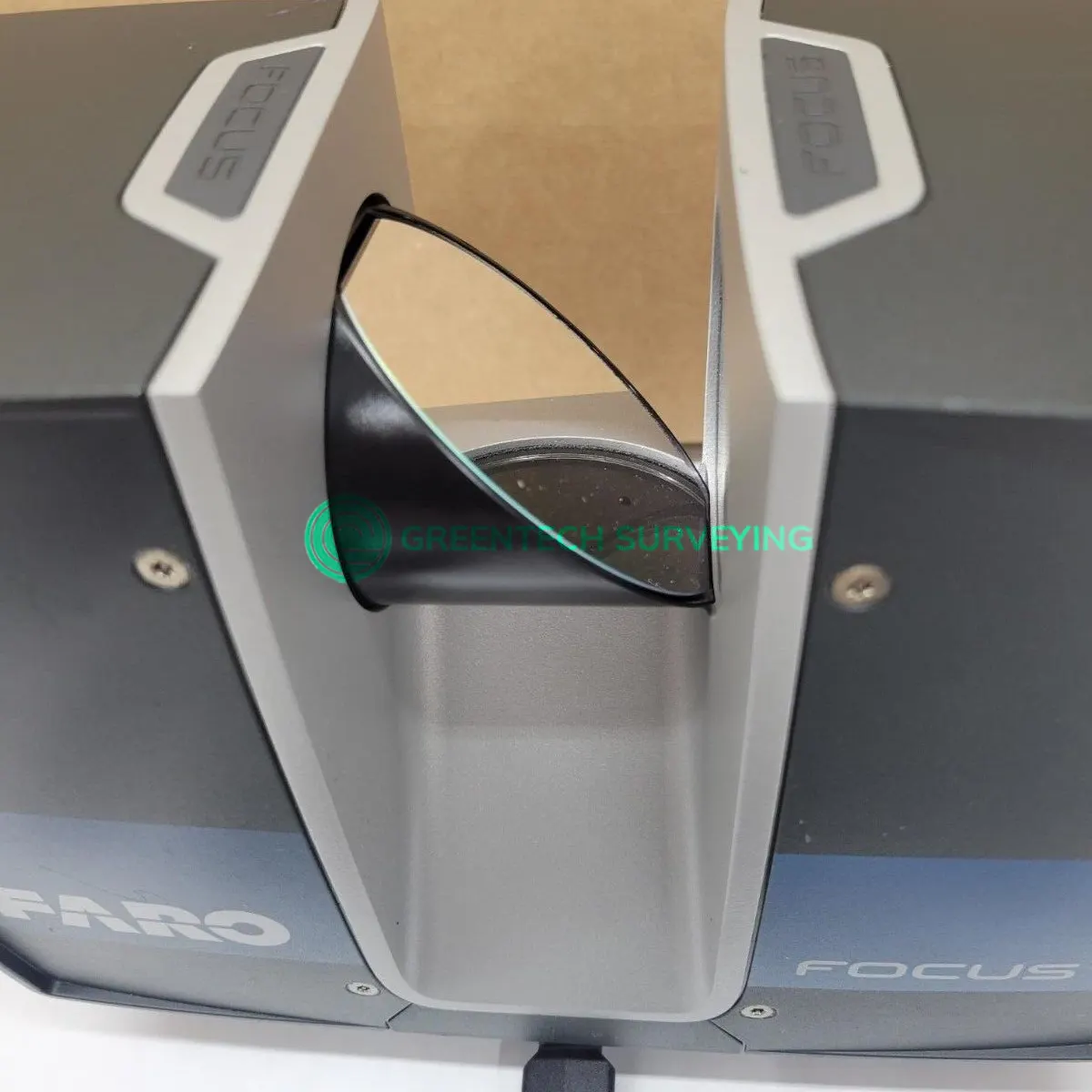

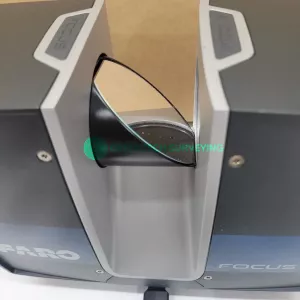

Used FARO Focus S70 3D Scanner

Pre-owned FARO Focus S70 3D Scanner for sale, everything is in very good condition and ready for its next project, Already serviced and calibrated by FARO authorized

$8,500

Used condition

Contact to buy

Pre-owned FARO Focus S70 3D Scanner for sale, everything is in very good condition and ready for its next project. Already serviced and calibrated by FARO authorized with calibration certificate, software updated and meet the FARO working spesification.

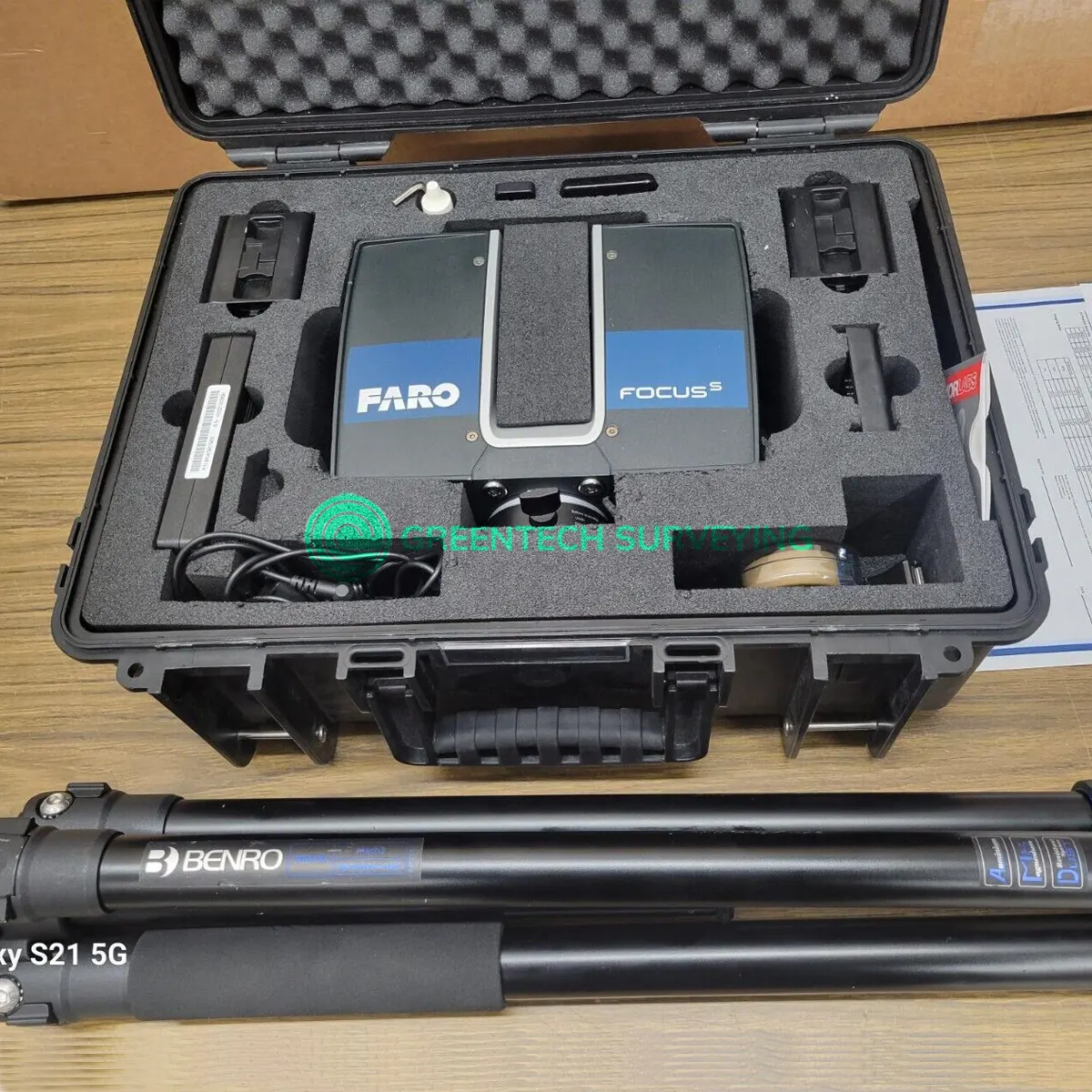

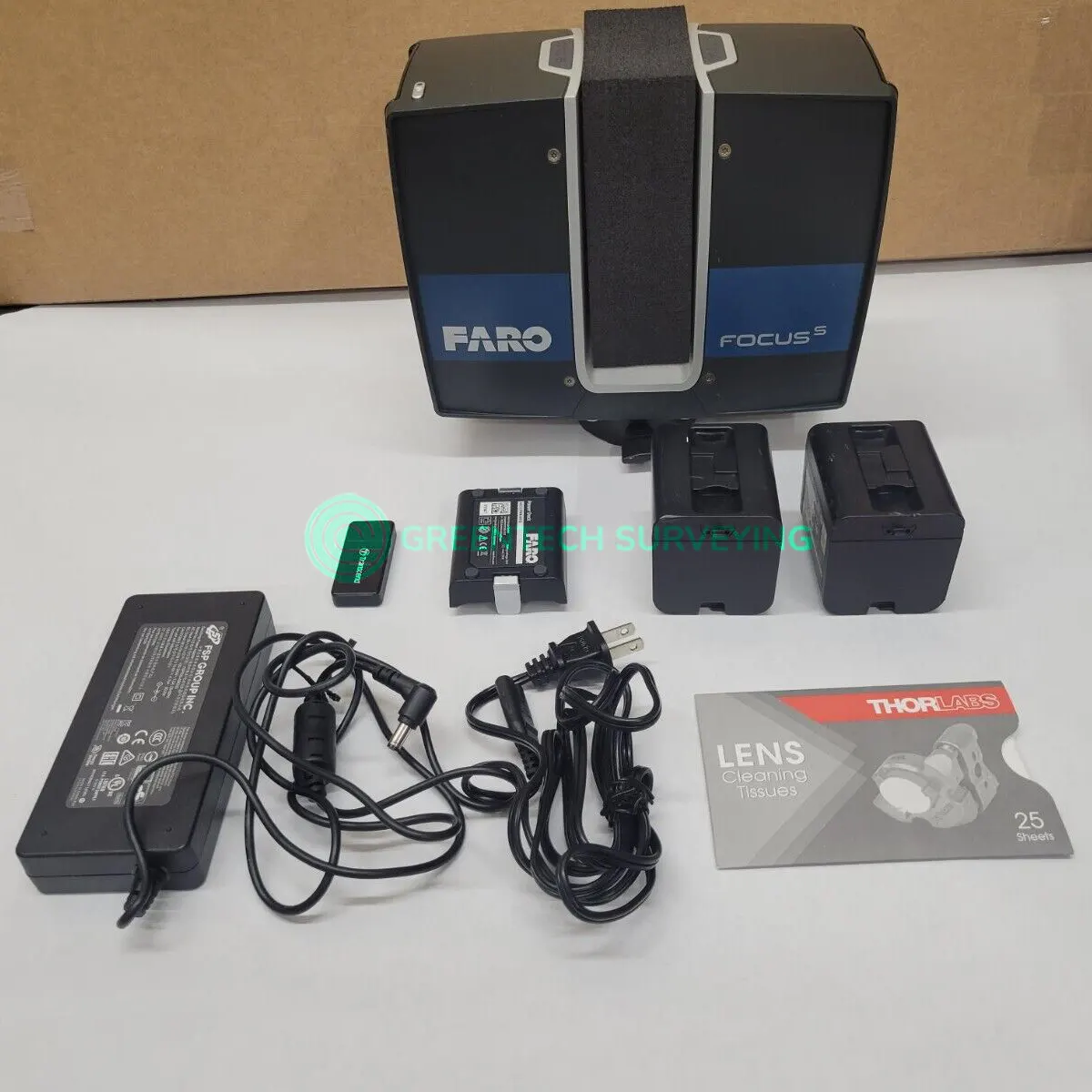

Package includes

  • FARO Focus S70 3D Scanner
  • FARO SCENE software license
  • 1x Quick Release
  • 2x Power Block Battery
  • 1x Battery Power Dock
  • 1x Power Supply
  • 1x 16GB SD card and reader

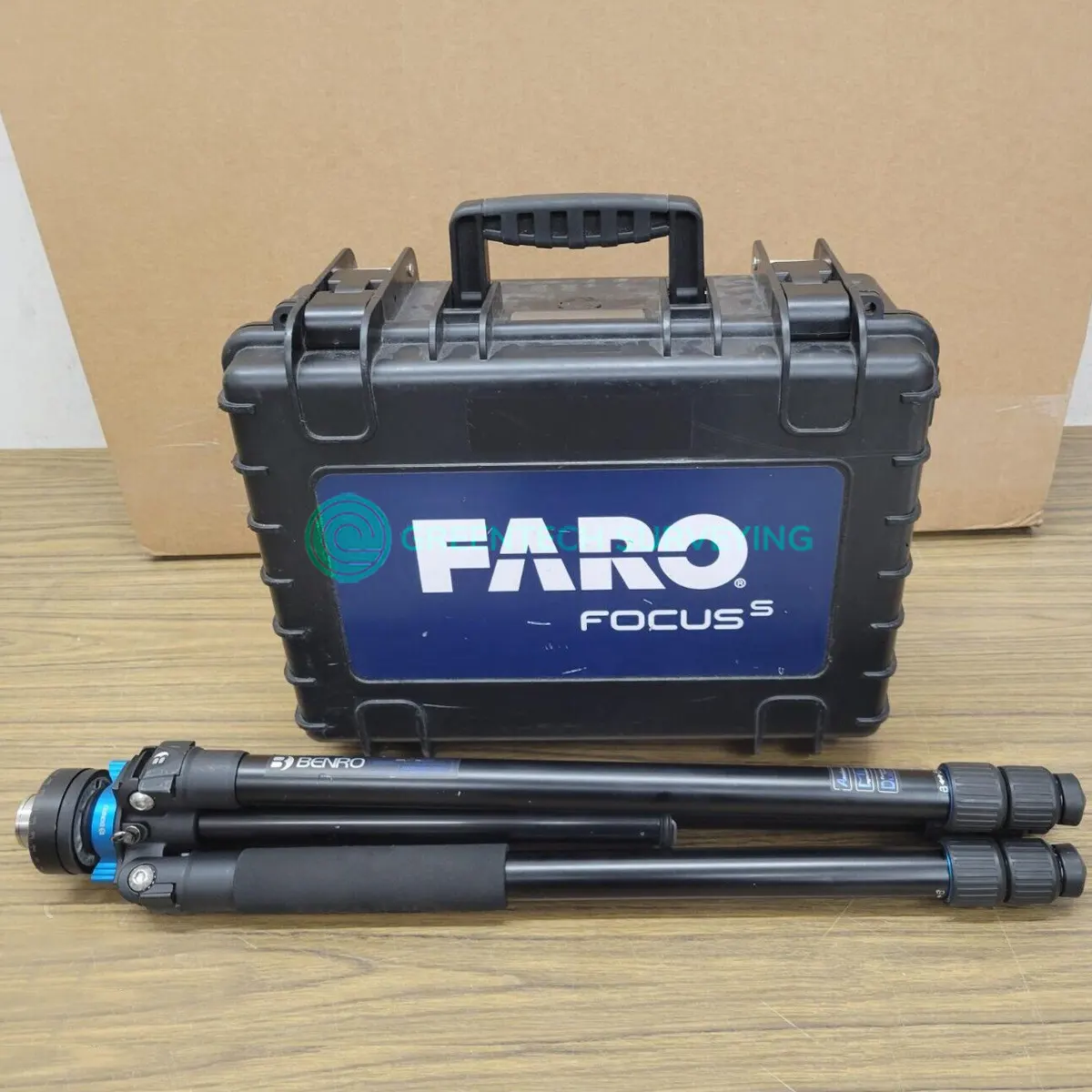

  • 1x rugged transport case
  • Photo Tripod
  • Calibration Certificate
  • Manufacturer Warranty -

 FARO Focus S70 Laser Scanner

The Most Compact, Lightweight and Intuitive Laser Scanner Product Series

FARO Focus Laser Scanner S70. The device has latest technology for applications in Architecture, Engineering, Construction, Public Safety and Forensics or Product Design to give precise results.

With scan speed of 97 Hz, 165 megapixel color resolution, and an angular accuracy of 19 arcsec,  FARO Focus S70 will give fast, accurate and HDR measurements to improve projects and product quality. Certified with Ingress Protection (IP) Rating for environmental protection, the device is designed to sustain rain, dust, fog and give the same precise results. It also has On-Site Registration feature which comes handy in outdoor measurements as the scan data is wirelessly transmitted to FARO SCENE, providing flexibility and time savings.

Features

Accuracy: Highest accuracy and range by using a combination of the most advanced sensor technologies.
Rescanning of Distant Targets:The Scan Group feature identifies multiple areas to be rescanned with higher resolution to either perform accurate target detection or to capture smaller areas of interest with greater detail.
IP Rating 54 and Extended Temperature Range: With the sealed design and certified with the industry standard Ingress Protection (IP) Rating, IP54, the Focus can be used in wet weather conditions at temperatures from -20°C to 55°C8.
Compact and Portable: Focus Laser Scanners are the smallest and lightest devices in their performance class.
On-Site Compensation: With the on-site compensation functionality, users can verify and adjust the Focus S compensation immediately before scanning, ensuring high-quality scan data and traceable documentation.
On-Site Registration: During on-site data capture, the laser scanner immediately transmits scan data wirelessly to FARO SCENE for real-time scan processing and registration, providing efficiency and time savings.

Benefits

  • Confidence in documented data-quality by traceable calibration and market-leading on-site compensation.
  • Scan in challenging environments while providing protection from dust, debris and water splashes. Mount the Focus S scanner in an inverted position, such as under a ceiling of
    a hall.
  • The Focus Laser Scanner portfolio offers the most economic 3D scanning solution for all requirements and budgets.
  • Minimum training effort is ensured by the intuitive and easy to operate touch-screen interface as well as hands-on and online tutorials.
  • Efficient integration into existing software infrastructures and workflows are provided by interfaces to various standard CAD systems.

Performance specifications

Ranging Unit

Unambiguity Interval 614m for up to 0.5 mil pts/sec
307m at 1 mil pts/sec

Range

90% Reflectivity (white) 0.6 - 70m
10% Reflectivity (dark-gray) 0.6 - 70m
2% Reflectivity (black) 0.6 - 50m
Range Noise (mm)
@10m 90% (white) 0.3
@10m 10% (dark-gray) 0.4
@10m 2% (black) 1.3
@25m 90% (white) 0.3
@25m 10% (dark-gray) 0.5
@25m 2% (black) 2.0
Max. Measurement Speed (mil. pts/sec) Up to 1
Ranging Error (mm) ±1
Angular Accuracy 19 arcsec for vertical/horizontal angles
3D Point Accuracy 2 @10m 3.5 @25m

Color Unit

Color Resolution Up to 165-megapixel color
HDR Camera Exposure bracketing 2x, 3x, 5x
Parallax Minimized due to co-axial design
Deflection Unit
Field of View Vertical: 300°
Horizontal: 360°
Step Size Vertical: 0.009 (40,960 3D-pixel on 360°)
Horizontal: 0.0009 (40,960 3D-pixel on 360°)
Max. Scan Speed 97Hz (vertical)

Laser (Optical Transmitter)

Laser Class Class 1
Wavelength 1550nm
Beam Divergence 0.3mrad (1/e)
Beam Diameter at Exit 2.12mm (1/e)

Data Handling and Control

Data Storage SDHCTM, SDXCTM; 32GB; max. 512GB card
Scanner Control Via touch screen display and WLAN connection, Access by mobile devices with HTML5
Interface Connection
WLAN 802.11n (150Mbit/s), as access point or client in existing networks
Additional Features
Dual Axis Compensator Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2°
Height Sensor Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan
Compass The electronic compass gives the scan an orientation
GNSS Integrated GPS & GLONASS
On-Site Compensation Creates current quality report and improves compensation automatically
Accessory Bay The accessory bay connects versatile accessories to the scanner
Inverse Mounting Yes
Real-time, On-site Registration in SCENE Connects to SCENE, real-time scan processing and registration, overview map
Electronic Automation Interface Available as option, only at point of sale
Digital Hash Function Scans are cryptographically hashed and signed by the scanner
Rescanning of Distant Targets Defined areas recaptured in higher resolution at a greater distance
Retake Photos Select individual photographs with unwanted objects and retake them
General Specifications
Power Supply 19V (external supply), 14.4V (internal battery)
Power Consumption 15W idle, 25W scanning, 80W charging
Battery Service Life 4.5 hours
Temperature Operating: 5° - 40°C
Extended Operating: -20° - 55°C
Storage: -10°- 60°C
Ingress Protection (IP) Rating Class IP54
Humidity Resistance Non-condensing
Maintenance / Calibration Recommended annual
Dimensions 230 x 183 x 103mm
Weight 4.2 kg (including battery)
