GNSS TECHNOLOGY
|
|
Self-learning GNSS
|
Leica RTKplus
SmartLink (worldwide correction service)
SmartLink fill (worldwide correction service)
|
Adaptive on-the-fly satellite selection
Remote precise point positioning (3 cm 2D)
Initial convergance to full accuracy 20 - 40 min, Re-convergance < 1 min
Bridging of RTK outages up to 10 min (3 cm 2D)
|
| Leica SmartCheck |
Continuous check of RTK solution |
Reliability 99.99% |
| Signal tracking |
|
GPS (L1, L2, L2C, L5), Glonass (L1, L2, L32),
BeiDou (B1, B2, B32), Galileo (E1, E5a, E5b, Alt-BOC, E62),
QZSS3, NavIC L53, SBAS (WAAS, EGNOS, MSAS, GAGAN), L-band |
| Number of channels |
|
555 (more signals, fast acquisition, high sensitivity) |
| MEASUREMENT PERFORMANCE & ACCURACY |
| Time for initialization |
|
Typically 4 s |
| Real-time kinematic |
| Single baseline |
| Network RTK |
|
| Hz 8 mm + 1 ppm / V 15 mm + 1 ppm |
| Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm |
|
| Post processing |
| Static (phase) with long observations |
| Static and rapid static (phase) |
|
| Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm |
| Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm |
|
| Code differential |
DGPS / RTCM |
Typically 25 cm |
| COMMUNICATIONS |
| Communication ports |
|
| USB and RS232 serial |
| Bluetooth® v2.00 + EDR, class 2 |
|
| Communication protocols |
| RTK data protocols |
| NMEA output |
| Network RTK |
|
| Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM |
| NMEA 0183 V 4.00 and Leica proprietary |
| VRS, FKP, iMAX, MAC (RTCM SC 104) |
|
| Built-in data links |
| 3.5G phone modem |
| Radio modem |
|
| Fully integrated, internal or external antenna |
Fully integrated, receive and transmit, internal or external antenna
403 - 470 MHz, 1 W output power, up to 28800 bps over air |
|
| External data links |
|
GSM / GPRS / UMTS / CDMA and UHF / VHF modem |
| GENERAL |
| Field controller and software |
| Leica Captivate software |
| Leica SmartWorx Viva software |
|

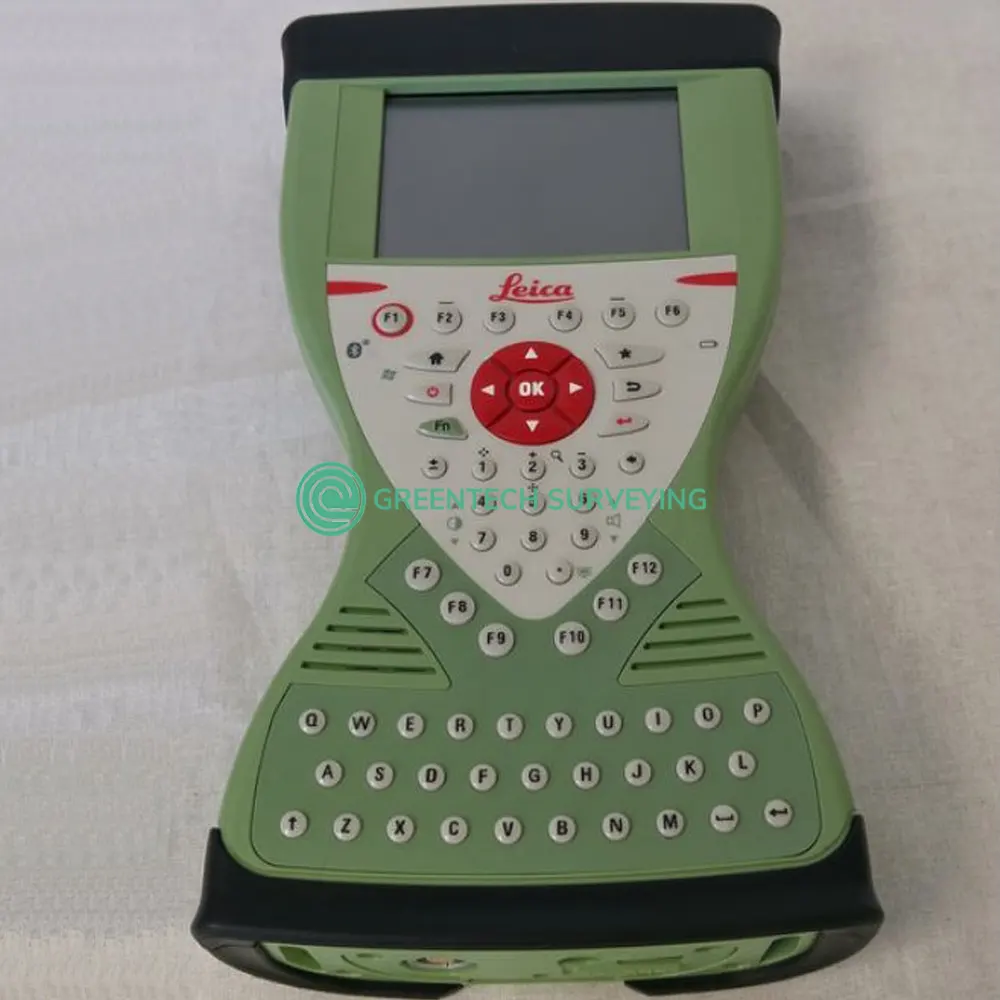

| Leica CS20 field controller, Leica CS35 tablet |

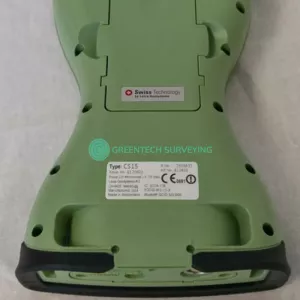

| Leica CS10 and CS15 field controller |
|
| User interface |
| Buttons and LEDs |
| Web server |
|
| On / Off and Function button, 8 status LEDs |
| Full status information and configuration options |
|
| Data recording |
| Storage |
| Data type and recording rate |
|
| 8 GB Removable SD card |
| Leica GNSS raw data and RINEX data up to 20 Hz |
|
| Power management |
| Internal power supply |
| External power supply |
| Operation time |
|

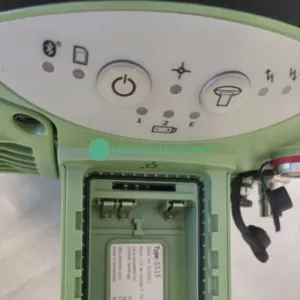

| 2 exchangeable Li-Ion batteries (2.6 Ah / 7.4 V) |
| Nominal 12 V DC, range 10.5 - 28 V DC |
| 10 h receiving (Rx) data with internal radio, 9 h transmitting (Tx) data with internal radio, 7.5 h Rx / Tx data with internal phone modem |
|
| Dimensions and Weight |
|
| 196 mm x 198 mm |

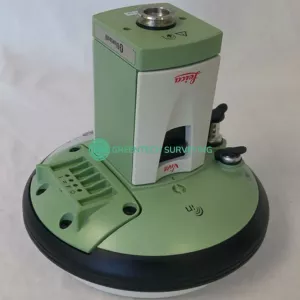

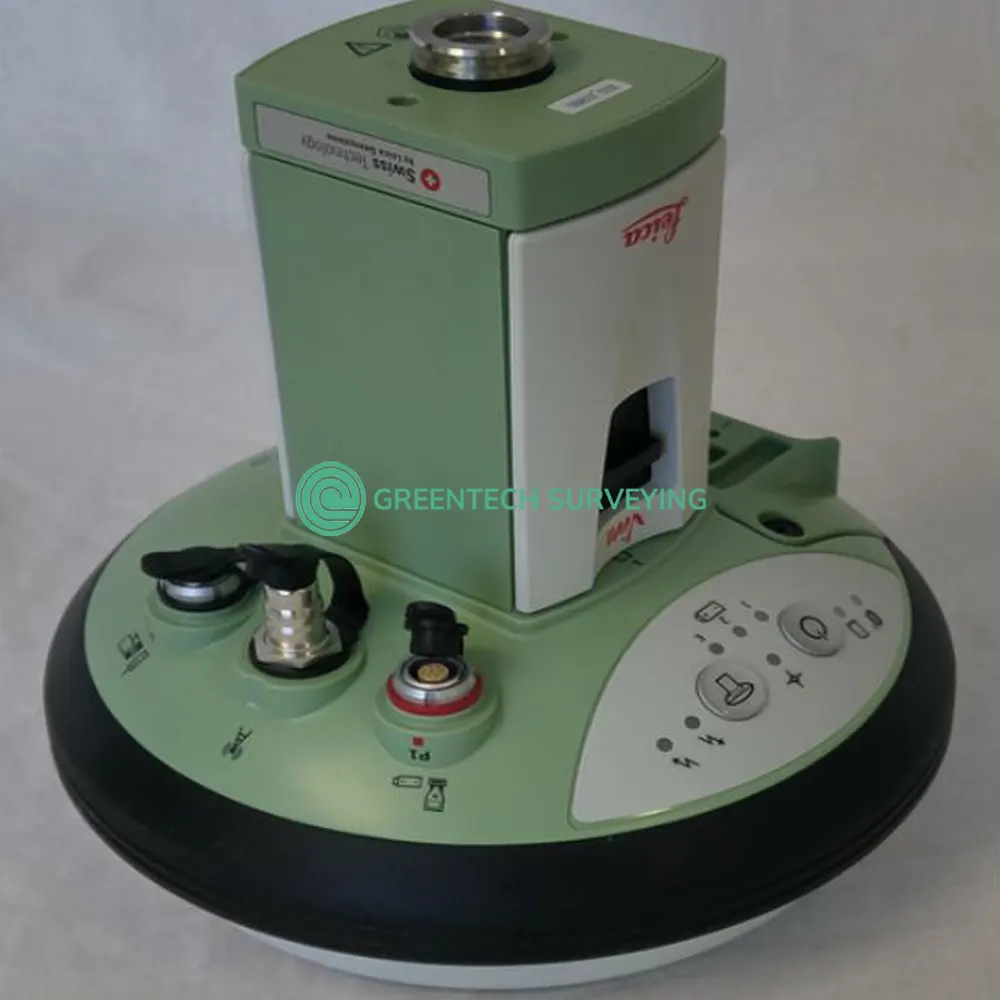

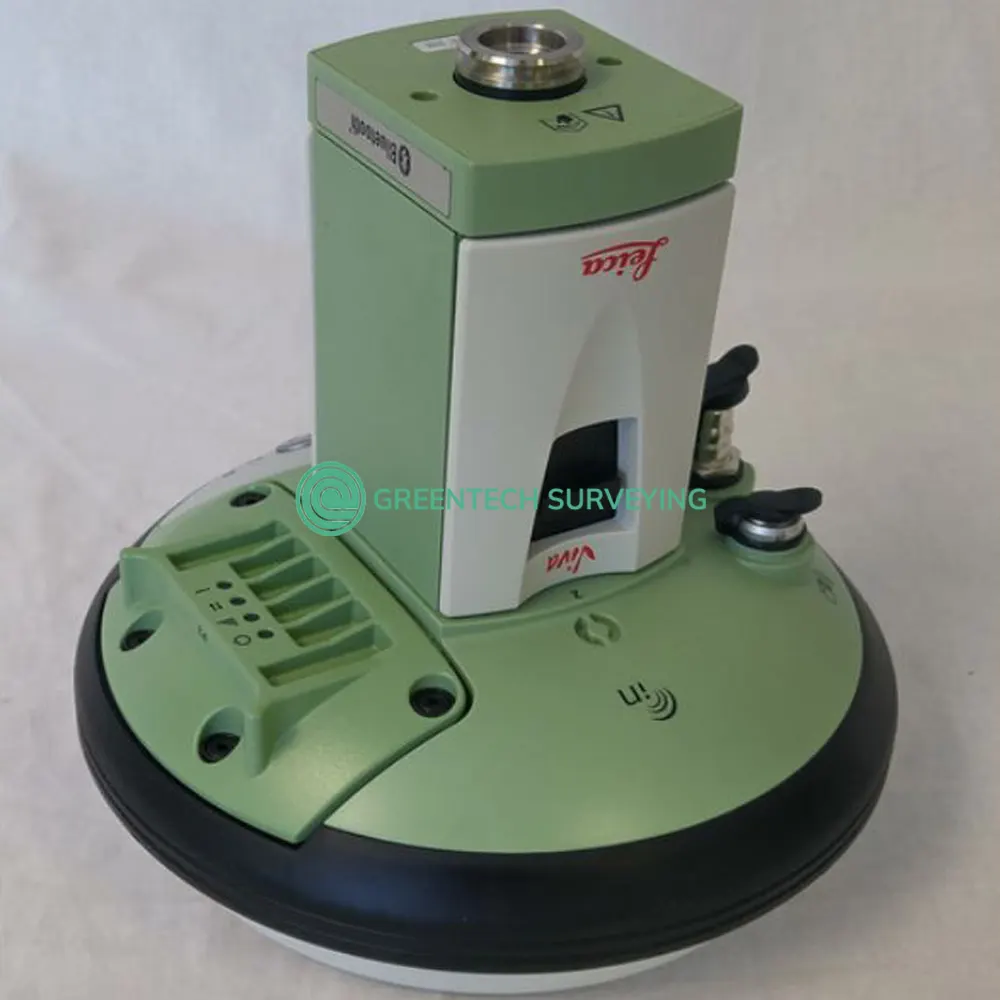

| 1.34 kg (GS15) / 3.30 kg standard RTK rover setup on pole |
|
| Environmental |
- Temperature: -40 to 65°C operating, -40 to 80°C storage
- Drop: Withstands topple over from a 2 m survey pole onto hard surfaces
- Proof against water, sand and dust: IP68
- Vibration: Withstands strong vibration
- Humidity: 100%
- Functional shock: 40 g / 15 to 23 msec
|
