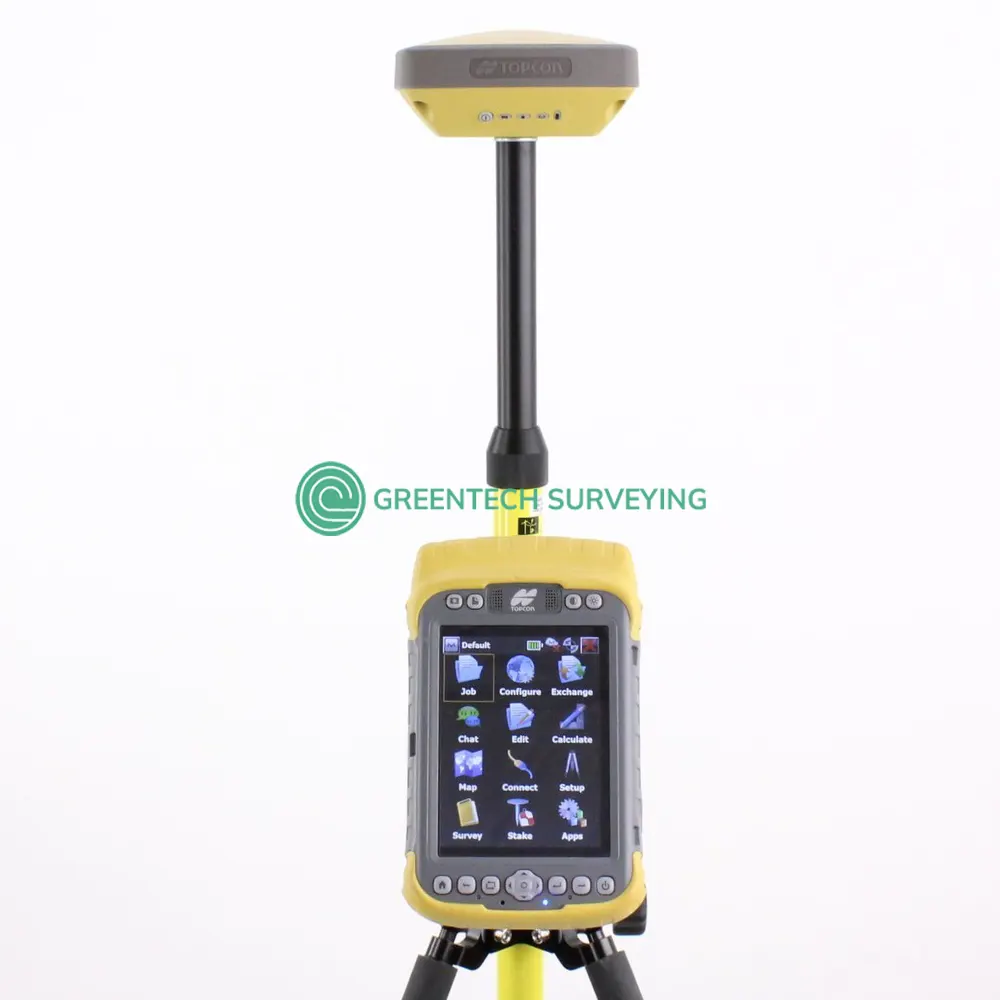

Topcon Hiper SR Base Rover Receiver with Tesla Tablet
Topcon HIPER SR Base/Rover Receiver kit with Tesla Tablet Magnet Field, used in great tested condition. Offer with with a 6 Month Warranty and 14 Day Return.
$2,000
Topcon Hiper SR Base/Rover Receiver, Longlink 300m Bluetooth Modem (Up to 3 simultaneous rovers), Utilizes GPS, GLONASS, QZSS Satellites
Topcon Tesla Tablet, Magnet Field Software Version 3.2.1, GIS, GPS+ Options Enabled, WLAN/ Bluetooth.
Topcon Hiper SR and Tesla Tablet is in great tested condition, with a 6 Month Warranty and 14 Day Return.
Sale includes:

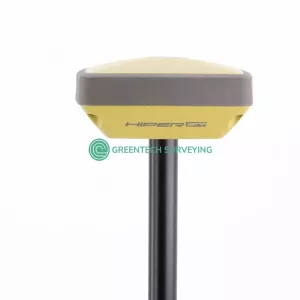

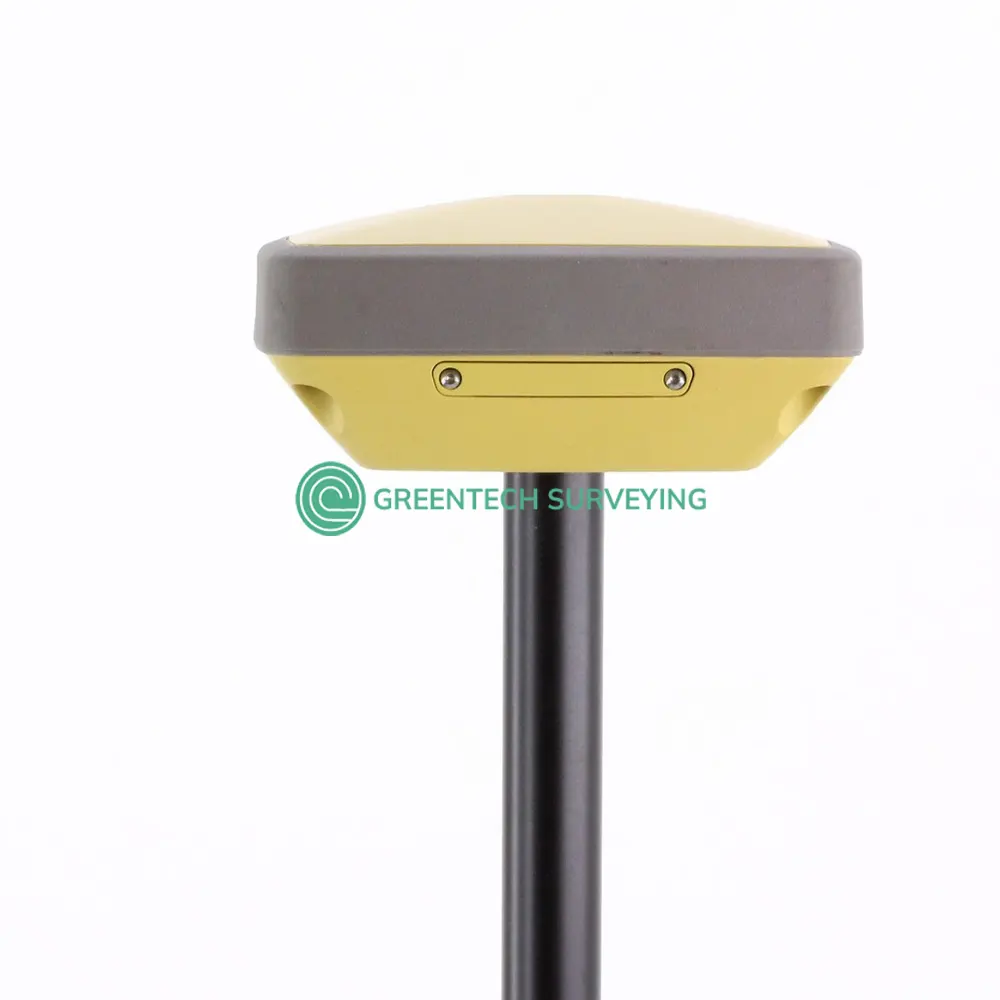

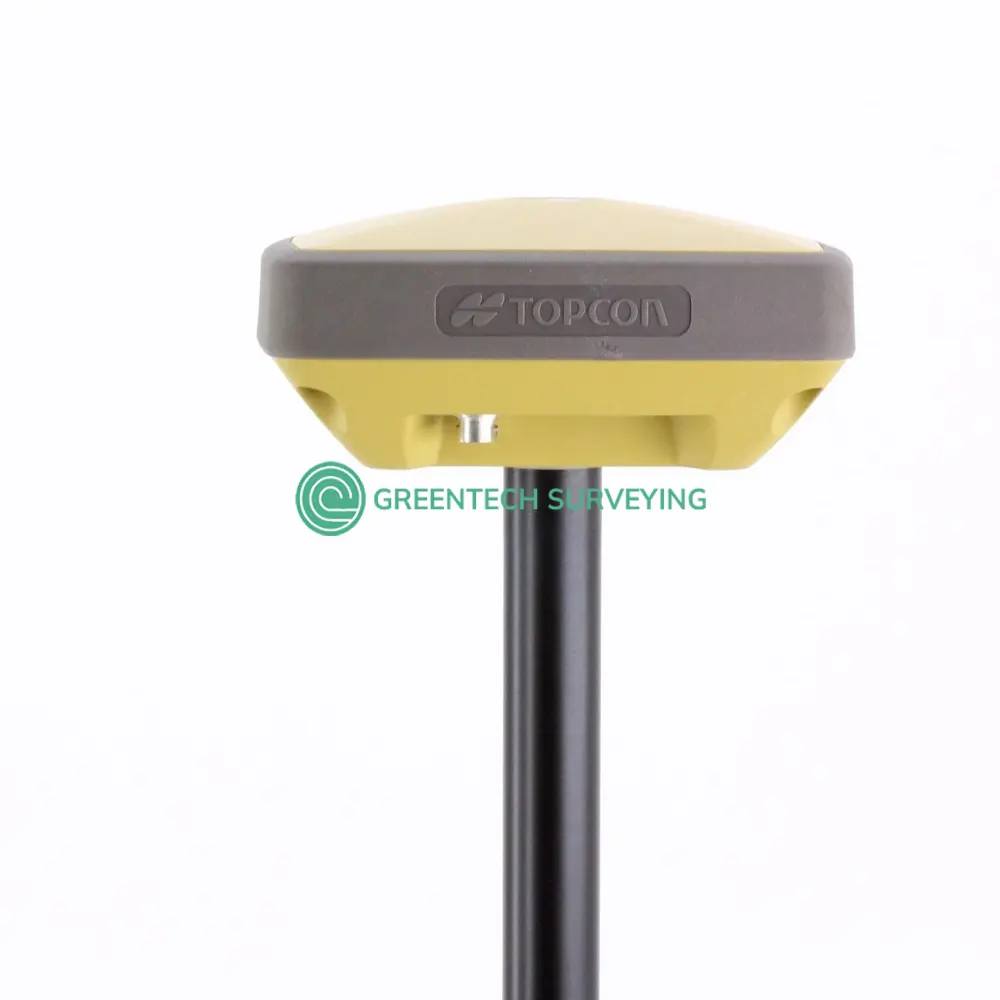

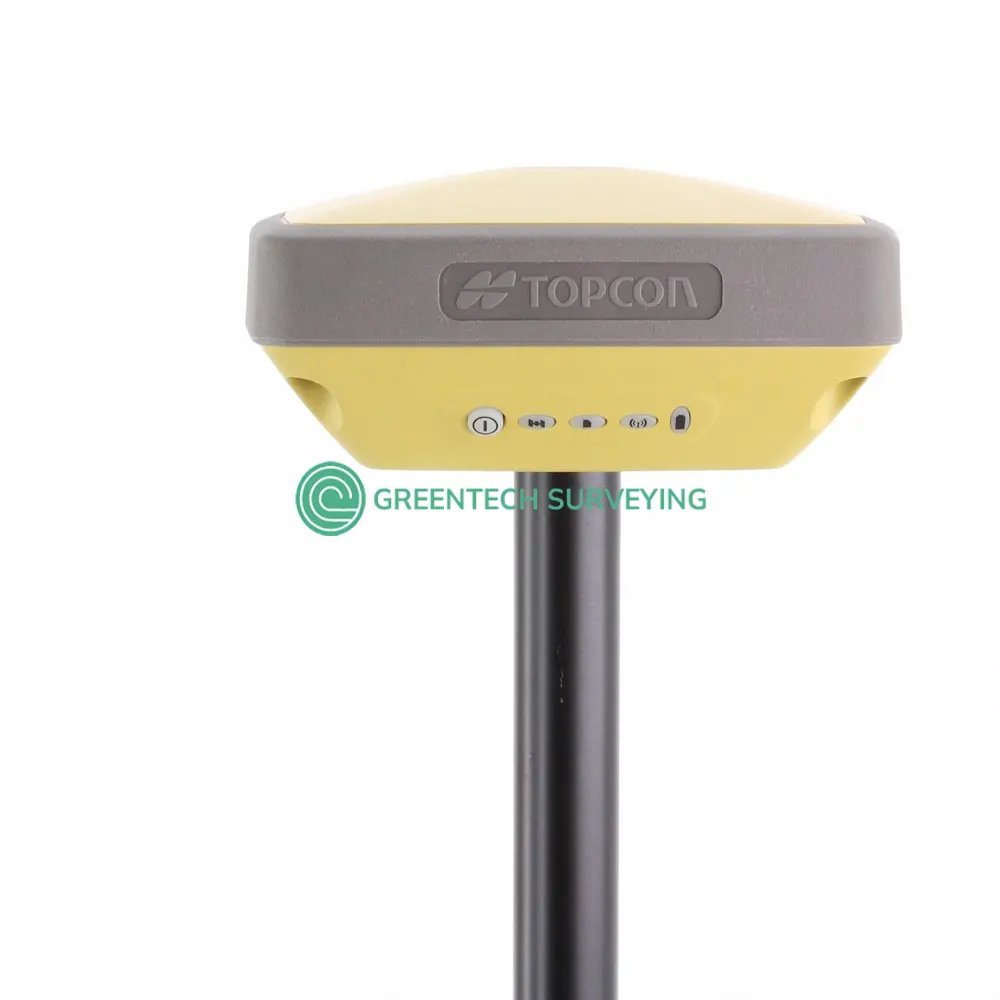

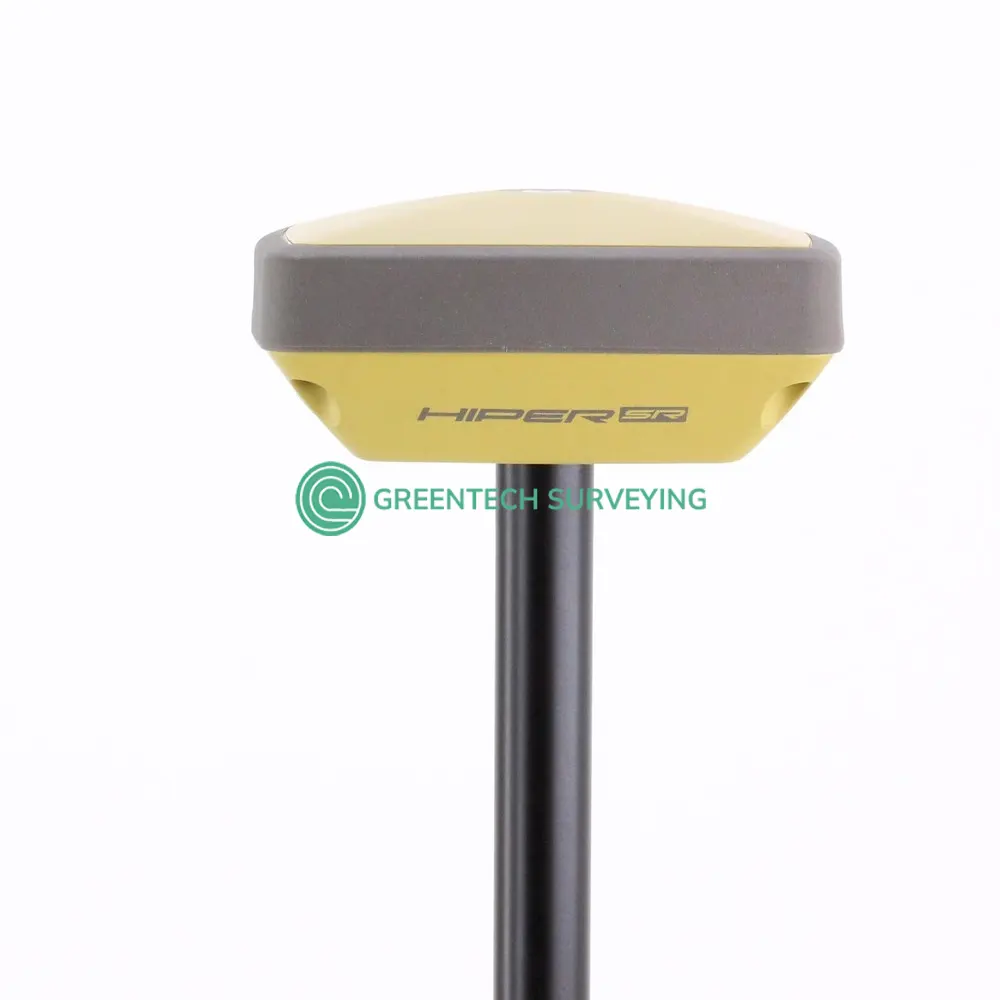

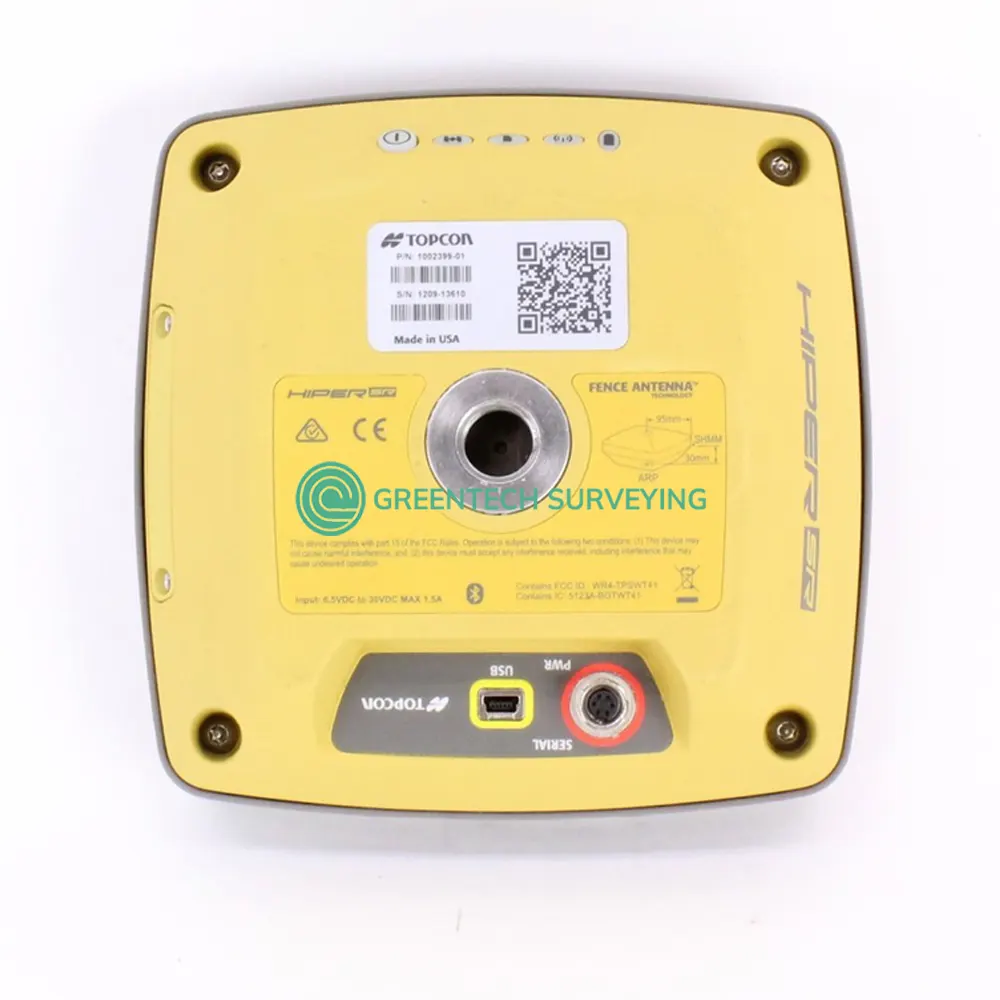

- 1x Topcon Hiper SR Base/Rover Receiver

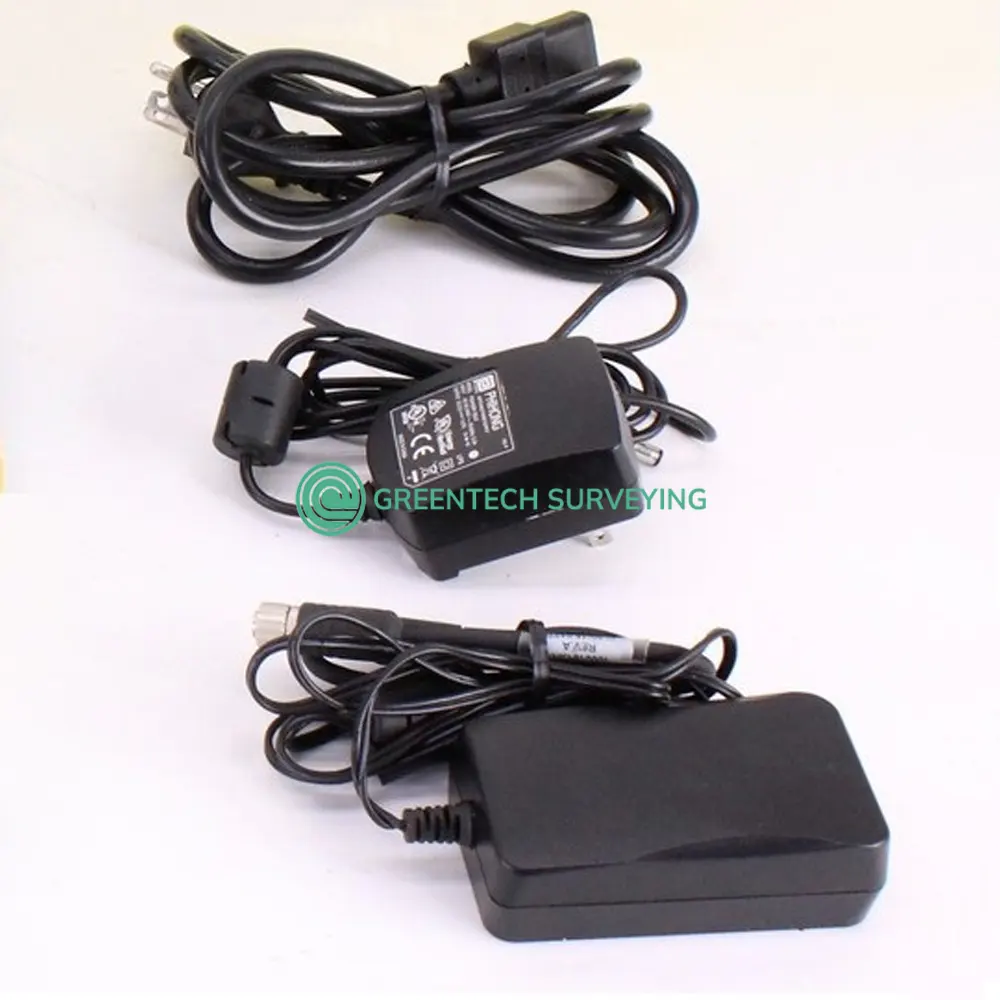

- 1x Topcon Charger for Hiper SR
- 1x Topcon Transport Case

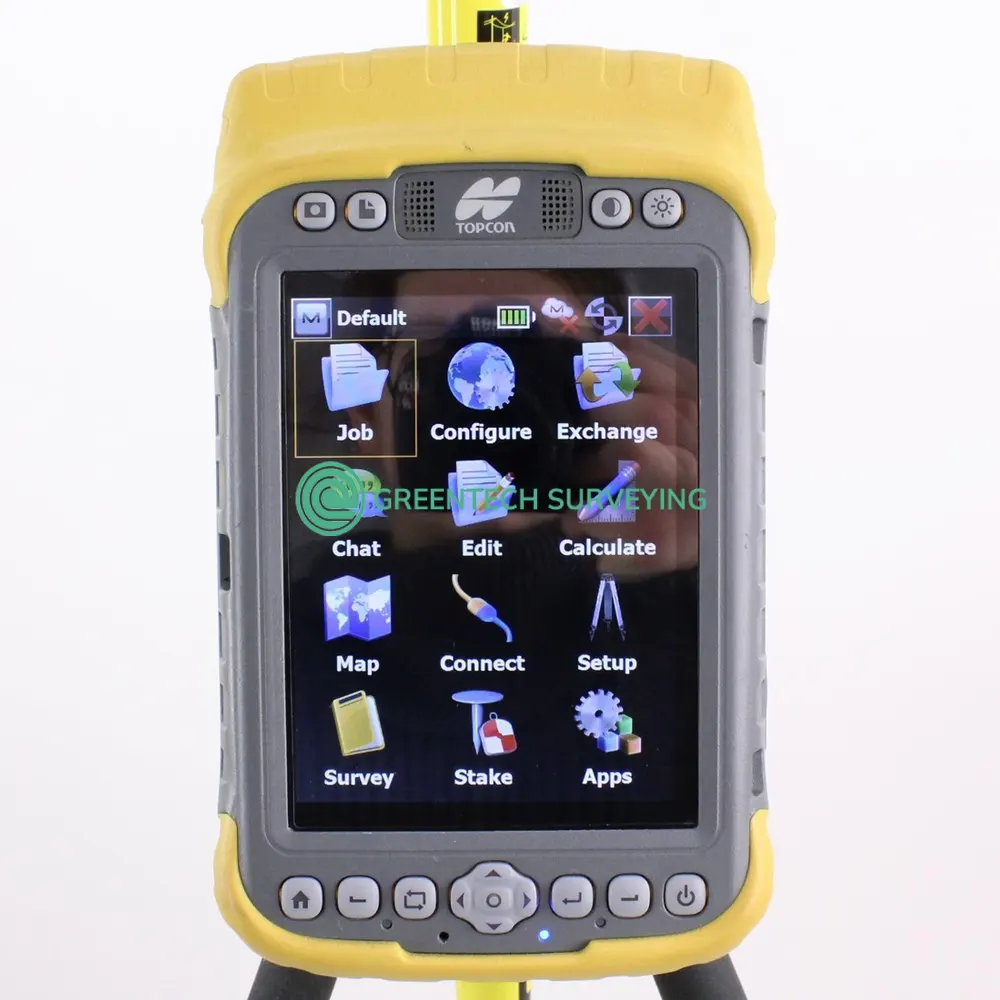

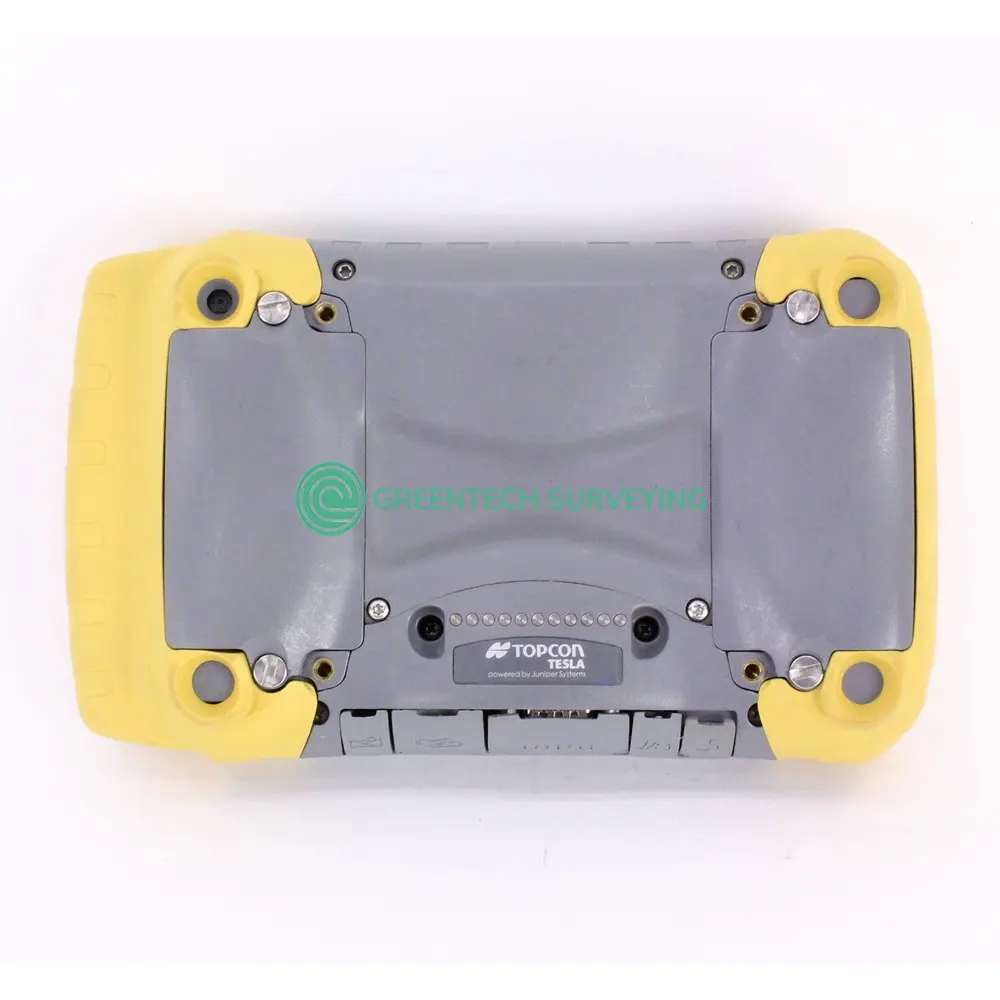

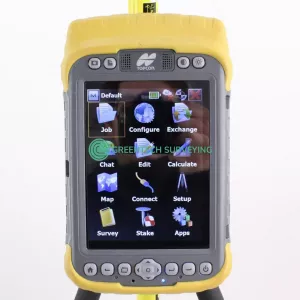

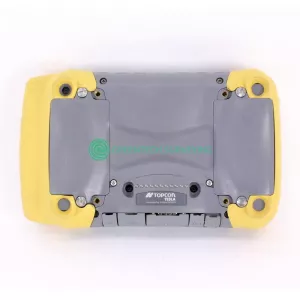

- 1x Topcon Tesla Tablet
- 1x Wall Charger for Tesla Tablet
- 1x Rod Mounting Bracket
- 1x USB Data Cable
Topcon Hiper SR Features & Benefits
- 226-channel Vanguard Technology
- Universal Tracking Technology
- Advanced Fence AntennaTM Technology
- Compact, lightweight, rugged design
- Fully integrated LongLinkTM
- Cellular (optional) configuration*
- Dual SIM Card Support (micro)
- Sealed battery providing up to 20 hours of operation
- Hybrid ready
TOPCON HIPER SR GNSS RECEIVER TECHNICAL SPECIFICATION
|
GNSS TECHNOLOGIES (SIGNAL TRACKING) |
|
| GPS | L1 C/A, L1C, L1P(Y), L2P(Y), L2C, L5 |
| GLONASS | L1 C/A, L1P, L2C/A, L2P, L3C |
| SBAS | WAAS/EGNOS/MSAS |
| QZSS | L1 C/A, L1C, L2C, L5 |
| Universal Tracking Channels | 226 Topcon’s patented GNSS signal tracking technology (US 7764226 B1) |
| GNSS Antenna | Integrated Full wave Fence Antenna™ technology with internal ground plane |
|
POSITIONING PERFORMANCE |
|
| Precision Static | H: 3 mm + 0.1 ppm | V: 3.5 mm + 0.4 ppm |
| Static/Fast Static | H: 3 mm + 0.5 ppm | V: 4 mm + 0.5 ppm |
| RTK | H: 10 mm + 1 ppm | V: 15 mm + 1 ppm |
|
COMMUNICATIONS |
|
| Cellular | Optional HSPA+/CDMA internal cellular module |
| LongLink | Up to 328.1 m / 1000 ft |
| Bluetooth | Yes |
| Ports | 1 Serial, 1 USB |
|
DATA FORMAT AND MEMORY |
|
| Real-time Output formats | TPS, RTCM, CMR/CMR+, NMEA |
| Internal Memory | 2 GB |
| Update Rate | Up to 10Hz |
|
POWER |
|
| External Power Supply | 6.5 – 30.0 V DC |
| Battery | Li-ion 5,000 mAh, 7.4 V |
| Operating time | RX mode – 17 hr. Refer to Operator's manual for more information |
|
HARDWARE |
|
| Dimensions (W x H) | 15.0 cm x 6.4 cm (5.90 in x 2.52 in) |
| Weight | 0.85 kg (1.87 lb) |
| Ingress Protection | Dust and water IP67 |
| Vibration | MIL-STD 810G |
| Drop | Survive 2m pole drop on concrete surface |
| Operating Temperature | -40° C to +65° C (-40° F to +149° F) with external power |
| Humidity | 100% |
