Used Topcon Dual Hiper V GPS GNSS Glonass Base Rover RTK UHF2

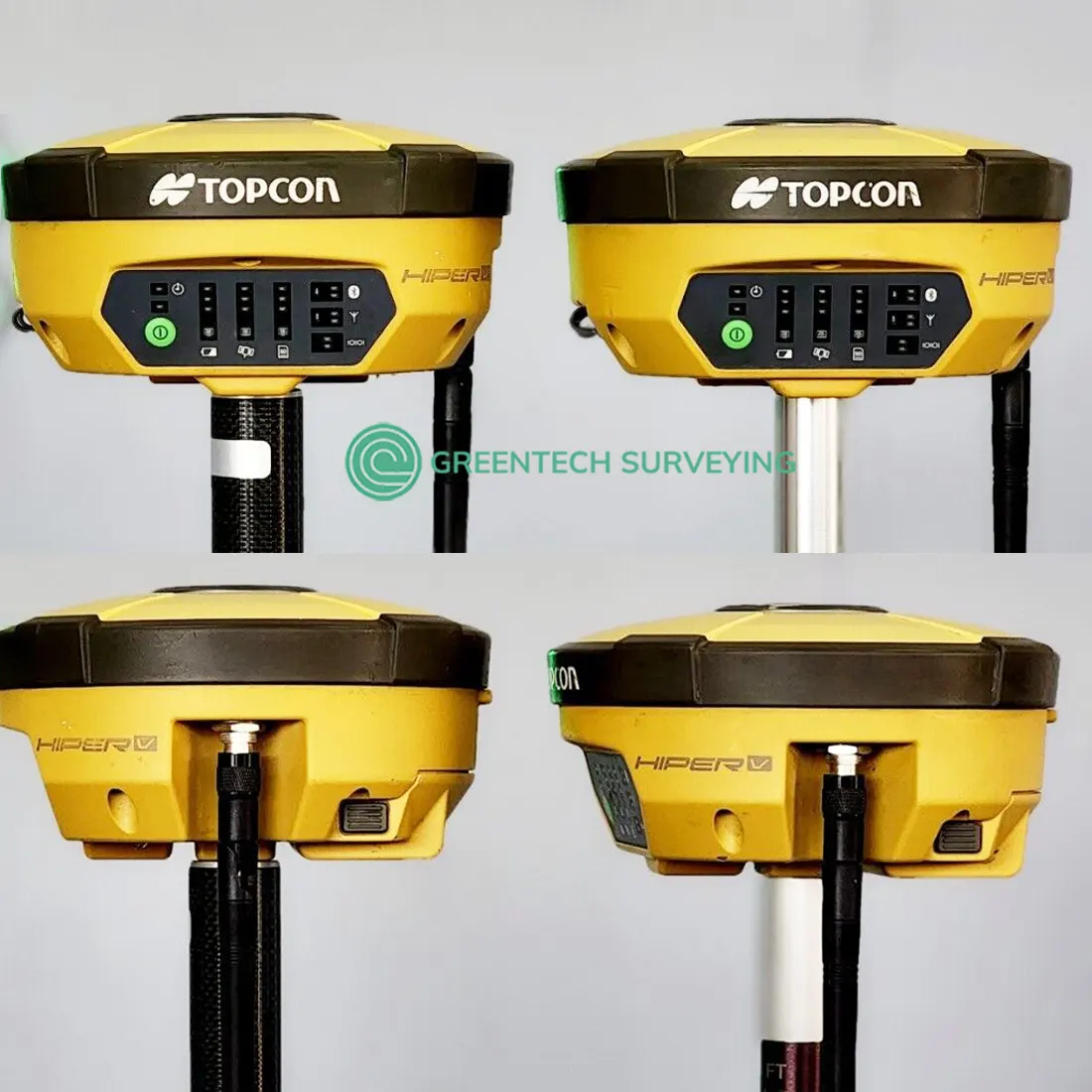

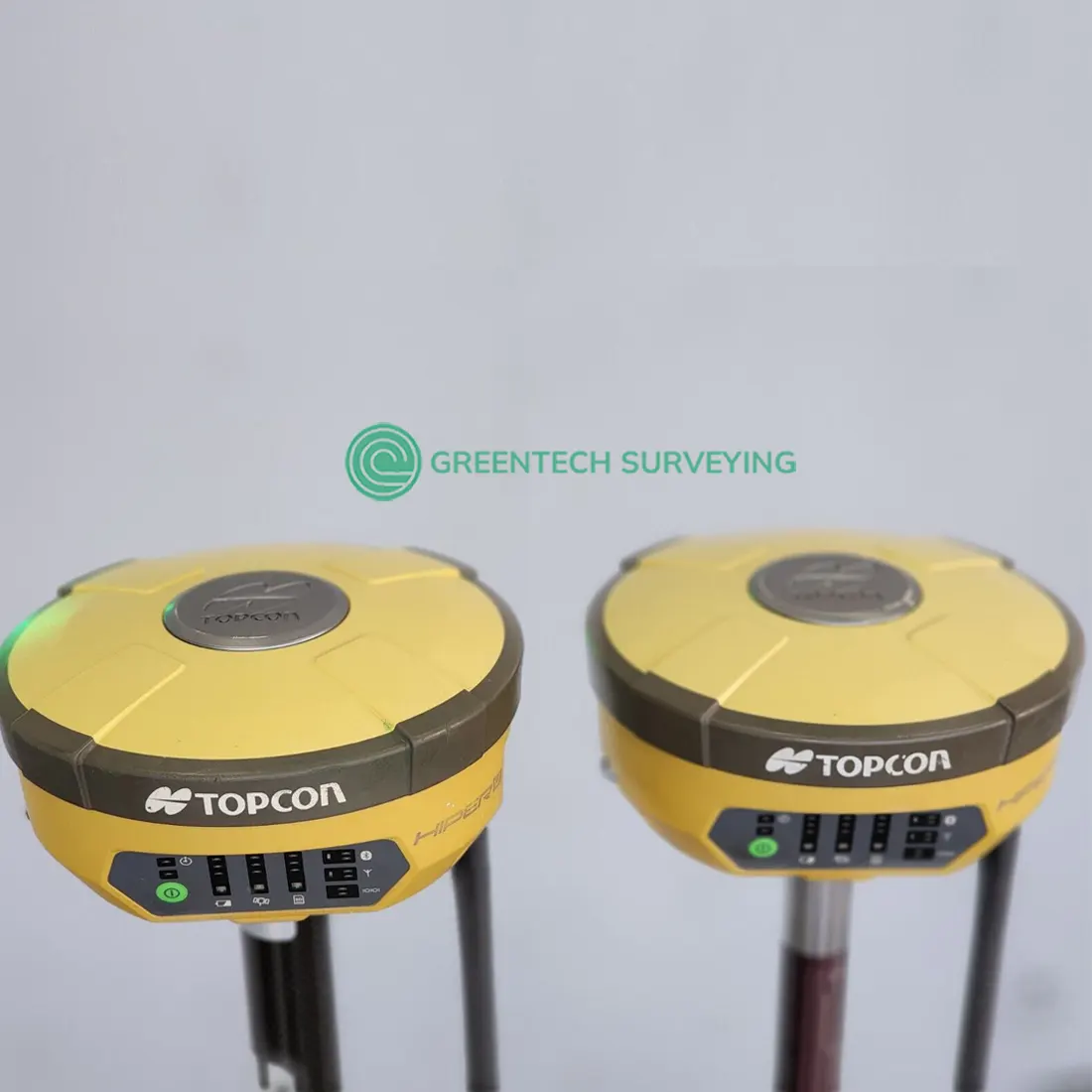

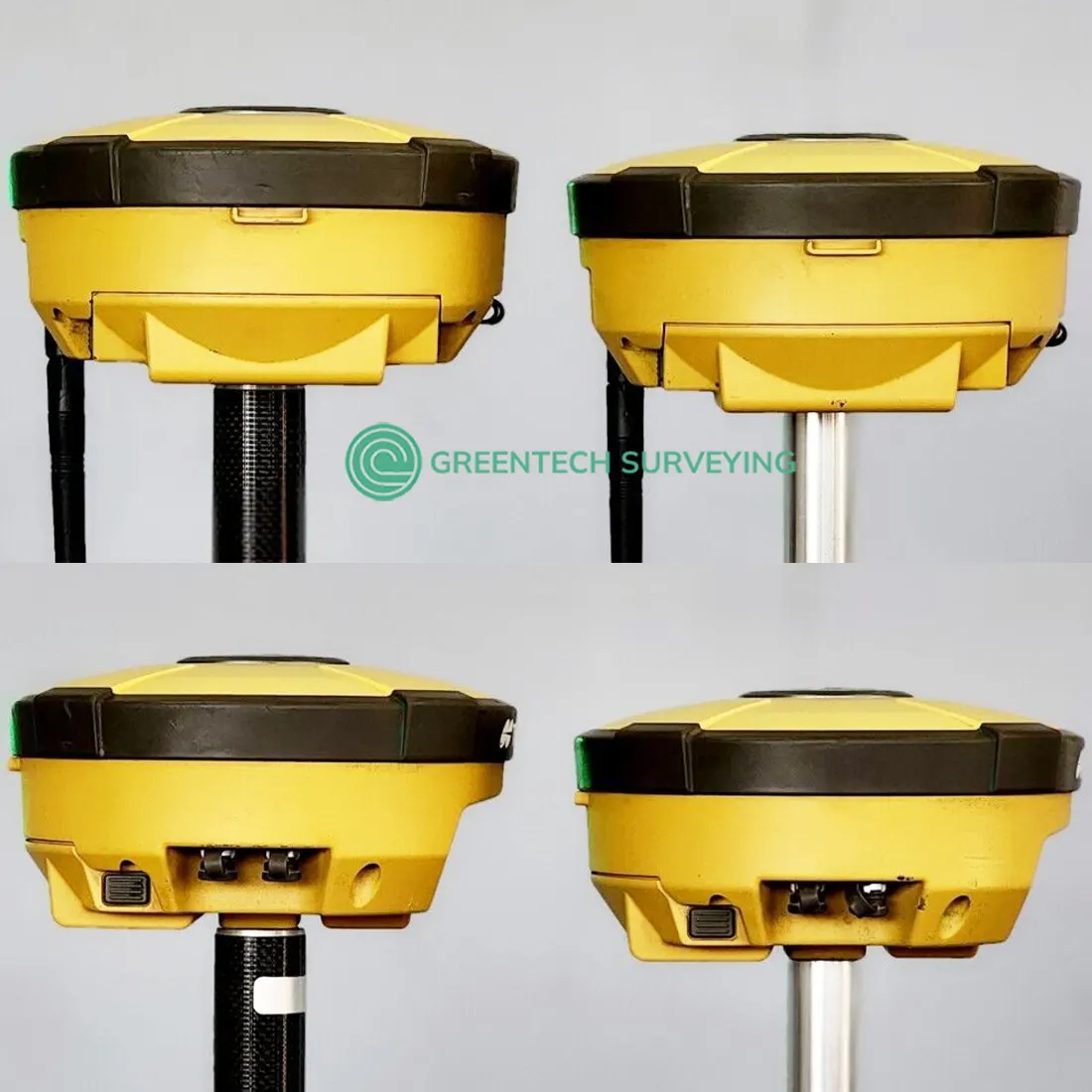

Used Topcon Dual Hiper V GPS GNSS Glonass Base Rover RTK UHF2 for sale, nice, preowned set, both receivers have internal UHF2 radios.
$2,800
Used Topcon Dual Hiper V GPS GNSS Glonass Base Rover RTK UHF2 for sale, nice, preowned set, both receivers have internal UHF2 radios. Both receivers have working bluetooth and have been tested as an RTK set.

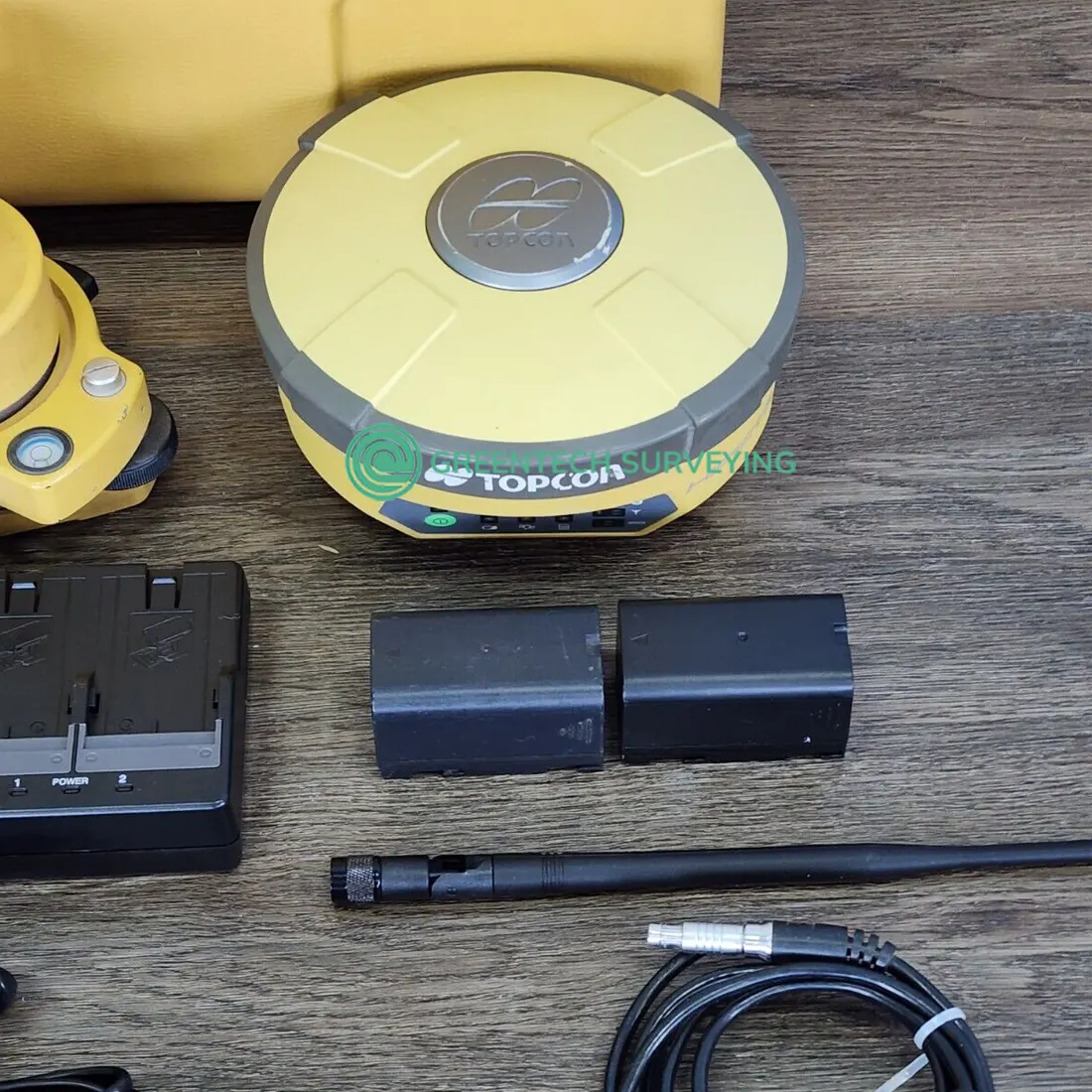

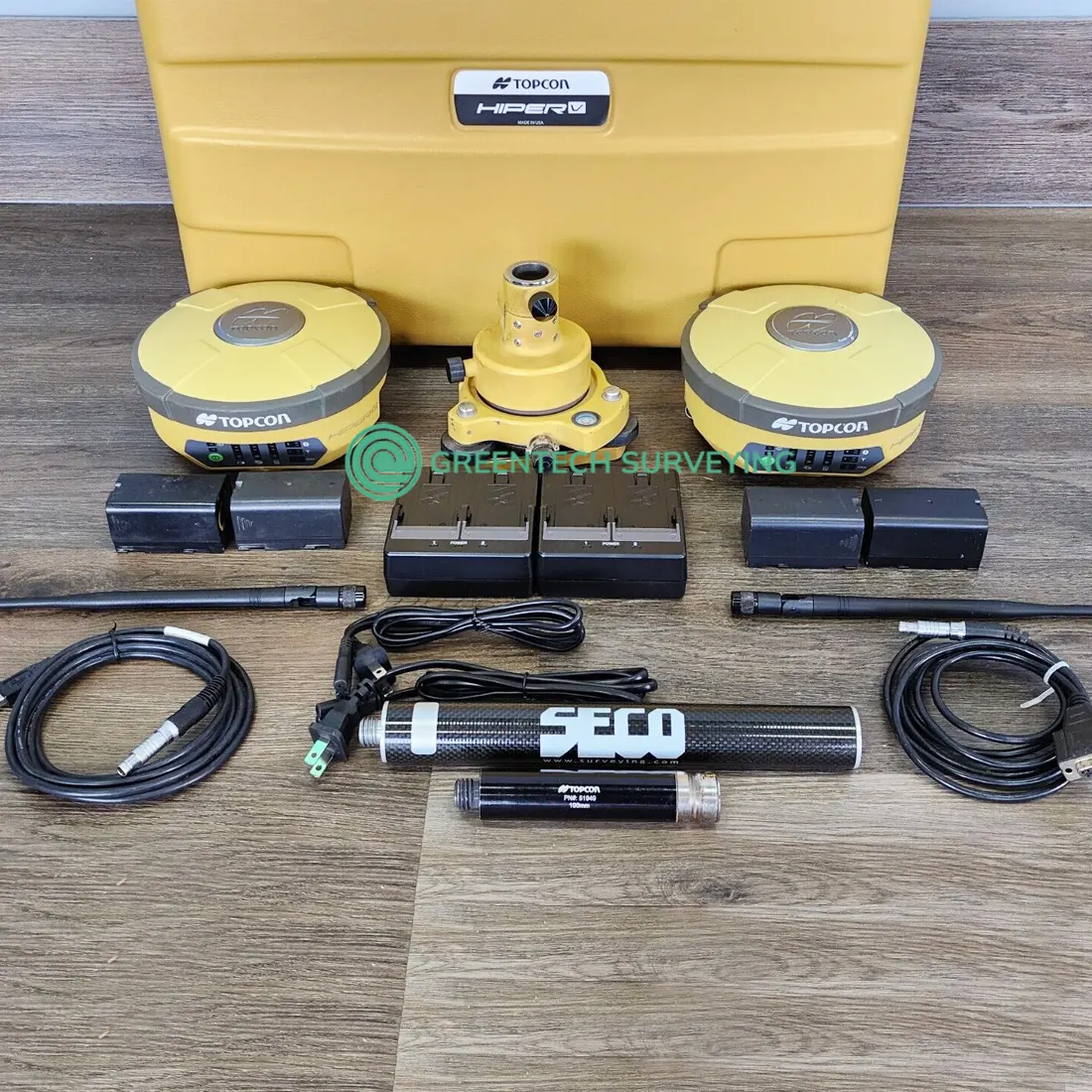

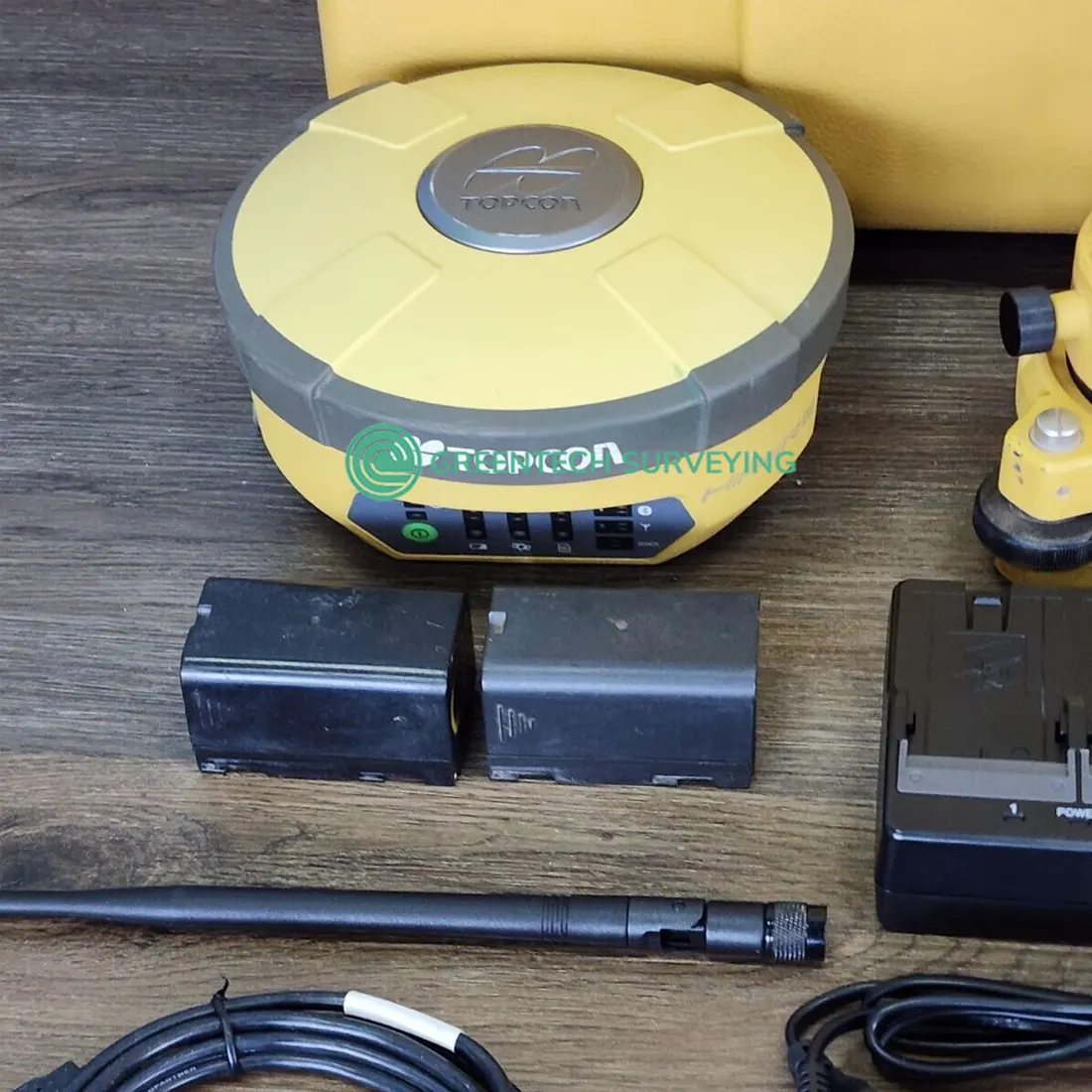

Package includes:
- Topcon Hiper V Glonass/GPS Base/Rover Receiver w/ UHF2 radio
- Topcon Hiper V Glonass/GPS Base/Rover Receiver w/ UHF2 radio
- 4X Topcon Hiper V battery packs
- 2X Dual Bay Battery Chargers
- Original Tocpon Carrying Case
- 2X UHF Radio Antennas
- Topcon Lemo to Serial Data Cable
- Tribrach and Adapter
- Seco CF Extension Pole
- 30-day money back guarantee
Topcon’s HiPer V receiver is a compact, lightweight, and completely integrated GNSS receiver for static and kinematic applications.
The integrated receiver design includes a GNSS receiver board based on Vanguard™ technology, industry leading Fence Antenna™, and wireless communication technology. The HiPer V delivers world‐class positioning and navigation capability to your application by tracking signals from multi‐constellation satellite systems, including GPS, GLONASS, and SBAS.
The HiPer V offers complete IP67 protection against dust and water ingress, in addition to superior vibration and shock resistance.
The communication interface allows you to quickly integrate Topcon’s premium GNSS performance within new systems and quickly deliver world‐class positioning and navigation support to your applications.
HiPer V features:
- A premier multi‐constellation Vanguard™ technology GNSS board
- Industry‐leading Fence Antenna™ technology
- Serial (RS‐232C) and power ports
- Detachable battery
- A highly visible display panel with single‐button operation
- External memory card slot
- Integrated Bluetooth® wireless and radio technology
- Optional HSPA (3.5G)1 and CDMA Cellular technology
- Voice notifications for important receiver operations
- Integrated and rugged design
HiPer V configurations:
- FH915+ 2 radio modem
- FH915+ radio modem with HSPA module
- Static (No integrated radio/cellular module)
- Digital UHF II radio modem
- Digital UHF II radio modem with HSPA module
- Digital UHF II radio modem and CDMA module (US only)
Topcon Hiper V Specifications
| Physical | |
| Enclosure | Magnesium alloy |
| Color | Topcon Yellow and Topcon Gray |
| Dimensions (D x H) | 184.0 x 95.0 mm |
| Weight | 1.00kg (without battery and radio) |
| Antenna | Internal micro center |
| Battery | Built-in, detachable/replaceable |
| Controller | External |
| Mounting | 5/8-11, quick release |
| Seals | Silicone |
| Keys | One key: Power- On/Off, multi-function |
| LEDs | Receiver Health |
| Scheduler Status | |
| Available Power Bar | |
| Battery Status | |
| Satellite Tracking Bar | |
| Position Status | |
| Memory Capacity Bar | |
| File Status | |
| Wireless Status | |
| Radio Status | |
| Serial Port Status | |
| Tracking Capabilities | |
| Number of Channels | 226-Channels with Universal Tracking Technology |
| Signals Tracked | GPS: L1, L2, L2C |
| GLONASS: L1, L2, L2C | |
| SBAS: L1, L2C | |
| Data Features | |
| Formats | TPS, NMEA, RTCM, CMR/CMR+ |
| Features | Formats Up to 20 Hz update rate for real time position and raw data (code and carrier) 10cm code phase and 0.1mm carrier phase precision |
| RTCM SC104 version 2.1, 2.2, 2.3, 3.0, and 3.1 I/O | |
| Multiple Base RTCM | |
| Geoid and Magnetic Variation models | |
| Different DATUMs support | |
| Output of grid coordinates | |
| CMR and CMR+ support | |
| Memory | |
| Internal Memory | SD/SDHC card, removable |
| Capacity | Dependent on capacity of the installed SD/SDHC card |
| Logging Interval | 0.05 to 86,400 seconds |
| Input / Output | |
| Communication Ports | Bluetooth and (Serial) RS-232C |
| Port specifications | COM1: 4,800 to 115,200 bps (RS Level) |
| 115,200 bps (default) | |
| Bluetooth: 115,200 bps (SPP/Single Channel mode) | |
| Modem Antenna | BNC or reverse polarity TNC (depending on modem type) |
| NMEA | |
| NMEA version | Ver. 2.1, 2.2, 2.3, 3.0 |
| Messages | GGA, GLL, GNS, GRS, GSA, GST, GSV, HDT, RMC, VTG, ZDA, ROT, GMP |
| Output interval | Up to 20Hz |
| DGPS | |
| Correction format | RTCM SC104 Ver 2.1, 2.2, 2.3, 3.0, 3.1 |
| RTCM message type | 1, 3, 9, 31, 32, 34; user selectable |
| Process interval | Up to 20Hz |
| Output interval | Up to 20Hz for RTCM correction data |
| Elevation mask | 0 to 90 degrees (independent of data logging) |
| RTK | |
| Correction formatat | CMR/CMR+, RTCM SC104 Ver 2.2, 2.3, 3.0 or 3.1 |
| RTCM message type | User selectable |
| Ambiguity initialize | OTF (L1, L1/L2) |
| Baseline Length | Up to 50km |
| Initialize time | > 15 seconds, typical |
| Output interval | Up to 20Hz for CMR/RTCM |
| Elevation | 0 to 90 degrees (independent of data logging) |
| Solution mode | Delay (synchronization) |
| Extrapolation (not synchronized) | |
| Process interval | Up to 20Hz |
| Survey Accuracy | |
| Static | L1 only: H: 3mm + 0.8 ppm xD / V: 4mm + 1 ppm xD |
| L1 +L2: H: 3mm + 0.5 ppm xD / V: 5mm + 0.5 ppm xD | |
| Fast Static | L1+L2: H: 3mm+0.5 ppm xD / V: 5mm+0.5 ppm xD |
| Kinematic | L1+L2: H: 10mm+1 ppm xD / V: 15mm+1 ppm xD |
| RTK | L1/L1 +L2: H: 10mm + 1 ppm xD / V: 15mm + 1 ppm xD |
| DGPS | Post processing/RTCM: Typically less than 0.5m |
| Power | |
| Built in battery | BDC70 Li-ion 5.2Ah (Typical) / 7.2VDC |
| Battery weight | 195g |
| Battery charging time | 4 hours |
| Operating time | Over 7.5 hours |
| Input voltage | 6.7 to 18 VDC |
| Consumption | 4W (w/o UHF modem) |
| Battery charge | Use CDC68 |
| On-board | Backup battery for NVRAM and RTC storage; Operation for approximately 100 days. |
| Environment | |
| Operating temperature | -20 to +65°C (Battery) / -40 to +65°C (Ext.) / -20 to +55 (w/ UHF modem module) |
| Storage temperature | -45°C to +70°C |
| Humidity | 100% condensing |
| Water/Dust-proof | IP67 with all connector caps closed |
