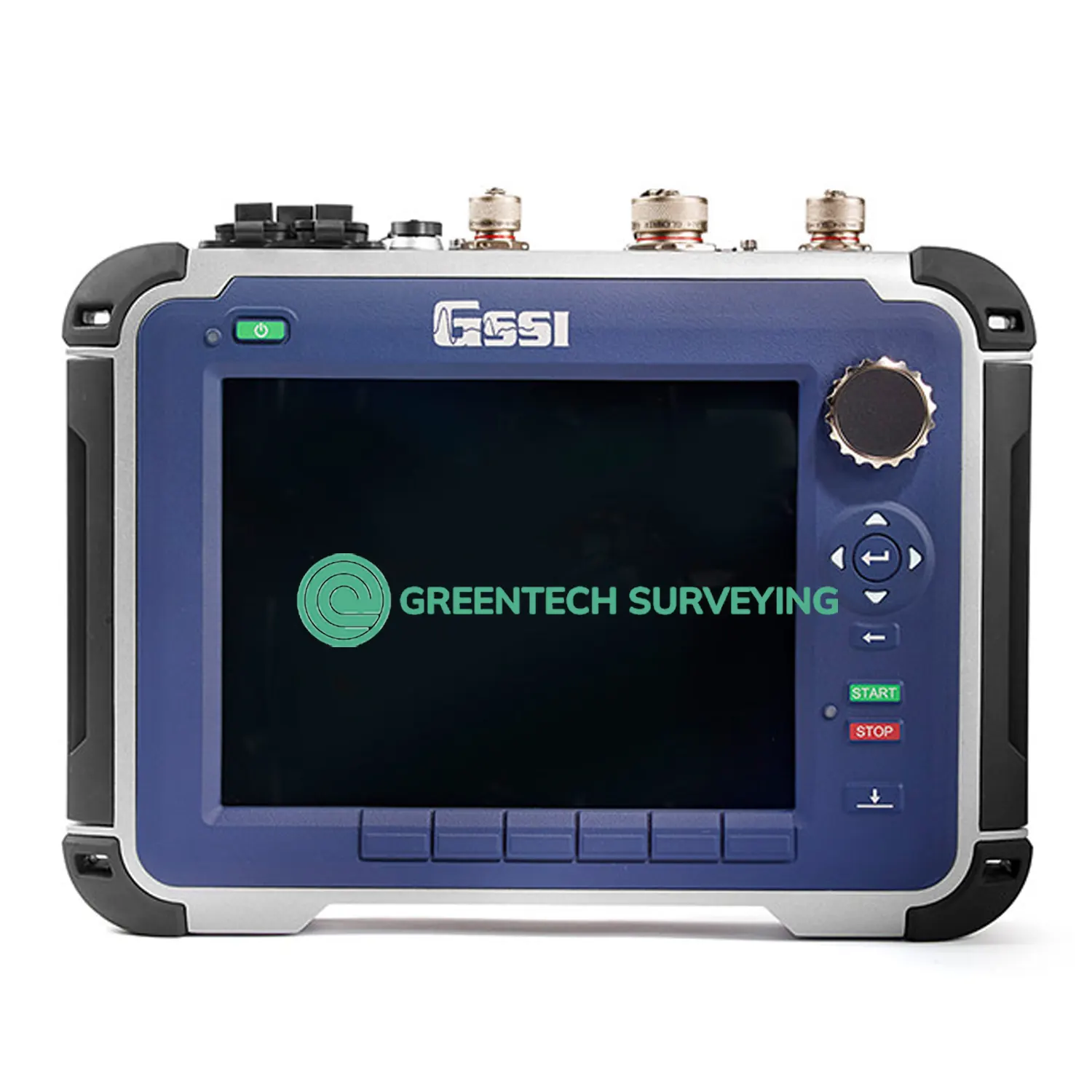

GSSI SIR 4000 GPR
GSSI SIR 4000 GPR for sale, Rugged, High-Performance GPR Controller
$9,500
GSSI SIR 4000 GPR for sale, Rugged, High-Performance GPR Controller
The SIR 4000 is GSSI’s first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This evolutionary step allows for true versatility and flexibility by supporting a wide range of users across numerous applications.
The GSSI SIR 4000 is GSSI’s first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This evolutionary step allows for true versatility and flexibility by supporting a wide range of users across numerous applications. GSSI SIR4000 GPR data acquisition system designed to operate with analogue and digital antennas, including the latest dual frequency antennas. Other improvements over the SIR3000, which it replaces, include advanced display modes and filtering capabilities for ‘in the field’ processing and imaging.
System Includes
- GSSI SIR 4000 Control Unit
- Sunshade
- 2X Lithium-ion batteries
- Dual-bay battery charger
- Transit case
- User Manual
- 2-year GSSI warranty
Key Specifications
- Weight: 10 lbs (4.53 kg) including battery
- Operating Modes: Continuous (time) or survey wheel (distance triggered) or point mode
- Scan Interval: User-selectable, up to 4000 scans/sec
- Transmit Rate: Up to 800 KHz (International) US/Canada and CE rates depend on antenna model
The SIR 4000 is typically used for:
- Utility designation
- Concrete inspection
- Mining and geology
- Environmental assessment
- Archaeology
- Forensics
Accurate and reliable results, The SIR 4000 offers unique collection modules, including Quick 3D, UtilityScan, StructureScan, and Expert Mode for efficient data collection and visualization.
Modular Design, Flexible Solutions: The GSSI SIR 4000 control unit works with all GSSI digital and analog antennas, making it the best unit for all applications and solutions.
Premier Software Features: The SIR 4000 offers a user interface that is easy to navigate and has plug-and-play GPS integration. It also incorporates advanced display methods and filtering capabilities for in-the-field processing.
Specifications
| System | |
| Antennas | Compatible with all GSSI antennas |
| Number of Channels | Records data from 1 single-frequency antenna or 1 dual-frequency antenna |
| Data Storage | 32 GB Flash, 1 GB RAM |
| Display | Enhanced 10.4” LED display with internal high brightness, Active matrix 1024 x 768 resolution and 32-bit color |
| GPS | Data logged internally |

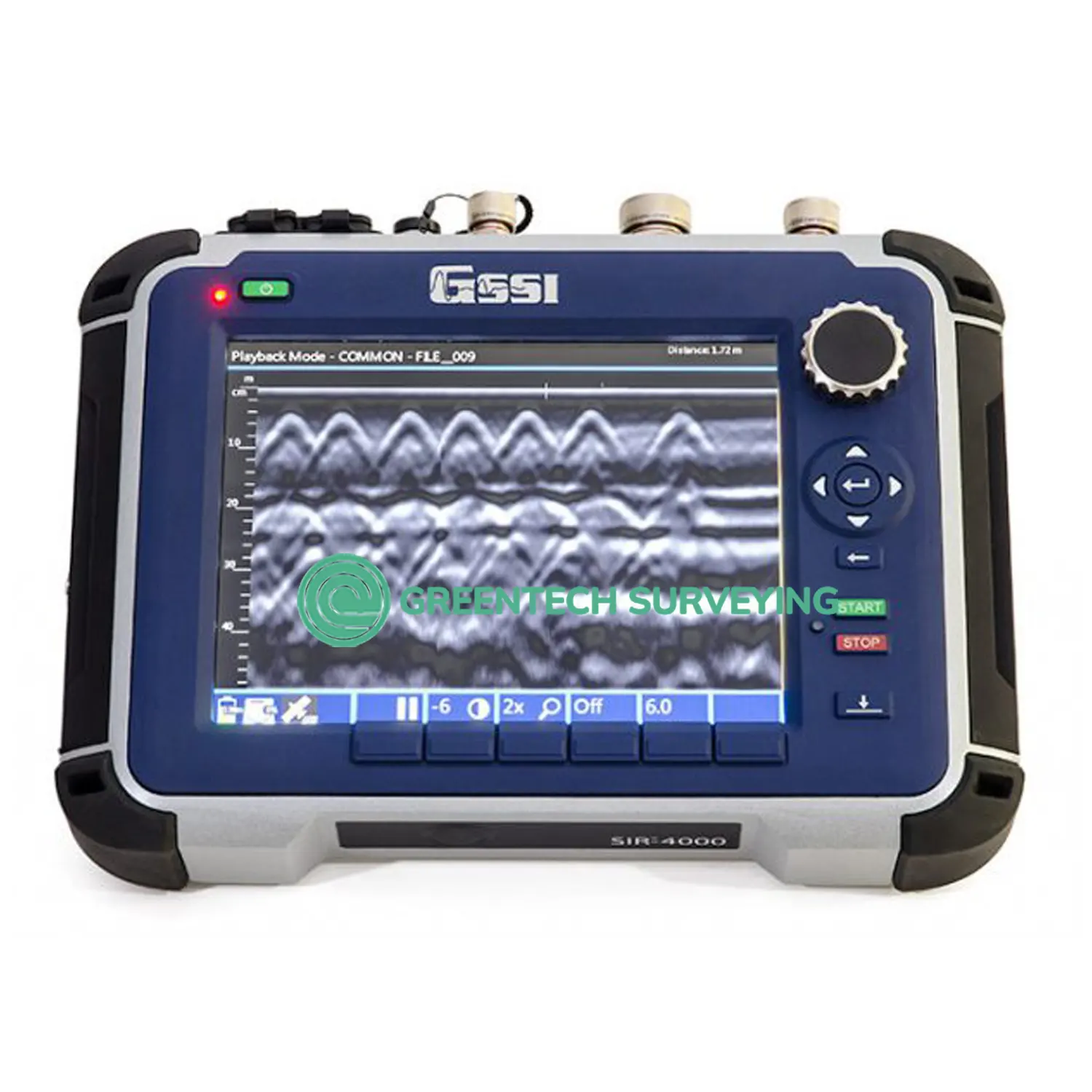

| Display Modes | Linescan, Linescan plus O-scope, Wiggle trace Full 3D, 256 color bins are used to represent the amplitude and polarity of the signal |
| Environmental Rating | IP65 |
| Data Acquisition | |
| Data Format | RADAN® (dzt) |
| Output Data Format | 32-bit |
| Scan Interval | User-selectable, up to 400 scans/sec |
| Number of Samples per Scan | 256, 512, 1024, 2048, 4096, 8192, 16384 |
| Operating Modes | Continuous (time) or survey wheel (distance triggered) or point mode |
| Time Range | 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8 |
| Standard Real-Time Filters | Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal - Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal |
| Advanced Real-Time Filters | Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal |
| Automatic System Setups | Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations |
| Automatic Antenna Recognition | Automatic recognition of Smart Antennas to allow maximum compliant transmit rate |
| Languages | English, Chinese, Japanese, French, Spanish, Portuguese, Dutch |
| Operating | |
| Operating Temperature | -20°C to 40°C external (-4°F to 104°F) |
| Battery | Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness) |
| Transmit Rate | Up to 800 KHz (International) US/Canada and CE rates depend on antenna model |
| Input/Output | |
| Available Ports | Antenna inputs analog and digital (one at a time), DC power input, Serial RS232 (GPS port), Accessory connector, HDMI video output, Ethernet to PC, USB 2.0 port, mini USB |
| Ethernet | RJ45 100BT Ethernet |
| USB Host | USB host with external keyboard support, USB flash drive support and USB HUB support |
| Mechanical | |
| Dimensions | 14x10x2.75 in (36x25x7 cm) |
| Weight | 10 lbs (4.53 kg) including battery |
| Relative Humidity | <95% non-condensing |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
