GSSI StructureScan Mini GPR

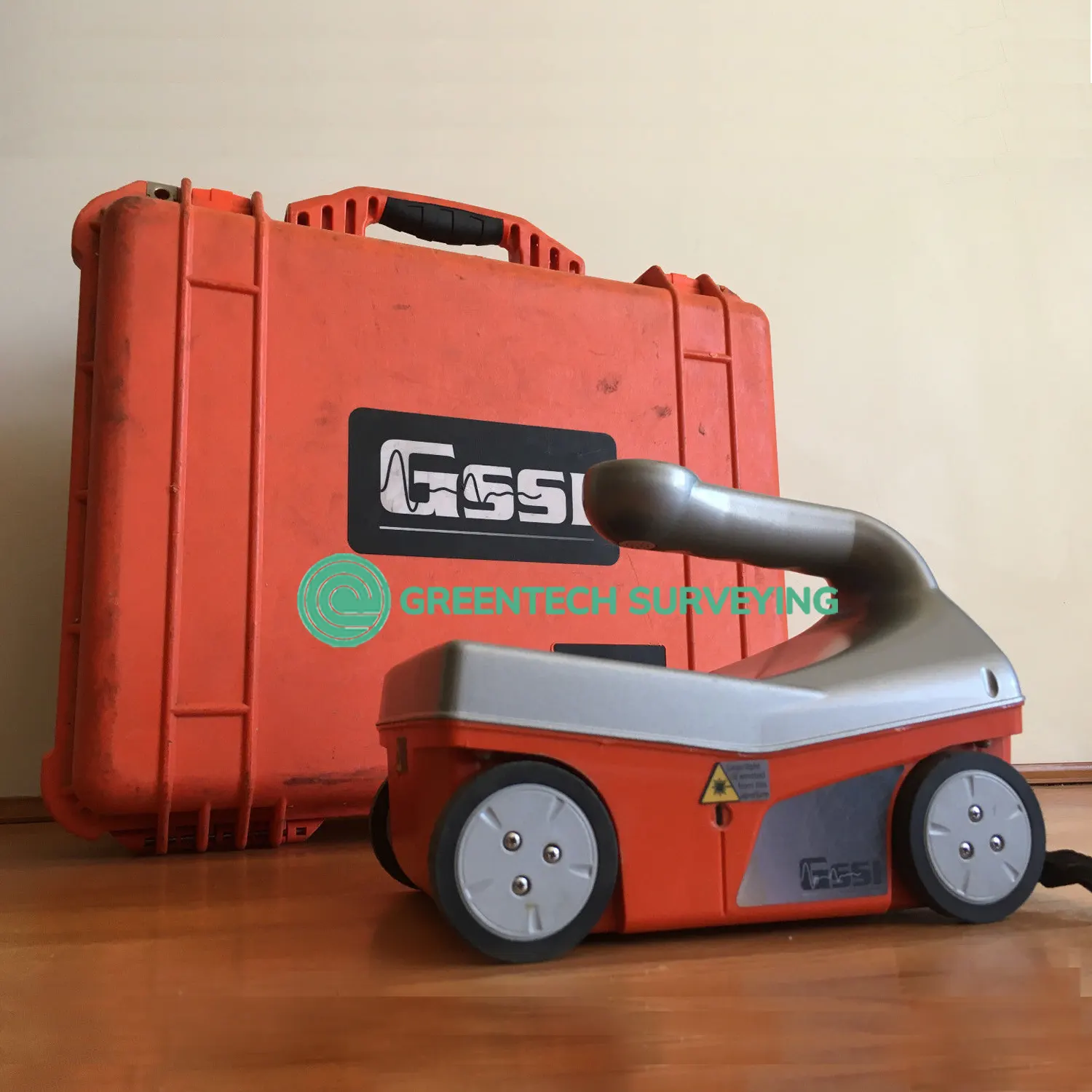

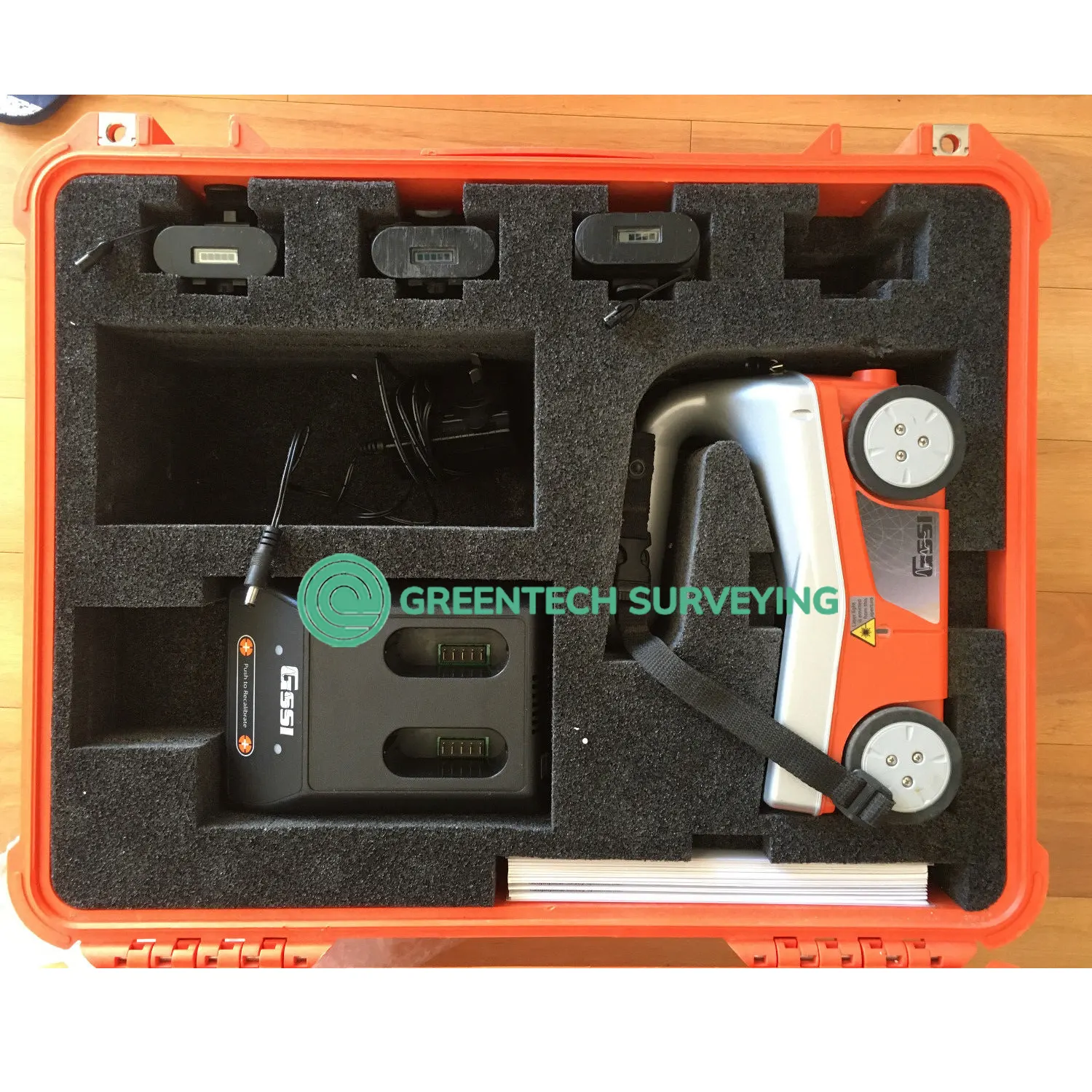

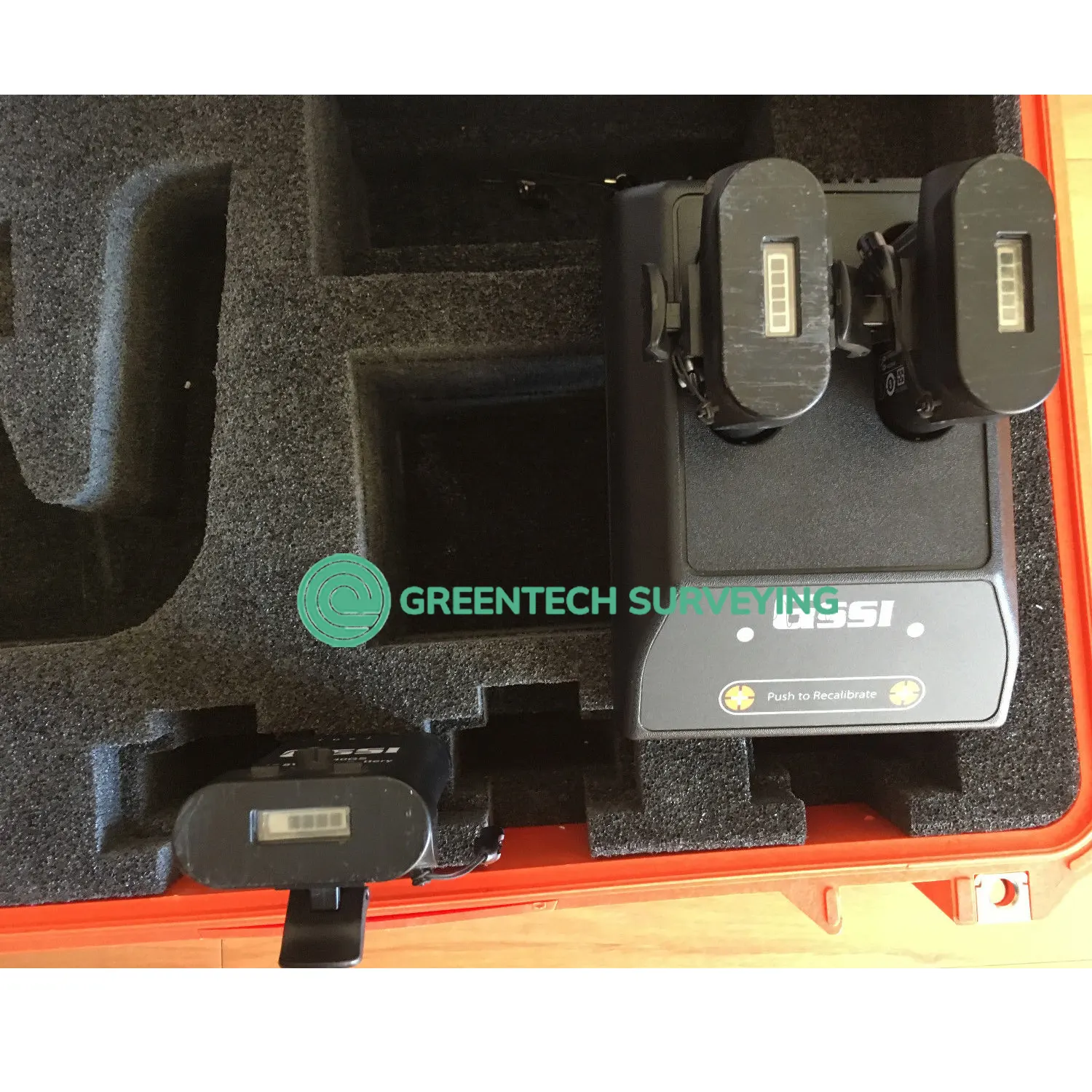

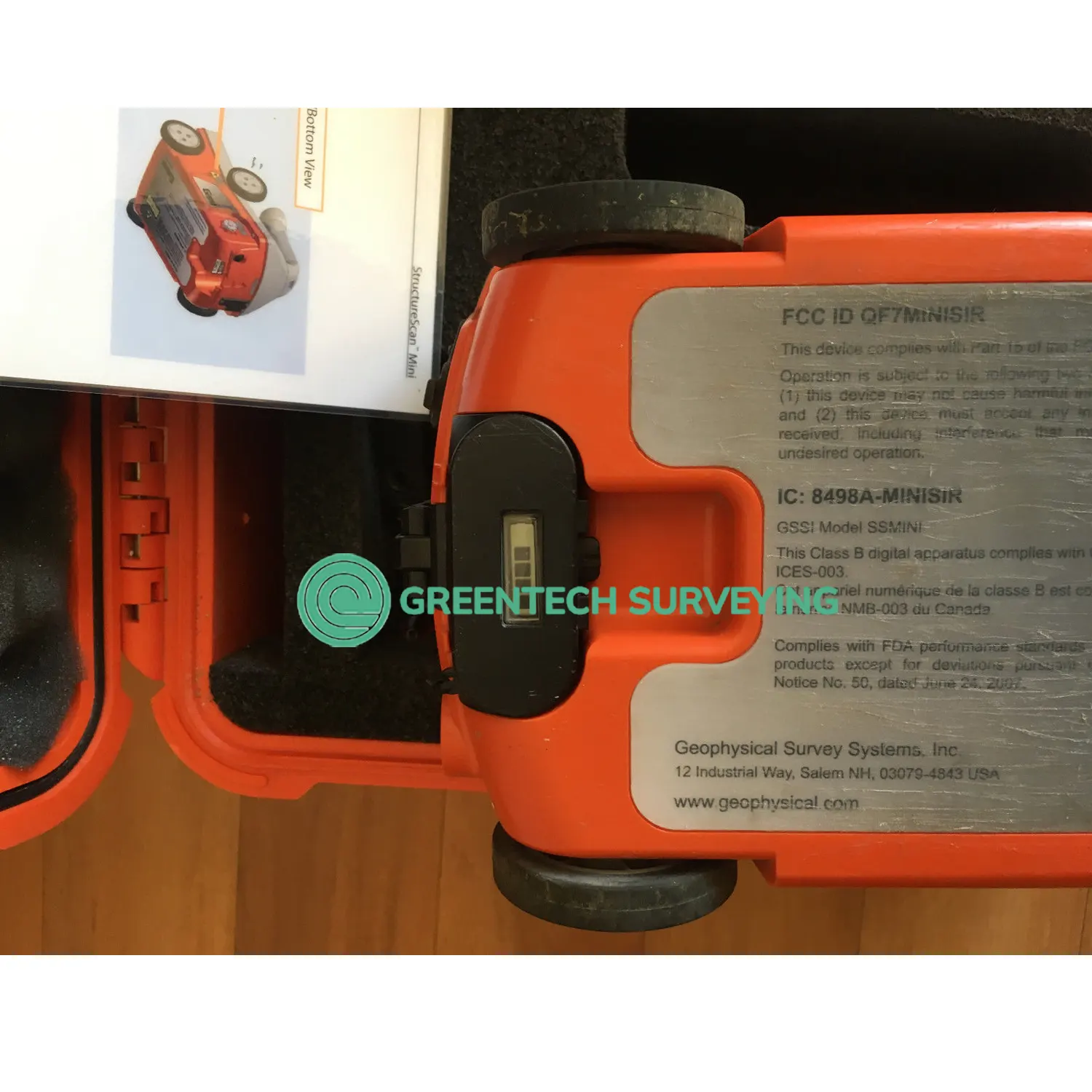

GSSI StructureScan Mini GPR for sale, gently used and well taken care, very rarely used on a cabling project that just finished. Everything is in excellent fully functional and works great includes  3X new Batteries, Charger, Data download cable, Data storage SD card, User manual and Genuine GSSI shock-proof case.

StructureScan Mini Complete GPR System for Concrete Inspection

The StructureScan Mini is GSSI’s all-in-one GPR system, designed specifically for the concrete inspection industry. This handheld system locates rebar, conduits, post-tension cables, voids and can be used to determine concrete slab thickness in real-time. Though this system is not currently for sale, GSSI continues to support our StructureScan Mini customers and clients. The StructureScan Mini is available in two models; the original version, the StructureScan Mini, is 1600 MHz and can reach depths of up to 50 cm (20 inches). The StructureScan Mini HR offers a 2600 MHz antenna for  high resolution data.

1 All-in-One handheld GPR system

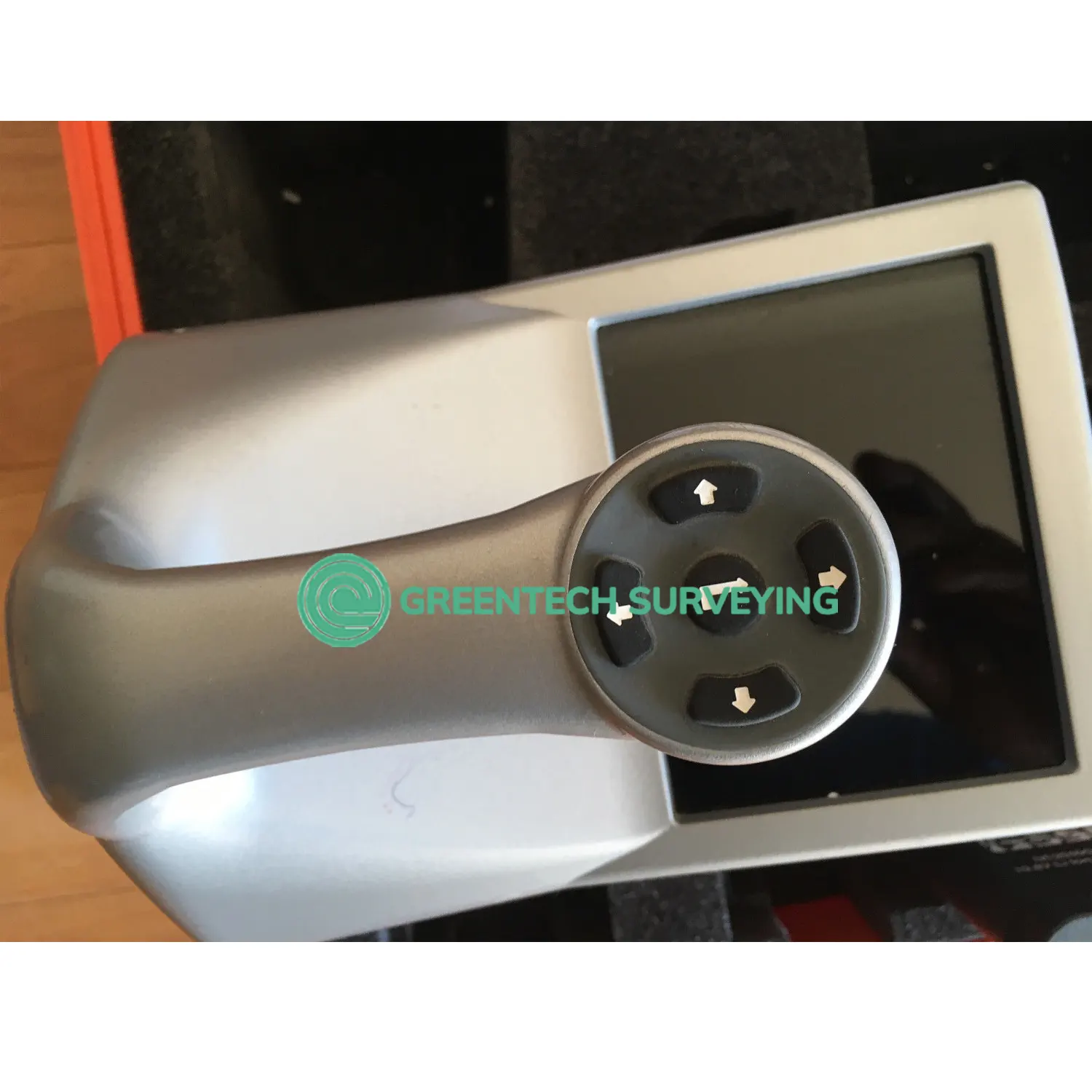

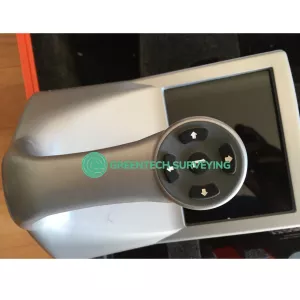

2 Ergonomic handle and controls

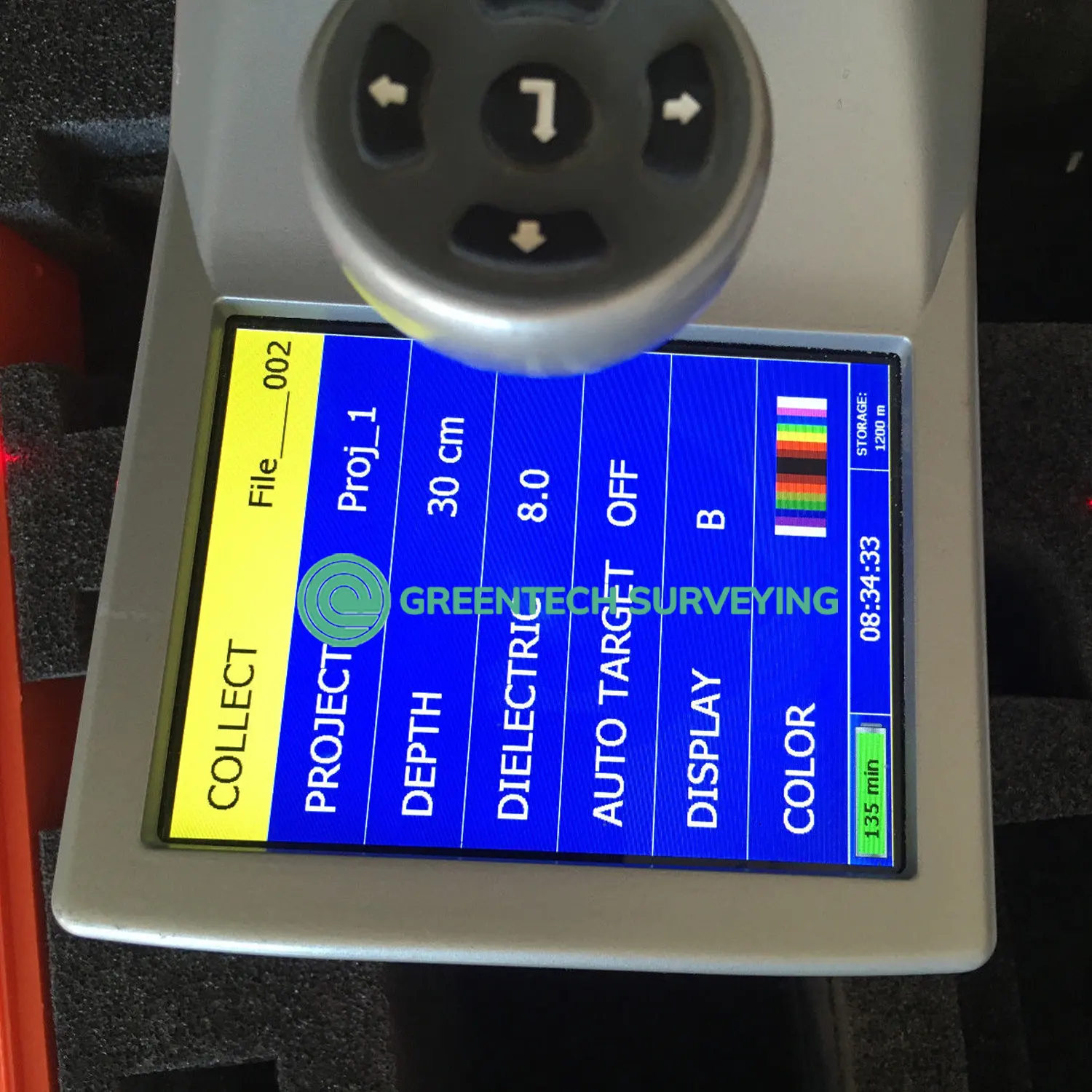

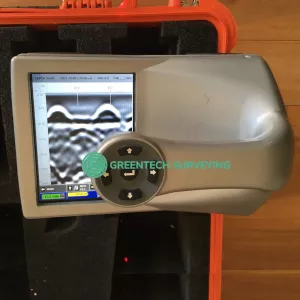

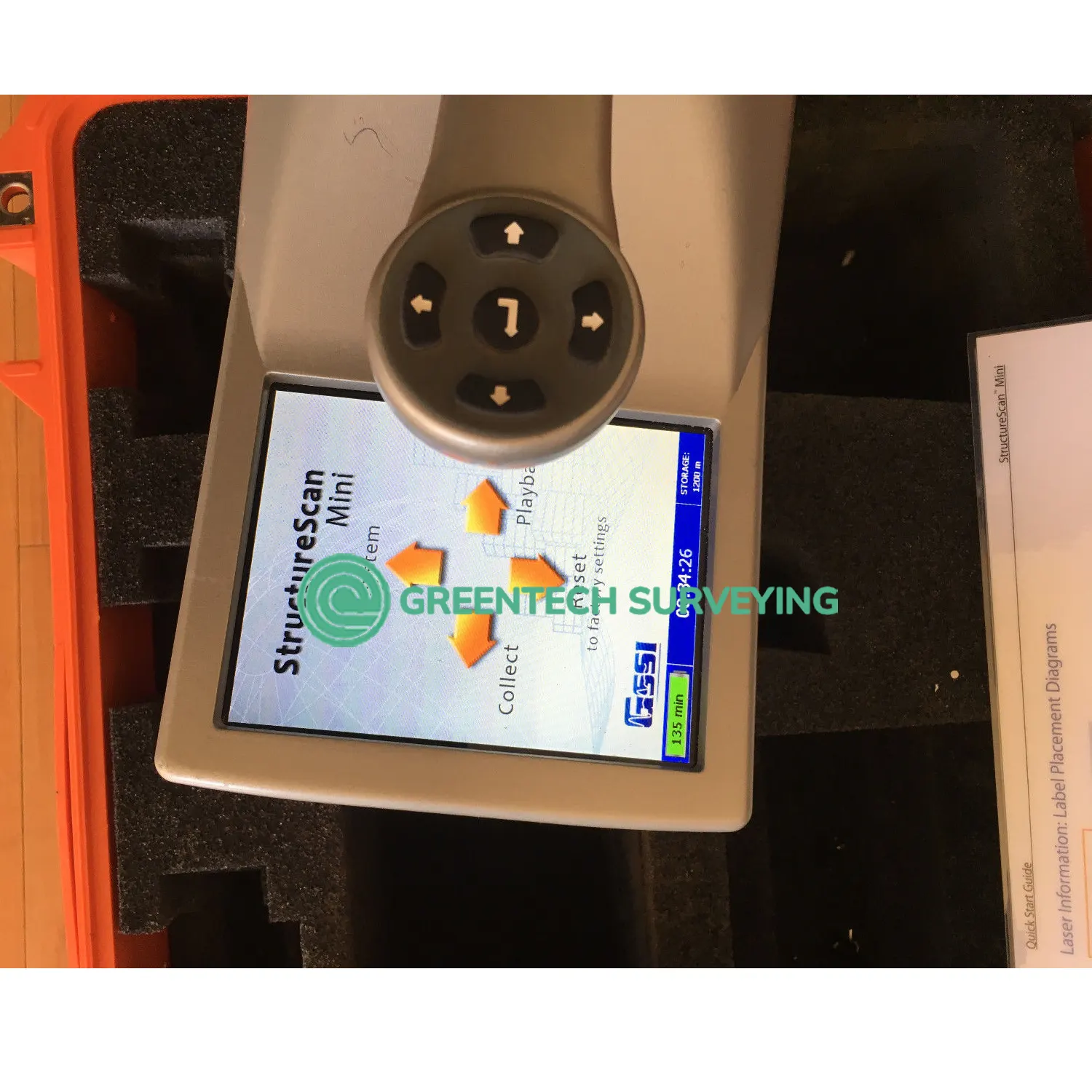

3 Easy to use operator interface with color screen display screen
4 Survey wheel encoder

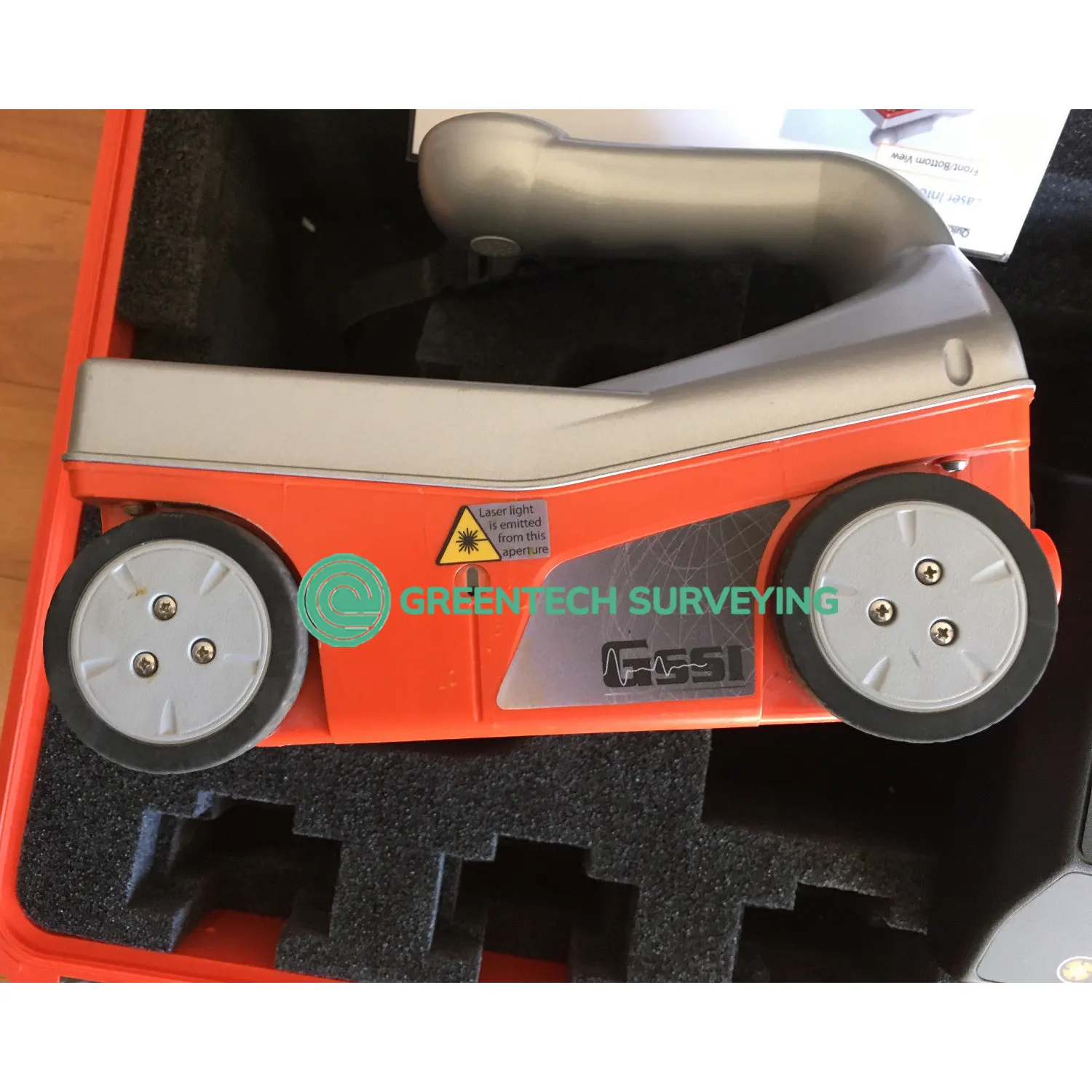

5 Guiding laser for locating and 3D surveying

Compact Design: The StructureScan Mini makes concrete inspection easy in tight spaces, or above-the-head survey locations
Integrated Tool: All-in-one concrete inspection tool - antenna, positioning system and control unit combo
System Flexibility: The StructureScan Mini is offered in two versions, a 2D data collection mode for real–time results and a 3D data collection  mode for advanced interpretation
Durability: Ruggedized plastic casing and wheels for long-lasting performance
Value: The perfect blend of price and performance, backed by a two-year warranty

The StructureScan Mini is typically used to:

• Locate metallic and non-metallic targets in walls, floors and ceilings
• Inspect bridges, monuments, walls, towers, tunnels, balconies, garages, decks
• Map relative concrete condition for rehab planning
• Measure slab thickness
• Void location

StructureScan Mini Series
The Mini aids in target detection with advanced software solutions that visualize targets as a small dot when characteristics of rebar or conduit are identified. The StructureScan Mini Series offers a lightweight alternative to other GPR systems, weighing in at just over three pounds. The small size of the unit makes it easy to transport to the job site and once on site, convenient to scan around obstacles and into tight spaces. The Mini is very easy to use – new users will become proficient in a few short hours. The Mini aids in target detection by marking the data on screen with a small dot when characteristics of rebar or conduit are identified. The lasers on the side of the unit indicate the exact location of the center of target for accurate marking of targets embedded in the concrete. The Mini aids in target detection with advanced software solutions that visualize targets as a small dot when characteristics of rebar or conduit are identified

Deeper Signal Penetration
The StructureScan Mini is GSSI’s portable integrated GPR system for concrete inspection. This handheld unit is used to locate rebar, conduits, post-tension cables, voids and determine concrete slab thickness. With a 1600 MHz antenna, and depth penetration of up to 20 inches (50cm),  the StructureScan Mini offers the perfect blend of data resolution and depth. Used worldwide, it has quickly become the standard for concrete imaging. Additionally, the StructureScan Mini is available with 2D or 3D capabilities, flexible for your job site needs.

StructureScan Mini System Specifications

• Center Frequency: 1600 MHz
• Depth Range: Up to 20 inches (50 cm)
• Unit Weight (with battery): 3.6 pounds (1.63 kg)
• Dimensions: 6 (w) x 7 (h) x 9 (l) in. (15.24 x 17.78 x 22.86 cm)
• Languages: English, Spanish, French
• Environmental: IP-65

1600 MHz
Data showing a small 5/8” plastic conduit (less visible) over rebar mat	Small 1/2” conduits (less visible) very close to surface. Note strong horizontal reflection, representing bottom of slab.

StructureScan Mini HR

Outstanding Data Resolution
The StructureScan Mini HR is GSSI’s all-in-one high-resolution GPR system for concrete inspection. With a 2600 MHz antenna, this hand-held system locates rebar, conduits and post-tension cables in depths of up to 16 inches (40 cm). The StructureScan Mini HR is available in two models; 2D, for real-time target location and 3D, for an x-ray like image. Ideal for  complex areas, the StructureScan Mini HR can delineate small targets with superior vertical and horizontal resolution.

Typical Uses

• Concrete inspection – locate metallic and non-metallic targets in walls, floors and ceilings
• Structure inspection – bridges, monuments, walls, towers, tunnels, balconies, garages, decks
• Condition assessment – map relative concrete condition for rehab planning
• Measure slab thickness
• Void location

StructureScan Mini HR System Specifications

• Center Frequency: 2600 MHz
• Depth Range: Up to 16 inches (40 cm)
• Unit Weight (with battery): 3.6 pounds (1.63 kg)
• Dimensions: 6 (w) x 7 (h) x 9 (l) in. (15.24 x 17.78 x 22.86 cm)
• Languages: English, Spanish, French
• Environmental: IP-65

2600 MHz
Data showing a small 5/8” plastic conduit over rebar mat	Small 1/2” conduits very close to surface. Note sharp hyperbola tails	Collected with StructureScan Mini HR, data represents 3D image of radiant heating tubing in concrete slab
