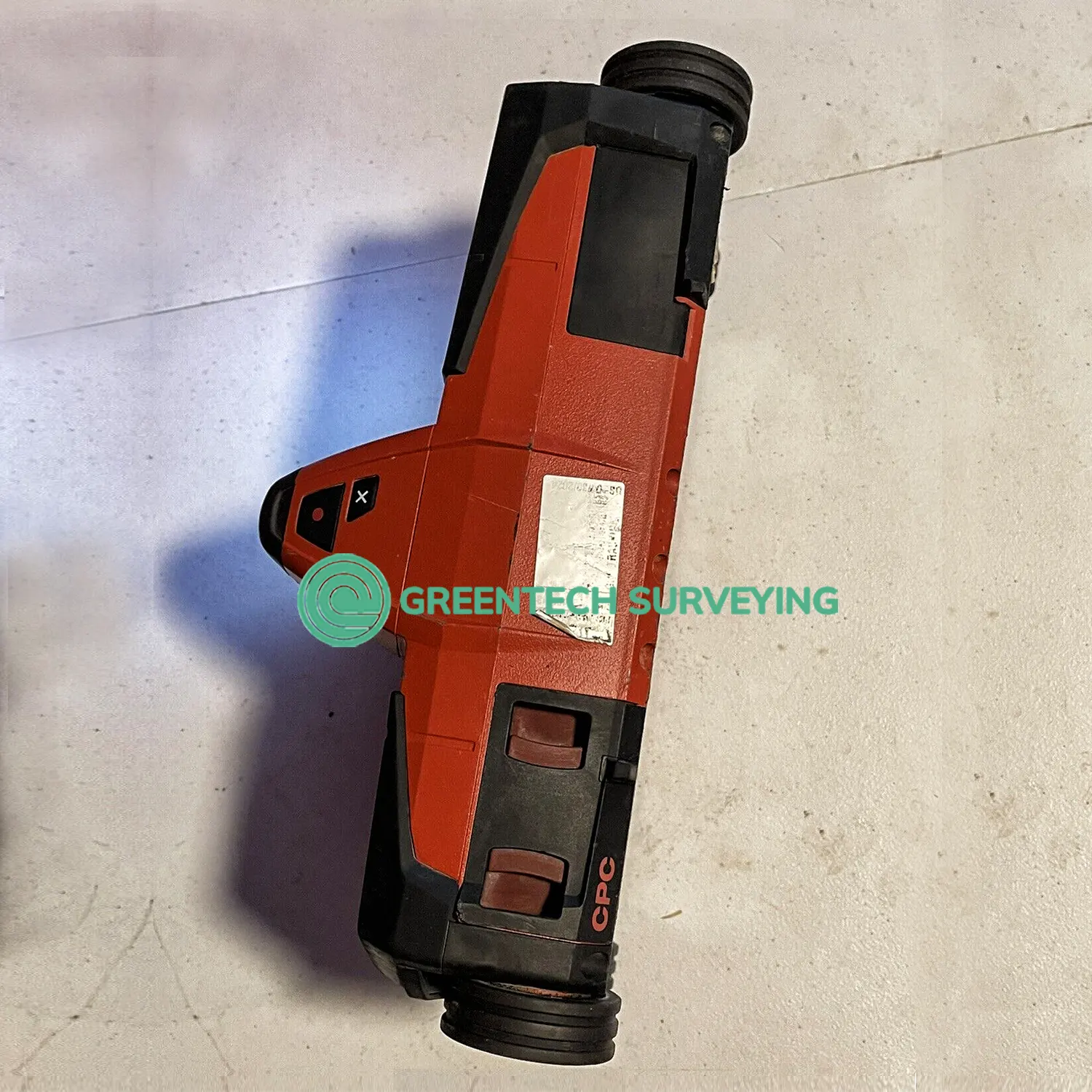

Used Hilti PS 1000 X-Scan Concrete Scanner

Used Hilti PS 1000 X-Scan Concrete Scanner for sale, fully shop tested, serviced and calibrated by Hilti authorized. Everything works perfectly and compliance with Hilti working standards. Was purchased brand new on 2021, still like new, used so gently and well taken care of by the owner.

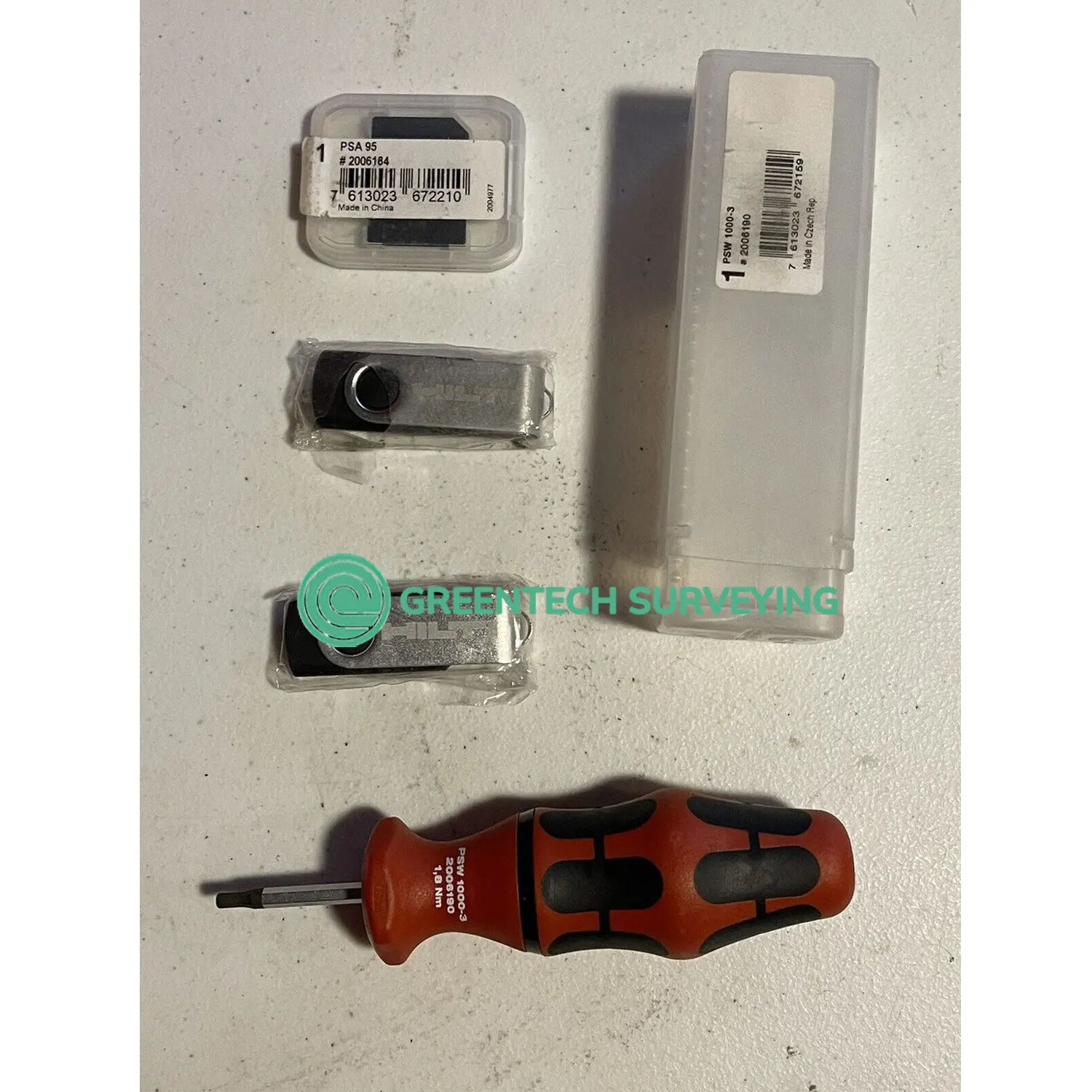

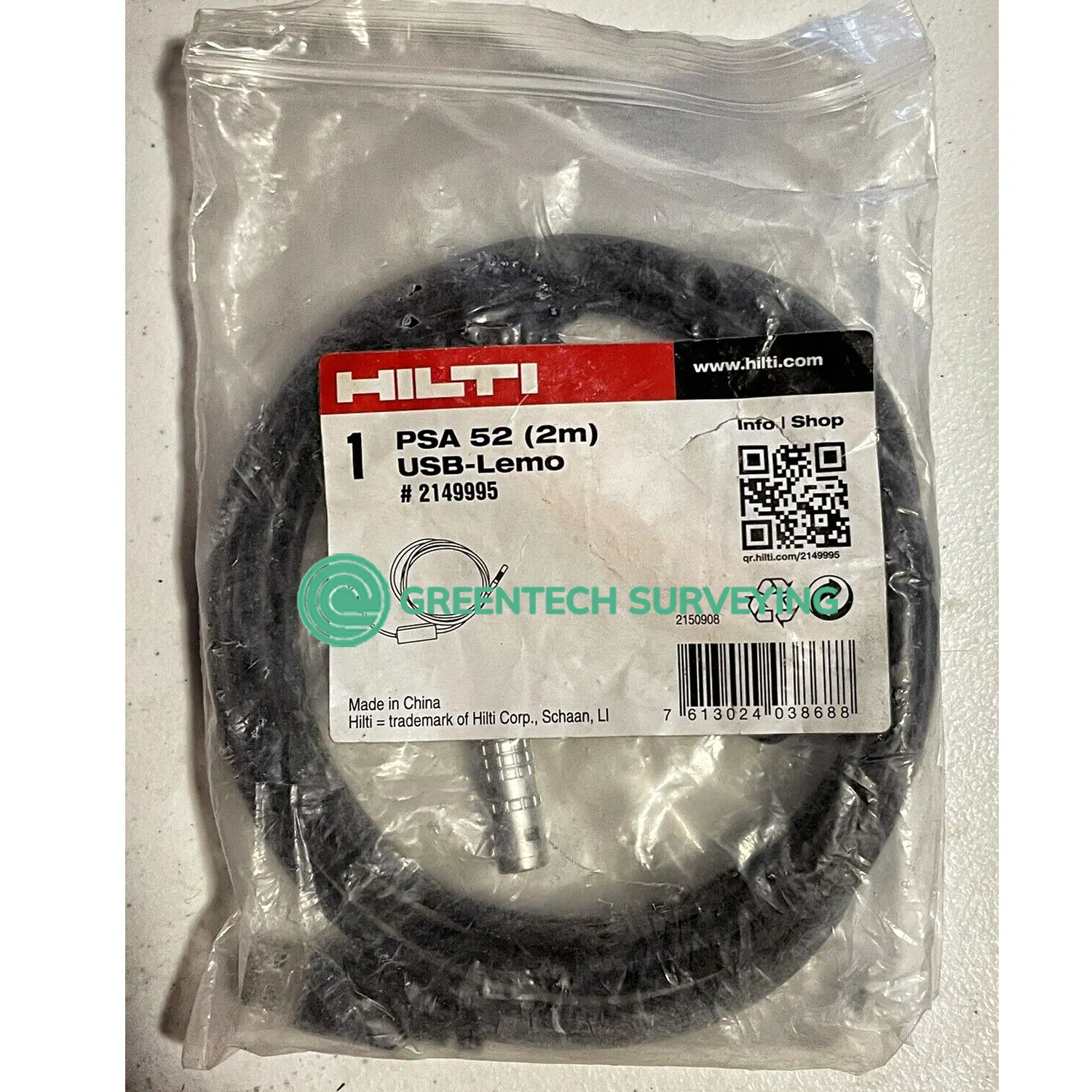

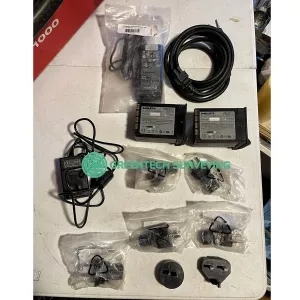

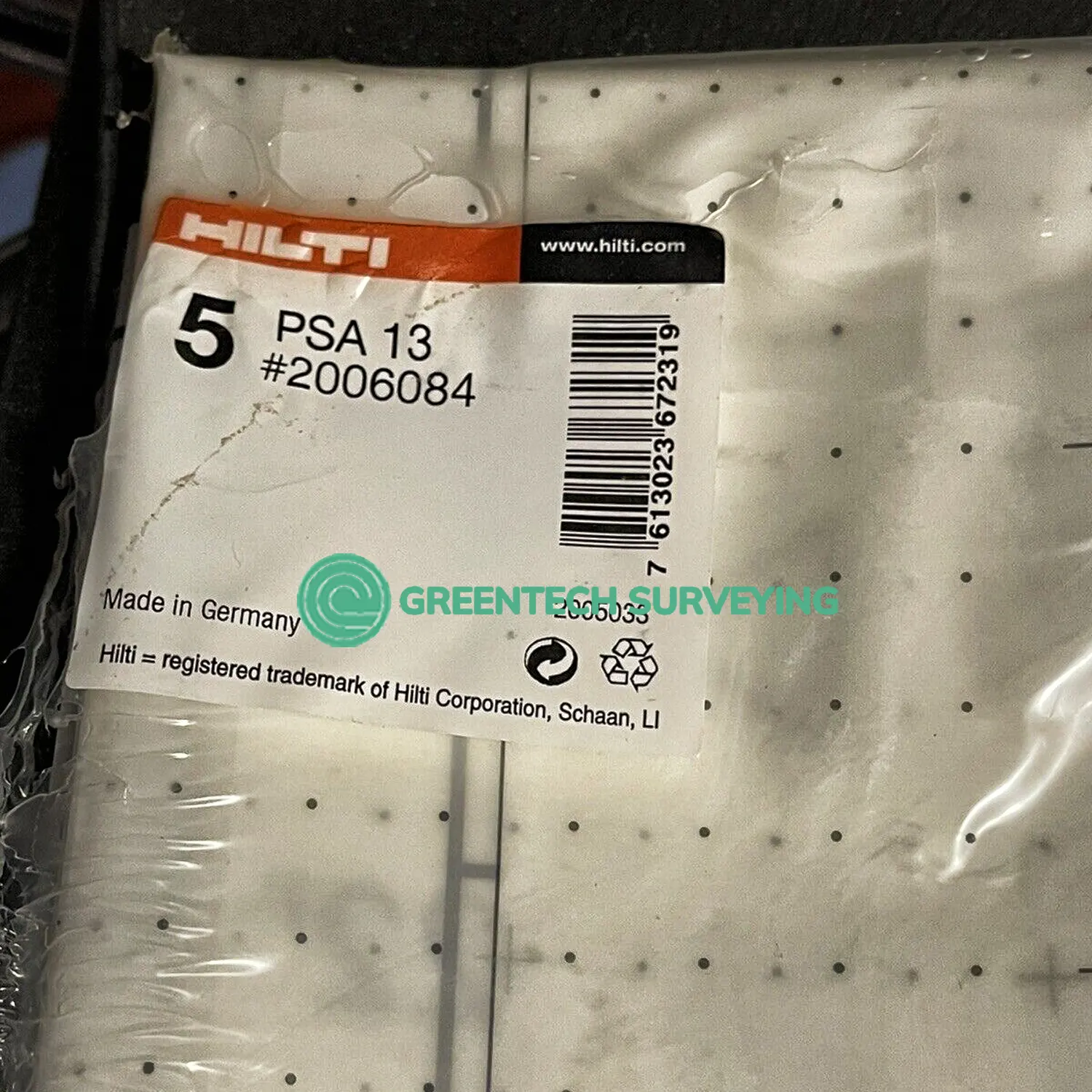

This used Hilti PS1000 X-Scan sale includes Hilti PS 1000 X-Scan System with X-Scan scanner PS 1000, Tablet PSA 200 PROFIS Ferroscan, 3x Batteries packs and Charger, Torque Wrench, Connecting cable for data transfer, PSA 13 Reference grid , 2x Memory Sticks, SD Memory Card, Calibration Certificate, 1-Year HILTI Extension Warranty, 30-Day money back guarantee

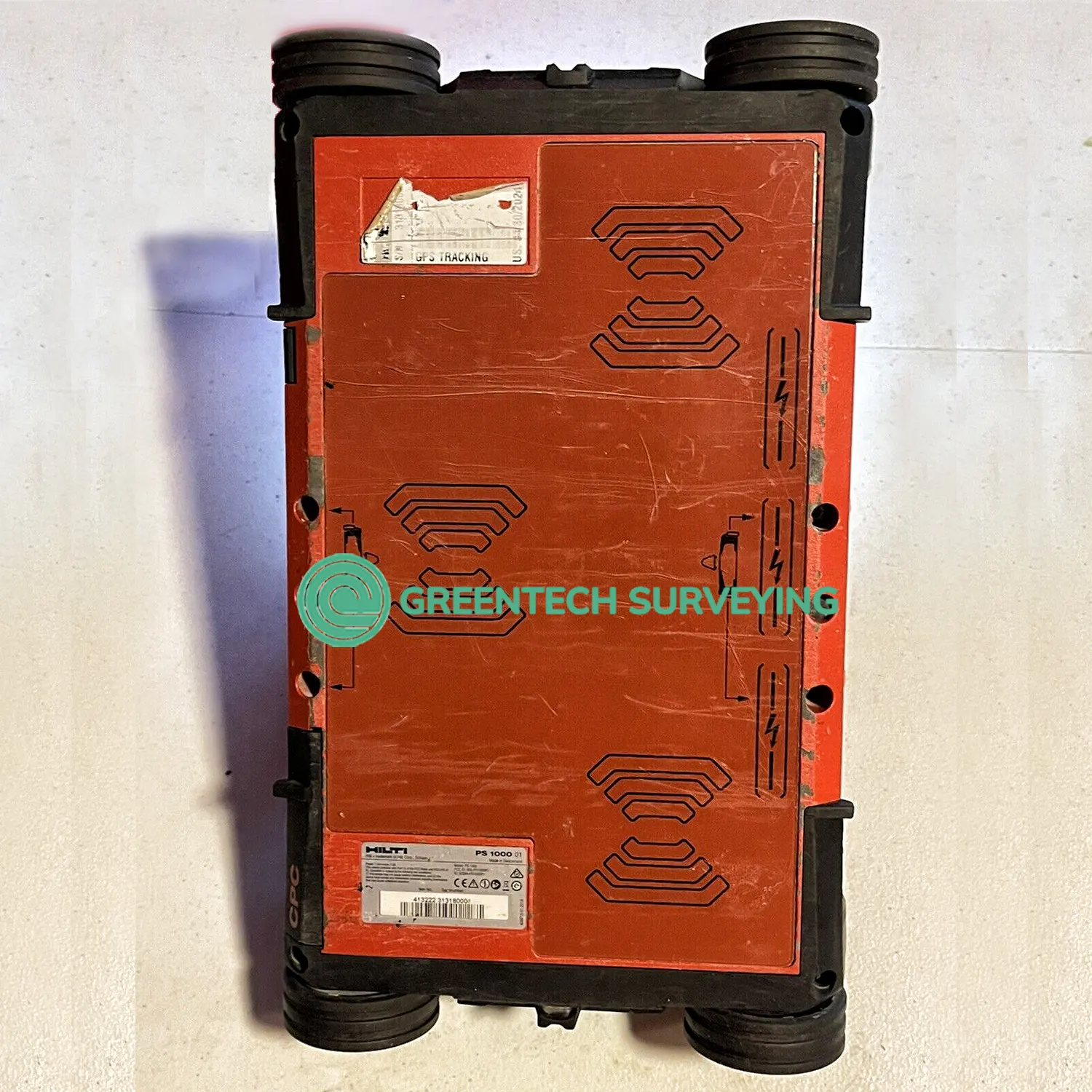

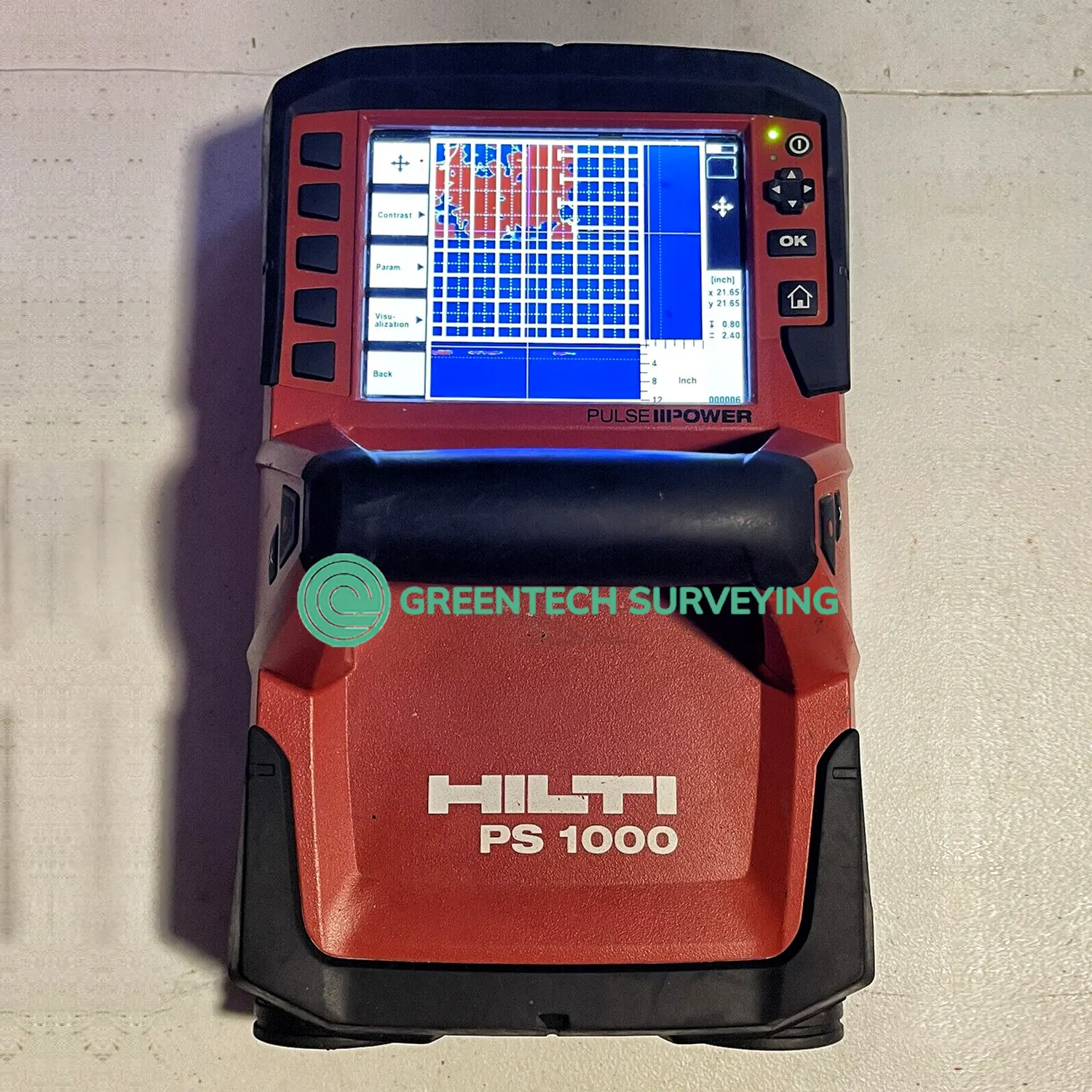

HILTI PS 1000 X-SCAN CONCRETE SCANNER

The Hilti PS1000 X-Scan System is capable of detecting hidden rebar, pre and post-tensioned tendons, metal and plastic pipes, wood, electric and glass fibre cables. This instrument provides a real-time view of the inside of concrete structures and generates true images automatically for direct on-site evaluation of scan data by the user. The compact all-in-one hand-held design offers easy, user-friendly operation and quick start-up for speed of use plus unmatched data visualisation.

The Hilti PS1000 X-Scan System has three built in scan modes for specific applications: Quickscan Detection, Quickscan Recording and Imagescan with 2D and 3D visualisation, top view and cross-sectional views. It also displays a top view of the scan for easy object mapping plus cross sections in both directions for easy identification of multiple layers in concrete structures.

Scans up to a depth of 400mm in dry concrete. Equipped with three radar antennas and an EM sensor to give real time 2D and 3D colour images on its X-Scan display of any embedded object, and clear indication on electrical conduit in high resolution.

Features
- Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation
- Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan
- Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification
- Compact all-in-one design offers easy operation, plus unmatched data visualization means hundreds of square meters of concrete can be inspected in a day
- Powerful monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation

Applications
- Locating rebars, tendons, metal and plastic conduits, glass-fiber cables, voids and wood in dry concrete structures at depths of up to 300 mm
- Minimizing hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work
- Rebar extension (post-installed rebar connections) in structural applications
- Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings
- Detection of voids and cavities

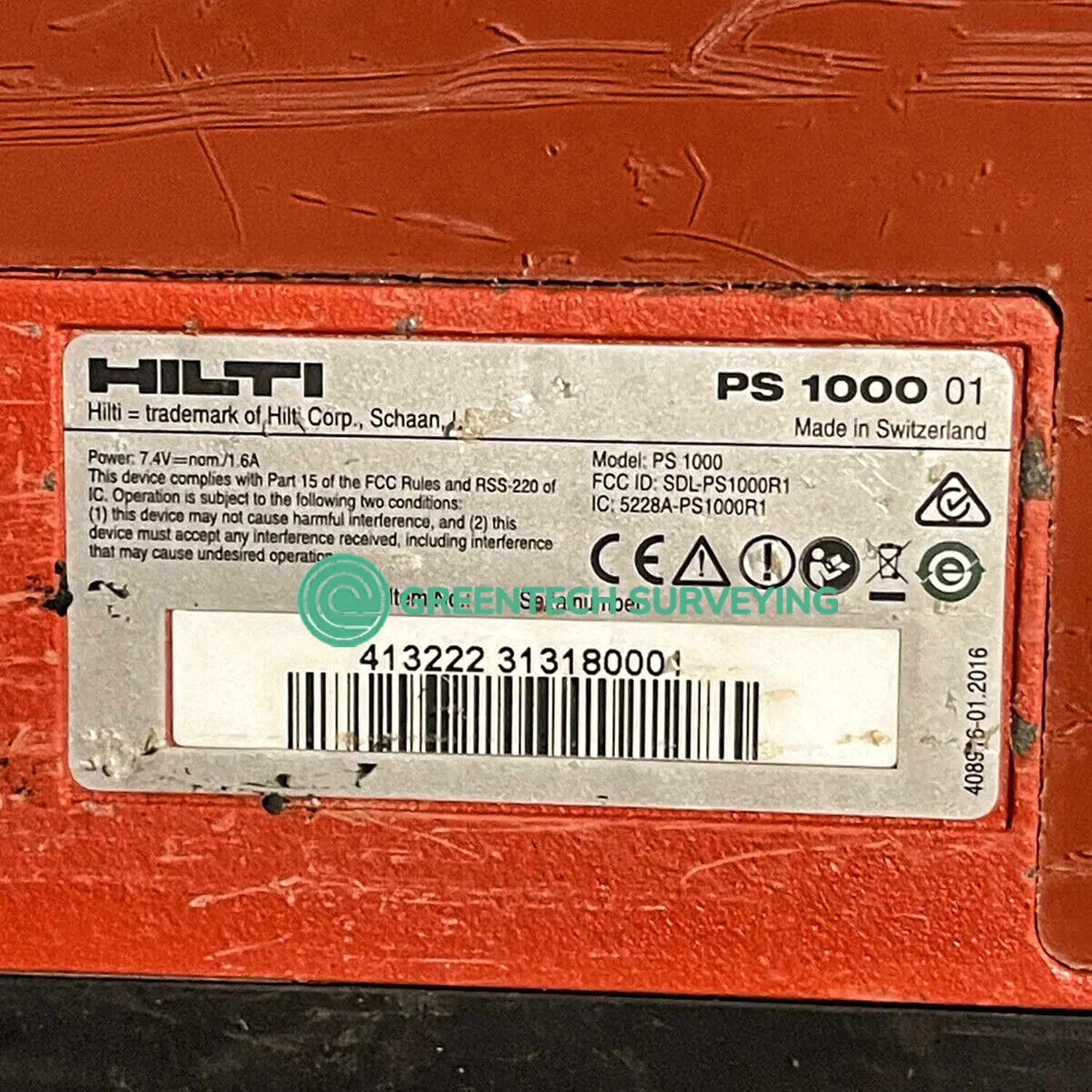

TECHNICAL DATA X-Scan PS 1000 #2154108

- Max. detection depth for object localization: 300 mm 1
- Accuracy of depth indication: <100 mm: ±10 mm, >100 mm: ±15 % 2
- Localisation accuracy: ±10 mm 3
- Minimum distance between two neighbouring objects: 40 mm
- Data memory (scanner): 200 scans
- Maximum operating time: 4 h
- Working temperature range: -10 - 50 °C
- Weight with batteries: 3 kg

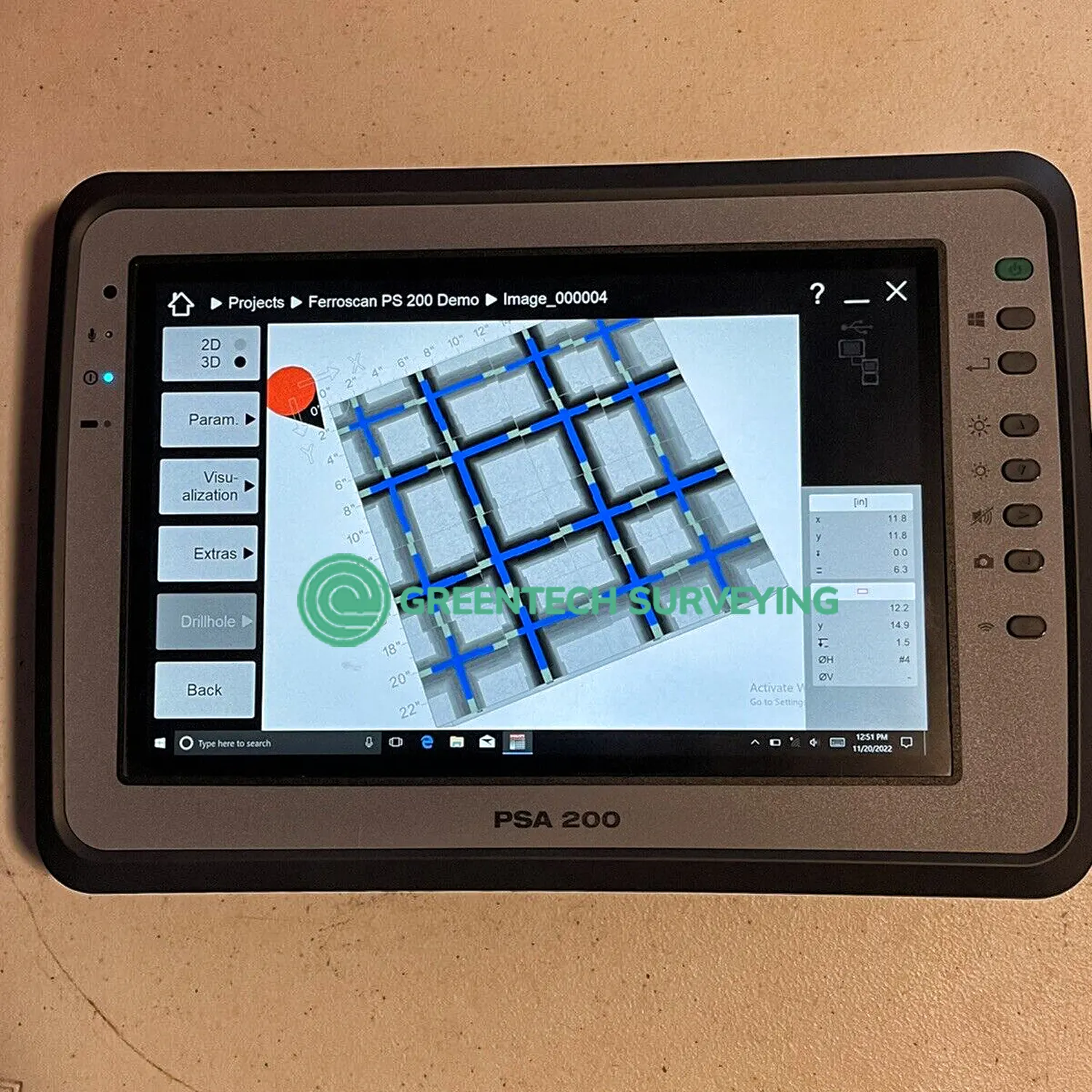

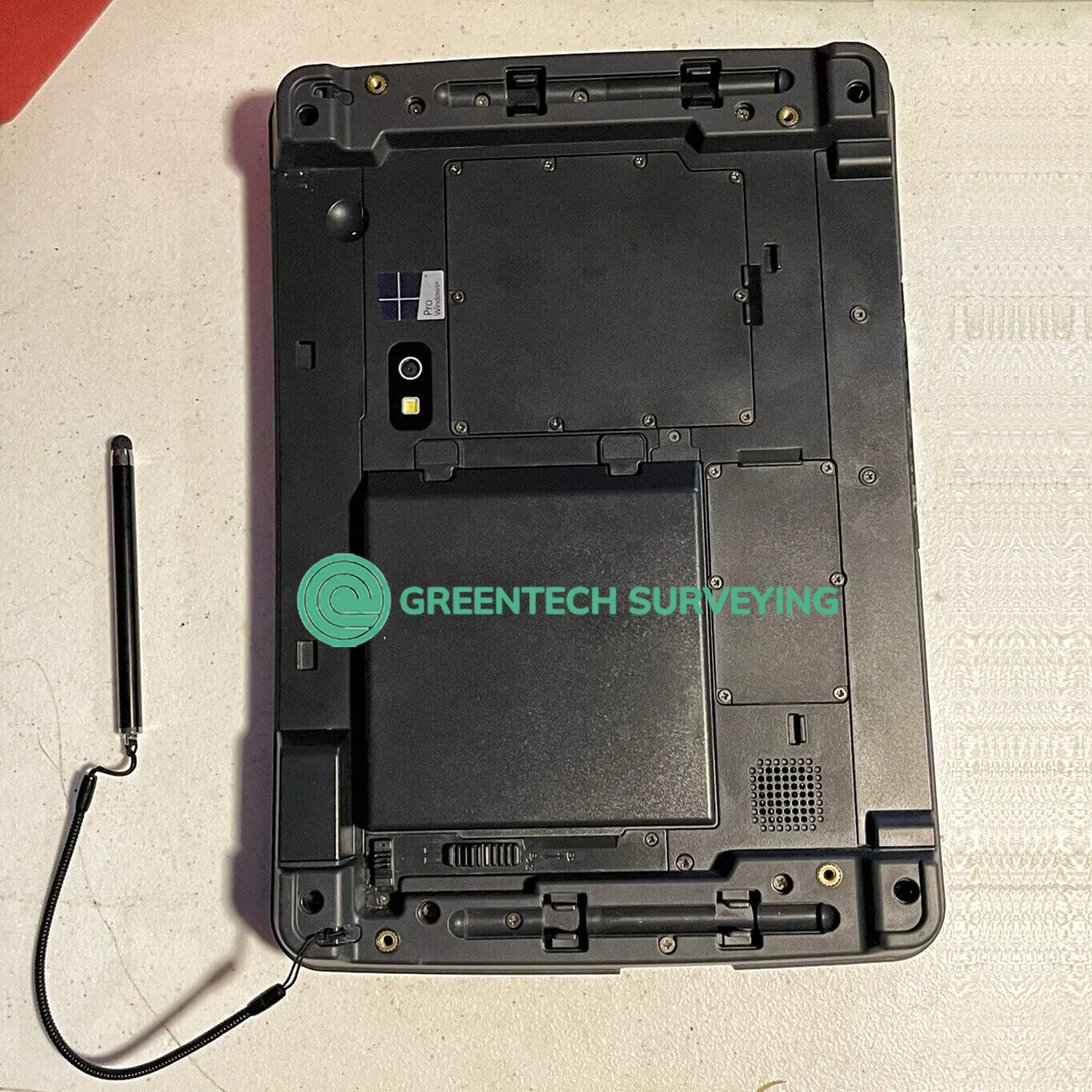

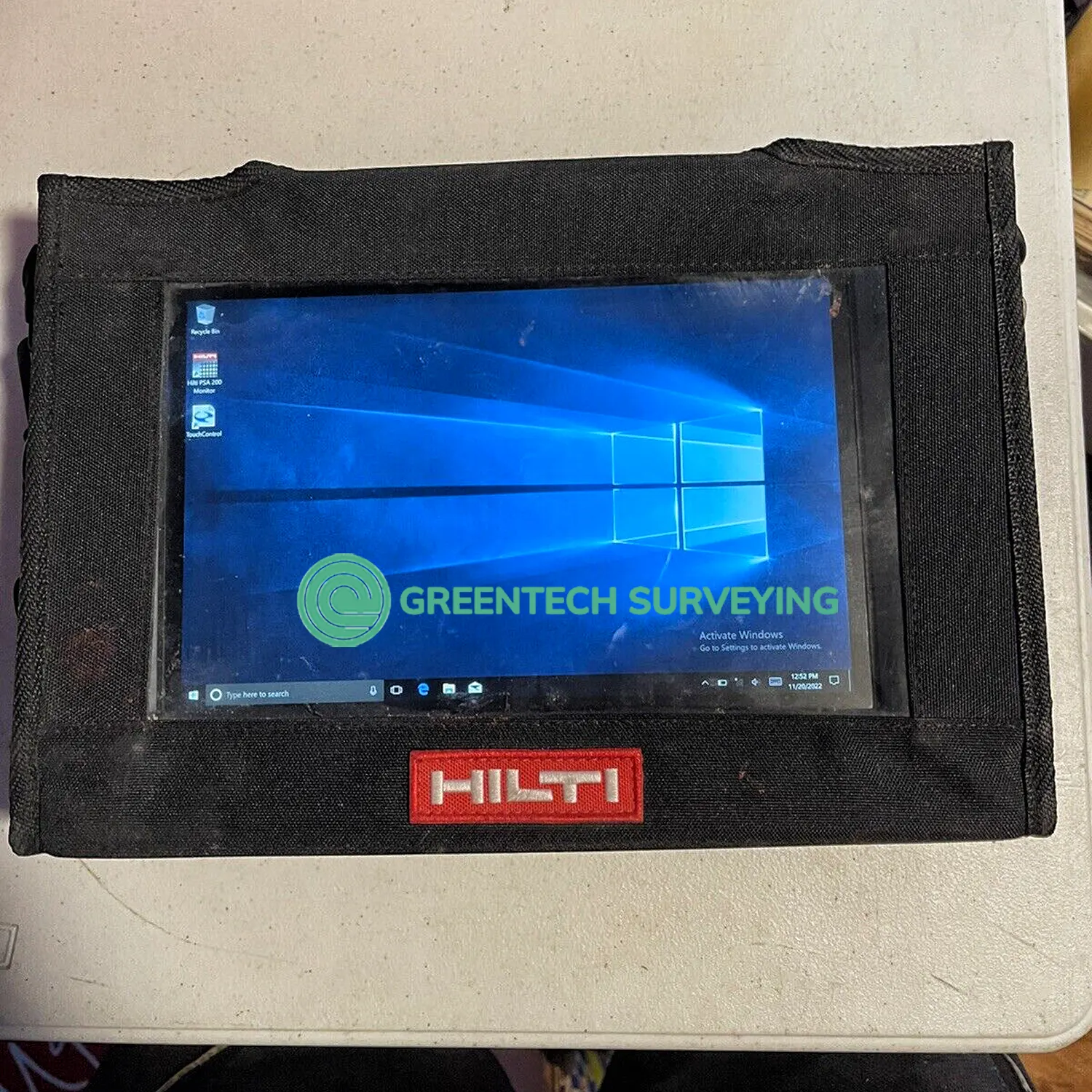

The Hilti PSA 200 tablet is designed to be used to display and analyses scans made with Hilti Scan systems. Scans can be managed in projects and subsequently transferred to a PC for data evaluation and archival. The Hilti PS 200 Ferroscan is a portable, quick and easy-to-use system for detecting and measuring the depth of coverage, diameter and position of reinforcement.
