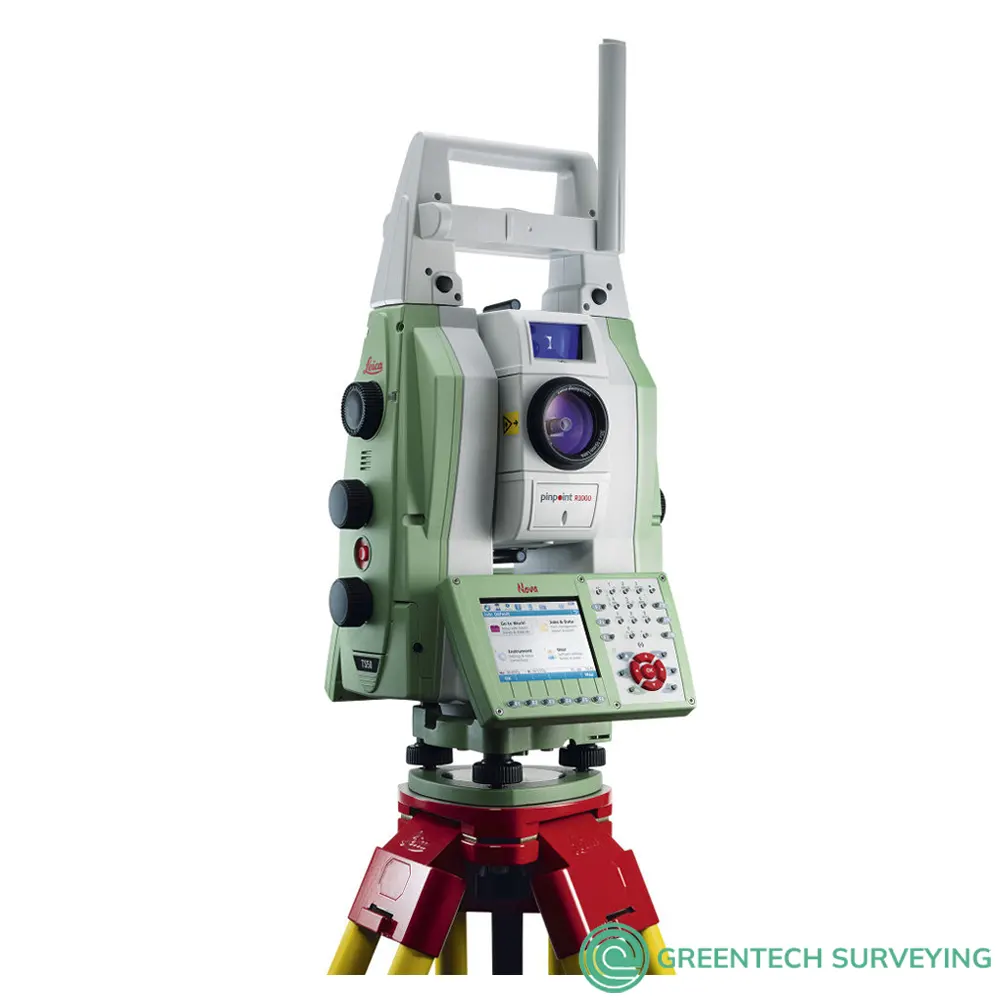

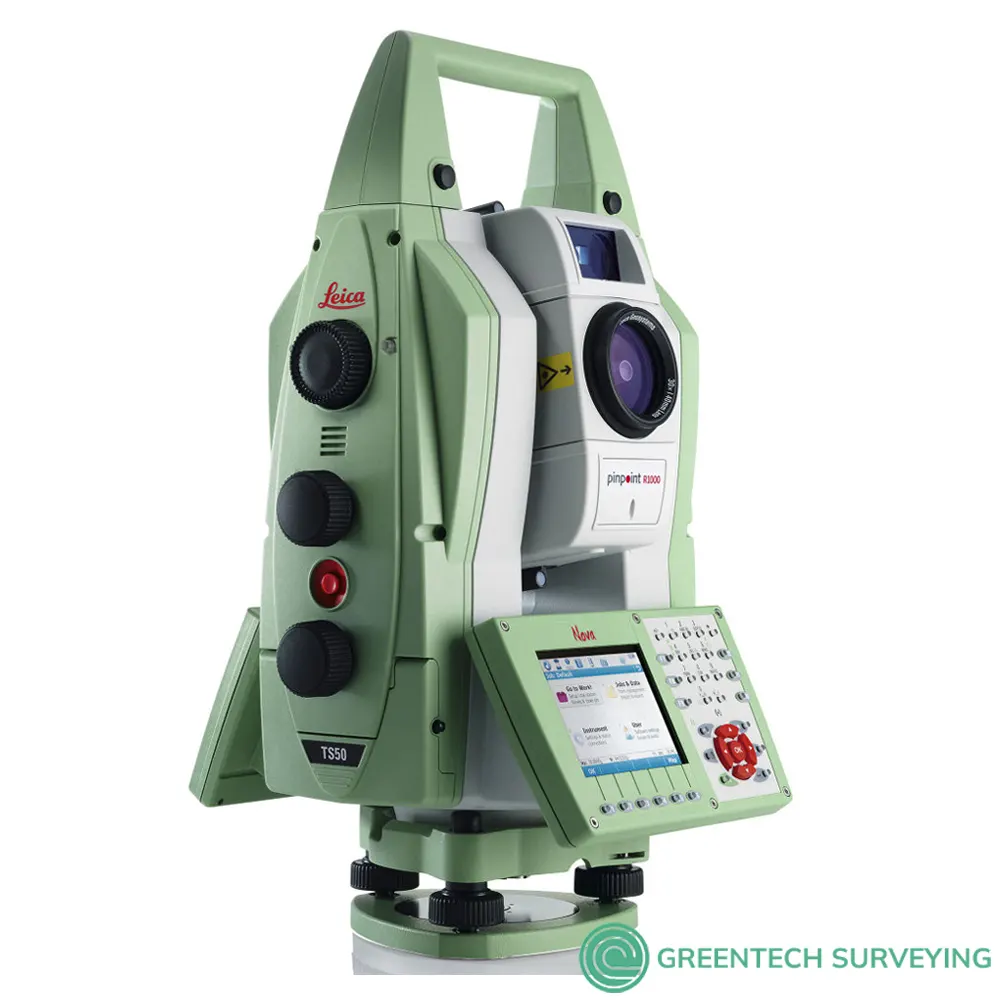

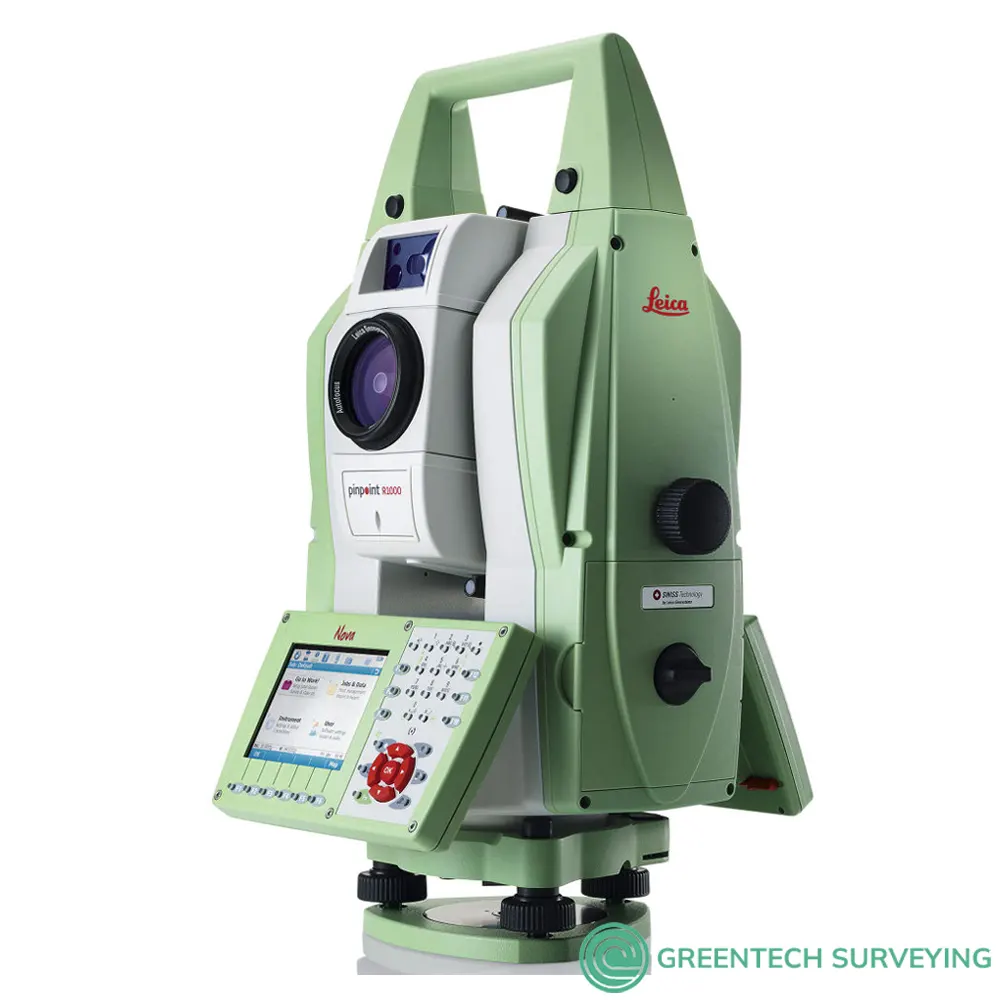

Leica Nova TM60 Monitoring Total Station
Leica Nova TM60 Monitoring Total Station designed for automated and manual deformation monitoring
$12,500
Leica Nova TM60 Monitoring Total Station designed for automated and manual deformation monitoring. The perfect total station for permanent and campaign monitoring projects combining Highest-end total station capabilities, 3D laser scanning, enabling you to scan up to 30’000 points per second, GNSS connectivity, Digital imaging
The robust, precise and enduring Leica Nova TM60 helps with monitoring projects whenever you need to collect data securely and continuously. The robust, precise and enduring Leica Nova TM60 helps with monitoring projects whenever you need to collect data securely and continuously. It comes with a firm promise: real-time information and reports you can always rely on, helping you make informed decisions in time and on time.
Be it settling, flexing, shifting, sliding or any other change of state – you will have it under control 24 hours a day, seven days a week. The TM60 comes with the world’s longest ATRplus range, half-second automatic aiming accuracy, advanced imaging and the longest continuous operation.
The MS60 comes with Leica Captivate, an onboard software with easy-to-use apps that cover all your surveying tasks. To make your work even more productive, you can benefit from the MS60’s Dynamic Lock feature as well as the newly added, revolutionary setup assistant feature, AutoHeight - which helps you setup even faster and more accurately with the simple press of a button.
Leica Nova TM60 sale includes;
- 1X MS60 1″ (0.3mgon) R2000, MultiStation with reflectorless EDM (R2000) and high-speed 30kHz EDM
- 1X Automatic target recognition
- 1X PowerSearch, AutoHeight
- 1X 5MP imaging, overview camera, 30x telescope camera, Autofocus
- 1X WLAN, Bluetooth, RS232/USB interface
- 1X RadioHandle interface, USB stick/SD card interface
- 1X 2GB eMMC Flash Memory, 1GB SDRAM
- 1X keyboards with 5″ WVGA color touch screen
- 1X Laser plummet
- 1X Quick Guide and upright container
The instrument reveals its full potential when paired with the Leica GeoMoS Monitoring Solution. This combination enables you to react to complex demands of any monitoring project, be it continuous or periodic. The TM60 Monitoring Total Station is able to adapt automatically to changing environmental conditions, giving you peace of mind by reducing data gaps, downtime and unexpected costs.
The instrument comes with the powerful and intuitive Leica Captivate onboard field software. The easy-to-use touch technology and user-friendly apps enable the user to perform campaign monitoring.
When to use the Leica Nova TM60:
- Permanent monitoring (24/7): remote operation, continuous monitoring, real-time measurement data, robust against various environmental conditions.
- Campaign monitoring (periodical): flexible instrument setup, automated measurements, Leica Captivate field software, dedicated monitoring app, connectivity to cloud services.
- Buildings and structures: monitoring of buildings, skyscrapers, industrial and sports facilities, offshore and underground structures.
- Transportation infrastructure: monitoring of tunnels, railway, bridges, roads & highways, airports, ports & canals.
- Environmental monitoring: monitoring of landslides, rock falls, subsidence.
- Energy infrastructure: monitoring of dams, oil & gas, nuclear facilities, pipelines power plants.
- Mining: monitoring of slope stability, high walls and quarries.
Lowest Downtime: Leica Nova TM60 is set out to give you peace of mind with the longest continuous operation in the field, the longest maintenance intervals (yearly) and no data gaps due to the new Leica GeoMoS Edge.
ATRplus: The Leica Nova TM60 has now become the world’s first self-learning monitoring total station due to the introduced ATRplus. ATRplus enables advanced automation and best measurement performance (up to 3,000 m), without the need to do adjustments to environmental conditions.
Leica GeoMoS: Leica Geosystems’ automatic deformation monitoring system helps monitoring customers quickly understand and react to complex demands of monitoring projects with the necessary flexibility.
AutoLearn: This GeoMoS feature allows the instrument to automatically search, aim and measure monitoring prisms with an enlarged field of view of the ATRplus. The detection of monitoring targets can now be done autonomically and remotely.
Key Features
- Scan up to 30,000 points per second
- Inspect and Analyze Data while in the field
- Easy setup with New AutoHeight Feature
- Create point clouds instantly onsite and visualize in the on screen 3D viewer for completeness checks
- DynamicLock to reliably lock on moving prisms
- Perform all your measurement tasks with one instrument
| LEICA NOVA TM60 MONITORING STATION TECHNICAL SPECIFICATIONS | ||
| ANGLE MEASUREMENT | ||
| Accuracy Hz and V | Absolute, continuous, quadruple | 0.5” (0.15 mgon) or 1” (0.3 mgon) |
| DISTANCE MEASUREMENT | ||
| Range | Prism (GPR1, GPH1P) 3 Non-Prism / Any surface 4 |
0.9 m to 3,500 m 0.9 m to >1,000 m |
| Accuracy / Measurement time | Single (prism) Single (any surface) |
0.6 mm + 1 ppm / typ. 2 mm + 2 ppm / typ. |
| Laser dot size | At 50 m | 8 mm x 20 mm |
| Measurement technology | System analyser | Coaxial, visible red laser |
| IMAGING | ||
| Overview and telescope camera | Sensor Field of view (overview / telescope) Frame rate |
5 megapixel CMOS sensor 19.4° / 1.5° Up to 20 frames per second |
| MOTORISATION | ||
| Direct drives based on Piezo technology | Rotation speed / Time to change face | Maximum 200 gon (180°) per s / typically 2.9 s |
| AUTOMATIC AIMING - LONG RANGE ATRplus | ||
| Target aiming range | Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) |
3,000 m 1,500 m |
| Accuracy / Measurement time | ATRplus angle accuracy Hz, V | 0.5” (0.15 mgon) or 1” (0.3 mgon) / typically 3-4 s |
| GENERAL | ||
| Operating System / Field Software | Windows EC7 / Leica Captivate with apps | |
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex- A9 MPCore | |
| Autofocus telescope | Magnification / Focus Range | 30 x / 1.7m to infinity |
| Display and keyboard | 5‘‘ (inch), WVGA, colour, touch, Face 1 standard, Face 2 optional | 37 keys, illumination |
| Operation | 3x endless drives, 1x Servofocus drive, 2x Autofocus keys 8, user-definable SmartKe | |
| Power management | Exchangeable Lithium-Ion battery with internal charging capability | Operating Time up to 9 h |
| Data storage | Internal memory Memory card |
2 GB SD card 1 GB or 8 GB |
| Interfaces | RS232, USB, Bluetooth® , WLAN | |
| Weight | Total station including battery | 7.2 kg |
| Environmental specifications | Working temperature range Dust & Water (IEC 60529) / Blowing rain Humidity |
–20°C to +50°C IP65 / MIL-STD-810G, Method 506.5-I 95%, non-condensing |
