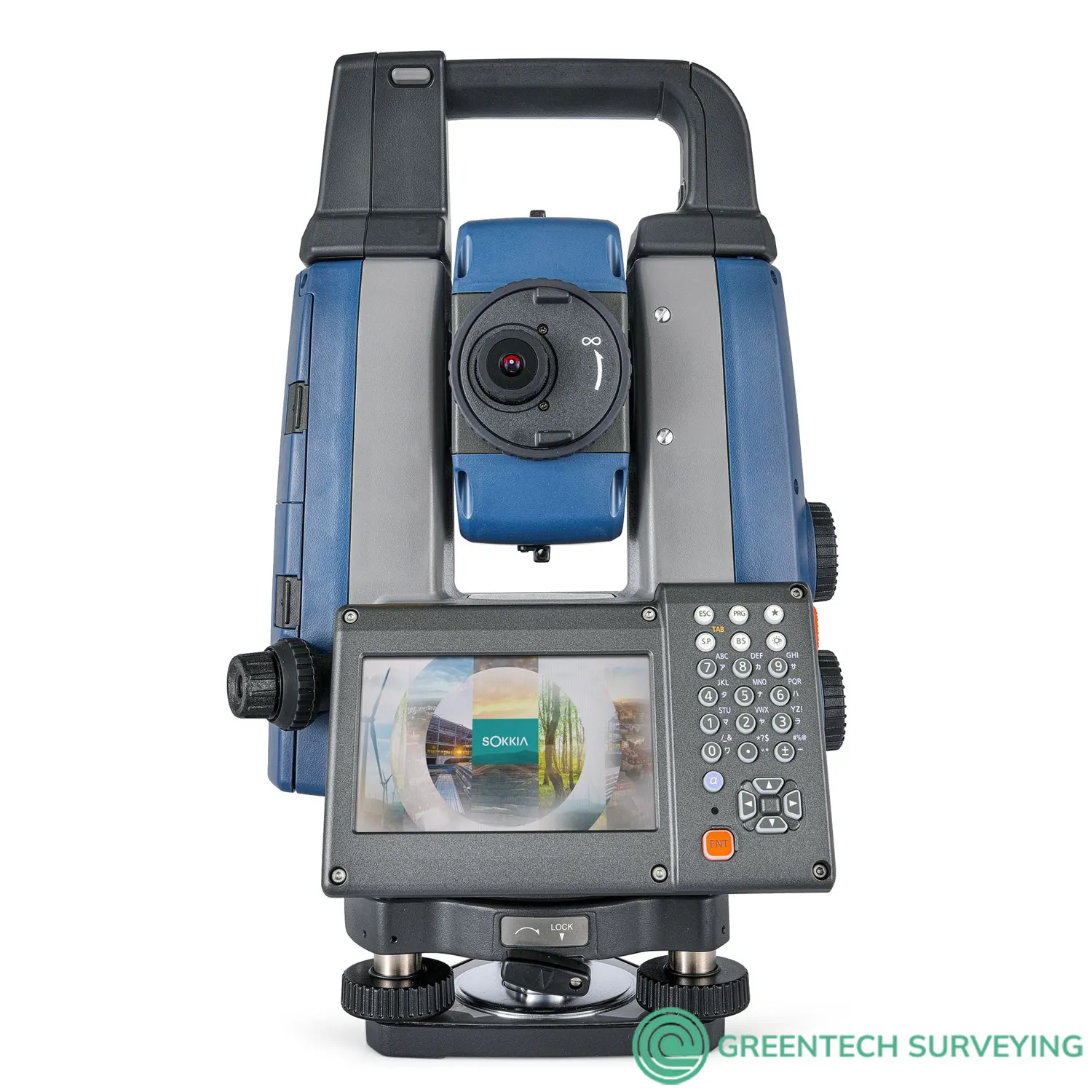

Sokkia iX 600 Robotic Total Station
Sokkia iX 600 Robotic Total Station for sale, single-operator robotic system, long-range reflectorless measurements, versatility of Hybrid Positioning
$15,000
The ultimate Sokkia iX 600 Robotic Total Station with the efficiency of a single-operator robotic system, the power of long-range reflectorless measurements, and the versatility of Hybrid Positioning, all in your choice of 2”, 3” or 5” iX-600 models.
UltraSonic technology is the driving force for the iX Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market – providing you with the smoothest and most accurate prism- tracking possible. It’s a difference you can see and hear immediately. With a rotation speed of 150° per-second, no matter how fast you move, or how many obstacles are in the way, you cannot outrun the iX.
Our new UltraTrac technology gives you increased prism-tracking strength in all conditions. Advanced instrument algorithms deliver the confidence you need to move ahead. It’s not that you lose line-of-sight, it’s how fast you can reacquire and get back to work
- 10 Hz update rates for faster more efficient staking
- 150°/sec turning speed for exceptional productivity
- 30% smaller and lighter than any other Sokkia series robotic instrument
- Stay productive, stay confident with UltraTracTM prism lock technology
- GNSS hybrid ready so you can handle any job site
- Five-year UltraSonic motor warranty
Ultra powerful
Improved, intelligent Ultrasonic motor control provides smoother operation with less wear and tear. Ideal for survey or vertical construction, the solution is designed to stake or layout more points in less time even in challenging conditions.
Ultra accurate
UltraTrac prism tracking utilizes optical sensing combined with high-speed Ultrasonic motor control. Whether working at a distance or up close, the instrument maintains prism lock making you more productive in any environment.
Ultra productive
Combine and conquer with our hybrid solutions that utilize both GNSS and robotics so you can capture the shot, regardless of tree cover, loss of line of sight, or hard to reach points. Tackle any project in a fraction of the time.
Workdays turned into workflows
Bridge the gap between your mobile workforce and office staff with faster, more efficient cloud-based MAGNET Enterprise services.
- Use the Point Manager plug-in for Revit and AutoCAD for automated point creation
- Secure connectivity to your active job sites as well as heavy machines using Sitelink3D
- Instant file sharing with both Autodesk® AutoCAD Civil 3D and Bentley MicroStation
Accurate, powerful, and versatile
Built for job site mobility, the flagship iX series Ultrasonic robotic total station enables accurate and productive workflows for highly demanding survey and construction applications. Precisely lay out or survey more points in less time and improve quality and consistency.
Easy-to-use digital processes with repeatably accurate results mean less rework and better quality control. The iX series is an all-in-one professional tool for layout, survey and machine guidance.
- Precise positioning with single-person operation
- High-speed advanced Ultrasonic motors
- Easy-to-use with MAGNET or Pocket3D software
- Seamless integration into BIM workflows
- Available in iX-1200 andiX-600 models with multiple accuracy levels
- Three-year instrument and five-year motor warranty
- Ultra-rugged IP65 dust and water resistance
SOKKIA IX 600 ROBOTIC TOTAL STATION SPECIFICATIONS
| TELESCOPE | |
| Length | 142 mm |
| Aperture | EDM: 38 mm |
| Magnification | 30x |
| Image | Erect |
| Resolving power | 2.5” |
| Field of view | 1°30' |
| Minimum focus | 1.3 m (4.3 ft.) |
| Reticle illumination | 5 brightness levels |
| ANGLE MEASUREMENT | |
| Horizontal and vertical circles type | Rotary absolute encoder |
| Detecting | 2 sides |
| Angle Units | Degree/Gon/Mil (selectable) |
| MINIMUN DISPLAY | |
| iX 1201/1202/602 | 0.5” (0.0001 gon/0.002 mil) 1” (0.0002 gon/0.005 mil) (selectable) |
| iX 1203/603/605 | 1” (0.0002 gon/0.005 mil) 5” (0.0010 gon/0.02 mil) (selectable) |
| ANGLE ACCURACY (ISO 17123-3 : 2001) | |
| iX 1201 | 1” (0.0003 gon/0.005 mil) |
| iX 602 | 2” (0.0006 gon/0.010 mil) |
| iX 1203/603 | 3” (0.0003 gon/0.015 mil) |
| iX 1205/605 | 5” (0.0003 gon/0.025 mil) |
| Collimation compensation | On/Off (selectable) |
| Measuring mode | Horizontal angle: Right/Left (selectable) Vertical angle: Zenith/Horizontal/Horizontal ± 90° /% (selectable) |
| TILT ANGLE COMPENSATION | |
| Type | Liquid 2-axis tilt sensor |
| Minimum display | 1” |
| Range of compensation | ± 6’ (0.0018 gon) |
| Automatic compensator | On (V and H/V) / Off (selectable |
| Tilt offset | Can be changed |
| DISTANCE MEASUREMENT | |
| Measuring method | Coaxial phase shift measuring system |
| Signal source | Red laser diode 690 nm Class 3R |
| (IEC60825-1 Ed. 3.0: 2014/FDA CDRH 21CFR Part1040.10 and 1040.11 (Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.56, dated May 8, 2019.)) |
|
| MEASURING RANGE | |
| Prism-2 X 1*2 | iX-1200 series: 1.3 to 6,000 m (19,685 ft.) iX-600 series: 1.3 to 4,000 m (13,123 ft.) |
| 360° Prism ATP1/ATP1S | 1.3 to 1,000 m (3,280 ft.) |
| Prism-5 | 1.3 to 500 m (1,640 ft.) |
| Reflective sheet RS90N-K*3 | 1.3 to 500 m (1,640 ft.) |
| Reflective sheet RS50N-K*3 | 1.3 to 300 m (980 ft.) |
| Reflective sheet RS10N-K*3 | 1.3 to 100 m (320 ft.) |
| Reflectorless (White)*2 | iX-1200 series: 0.3 to 800 m (2,624 ft.) iX-600 series: 0.3 to 600 m (1,968 ft.) |
| MINIMUM DISPLAY | |
| Fine/Rapid measurement | 0.0001 m (0.001 ft./ 1/16 inch) or 0.001 m (0.005 ft./ 1/8 inch) |
| Tracking measurement | 0.001 m (0.005 ft./ 1/8 inch) or 0.01 m (0.1 ft./ 1/2 inch) |
| Maximum slope prism / reflective sheet | 12,000 m |
| Slope distance | Reflectorless: 1,200 m (3,930 ft.) Prism: 9,600 m (31,490 ft.) |
| Distance unit | m/ft./US ft./inch (selectable) |
| DISTANCE ACCURACY | |
| Circular or 360° Prism ATP1 | iX-1200 series Fine: 1 mm (0.003 ft.) + 2 ppm Rapid: 5 mm (0.0016 ft.) + 2 ppm iX-600 series Fine: 2 mm (0.006 ft.) + 2 ppm Rapid: 5 mm (0.016 ft.) + 2 ppm |
| Reflective sheet*3 | Fine: 2 mm (0.006 ft.) + 2 ppm Rapid: 5 mm (0.016 ft.) + 2 ppm |
| Reflectorless (White)*4 |
Fine: 2 mm (0.006 ft.) + 2 ppm (0.3 to 200 m) 5 mm (0.016 ft.) + 10 ppm (200 to 350 m) 10 mm (0.032 ft.) + 10 ppm (350 to 1000 m) Rapid: 6 mm (0.020 ft.) + 2 ppm (0.3 to 200 m) 8 mm (0.026 ft.) + 10 ppm (200 to 350 m) 15 mm (0.049 ft.) + 10 ppm (350 to 1000 m) |
| Measurement mode | Fine measurement (single/repeat/average) Rapid measurement (single/repeat) /Tracking (selectable) |
| MEASURING TIME | |
| Fine measurement | 1.5 sec + every 0.9 sec. |
| Rapid measurement | 1.3 sec + every 0.6 sec. |
| Tracking measurement | 1.3 sec + every 0.4 sec. |
| Temperature input range | - 35 to 60°C (in 0.1°C step)/- 31 to 140°F (in 1°F step) |
| Pressure input range | 500 to 1,400 hPa (in 0.1 hPa step), 375 to 1,050 mm Hg (in 0.1 mm Hg step), 14.8 to 41.3 inch Hg (in 0.01 inch Hg step) |
| ppm input range | -499 to 499 ppm (in 0.1 ppm step) |
| Prism constant correction | -99 to 99 mm (in 0.1 mm step) 0 mm fixed for reflectorless measurement |
| Earth curvature and refraction correction | No/Yes K=0.142 Yes K=0.20 (selectable) |
| Sea level correction | No/Yes (selectable) |
| *1: Slight haze, visibility about 20 km, sunny periods, weak scintillation. *2: No haze, visibility about 40 km, overcast, no scintillation. *3: Figures when the laser beam strikes within 30° of the reflective sheet target. *4: Figures when using Kodak Gray Card White side (reflection factor 90%) and brightness level is less than 5,000 lx (a little cloudy). When performing reflectorless measurement, the possible measurement range and precision will change depending on the target reflection factor, weather conditions and location conditions. |
|
| ROTATION | |
| Max revolving speed (turning) | iX-1200: 150 degrees per second iX-600: 85 degrees per second |
| Max auto tracking speed | iX-1200: 20 degrees per second iX-600: 15 degrees per second |
| ULTRATRAC™ TRACKING RANGE | |
| Prism-2 | iX-1200: 1.3 to 1,000 m (3,280 ft.) iX-600: 1.3 to 800 m (2,624 ft.) |
| 360 degree prism (ATP1) | 2 to 600 m (1,960 ft.) |
| AUTO POINTING ACCURACY | |
| Standing still at 100 m or less | 1.2 mm or better |
| Standing still greater then 100 m | 0.3 mm (0.001ft.) + 9 ppm |
| GUIDE LIGHT | |
| Light source | LED (red 626 nm/green 524 nm) |
| Visible distance | 1.3 to 150 m |
| Visible angle | Right and Left/Upward and Downward: ± 4° (7 m/100 m) |
| Resolving power at center area (width) | 4’ (about 0.12 m/100 m) |
| Brightness | 3 levels (bright/normal/dim) |
| MEMORY AND DATA | |
| Internal memory | 1GB |
| External memory | USB flash memory (up to 32GB) |
| Visible angle | Asynchronous serial RS232C compatible USB Revision 2.0 (FS) Host (Type A) Client (Type miniB) |
| LONGLINK™ BLUETOOTH® WIRELESS TECHNOLOGY | |
| Transmission method | FHSS |
| Modulation | GFSK (Gaussian-filtered frequency shift keying) |
| Frequency band | 2.402 to 2.48 GHz |
| Bluetooth® profile | SPP, DUN |
| Power class | Class 1 |
| Range | 600 m (No obstacles, few vehicles or sources of radio omissions/interference in the near vicinity of the instrument, no rain, while in communication |
| Authentication | Yes/No (selectable) |
| Wi-Fi | |
| Communication distance | 10 m |
| Access method | Infrastructure mode/ad hoc mode |
| Frequency range | 2,412 to 2,472 MHz (1 to 11ch) |
| Transmission specification | IEEE802.11b/g/n |
| POWER SUPPLY | |
| Power source | Rechargeable Li-ion battery BDC72 |
| Working duration at 20°C | BDC72: approx. 4 hours BT-73Q (external optional) approx. 6.5 hours |
| Fine single measurement = every 30 seconds after worked 180 degrees and locking on prism |
|
| Battery state indicator | 4 levels |
| Auto power-off | 5 levels (5/10/15/30 min/Not set) (selectable) |
| External power source | 6.7 to12 V |
| BATTERY (BDC72) | |
| Nominal voltage | 7.2 V |
| Capacity | 5,986 mAh |
| Dimensions (w x d x h) | 40 x 70 x 40 mm |
| Weight | approx. 220 g |
| Charging time at 25°C | approx. 8 hours for two batteries using CDC77 charger |
| CHARGER (CDC77) | |
| Voltage | AC100 to 240 V |
| Charging temperature range | 0 to 40°C |
| Storage temperature range | -20 to 65°C |
| Size (w x d x h) | 94 x 102 x 36 mm |
| Weight | about 250 g |
| OPERATING SYSTEM | |
| Windows Compact 7 | |
| DISPLAY | |
| Color touchscreen 4.3 inch Transmissive TFT VWGA color LCD Backlight LED 9 brightness levels Touch panel resistance sensitive analog type |
|
| SENSITIVITY OF LEVELS | |
| Circular level | 10’/2 mm on tribrach 8’/2 mm on main unit (optional) |
| Electronic circular levels | Graphic display range: 6’ (inner circle) Digital display range: ± 6’ 30” |
| OPTICAL PLUMMET | |
| Image | Erect |
| Magnification | 3X |
| Minimum focus | 0.5 m |
| ENVIRONMENTAL | |
| Operating temperature | Standard models: -20 to 50°C (-4 to 122°F) (no condensation) |
| Storage temperature | -30 to 60°C (-22 to 140°F) (no condensation) |
| Dust/Water rating | IP65 (IEC 60529: 2001) |
| Instrument height | 192 mm from tribrach mounting surface |
| Size with handle (w x d x h) | 212 x 172 x 355 mm |
| (with handle/battery | 5.8 kg |
| CERTIFICATIONS AND STANDARDS | |
| USA FCC Class A Europe R&TTE-Class1 Europe EMC-ClassB Canada ICES –ClassA Australia C-Tick N 13813 Europe WEEE Directive Europe Battery Directive California Proposition 65 California Perchlorate Material CR TELEC |
|
