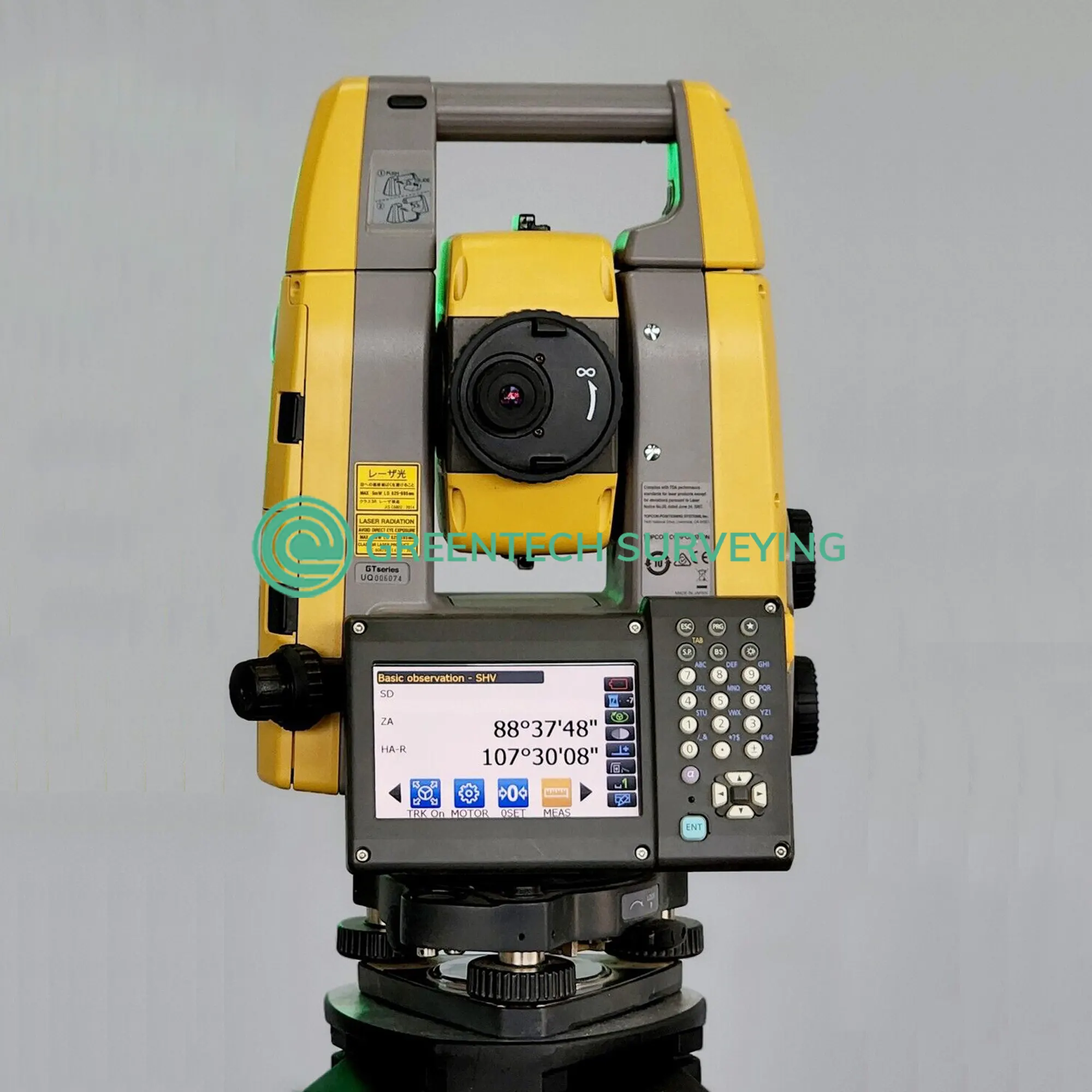

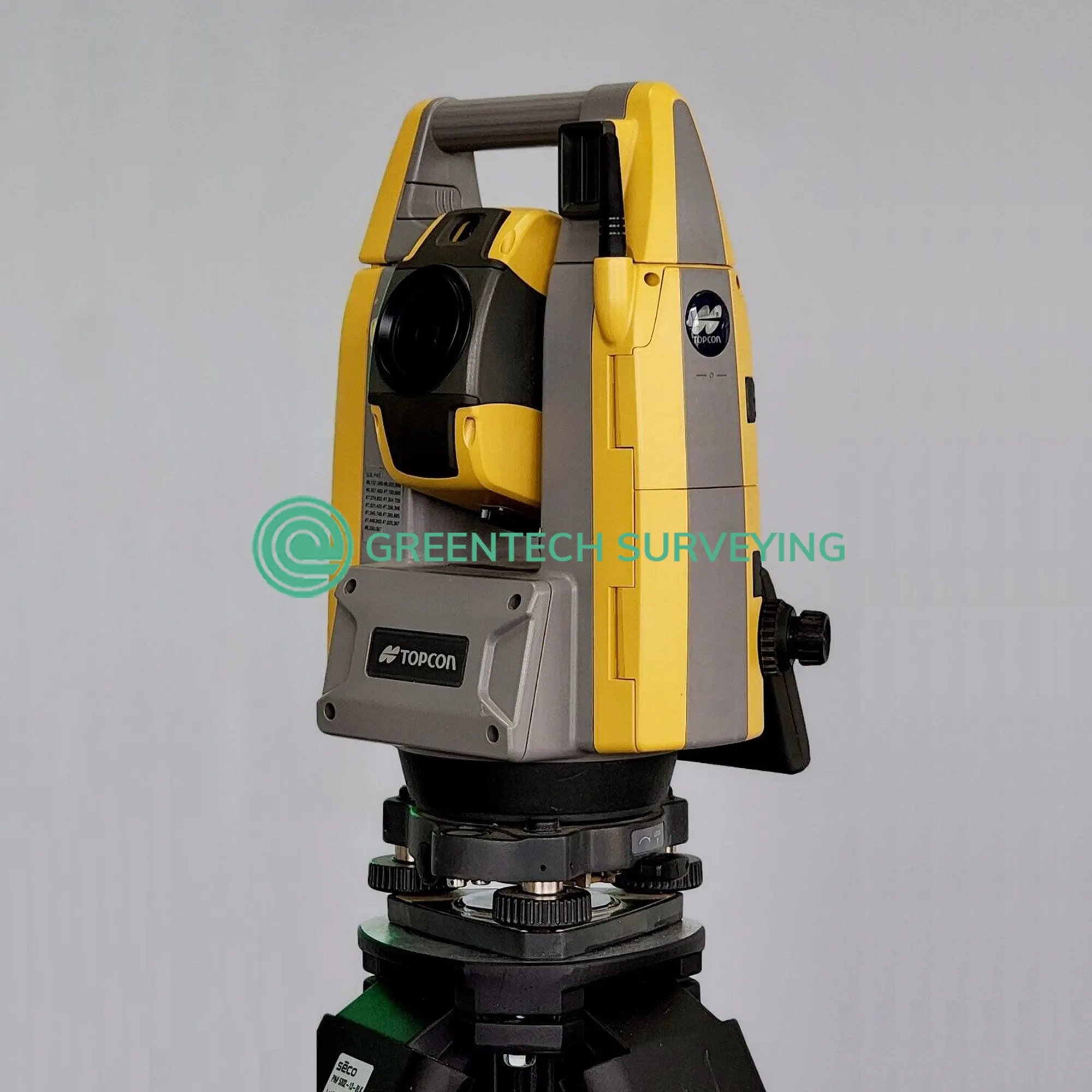

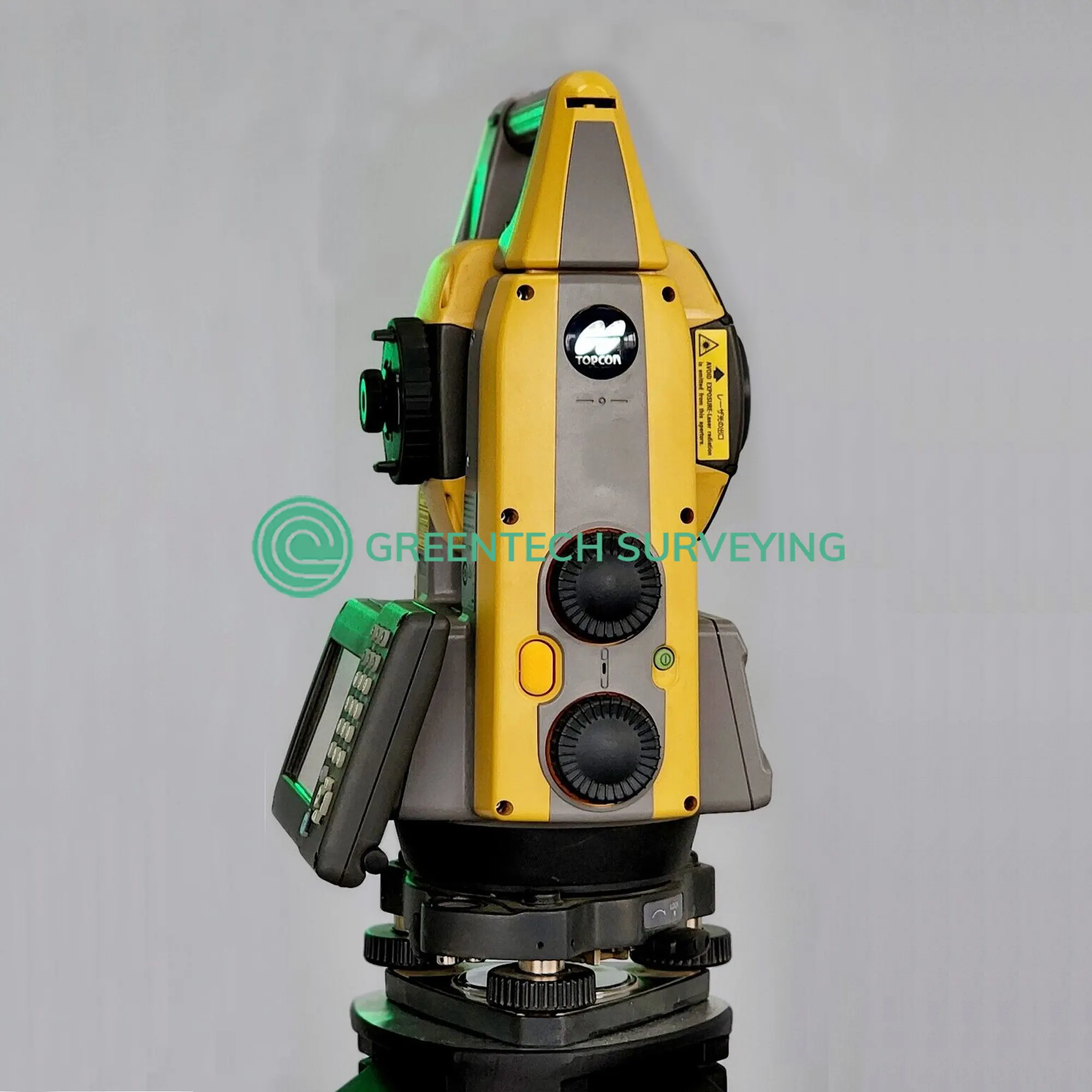

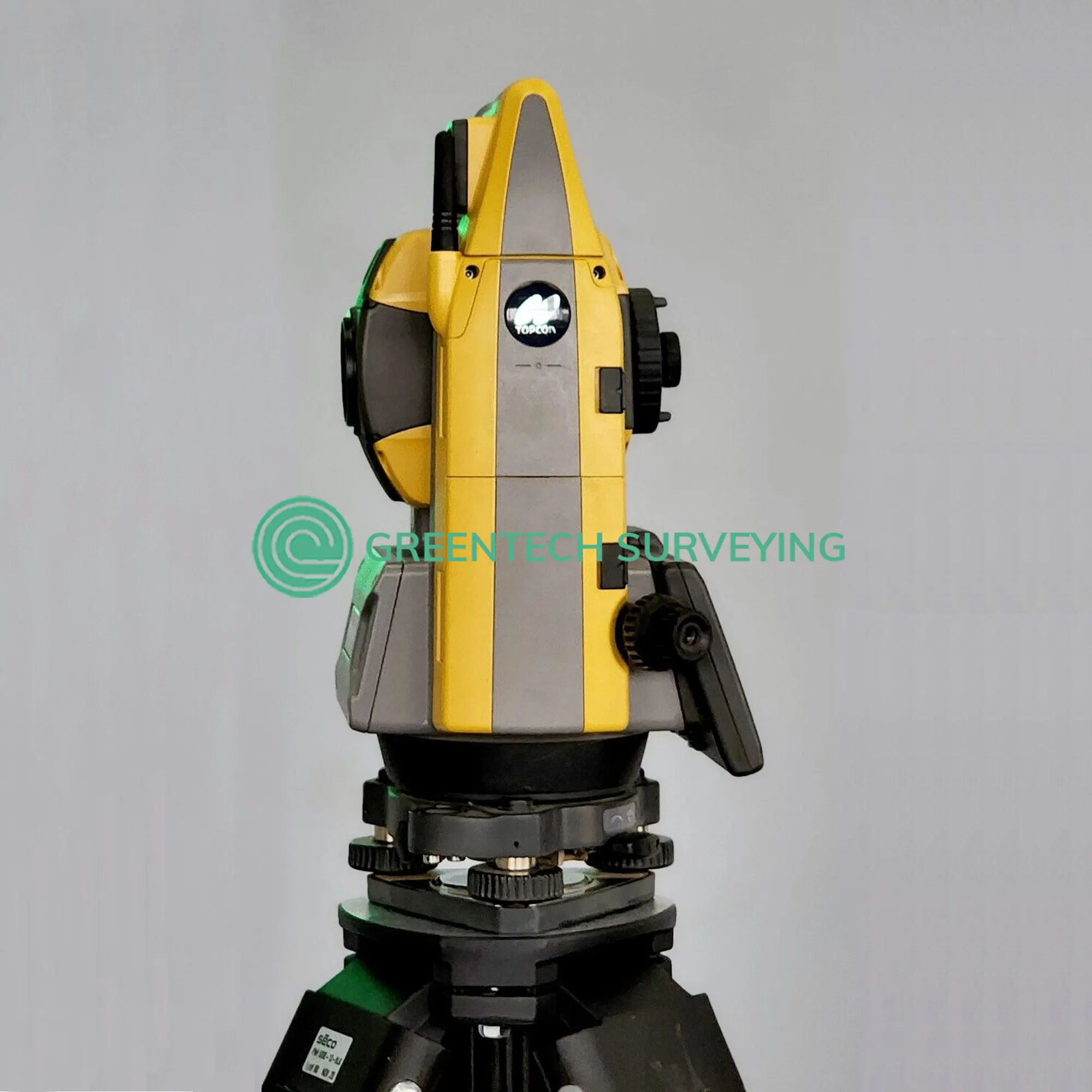

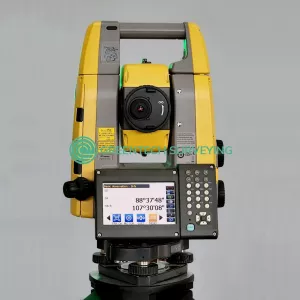

Topcon GT-1003 3 Robotic Total Station
For sale Topcon GT-1003 3” Robotic Machine Control Total Station LPS MC, The instrument is very clean and everything is in great and working correctly condition
$3,500
For sale Topcon GT-1003 3” Robotic Machine Control Total Station LPS MC. This is a 3” Robot and DOES have the LPS MC option enabled to run various Machine Control applications. The instrument is very clean and everything is in great and working correctly condition. Comes with a 30 days money back guarantee.

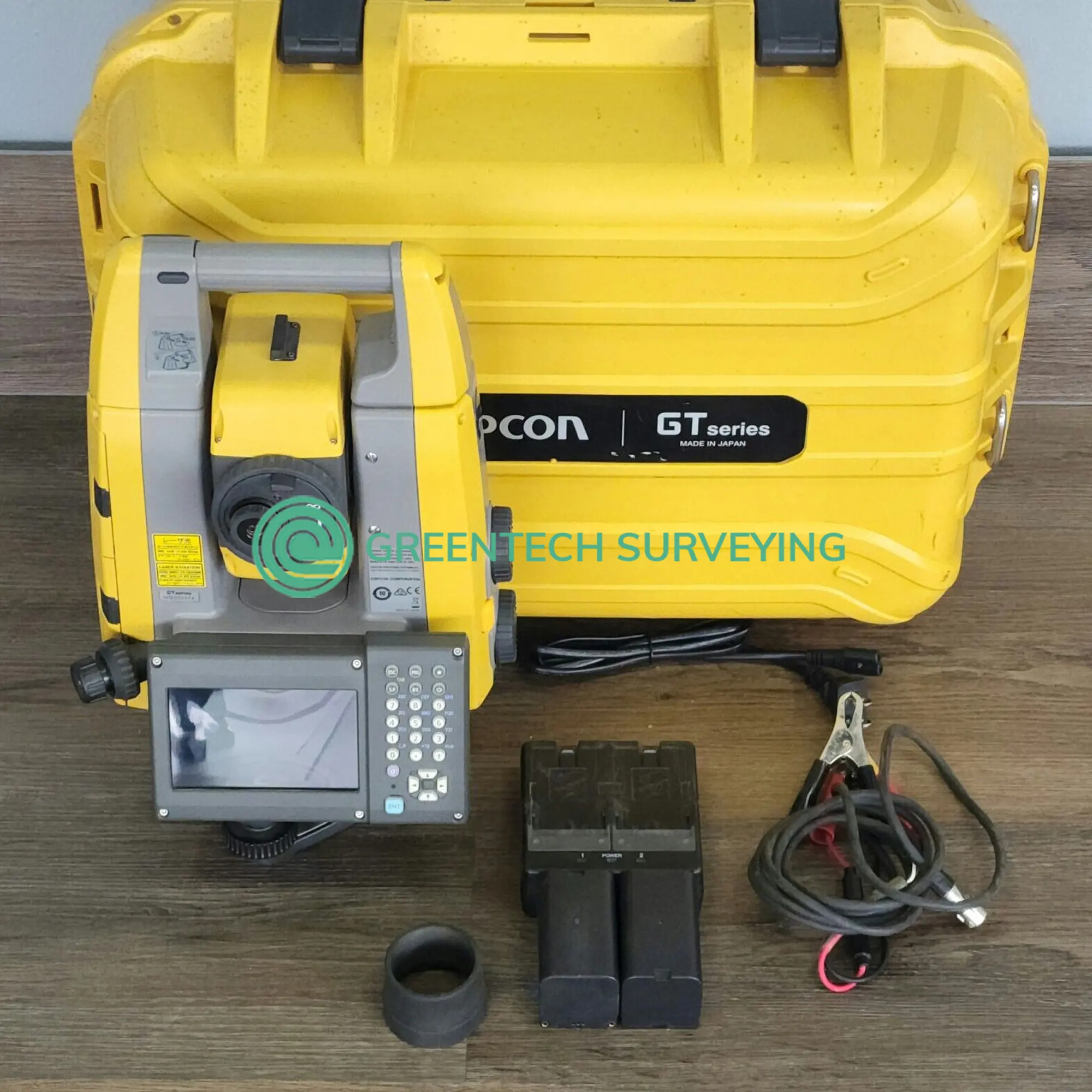

Package includes:
- Topcon GT-1003 3” Robotic Total Station with LPS MC enabled
- Topcon 2-Bay Charger
- Two GT Battery Packs
- Original Topcon Carrying Case for Instrument
- 30-day money back guarantee
Auto-tracking — Increases power for prism tracking under extreme conditions of frequent interruption or strong reflections. Even if a prism rock is lost, you can easily rotate GT and reacquire prism with RC-5 and go back to work smoothly.
Auto-collimating — Precise measurement can be done by just “Rough Aim” and “Press Trigger button” without lens focus and other operation. Auto-collimating provides consistent accuracy and speed regardless of operator’s skill levels and condition.
UltraSonic motor and direct drive system: Accomplished world's fastest turning speed of 180° per second with UltraSonic motor and direct drive system. This also contributes to ultra slim body.
Redesigned ultra-slim body: GT is designed by reviewing of the basis and redesigned to the world's smallest total station.
Passes various environmental test with Topcon quality: Tough designed GT, passes impact, vibration, high-temperature, and humidity testing provides consistent performance at any harsh environments.
Accomplished weight-saving, 5.7 kg motor drive total station: GT is a third smaller than any previous Topcon robotic instrument and the same weight as a manual total station — providing easy carrying and set up at
a project site.
Integrated cellular modem. Total station now with Internet-connectivity: GT is fully networked with cellar modem and wireless LAN. This allows direct connectivity to MAGNET® Enterprise and provides you close connection between project site and office staff and manager.
Topcon GT-1003 Specifications
| Auto-tracking / Auto-Collimating | |
| Auto-tracking | Yes |
| Auto-collimating | Yes |
| Motor type | Direct drive by ultrasonic motor |
| Rotation speed / Auto-tracking speed | 180°/s / 20°/s |
| Auto-tracking / Auto-Collimating range | ATP1/ATP1S 360° prism : 2 to 600m (6.6 to 1,960ft.), Prism-5 mini prism : 1.3 to 500m (4.3 to 1,640ft.) |
| Prism-2 one prism : 1.3 to 1,000m (4.3 to 3,280 ft.) | |
| Reflective sheet (Auto-collimation): RS10/30/50N-K : 5 to 50m (16 to 160ft.) / RS90N-K : 10 to 50m (32 to 160ft.) | |
| RC handle | Yes |
| Remote control range (RC handle + RC-5) | 2 to 300m (4.3 to 980ft.) |
| Telescope | |
| Magnification / Resolving power | 30x / 2.5” |
| Length | 142mm (5.6in.) |
| Objective aperture | 38mm (1.5in.) (38mm (1.5in.) for EDM) |
| Image | Erect, Field of view: 1°30' (26m/1,000m) |
| Minimum focus | 1.3m (4.3ft.) |
| Angle measurement | |
| Display resolutions | 1”/5” (0.0002 / 0.001gon, 0.005 / 0.02mil) |
| Accuracy (ISO 17123-3:2001) | 3” |
| Dual-axis compensator | Dual-axis liquid tilt sensor, working range: ±6' |
| Distance measurement | |
| Laser output | Reflectorless mode: Class 3R/Prism/sheet mode: Class 1 |
| Measuring range (under average conditions) | Reflectorless:Under good conditions : 0.3 to 1,000m |
| Reflective sheet: RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.) | |
| Mini prism: 1.3 to 500m (4.3 to 1,640ft.) | |
| One prism: 1.3 to 5,000m (4.3 to 16,400ft) / Under good conditions*8 : 6,000m (19,680ft.) | |
| ATP1/ATP1S 360° prism: 1.3 to 1,000m (4.3 to 3,280ft.) | |
| Display resolution | Fine : 0.0001 / 0.001m (0.001 / 0.01ft., 1/16 / 1/8in.) / Rapid : 0.001m / 0.01ft. / 1/8in. Tracking / Road : 0.01m / 0.1ft. / 1/2in. |
| Accuracy (ISO 17123-4:2001) (D=measuring distance in mm) |
Reflectorless: (2 + 2ppm x D) mm |
| Reflective sheet: (2 + 2ppm x D) mm | |
| Prism: (1 + 2ppm x D) mm | |
| Measuring time | Fine: 0.9s (initial 1.5s) |
| Rapid: 0.6s (initial 1.3s) | |
| Tracking: 0.4s (initial 1.3s) | |
| OS, Interface and Data management | |
| Operating system | Windows Embedded Compact7 |

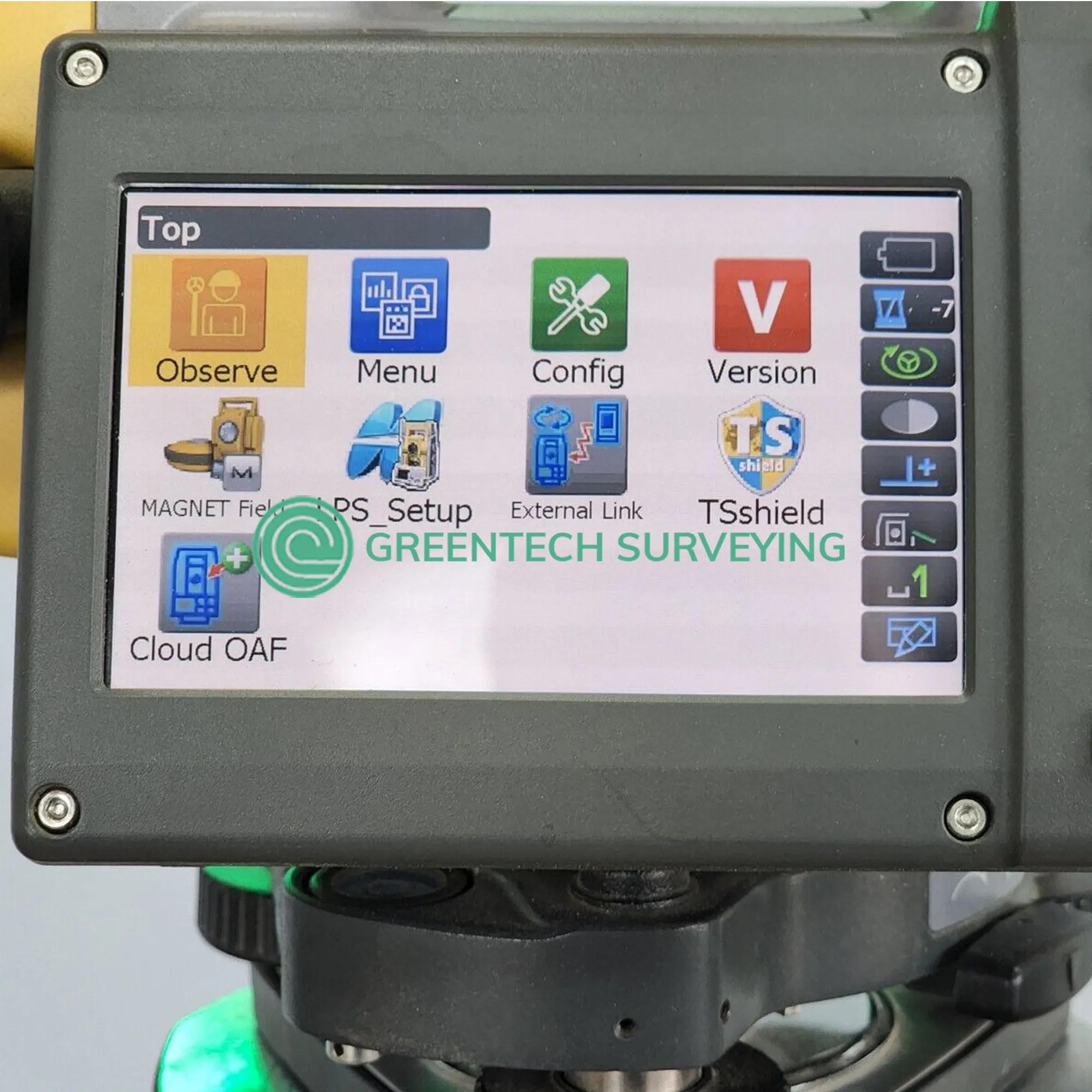

| Control panel | Display: 4.3 inch, Transmissive TFT WVGA color LCD with LED backlight, Touch screen |
| Keyboard: 24 keys with backlight | |
| Location: On single face; On Face 2 (optional & only touch screen display) | |
| Trigger key | On right instrument support |
| Internal memory: 1GB internal memory (includes memory for program files) | |
| Data storage | Plug-in memory device: USB flash memory (Max. 32GB) |
| Calendar / clock function | Yes |
| Interface | Serial RS-232C, USB2.0 (Type A / miniB) |
| Wireless communication Bluetooth modem | Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 600m (1,960ft.) (while in communication with RC-5) |
| General | |
| Guide light | Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.) |
| Laser-pointer | Coaxial red laser using EDM beam |
| Levels | Graphic: 6’ (Inner Circle) |
| Circular level (on tribrach): 10' / 2mm | |
| Plummet | Optical: Magnification: 3x; Minimum focus: 0.5m (11.8in.) from tribrach bottom |
| Laser (option): Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm@1.3m, Class 2 laser product | |
| Dust and water protection | IP65 |
| Operating temperature | -20 to +50ºC (-4 to +122ºF) |
| Size with handle (W x D x H) | 212x 172 x 355 mm (Display on single face) |
| Weight with battery & tribrach | Approx. 5.8kg (12.8lb)(with RC handle) |
| Battery | Li-ion rechargeable battery (BDC70 detachable battery) |
| Battery Operating time (20ºC) | Approx. 4 hours |
