Trimble S6 3” dR300+ Robotic Total Station TSC5 Access MT1000
Sale Trimble S6 3” dR300+ Robotic Total Station TSC5 Access MT1000, the instrument has been cleaned, calibrated, firmware upgraded by an Authorized Trimble dealer
$5,300
Sale Trimble S6 3” dR300+ Robotic Total Station TSC5 Access MT1000, the instrument has been cleaned, calibrated, firmware upgraded by an Authorized Trimble dealer.
The Trimble TSC5 is in new condition and has not been used in the field. The TSC5 has a brand new, perpetual license of Trimble Access installed. The Trimble MT1000 Active Track prism is also in great condition.

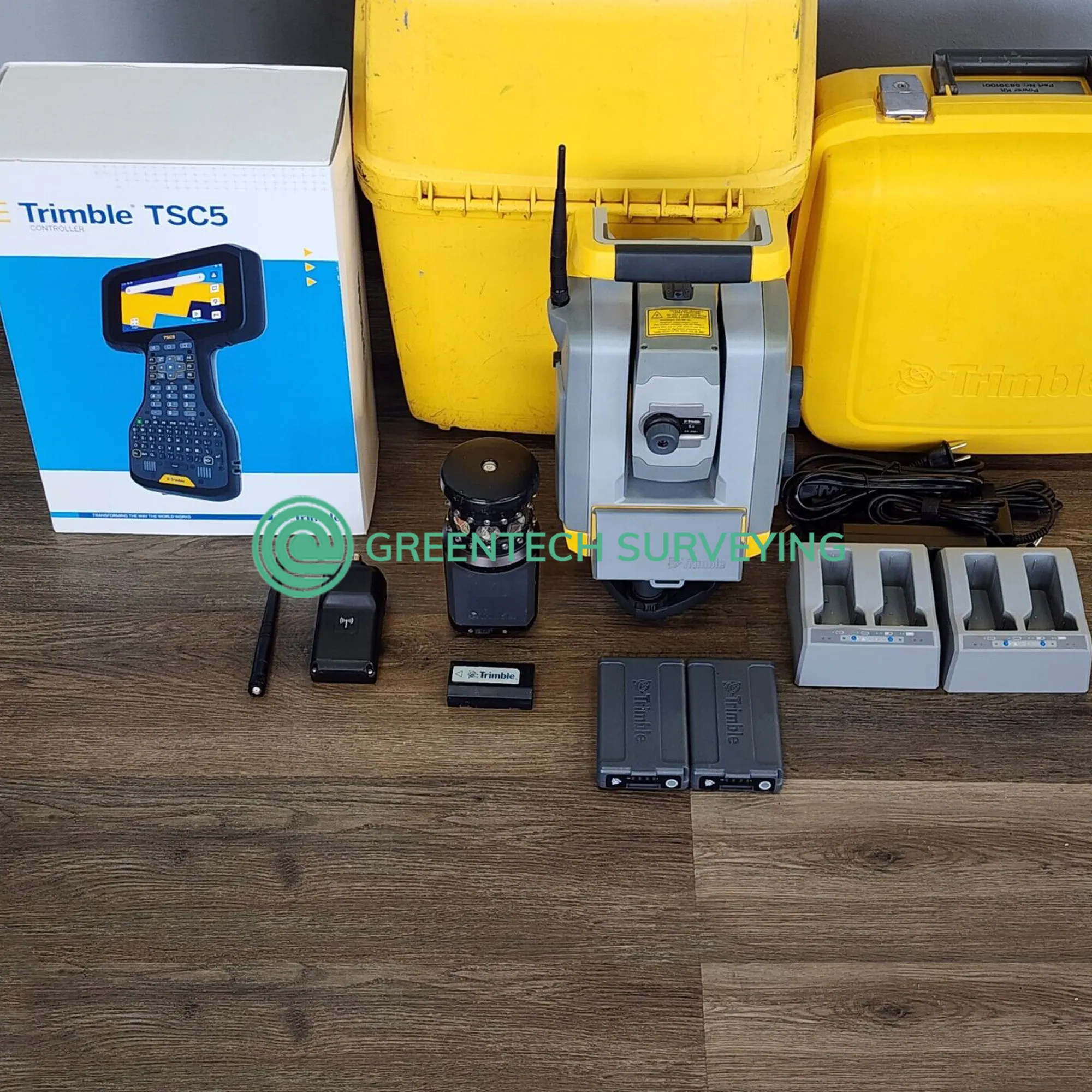

Sale includes:

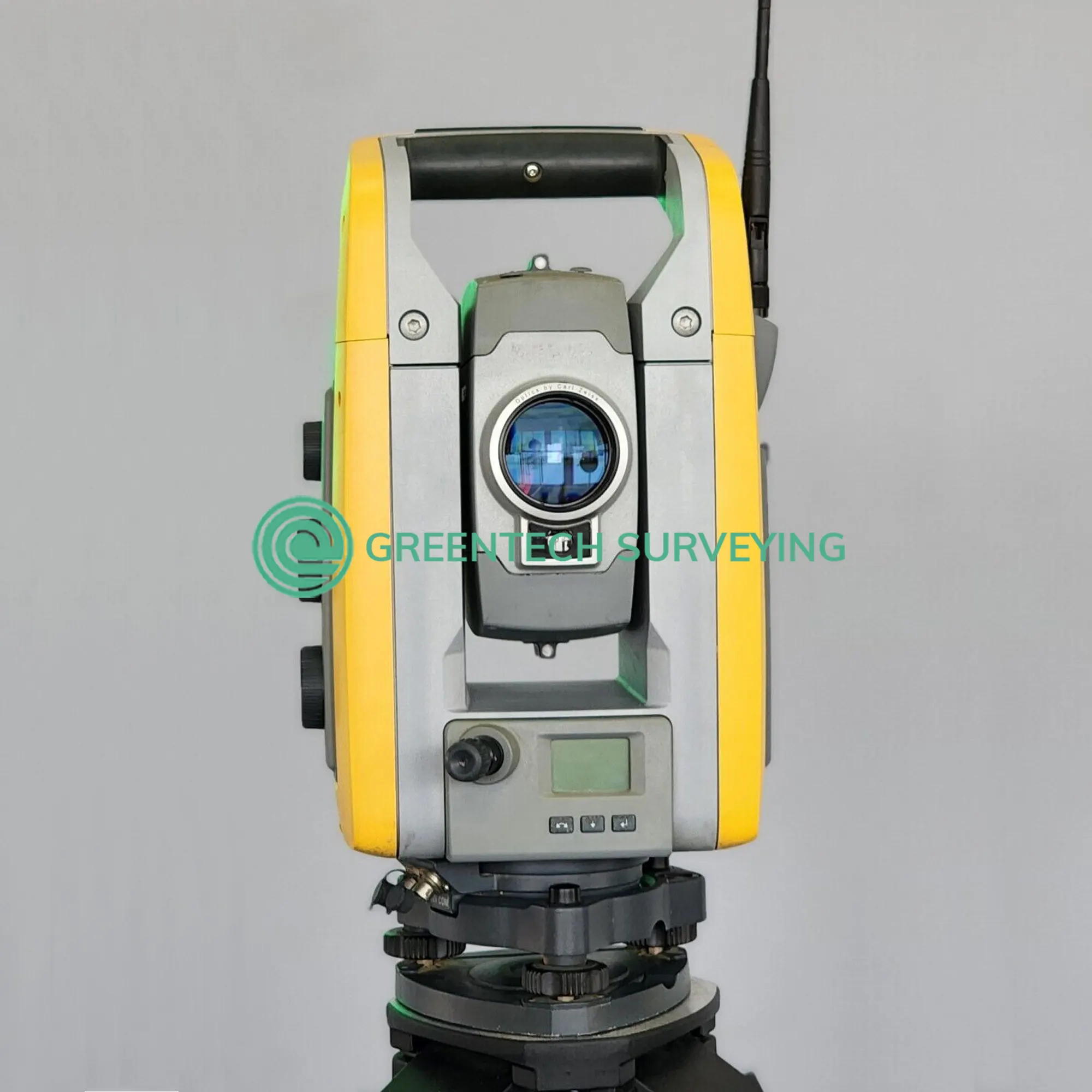

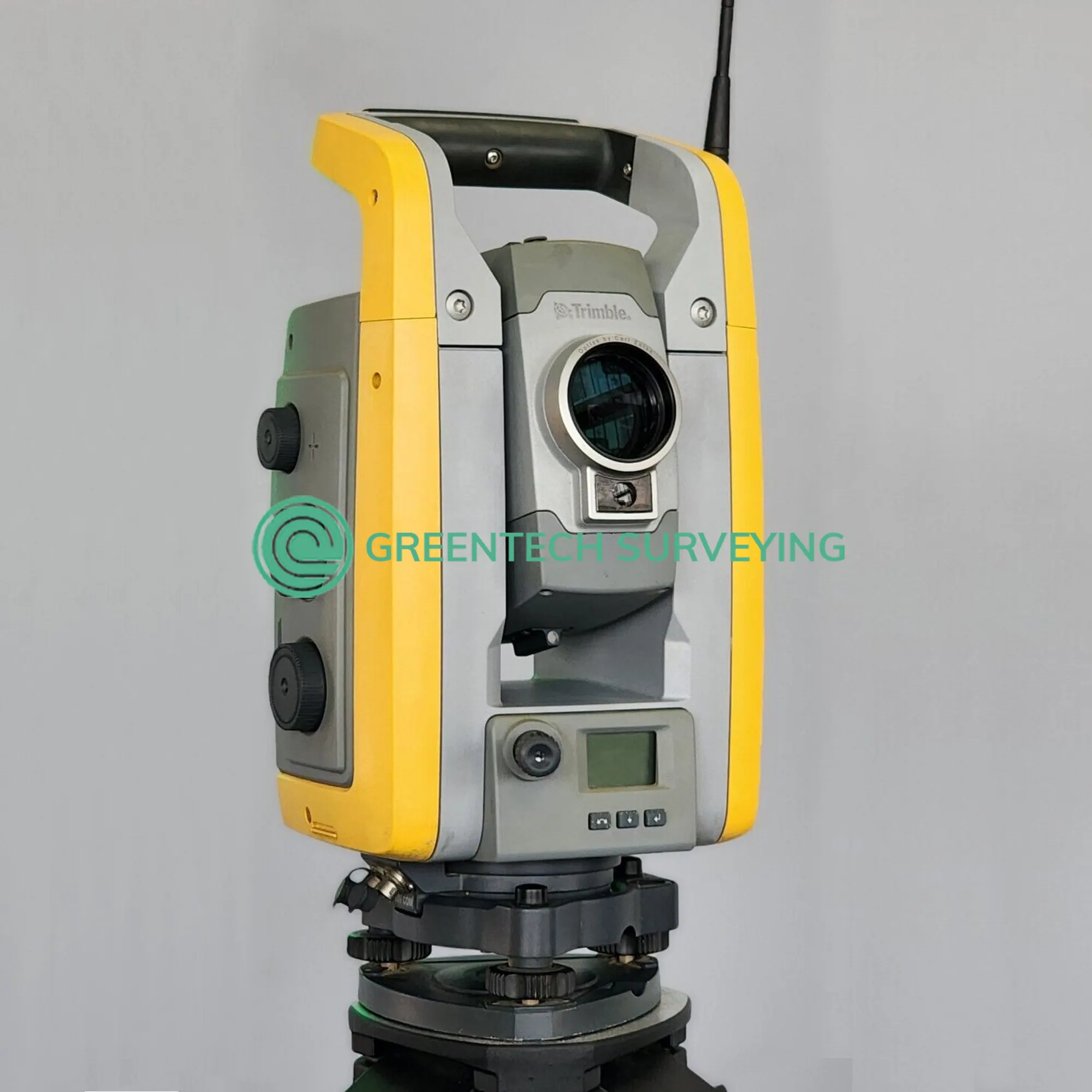

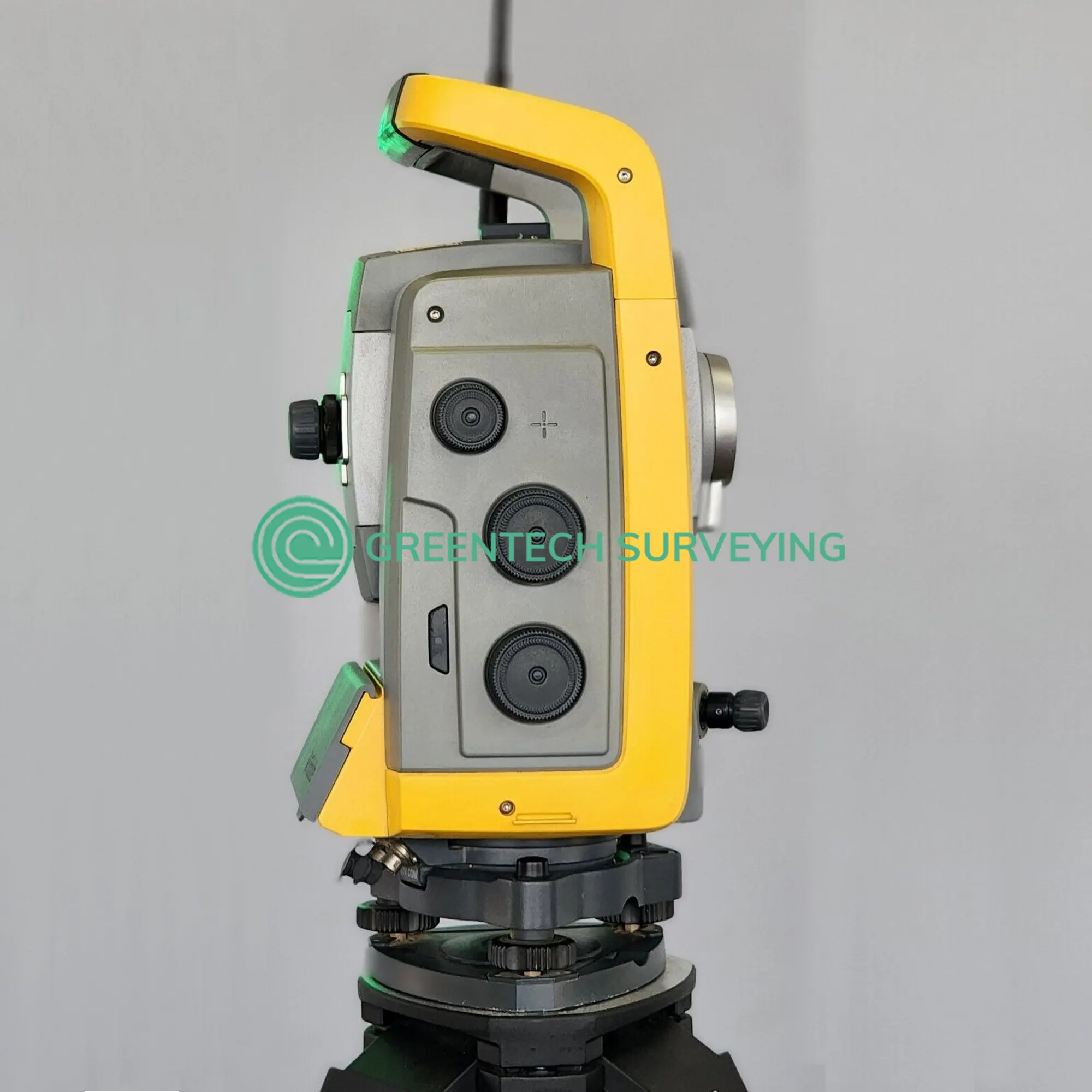

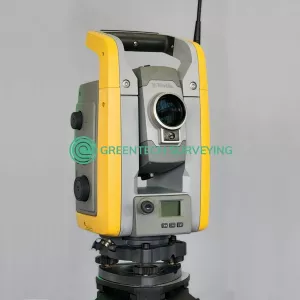

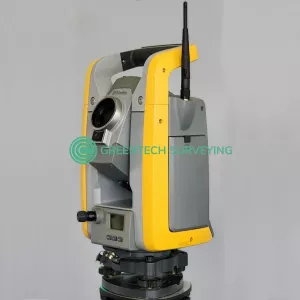

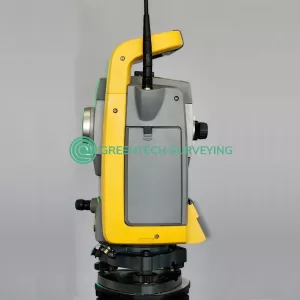

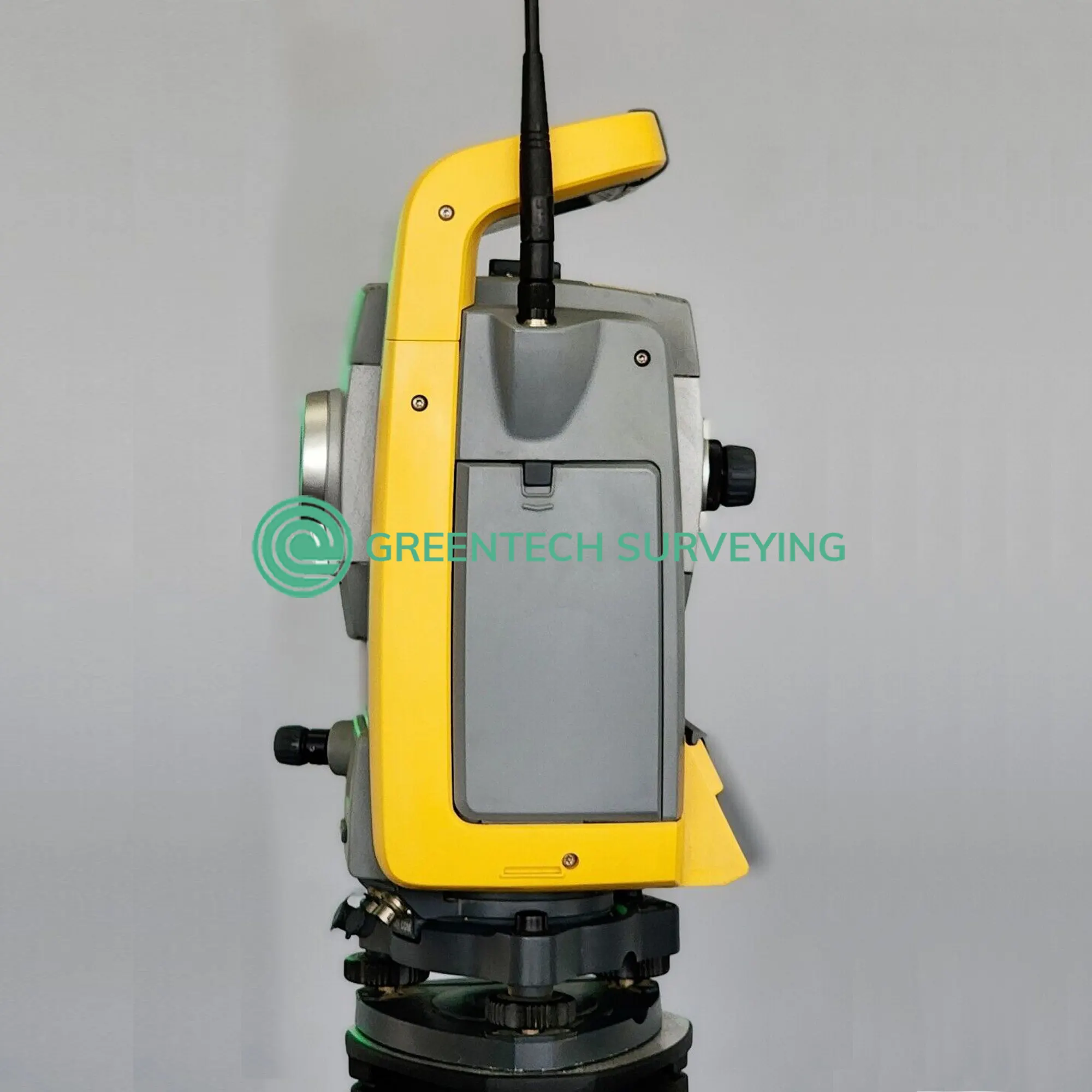

- Trimble S6 DR300+ 3” Robotic Total Station
- Trimble TSC5 Data Collector w/ new perpetual Access license
- Trimble EM120 2.4GHz Radio Module for TSC5
- Two 2.4GHz Radio antennas
- Trimble MT1000 Active Track Target
- Two Trimble 2-Bay Battery chargers
- Two S6 Battery Packs
- Battery for MT1000
- Trimble TSC5 Charger
- TSC5 Data Collector Bracket/Pole Mount
- Carrying Case for Instrument
- Power Kit Carrying Case
- New Tripod and Prism Pole
- 30 days money back guarantee
POWERFUL AND FLEXIBLE
The Trimble® S6 Total Station provides the power and flexibility required by today’s Surveying Professionals.
With the industry’s most advanced technology and available feature set, the Trimble S6 Total Station will meet the changing needs of your business, allowing your investment to go further.
TRIMBLE VISION TECHNOLOGY
Now available with optional Trimble VISION™ technology, the Trimble S6 gives you the power to see everything the instrument sees without a trip back to the tripod. Direct your survey with live video images on the controller. Now you are free to capture measurements, to prism or reflectorless surfaces, remotely, and with point-and-click efficiency.
The on-board camera integrates surveyed data with the live scene images, so you can verify the work that you’ve done before leaving the job site. Calibrated photo documentation provides customers with deliverables they know they can trust.
TRIMBLE DR PLUS TECHNOLOGY
Trimble DR Plus™ range measurement technology provides extended range of Direct Reflex measurement without a prism to exceptionally long
range distances. Hard-to-reach or unsafe targets are no obstacle to the Trimble S6. Trimble DR Plus, combined with MagDrive™, creates unmatched capability for quick and safe measurements, without compromising on accuracy.
MAGDRIVE SERVO TECHNOLOGY
The Trimble S6 Total Station redefines surveying instrument performance with unsurpassed integration of servos, angle sensors and measurement technology. The instrument’s advanced error compensation provides fast, accurate measurement every time. With smooth, silent MagDrive servo motors, the Trimble S6 offers exceptional speed.
TRIMBLE SUREPOINT ACCURACY ASSURANCE
The Trimble S6 Total Station aims and stays on target through windy weather, vibrations, handling, and sinkage. Trimble SurePoint™ technology enables the Trimble S6 to actively correct for unwanted movement ensuring accurate pointing and measurement every time. Reduce
aiming error, avoid costly re-measurement and be confident in your results with Trimble SurePoint.
With its exclusive MultiTrack™ technology and Target ID capabilities, surveyors can choose the type of target, passive or active, that best suits the jobsite conditions and be confident that they will find and lock to the correct target.
ELIMINATE SEARCH TIME WITH GPS SEARCH
With GPS Search the Trimble S6 locks onto a prism in just seconds. Using a consumer grade GPS card with Bluetooth receiver or your survey grade GNSS in a Trimble I.S. rover configuration, GPS Search uses GPS positioning at the robotic rod to locate or reacquire targets rapidly. With GPS Search, waiting for target search becomes a thing of the past.
INTEGRATED SURVEYING
Put the equipment in your truck or van to the best possible use by combining your GNSS with your robotic rod into a Trimble I.S. Rover™. In
clear sky, enjoy the high productivity of GNSS measurements. In obstructed areas, Trimble Access seamlessly switches to optical measurements. Or collect both GNSS and optical data simultaneously for redundant results. With the Trimble I.S. Rover, you have the freedom to use the best tool for the jobsite conditions, optimizing your productivity.
General Specifications
| Light source | Pulsed laserdiode 905 nm, Laser class 1 |
| Laser pointer coaxial (standard) | Laser class 2 |
| Beam divergence | Horizontal: 4 cm/100 m (0.13 ft/328 ft) Vertical: 8 cm/100 m (0.26 ft/328 ft) |
| Atmospheric correction | –130 ppm to 160 ppm continuously |
| Leveling | Circular level in tribrach: 8'/2 mm (8'/0.007 ft) Servo system: MagDrive servo technology, integrated servo/angle sensor electromagnetic direct drive Rotation speed: 115 degrees/sec (128 gon/sec) Rotation time Face 1 to Face 2: 2.6 sec Positioning time 180 degrees (200 gon): 2.6 sec Clamps and slow motions: Servo-driven, endless fine adjustment |
| Centering | Centering system: Trimble 3-pin Optical plummet: Built-in optical plummet Magnification/shortest focusing distance: 2.3×/0.5 m–infinity (1.6 ft–infinity) |
| Telescope | Magnification: 30× Aperture: 40 mm (1.57 in) Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft) Shortest focusing distance: 1.5 m (4.92 ft)–infinity Illuminated crosshair: Variable (10 steps) |
| Tracklight built in | Not available in all models |
| Operating temperature | –20 ºC to +50 ºC (–4 ºF to +122 ºF) |
| Dust and water proofing | IP55 |
| Humidity | 100% condensing |
| Power supply | Internal battery: Rechargeable Li-Ion battery 11.1 V, 5.0 Ah
Operating time:
Operating time for video robotic:
|
| Weight | Instrument (servo/Autolock): 5.15 kg (11.35 lb) Instrument (Robotic): 5.25 kg (11.57 lb) Trimble CU controller: 0.4 kg (0.88 lb) Tribrach: 0.7 kg (1.54 lb) Internal battery: 0.35 kg (0.77 lb) |
| Trunnion axis height | 196 mm (7.71 in) |
| Communication | USB, Serial, Bluetooth |
| Security | Dual-layer password protection; available on some models |
