Topcon Hiper Lite Plus GPS GLONASS Base Rover Set
Topcon Hiper Lite+ GPS GLONASS Base and Rover Receiver with TDS Trimble Ranger Windows Mobile 5.0, Survey Pro V4.8.4 Data Collector.
$2,800
Topcon Hiper Lite+ GPS GLONASS Base & Rover Receiver with TDS Trimble Ranger Windows Mobile 5.0, Survey Pro V4.8.4 (Options: Standard, Pro and GNSS) Data Collector. Fully functional, Clean Good working condition and Cosmetic appearance.
CablesTested: GPS and RTK System, Real Time Kinematics (RTK), GPS /GLONASS Antenna, Centre-mount UHF Antenna, internal Tx/Rx UHF Receiveable, Wireless Bluetooth Communication.

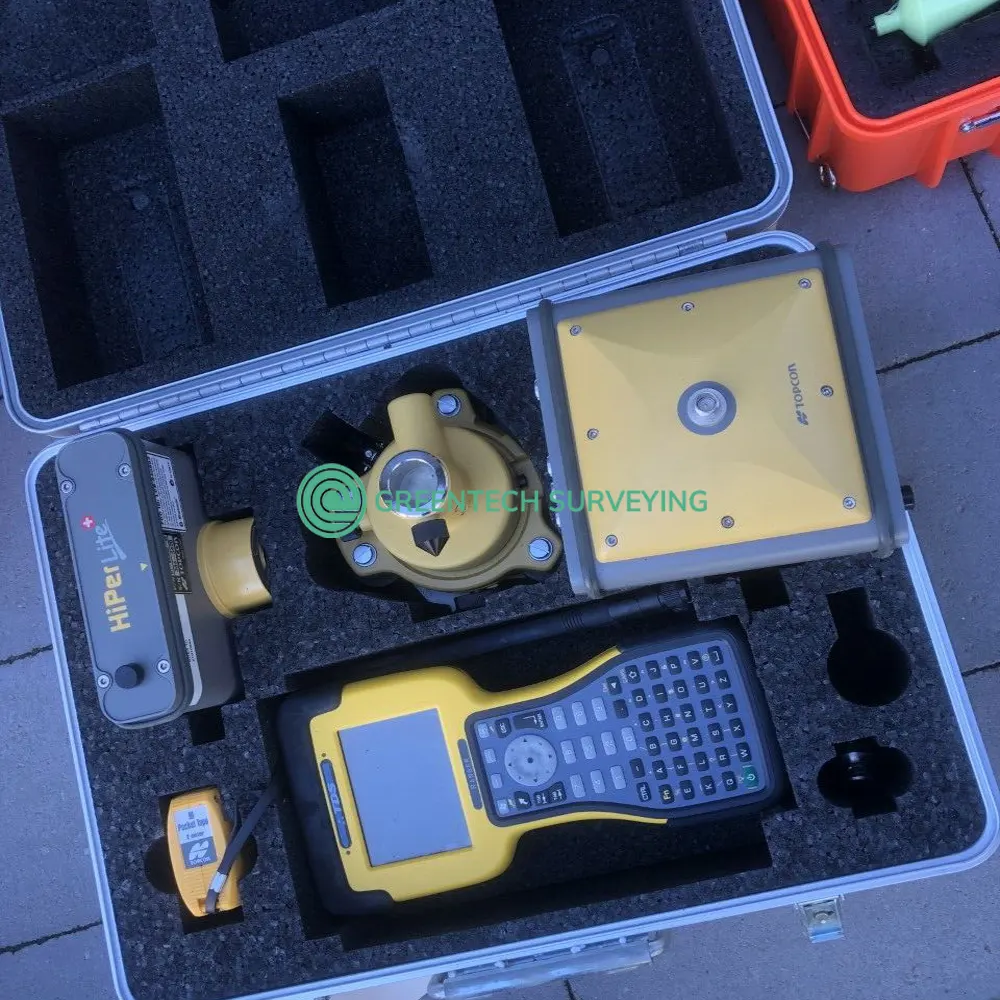

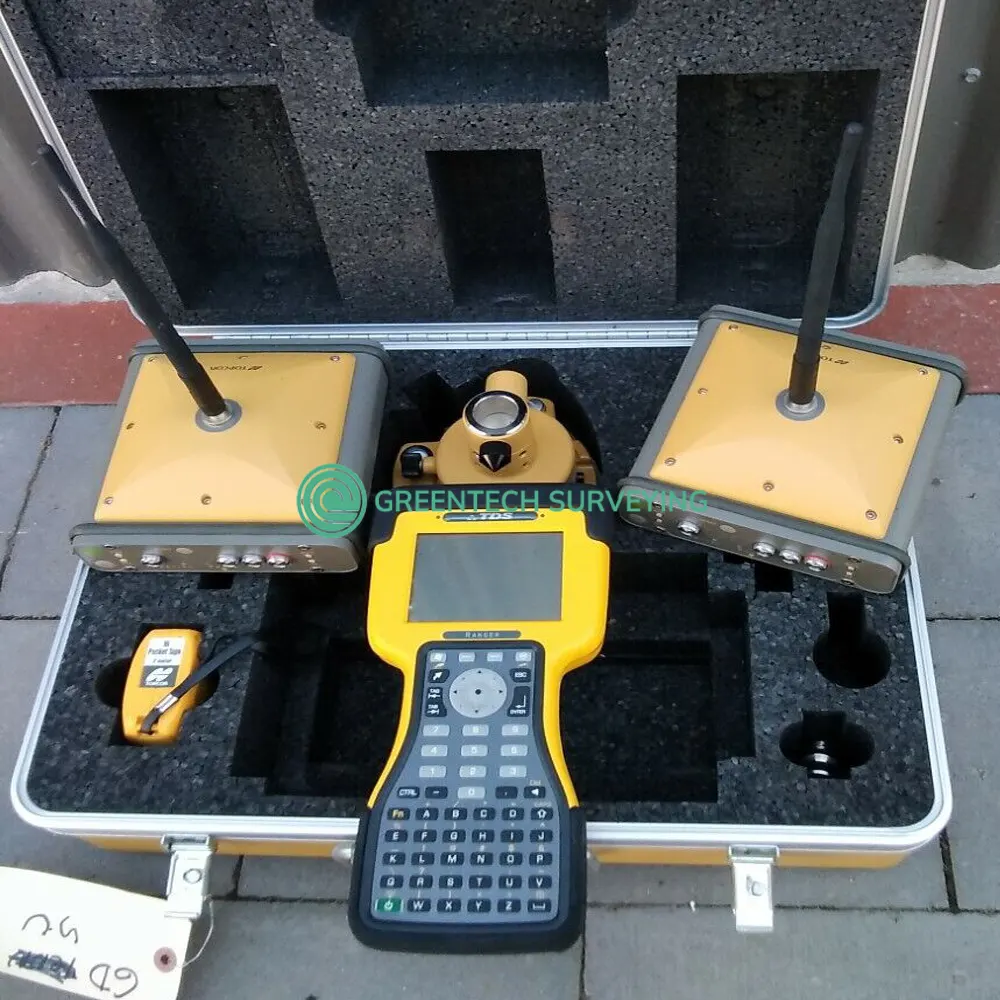

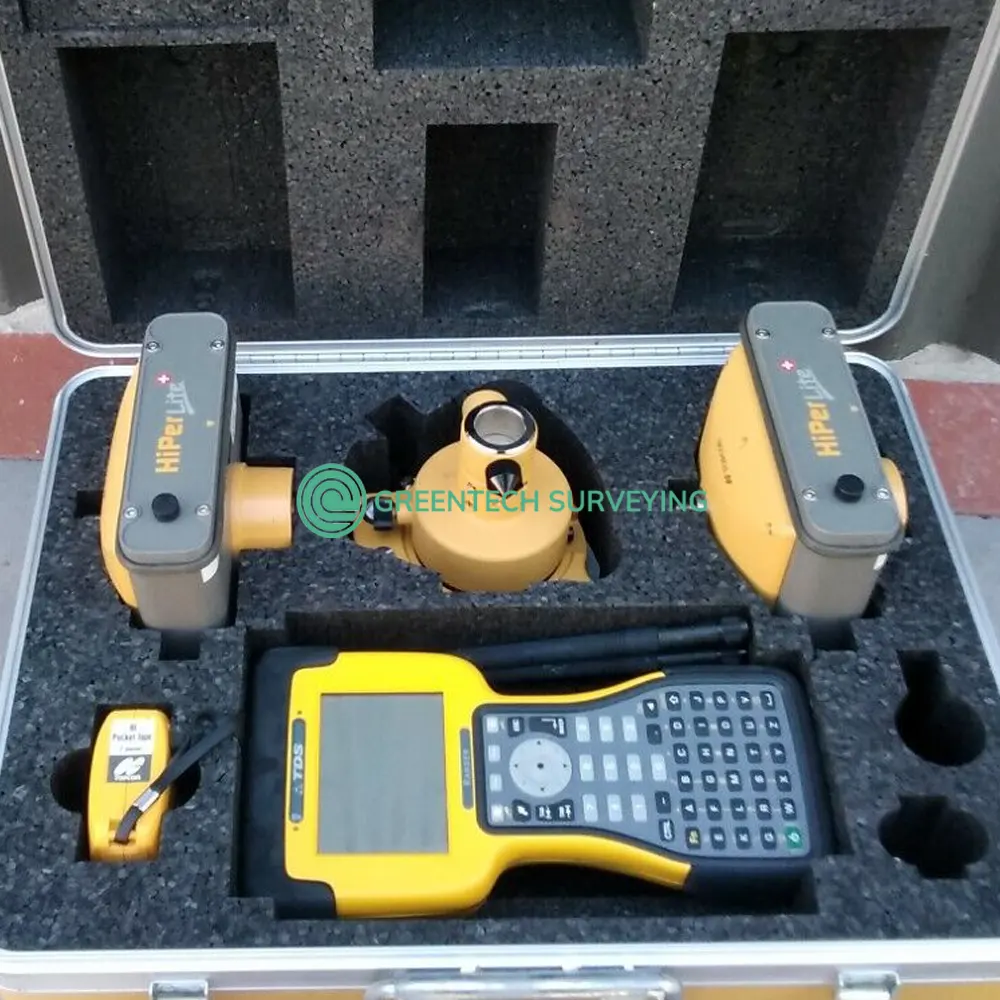

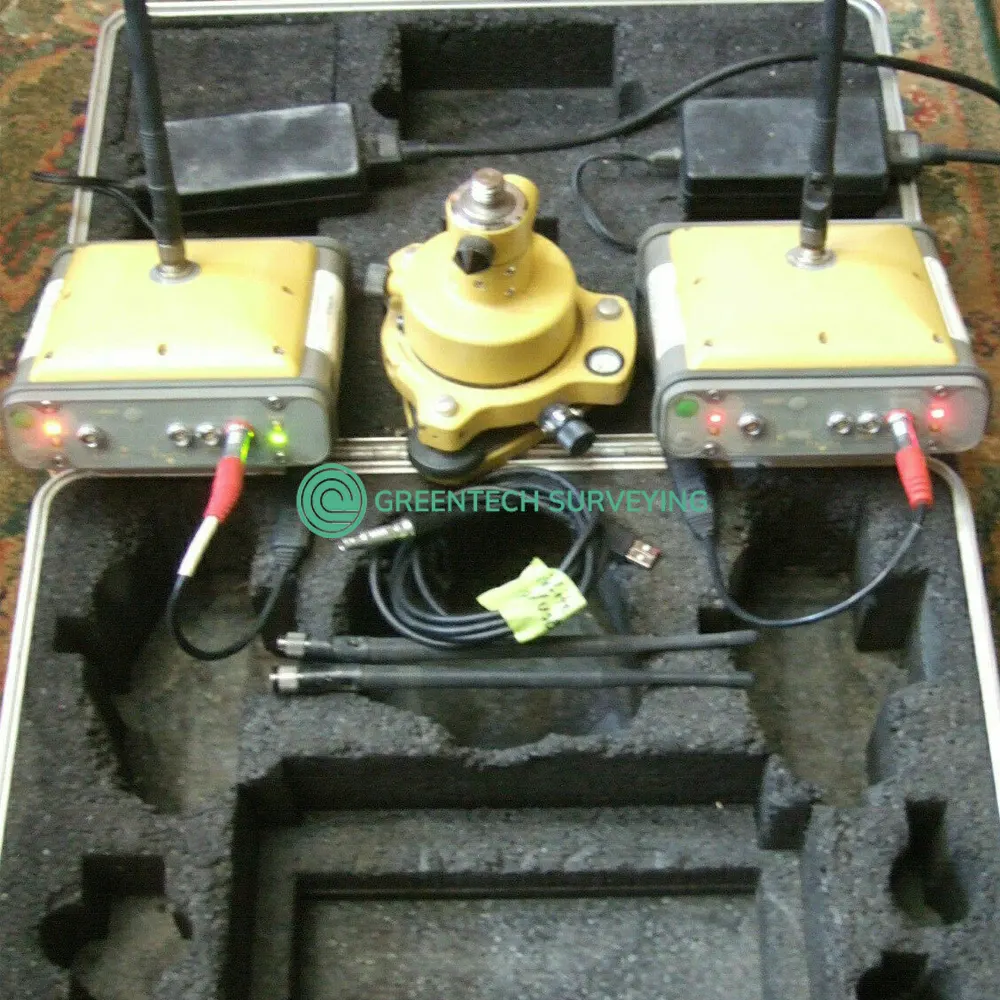

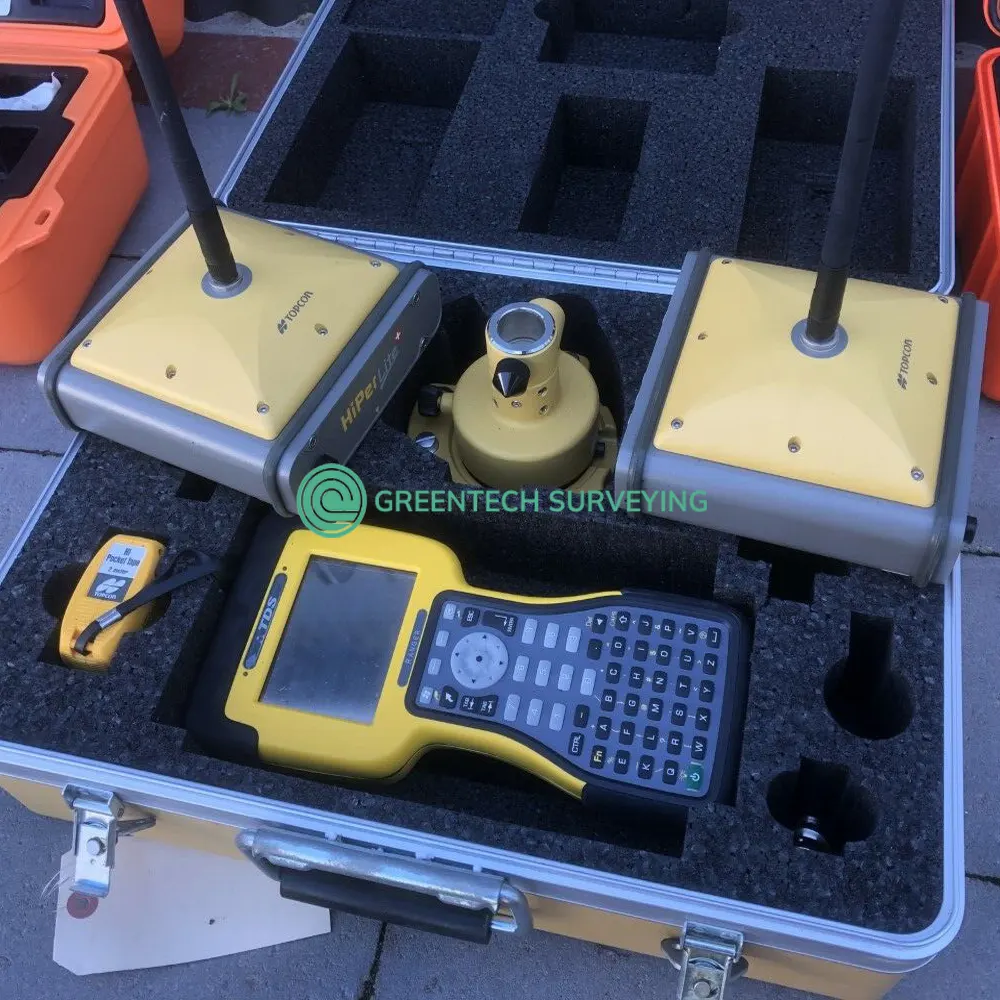

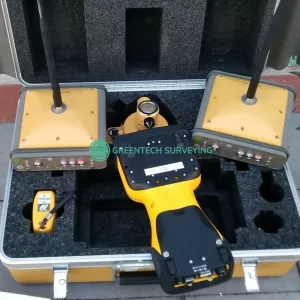

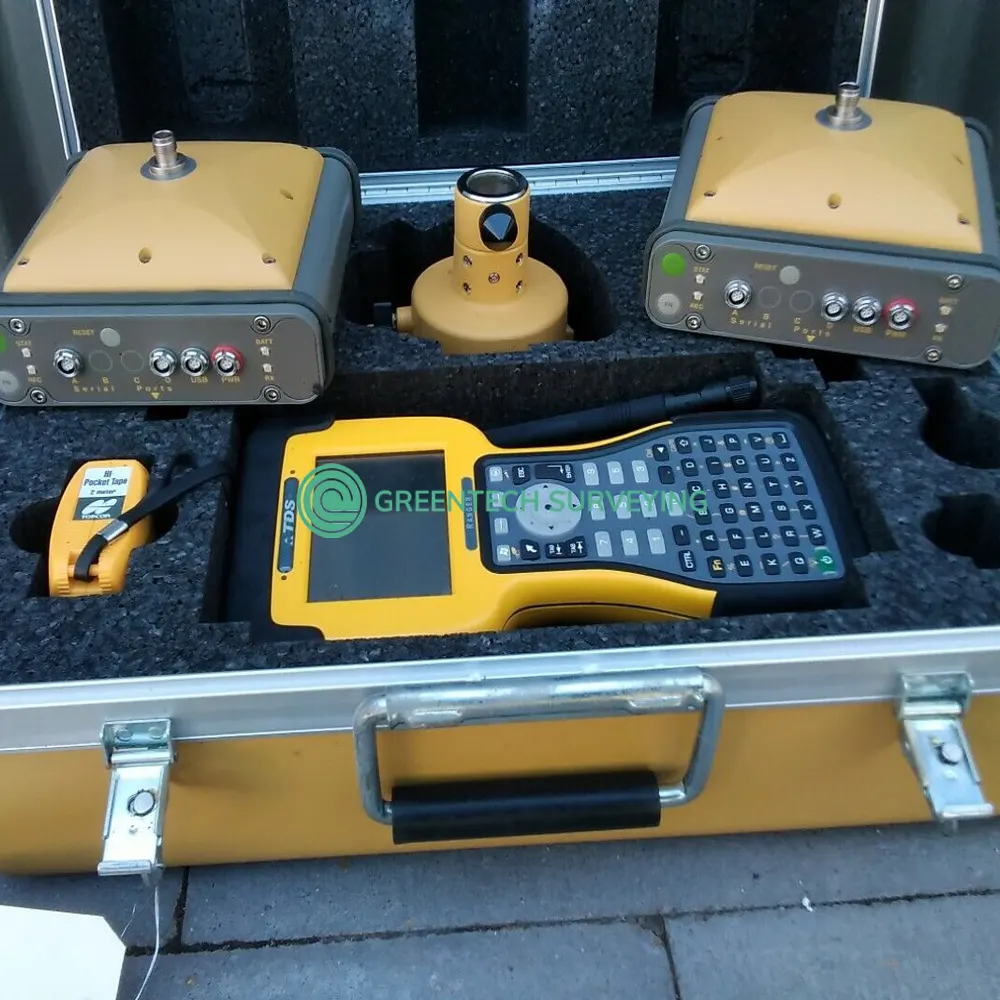

Sale includes:
- 1x Topcon Hiper Lite+ Base
- 1x Topcon Hiper Lite+ Rover
- 2x New batteries installed
- 2x Charger for Hiper Lite+
- Adapter for Hiper Lite+
- 2x Antennas

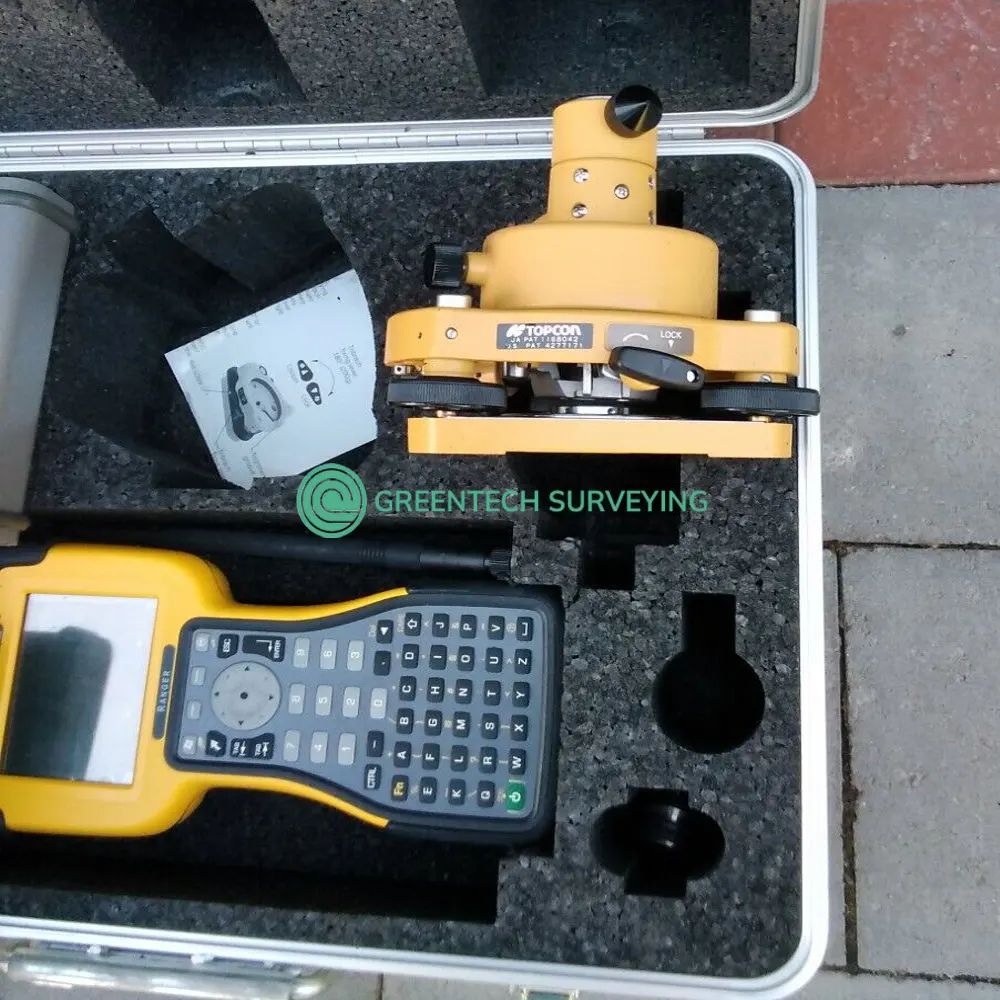

- 1x Tribrach
- 1x TDS Trimble Ranger Data Collector
- 1x AC Adapter/Charger for TDS Trimble Ranger
- 1x RS232 PC Interface Cable
- 1x USB PC Interface Cable

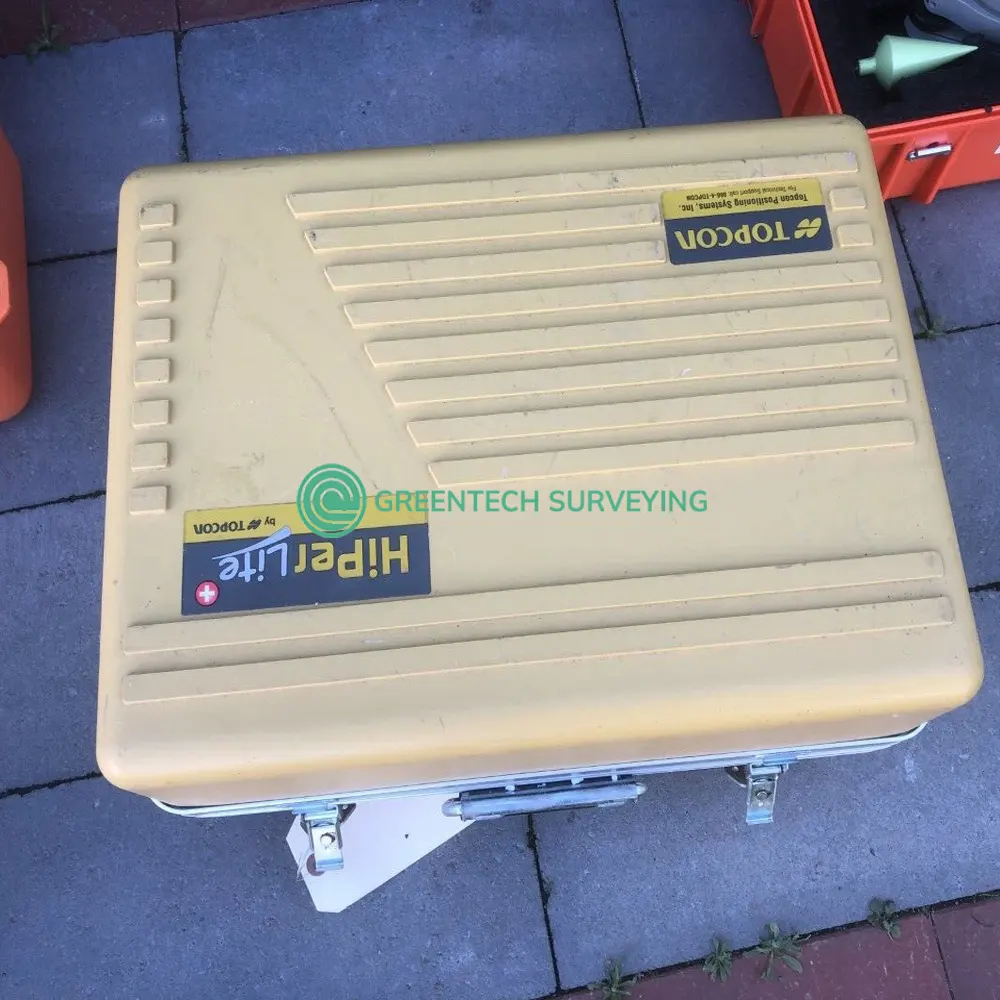

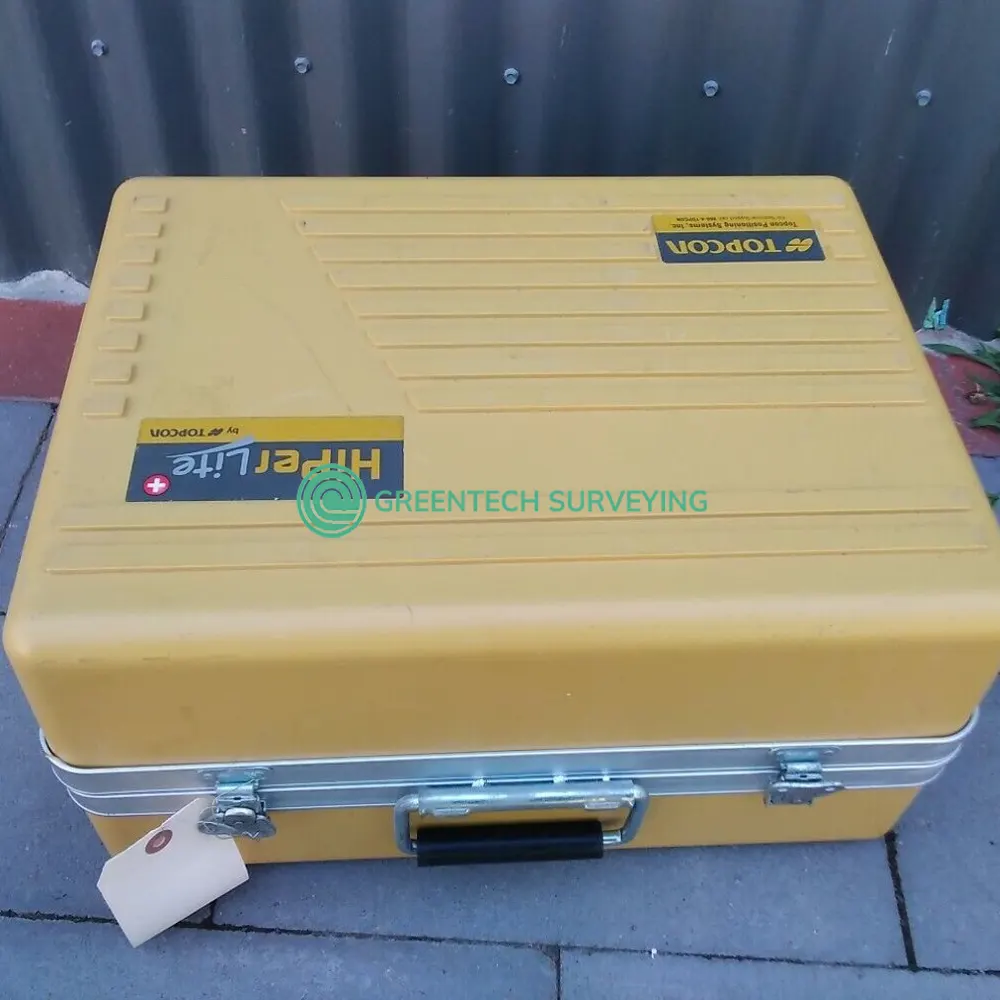

- 1x Original case
Topcon Hiper Lite+ Specifications
| Tracking Specifications | |
| Tracking Channels, standard | 40 L1 GPS (20 GPS L1+L2 on Cinderella2 days) |
| Tracking Channels, optional | 20 GPS L1+L2 (GD), GPS L1 + GLONASS (GG), 20 GPS L1+L2+GLONASS (GGD) |
| Signals Tracked | L1/L2 C/A and P Code & Carrier and GLONASS |
| Performance Specifications | |
| Static, Rapid Static | H: 3mm + 0.5ppm | V: 5mm + 0.5ppm |
| RTK | H: 10mm + 1ppm | V: 15mm + 1ppm |
|
Power Specifications |
|
| Battery | Internal Lithium-Ion batteries for up to 14+ hours of operation (10 hrs TX) |
| External power input | 6 to 28 volts DC |
| Power consumption | Less than 4.2 watts |
| GPS+ Antenna Specifications | |
| GPS / GLONASS Antenna | Integrated |
| Antenna Type | Center-mount Spread Spectrum Antenna |
| Ground Plane | Antenna on a flat ground plane |
|
Radio Specifications |
|
|
Internal Tx/Rx |
915 MHz SpSp Modem |
| Power Output | 1.0W/0.25W (selectable) |
|
Wireless communication |
|
|
Communication |
Bluetooth™ version 1.1 comp |

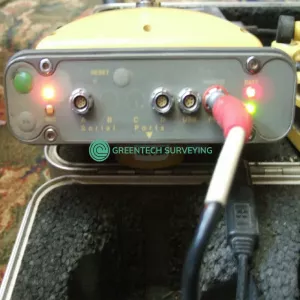

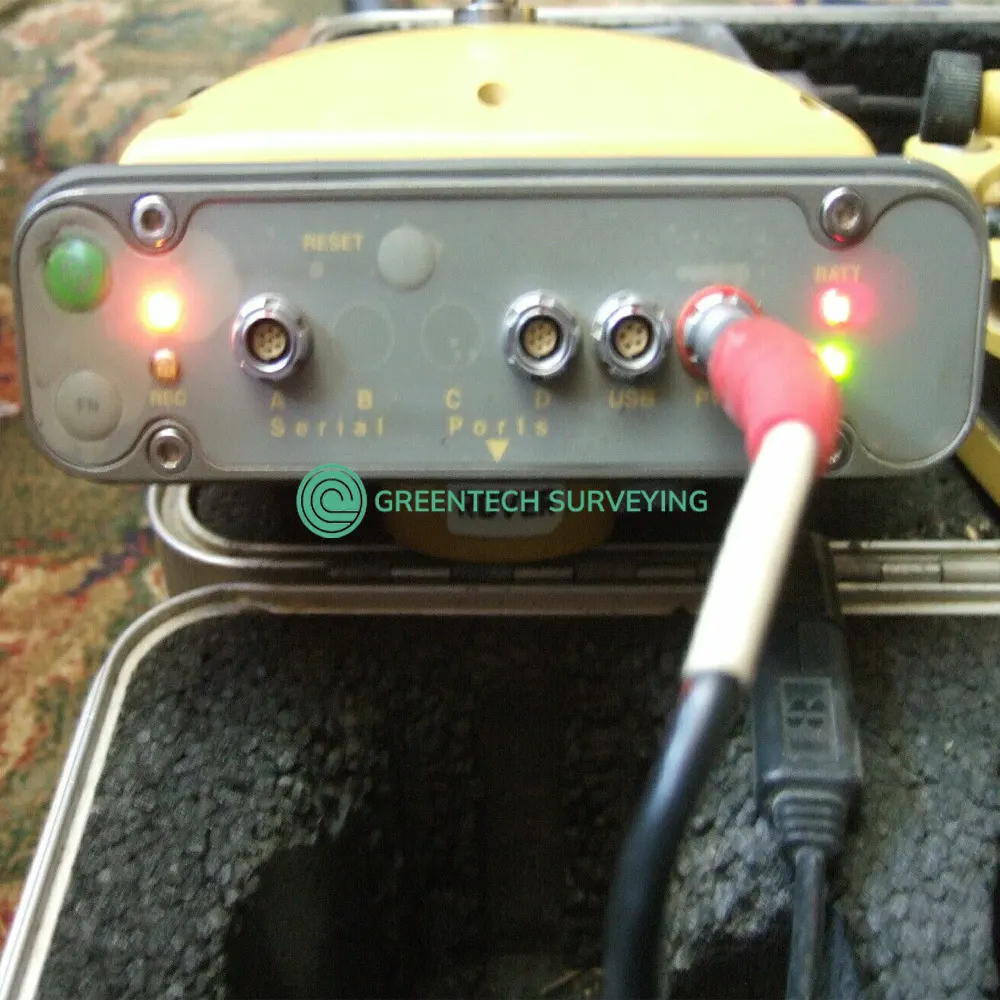

| I/O | |
| Communication Ports | 2x serial (RS232), USB |
| Other I/O Signals | 1pps, Event Marker (optional) |
| Status Indicator | 4x3-color LED's, two-function keys (MINTER) |
| Control & Display Unit | External Field Controller |
| Memory & Recording | |
| Internal Memory | Up to 128 MB |
| Data Update Rate | Up to 20 times per second (20Hz) |
| Data Type | Code and Carrier from L1 and L2, GPS and GLONASS |
| Data Input/Output | |
| Real time data outputs | RTCM SC104 ver 2.1, 2.2, 2.3, 3.0, CMR, CMR+ |
| ASCII Output | NMEA 0183 version 3.0 |
| Other Outputs | TPS format |
| Output Rate | Up to 20 times per second (20Hz) |
| Environmental Specifications | |
| Enclosure | Aluminum extrusion, waterproof |
| Operating Temperature | -30°C to 55°C |
| Dimensions (W x H x D) | 159 x 172 x 88 mm (6.25 x 6.75 x 3.5 in) |
| Weight | 1.65 kg (3.64 lbs) |
