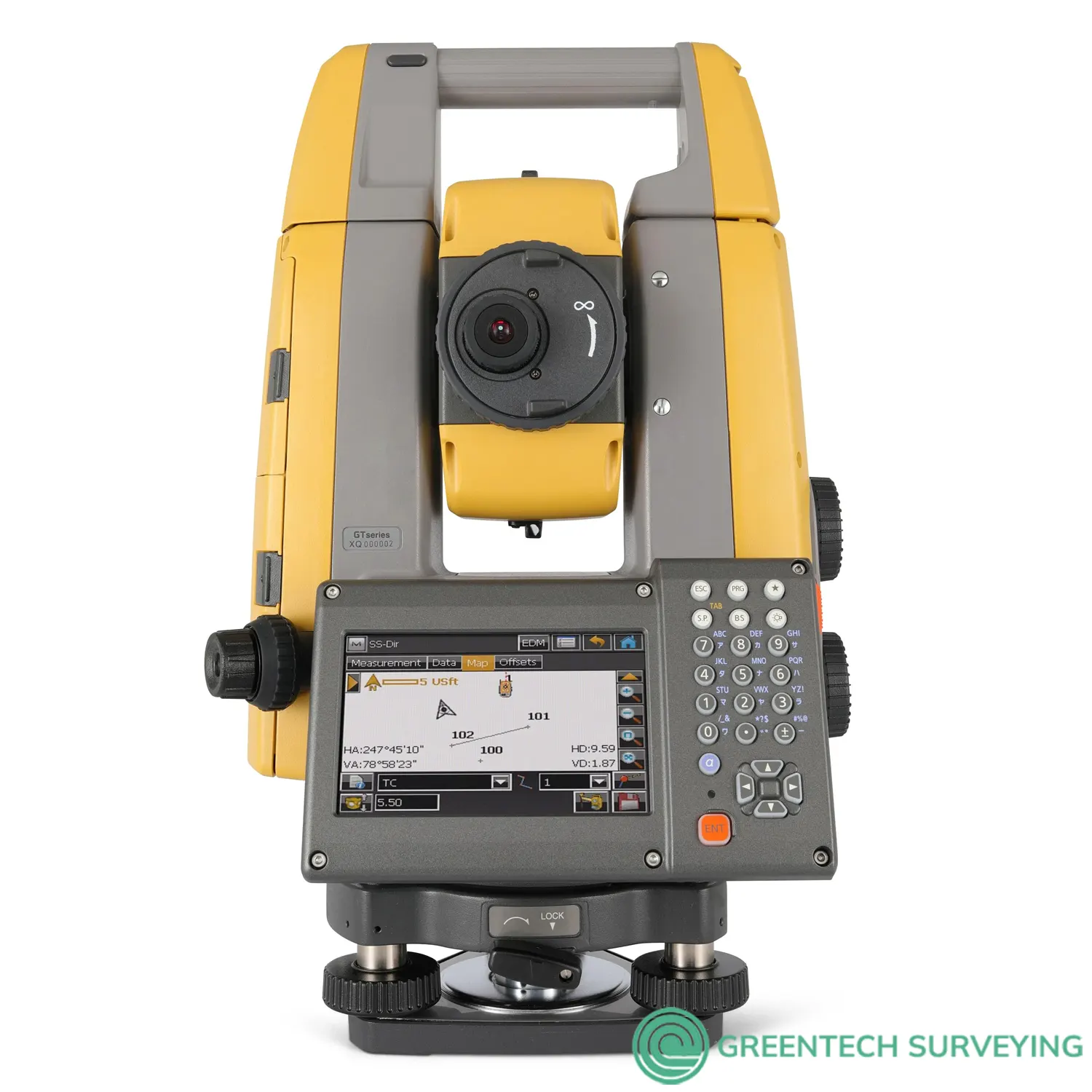

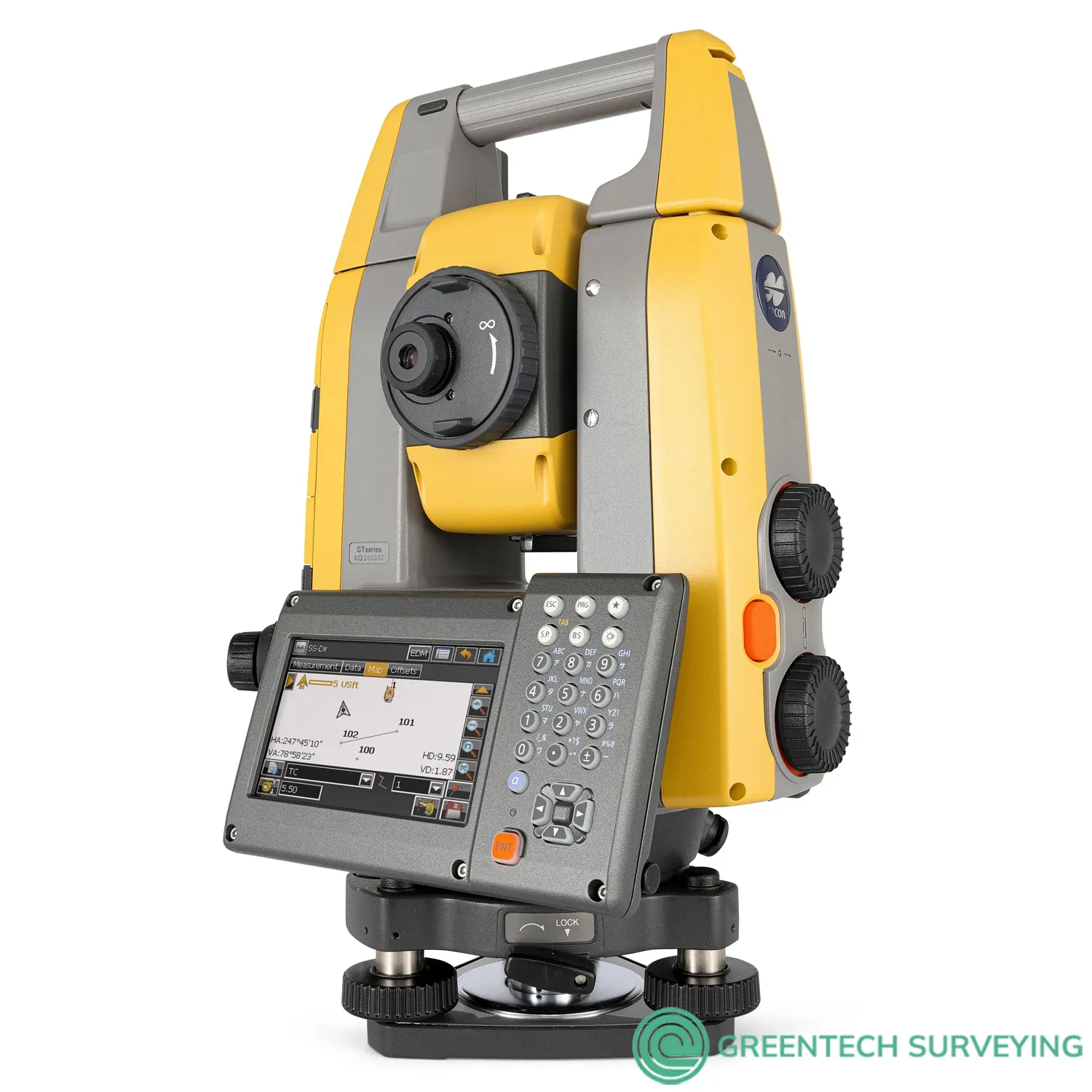

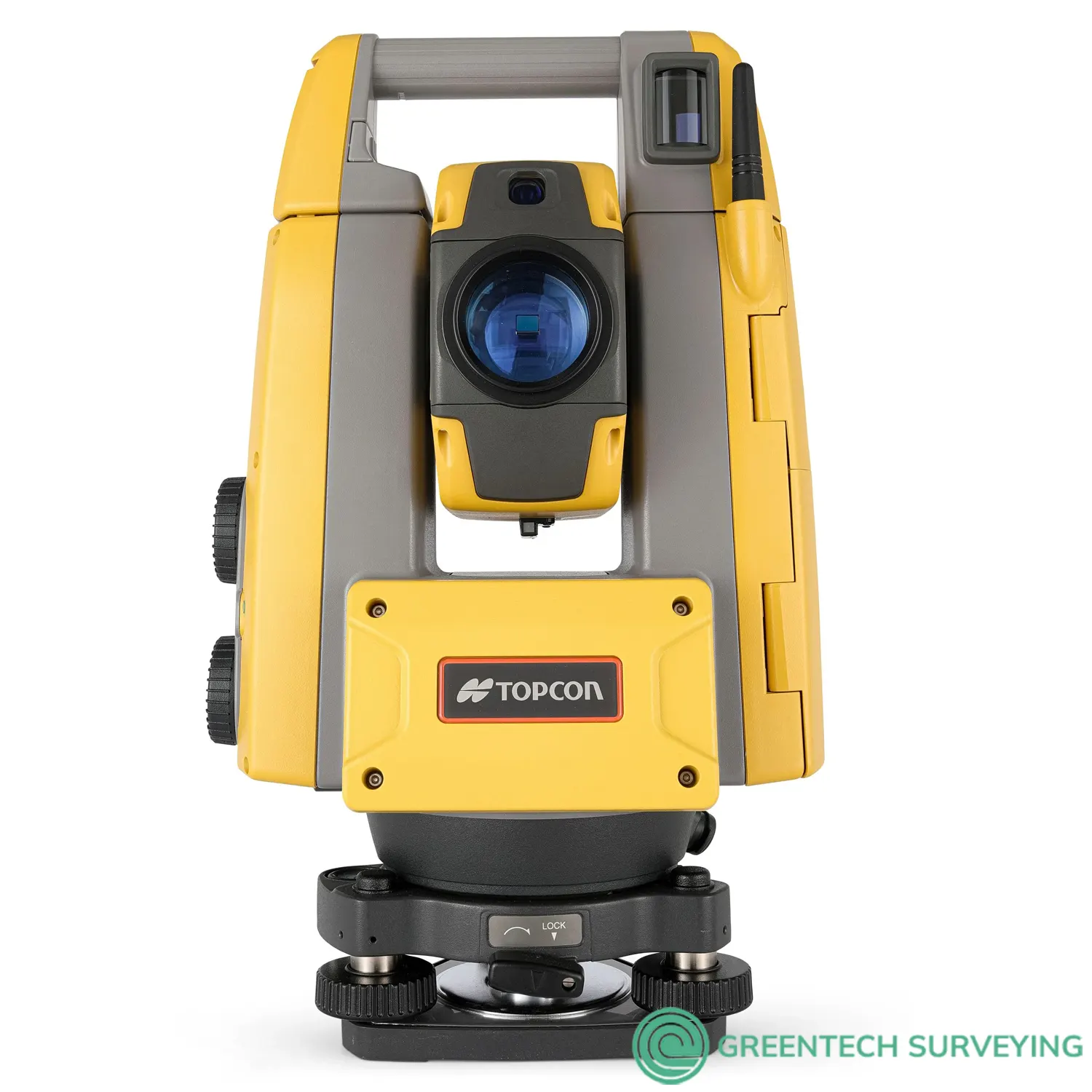

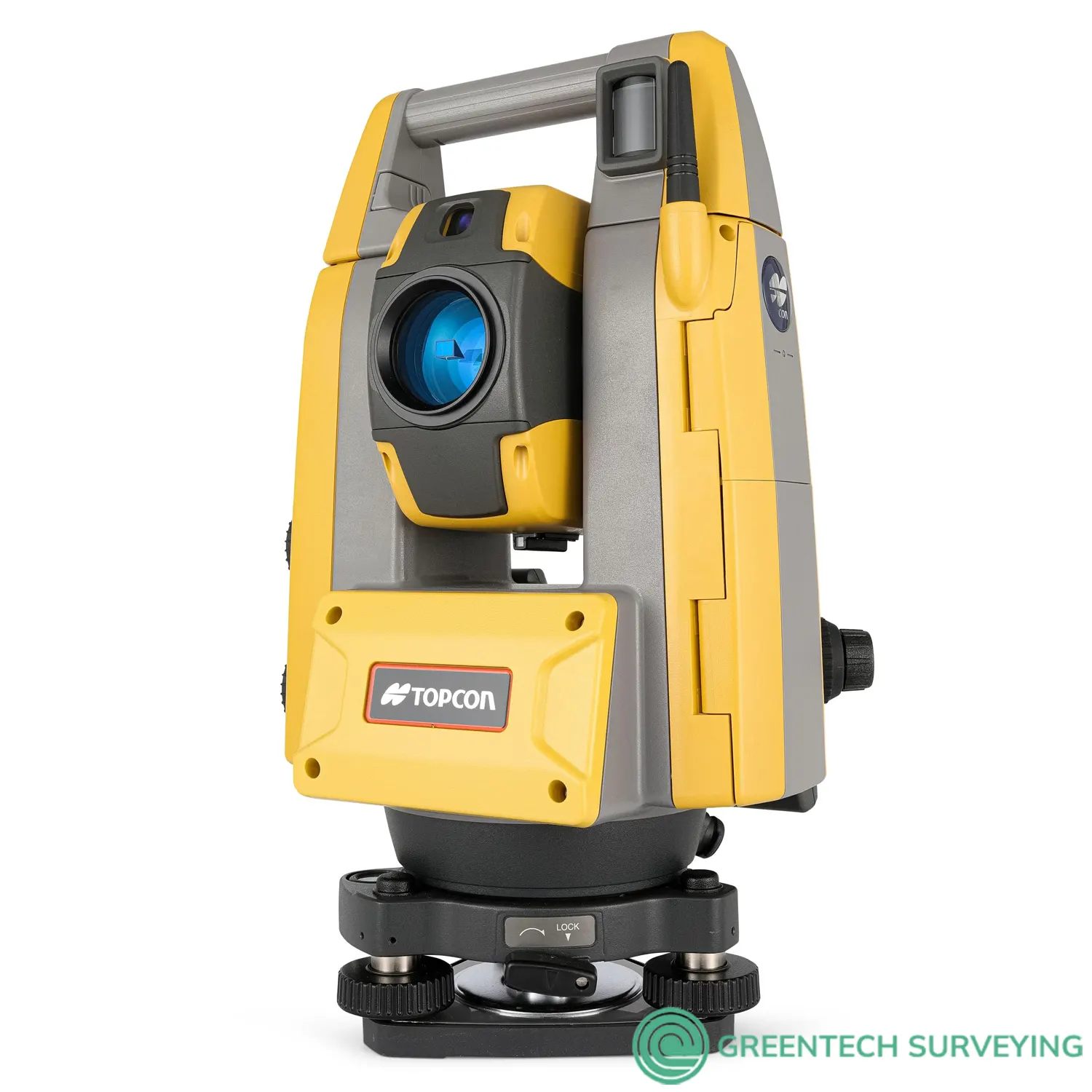

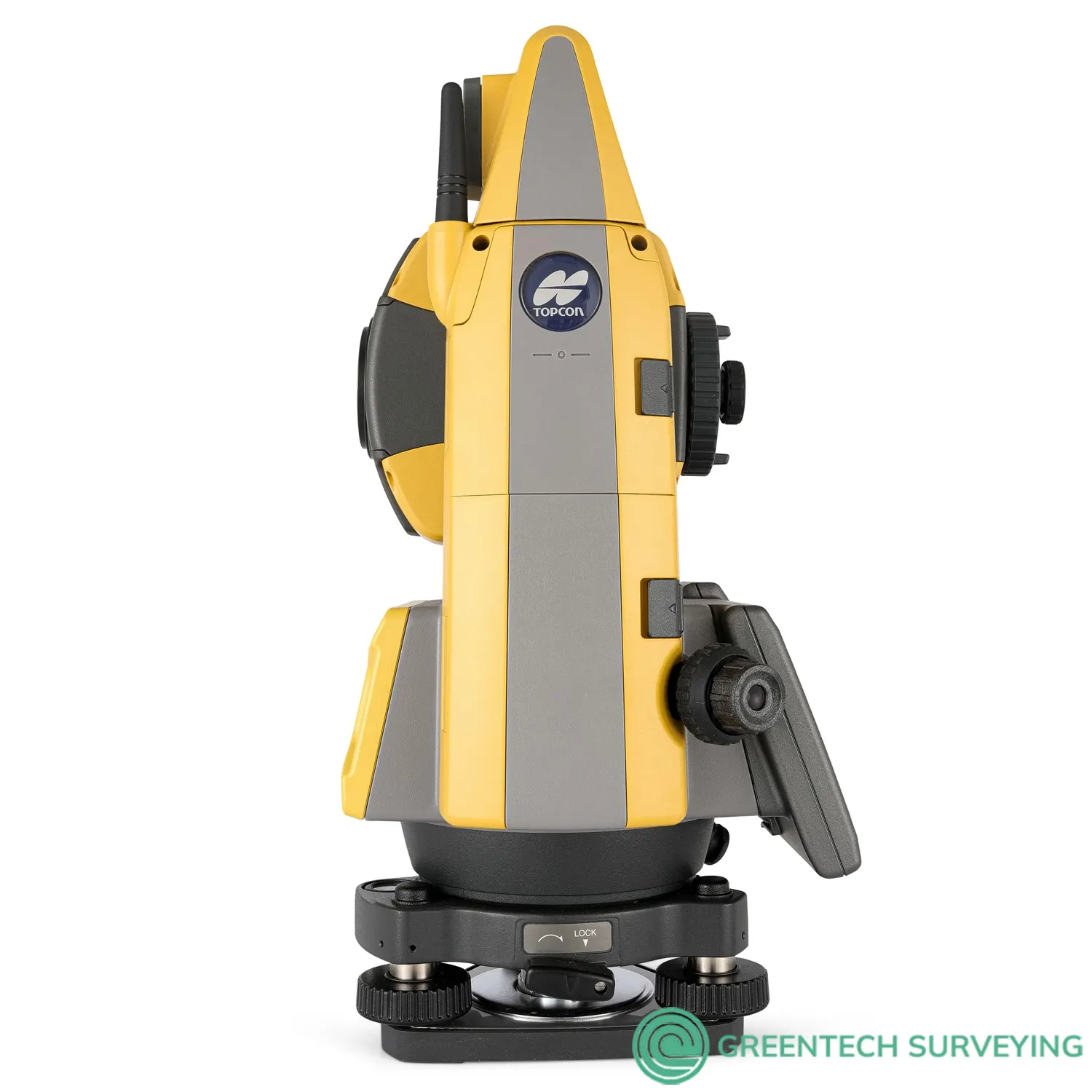

Topcon GT-1200 Robotic Total Station
Topcon GT-1200 Robotic Total Station, flagship GT Series ultrasonic robotic total station delivers accurate and productive workflows for highly demanding survey and construction applications.
$15,000
The Ultimate Total Station GT-1200 Robotic Total Station, the flagship GT Series ultrasonic robotic total station delivers accurate and productive workflows for highly demanding survey and construction applications. Lay out or survey more points precisely and in less time, while improving quality and consistency. Easy-to-use digital processes with repeatable accurate results mean less rework and better-quality control. Built for jobsite mobility, GT is one professional tool that does it all for layout, survey and machine guidance.
- Precise positioning with single-person operation
- High-speed advanced ultrasonic motors
- Easy to use with MAGNET or Pocket3D software
- Seamless integration into BIM workflows
- Available in GT-1200 and GT-600 models with multiple accuracy levels
- Three-year instrument and five-year motor warranty
- Ultra-rugged IP65 dust and water resistance
- UltraTrac™ prism tracking
- Maintain work pace with total station locked onto the prism, even in challenging environments
With the GT-1200/GT-600, you get the efficiency of a single-operator robotic system, the power of long-range reflectorless measurements, and the versatility of Hybrid Positioning™, all in your choice of 1”, 2” or 3” GT-1200 models or 2”, 3” or 5” GT-600 models
- Ultra powerful: Improved, intelligent Ultrasonic motor control provides smoother operation with less wear and tear. Ideal for survey, vertical construction or machine guidance, the solution is designed to stake or layout more points in less time even in challenging condition
- Ultra accurate: Improved, UltraTrac™ prism tracking for challenging job site environments utilizes optical sensing combined with high-speed Ultrasonic motor control. Whether working at a distance or up close, the instrument maintains prism lock making you more productive in any environme
- Ultra productive: Combine and conquer by accelerating your productivity with our hybrid solutions that utilize both GNSS and robotics so you can capture the shot, regardless of tree cover, loss of line of sight, or hard to reach points. Get to the next level of performance to tackle any project in a fraction of the time
- 10 Hz update rates for faster more efficient staking
- 180°/sec turning speed for exceptional productivity
- 30% smaller and lighter than any other Topcon series robotic instrument
- Stay productive, stay confident with UltraTracTM prism lock technology
- GNSS hybrid ready so you can handle any job site
What's In The Box
- 1046647- GT Total Station
- 1038706- 01 BDC72 Battery
- 1039170-02 CDC77, Charger
- 210160124 EDC113B
- 645412006 Stylus Pen
- 213055103 Lens Cap
- 221900037 Lens Hood
- 2219000260 Tool pouch
- 2219000280 Screwdriver
- 2219000270 Lens brush
- 2219000230 Adjusting pin straight type
- 2219000240 Adjusting pin round type
- 2130290340 Wiping Cloth
- 213069004 Quick Manual
- 2140392030 USB memory and manual
- 214059202 USB memory Key Sticker
- 314069004 Laser use Card
- 314069009 Registration Card
- 213069043 Standard Package List
- 313112066 Address List
- 2140499320 MAGNET registration card
- 2140499330 MAGNET registration procedure
- 1008721-01 Carrying Case
- 213069012 Case Sticker
- 645429507 Carrying Strap
- Fast and powerful EDM – 1,000 m (3,280 ft) non-prism and 5,000 m (16,404 ft) prism range
- Rugged waterproof and dustproof IP65 design
- Bright color touchscreen display for on-board data collection
- Integrated Bluetooth® and advanced LongLink™ communication for up to 600 m (1,968 ft) fully robotic range
- Direct Drive motors with a turning speed of 180º per-second
- Advanced UltraTrac technology
- Raised multi-key functionality
- Add the RC-5A remote for up to 600 m (1,968 ft) “single tap”prism re-acquisition
Your return on investmentAn MEP contractor saved over $200,000 in labor laying out over 128,000 points for sleeves and inserts over the span of a multiple building project with 109 floors. HPS Mechanical Case Study. The bottom line is that a team equipped with a robotic total station can be five times as fast as team armed only with a set of drawings and a measuring tape
Workdays turned into workflows
Bridge the gap between your mobile workforce and office staff with faster, more efficient cloud-based MAGNET®Enterprise services.
- Use the Point Manager plug-in for Revit and AutoCAD for automated point creation
- Secure connectivity to your active job sites as well as heavy machines using Sitelink3D
- Instant file sharing with both Autodesk® AutoCAD Civil 3D and Bentley MicroStation
Accelerate Productivity
GT-1200/GT-600 Robotic Total Station
- 10 Hz update rates to the FC-6000 field computer for more efficient staking
- Ultrasonic Direct Drive motors with 180° turning speed for exceptional productivity
- 30% smaller and lighter than any other Topcon series robotic instrument
- Optimize productivity by combining the GT-1200/GT-600, FC-6000, and MAGNET software with a HiPer series receiver
FC-6000 Field Computer
- Increased processing speed for data sets large and small with improved graphics
- LongLink™ Bluetooth provides two times longer range than class 1 Bluetooth
- Long lasting, hot swappable battery and an internal battery for additional runtime
- Optional external keyboard and docking station further enhance productivi
HiPer VR Receiver
- Automatically tracks every satellite constellation signal now and into the future
- Withstand the harshest environments with rugged IP67 design
- Compact form factor ideal for Millimeter GPS and Hybrid Positioning
- Capture mis-leveled field measurements out of plumb by as much as 15°
MAGNET Software Suite
- Streamline your most-used routines and ensure a fast and easy data connection from field to office
- Faster, customizable applications for processing, field-to-finish and 3D construction
- Integrate robotic total station and GNSS with increased speed and productivity
- Graphical intuitive software with low learning curve
- Microsoft Bing Maps® for satellite image background
| TOPCON GT-1200 ROBOTIC TOTAL STATION DATASHEET | |
| TELESCOPE | |
| Length | 142 mm |
| Aperture | EDM: 38 mm |
| Magnification | 30x |
| Image | Erect |
| Resolving powe | 2.5” |
| Field of view | 1°30 |
| Minimum focus | 1.3 m (4.3 ft.) |
| Reticle illumination | 5 brightness levels |
| ANGLE MEASUREMENT | |
| Horizontal and vertical circles typ | Rotary absolute encode |
| Detecting | 2 sides |
| Angle Units | Degree/Gon/Mil (selectable) |
| MINIMUM DISPLAY | |
| GT 1201/1202/602 | 0.5” (0.0001 gon/0.002 mil); 1” (0.0002 gon/0.005 mil (selectable) |
| GT 1203/603/605 | 1” (0.0002 gon/0.005 mil); 5” (0.0015 gon/0.025 mil) (selectable) |
| ANGLE ACCURACY (ISO 17123-3 : 2001) | |
| GT 1201 | 1” (0.0003 gon/0.005 mil) |
| GT 1202/602 | 2” (0.0006 gon/0.010 mil) |
| GT 1203/603 | 3” (0.0010 gon/0.015 mil) |
| GT 605 | 5” (0.0015 gon/0.025 mil |
| Collimation compensatio | On/Off (selectable) |
| Measuring mode | Horizontal angle: Right/Left (selectable); Vertical angle: Zenith/Horizontal/Horizontal ± 90° /% (selectable) |
| TILT ANGLE COMPENSATION | |
| Type | Liquid 2-axis tilt sensor |
| Minimum display | 1” |
| Range of compensation | ± 6’ (0.0018 gon |
| Automatic compensato | On (V and H/V) / Off (selectable |
| Tilt offset | Can be changed |
| DISTANCE MEASUREMENT | |
| Measuring method | Coaxial phase shift measuring system |
| Signal source | Red laser diode 690 nm Class 3R |
| (IEC60825-1 Ed. 3.0: 2014/FDA CDRH 21CFR Part1040.10 and 1040.11 (Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.56, dated May 8, 2019.)) | |
| MEASURING RANGE | |
| Prism-2 X 1*2 | GT-1200 series: 1.3 to 5,000 m (16,400 ft.); GT-600 series: 1.3 to 4,500 m (14,760 ft. |
| 360° Prism ATP1/ATP1S | 1.3 to 1,000 m (3,280 ft. |
| Prism-5 | 1.3 to 500 m (1,640 ft. |
| Reflective sheet RS90N-K* | 1.3 to 500 m (1,640 ft.) |
| Reflective sheet RS50N-K* | 1.3 to 300 m (980 ft.) |
| Reflective sheet RS10N-K*3 | 1.3 to 100 m (320 ft.) |
| Reflectorless (White)*2 | GT-1200 series: 0.3 to 1,000 m (3,280 ft.); GT-600 series: 0.3 to 800 m (2,624 ft |
| (Using the following reflective prism/reflective sheet target during normal atmospheric conditions*1) | |
| MINIMUM DISPLAY | |
| Fine/Rapid measurement | 0.0001 m (0.001 ft./ 1/16 inch) or 0.001 m (0.005 ft./ 1/8 inch |
| Tracking measurement | 0.001 m (0.005 ft./ 1/8 inch) or 0.01 m (0.1 ft./ 1/2 inch) |
| Maximum slope prism / reflective sheet | 12,000 m |
| Slope distance | Reflectorless: 1,200 m (3,930 ft.) Prism: 9,600 m (31,490 ft.) |
| Distance unit | m/ft./US ft./inch (selectable) |
| DISTANCE ACCURACY | |
|
Circular or 360° Prism ATP1 |
GT-1200 series Fine: 1 mm (0.003 ft.) + 2 ppm Rapid: 5 mm (0.0016 ft.) + 2 ppm GT-600 series Fine: 2 mm (0.006 ft.) + 2 ppm Rapid: 5 mm (0.016 ft.) + 2 ppm |
| Reflective sheet* | Fine: 2 mm (0.006 ft.) + 2 ppm Rapid: 5 mm (0.016 ft.) + 2 ppm |
| Reflectorless (White)*4 | Fine: 2 mm (0.006 ft.) + 2 ppm (0.3 to 200 m) 5 mm (0.016 ft.) + 10 ppm (200 to 350 m) 10 mm (0.032 ft.) + 10 ppm (350 to 1000 m) Rapid: 6 mm (0.020 ft.) + 2 ppm (0.3 to 200 m) 8 mm (0.026 ft.) + 10 ppm (200 to 350 m) 15 mm (0.049 ft.) + 10 ppm (350 to 1000 m |
| Measurement mode | Fine measurement (single/repeat/average) Rapid measurement (single/repeat) Tracking (selectable) |
| MEASURING TIME | |
| Fine measuremen | 1.3 sec + every 0.9 sec. |
| Rapid measuremen | 1.3 sec + every 0.6 sec. |
| Tracking measurement | 1.3 sec + every 0.4 sec. |
| Temperature input range | - 35 to 60°C (in 0.1°C step) / - 31 to 140°F (in 1°F step |
| Pressure input range | 500 to 1,400 hPa (in 0.1 hPa step),375 to 1,050 mm Hg (in 0.1 mm Hg step),14.8 to 41.3 inch Hg (in 0.01 inch Hg step) |
| ppm input range | -499 to 499 ppm (in 0.1 ppm step) |
| Prism constant correction | -99 to 99 mm (in 0.1 mm step)0 mm fixed for reflectorless measuremen |
| Earth curvature and refraction correction | No/Yes K=0.142 Yes K=0.20 (selectable |
| Sea level correctionNo/Yes (selectable | No/Yes (selectable) |
| *1: Slight haze, visibility about 20 km, sunny periods, weak scintillation.*2: No haze, visibility about 40 km, overcast, no scintillation.*3: Figures when the laser beam strikes within 30° of the reflective sheet target.*4: Figures when using Kodak Gray Card White side (reflection factor 90%) and brightness level is less than 5,000 lx (a little cloudy). When performing reflectorless measurement, the possible measurement range and precision will change depending on the target reflection factor, weather conditions and location conditions. | |
| ROTATION | |
| Max revolving speed (turning) | GT-1200: 180 degrees per second GT-600: 120 degrees per secon |
| Max auto tracking speed | GT-1200: 20 degrees per second GT-600: 18 degrees per secon |
| ULTRATRAC™ TRACKING RANGE | |
| Prism-2 | GT-1200: 1.3 to 1,000 m (3,280 ft.) GT-600: 1.3 to 800 m (2,624 ft.) |
| 360 degree prism (ATP1) | 2 to 600 m (1,960 ft.) |
| AUTO POINTING ACCURACY | |
| Standing still at 100 m or less | 1.2 mm or better |
| Standing still greater then 100 m | 0.3 mm (0.001ft.) + 9 ppm |
| GUIDE LIGHT | |
| Light source | LED (red 626 nm/green 524 nm) |
| Visible distance | 1.3 to 150 m |
| Visible angle | Right and Left/Upward and Downward:± 4° (7 m/100 m) |
| Resolving power at center area (width) | 4’ (about 0.12 m/100 m) |
| Brightness | 3 levels (bright/normal/dim) |
| MEMORY AND DATA | |
| Internal memory | 1GB |
| External memory | USB flash memory (up to 32GB) |
| Visible angle | Asynchronous serial RS232C compatible USB Revision 2.0 (FS) Host (Type A) Client (Type miniB) |
| LONGLINK™ BLUETOOTH®WIRELESS TECHNOLOGY | |
| Transmission method | FHSS |
| Modulation | GFSK (Gaussian-filtered frequencyshift keying |
| Frequency band | 2.402 to 2.48 GHz |
| Bluetooth® profile | SPP, DUN |
| Power class | Class 1 |
| Range | 600 m (No obstacles, few vehicles orsources of radio omissions/interference inthe near vicinity of the instrument, no rain,while in communication |
| Authentication | Yes/No (selectable) |
| WI-FI | |
| Communication distance | 10 m |
| Access method | Infrastructure mode/ad hoc mode |
| Frequency range | 2,412 to 2,472 MHz (1 to 11ch) |
| Transmission specification | IEEE802.11b/g/n |
| POWER SUPPLY | |
| Power source | Rechargeable Li-ion battery BDC72 |
| Working duration at 20°C | BDC72: approx. 4 hours BT-73Q (external optional) approx. 6.5 hours |
| Fine single measurement = every 30 seconds after worked 180 degrees and locking on prism | |
| Battery state indicator | 4 levels |
| Auto power-off | 5 levels (5/10/15/30 min/Not set)(selectable) |
| External power source | 6.7 to12 V |
| BATTERY (BDC72) | |
| Nominal voltage | 7.2 V |
| Capacity | 5,986 mAh |
| Dimensions (w x d x h) | 40 x 70 x 40 mm |
| Weight | approx. 220 g |
| Charging time at 25°C | approx. 8 hours for two batteries using CDC77 charger |
| CHARGER (CDC77) | |
| Voltage | AC100 to 240 V |
| Charging temperature range | 0 to 40°C |
| Storage temperature range | -20 to 65°C |
| Size (w x d x h) | 94 x 102 x 36 mM |
| Weight | about 250 g |
| OPERATING SYSTEM | |
| Windows Compact 7 | |
| DISPLAY | |
| Color touchscreen 4.3 inch Transmissive TFT VWGA color LCD | |
| Backlight LED 9 brightness levels | |
| Touch panel resistance sensitive analog type | |
| SENSITIVITY OF LEVEL | |
| Circular level | 10’/2 mm on tribrach 8’/2 mm on main unit (optional) |
| Electronic circular levels | Graphic display range: 6’ (inner circle) Digital display range: ± 6’ 30” |
| OPTICAL PLUMMET | |
| Image | Erect |
| Magnification | 3X |
| Minimum focus | 0.5 m |
| ENVIRONMENTAL | |
| Operating temperature | Standard models: -20 to 50°C(-4 to 122°F) (no condensation) |
| Storage temperature | -30 to 60°C (-22 to 140°F)(no condensation) |
| Dust/Water rating | IP65 (IEC 60529: 2001) |
| Instrument height | 192 mm from tribrach mounting surface |
| Size with handle (w x d x h) | 212 x 172 x 355 mm |
| Weight (with handle/battery) | 5.8 kg |
| CERTIFICATIONS AND STANDARDS | |
| USA FCC Class A Europe R&TTE-Class1 Europe EMC-ClassB Canada ICES –ClassA Australia C-Tick N 13813 Europe WEEE Directive Europe Battery Directive California Proposition 65 California Perchlorate Material CR TELEC |
|
