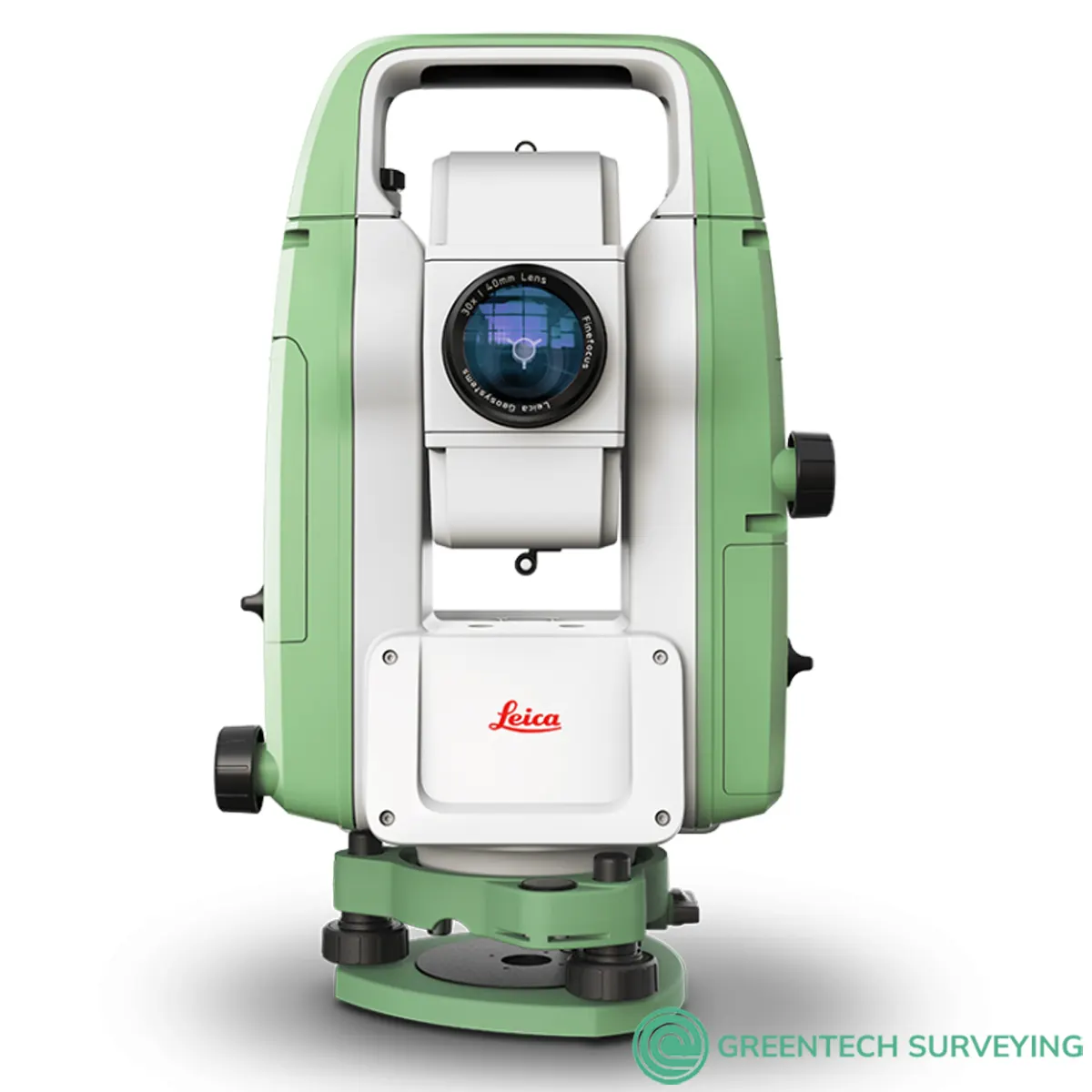

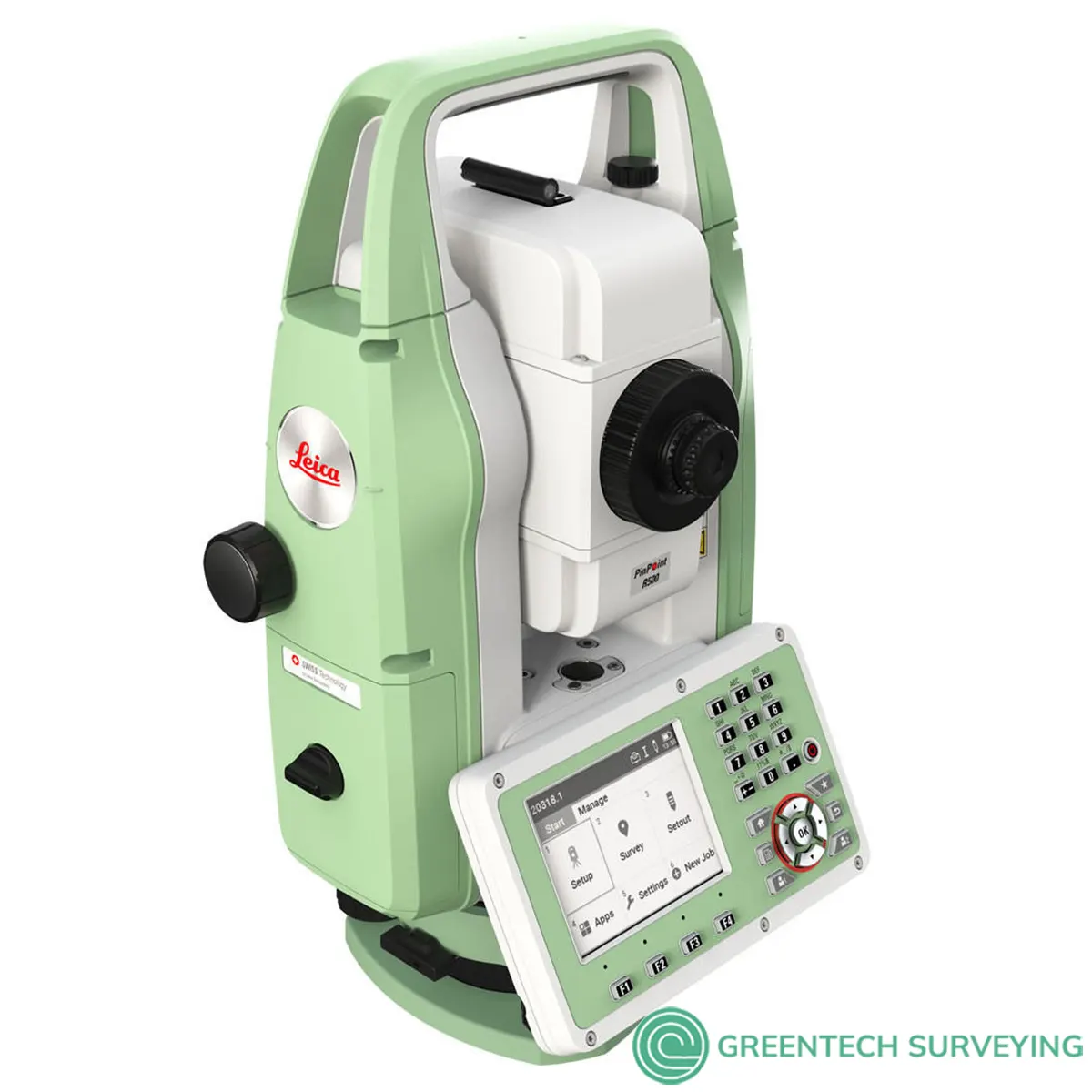

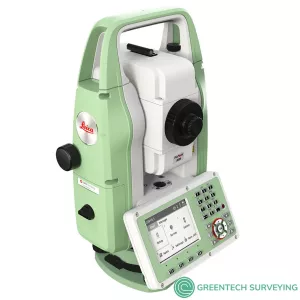

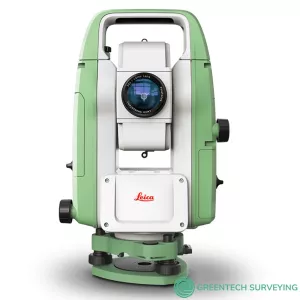

Leica FlexLine TS10 Total Station

Leica FlexLine TS10 is a high-end manual total station, enabling you to carry out high-demand survey tasks with Leica Captivate software. This way you can participate in the world of 3D by benefiting from 3D views of your measured data.

The TS10 solves daily professional challenges and tasks for growing demands within surveying and mapping, building construction and civil engineering:

Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time.
Survey managers can rely on the highest product durability in the market, which increases your planning certainty.
Surveyors work faster by measuring more points per day with less measurement errors and rework.

Leica FlexLine: The new generation of manual total stations
The new Leica FlexLine series is based on a proven product concept, revolutionising the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Leica Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results.

AutoHeight: Revolutionising instrument height measurement
The TS10 offers the world’s first AutoHeight feature as an option. AutoHeight enables the instrument to automatically measure, read and set its instrument height. Prevent time consuming manual effort and eliminate critical errors during the instrument setup when this revolutionary feature uses a laser from the instrument to measure to the ground and automatically passes the measurement to the software.

Leica Captivate software: Comprehensive, intuitive and easy to use
The TS10 is equipped with the Leica Captivate field software, a comprehensive application-based software package. This intuitive, familiar software helps you to capture even more points than before. You are also able to tie into the modern 3D dataflow and rigorous quality assurance and control routines.

Service and support: Global, local and best-in-class
Now with optional mobile internet access the TS10 connects to the office for a seamless dataflow and to Leica Geosystems trusted global service and support at the touch of a button. With the Active Customer Care program and myWorld customer portal, users have access to latest software updates, service and support as well as to mySecurity. With mySecurity activated, the locking mechanism ensures the device is disabled and can no longer be used.

WORK FASTER: Measure more points per day due to faster measurements and stakeout procedures, supported by the revolutionary Leica Captivate field software. The software is made to make your work easier and more enjoyable.
USE IT TROUBLE-FREE: Increase productivity and minimise downtime by relying on instruments that simply work and come with a global service and support network.
CHOOSE PRODUCTS THAT ARE BUILT TO LAST: Even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold), FlexLine still operates with the same high level of accuracy and reliability.
CONTROL YOUR INVESTMENT: Instrument quality has been our standard for almost 200 years, which is why you can count on a lower investment over the entire instrument lifetime and do not have to worry about unexpected costs.
PROFIT FROM MOBILE CONNECTIVITY: With optional mobile internet access, you can share your data online much faster, receive design data from your designers and engineers onsite, and use Leica Geosystems services – such as Leica Exchange or Leica Active Assist.
SAVE TIME WITH AUTOHEIGHT: This revolutionary feature enables your TS10 to automatically measure, read and set its own height. This capability minimi

LEICA FLEXLINE TS10 TOTAL STATION TECHNICAL SPECIFICATIONS
		Leica FlexLine TS03	Leica FlexLine TS07	Leica FlexLine TS10
ANGULAR MEASUREMENT
Accuracy Hz and V	Absolute, continuous, diametrical	2’’ / 3’’ / 5’’	1’’ / 2’’ / 3’’ / 5’’ / 7“	1’’ / 2’’ / 3’’ / 5’’
	Display resolution: 0.1’’ (0.1 mgon) Quadruple axis compensation Compensator setting accuracy2: 0.5’’ / 1’’/ 1.5’’ / 2’’ Compensator range: +/- 4’ Electronic level resolution: 2“ Circular level sensitivity: 6` / 2 mm
DISTANCE MEASUREMENT
Range	Prism (GPR1, GPH1P): 0.9 m to 3,500 m Prism GPR1 (Long Range mode) > 10,000 m
	Non-Prism / Any surface R5003 R10004		.	.
Accuracy / Measurement time	Single prism Precise+ / Once: 1 mm + 1.5 ppm (typical 2.4 s) Precise&Fast / Once&Fast: 2 mm + 1.5 ppm (typical 2 s) Tracking / Continously: 3 mm + 1.5 ppm (typical < 0.15 s) Averaging: 1 mm + 1.5 ppm Long Range mode / > 4 km: 5 mm + 2 ppm (typical 2.5 s)
	Non-Prism / Any surface 0 m - 500 m: 2 mm + 2 ppm (typical 2.4 s5) > 500 m: 4 mm + 2 ppm
Laser dot size	At 30 m: 7 mm x 10 mm At 50 m: 8 mm x 20 mm At 100 m: 16 mm x 25 mm
Telescope	Magnification: 30x Resolving power: 3” Focusing range: 1.55 m / 5.08 ft to infinity Field of view: 1°30’ / 1.66 go/ 2.7 m at 100 m
GENERAL
Display and keyboard		3.5“ (inch), 320 x 240 px QVGA, grayscale, 28 keys	3.5“ (inch), 320 x 240 px QVGA, colour, touch, 28 keys	5“ (inch), 800 x 480 pixels WVGA, colour, touch, 25 keys6b, (optional:37 keys with function keys)
	2nd keyboard		.	.
	Key illumination
Operation	Endless drives for HZ & V Trigger-Key: user definable with 2 functions
Power management	Exchangeable Lithium-Ion battery7 Operating time with GEB364 Operating time with GEB334	up to 32 h up to 16 h	up to 32 h up to 16 h	up to 26 h up to 13 h
	Battery charging time with GKL341 charger for GEB364 / GEB334 GKL311 charger for GEB364 / GEB334	3 h 30 min / 3 h 6 h 30 min / 3 h 30 min	3 h 30 min / 3 h 6 h 30 min / 3 h 30 min	3 h 30 min / 3 h 6 h 30 min / 3 h 30 min
	External supply voltage Nominal voltage 13.0 V DC & 16 W max
Data storage	Internal memory: 4 GB Flash Memory card: SD card 1 GB or 8 GB USB memory stick: 1 GB
Processor	TI OMAP4430 1GHz Dual-core ARM® Cortex A9 MPCore Operating system – Windows EC7
Interfaces	RS2328, USB device
	Bluetooth, WLAN
	Mobile Data sidecover: LTE-Modem for internet access		.	.
Guide Light (EGL)	Working range: 5 m to 150 m Position accuracy: 5 cm at 100 m Wavelength red /orange: 617 nm / 593 nm		(R1000)	(R1000)
Laser plummet (Laserclass)	Accuracy Plumb line deviation: 1.5 mm at 1.5 m instrument height Diameter of laser point: 2.5 mm at 1.5 m instrument height
AutoHeight module for automatic instrument height measurement (Laserclass)	Accuracy Distance accuracy: 1.0 mm (1 Sigma) Distance range: 0.7 m to 2.7 m		.
Weight		4.3 kg	4.3 - 4.5 kg	4.4 - 4.9 kg
Environmental specifications	Working temperature range: –20°C to +50°C11 Arctic version: –35°C to +50°C Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing Military Standard 810G, Method 506.5		.	.
Imaging	5 megapixel CMOS sensor Overview camera with field of view 19.4			.
LOC8	Tracking and theft deterrence device	.	.	.

Documentation

Leica_FlexLine_TS10_LR.pdf
