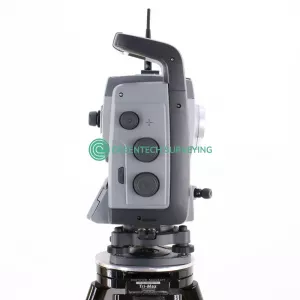

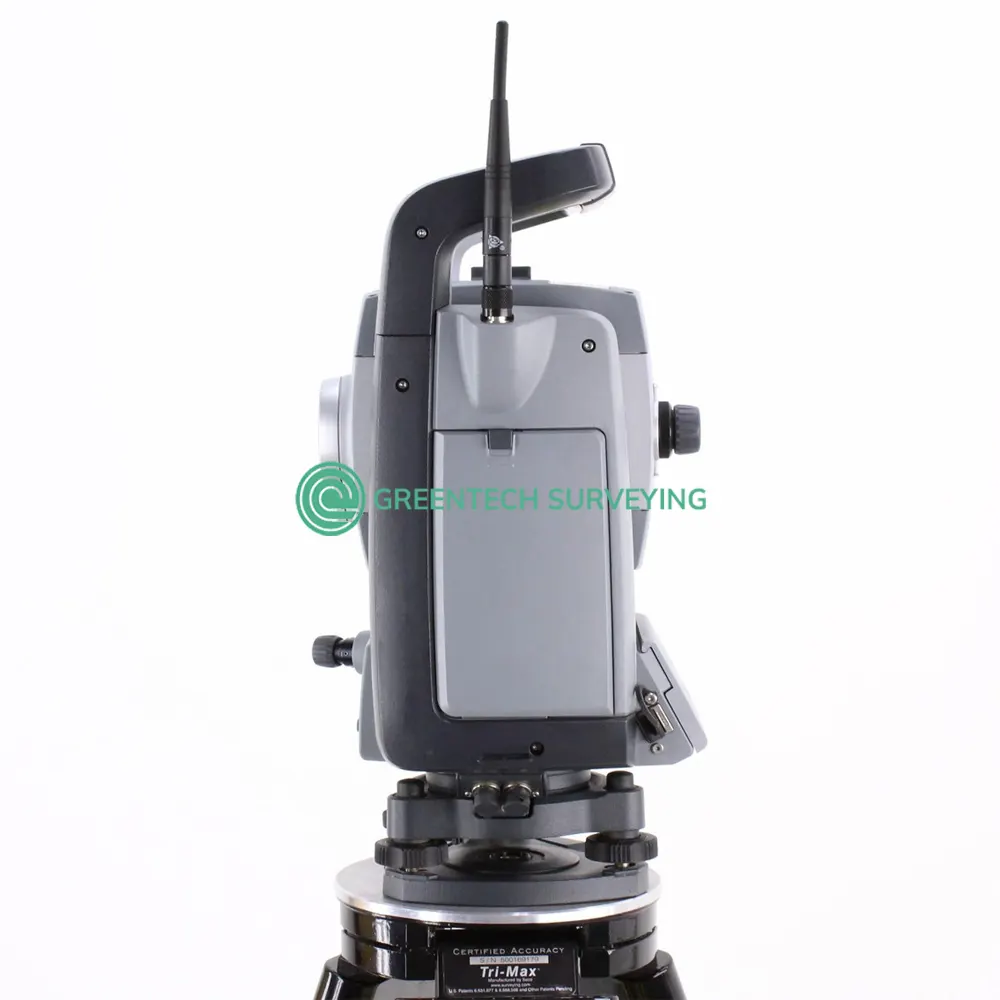

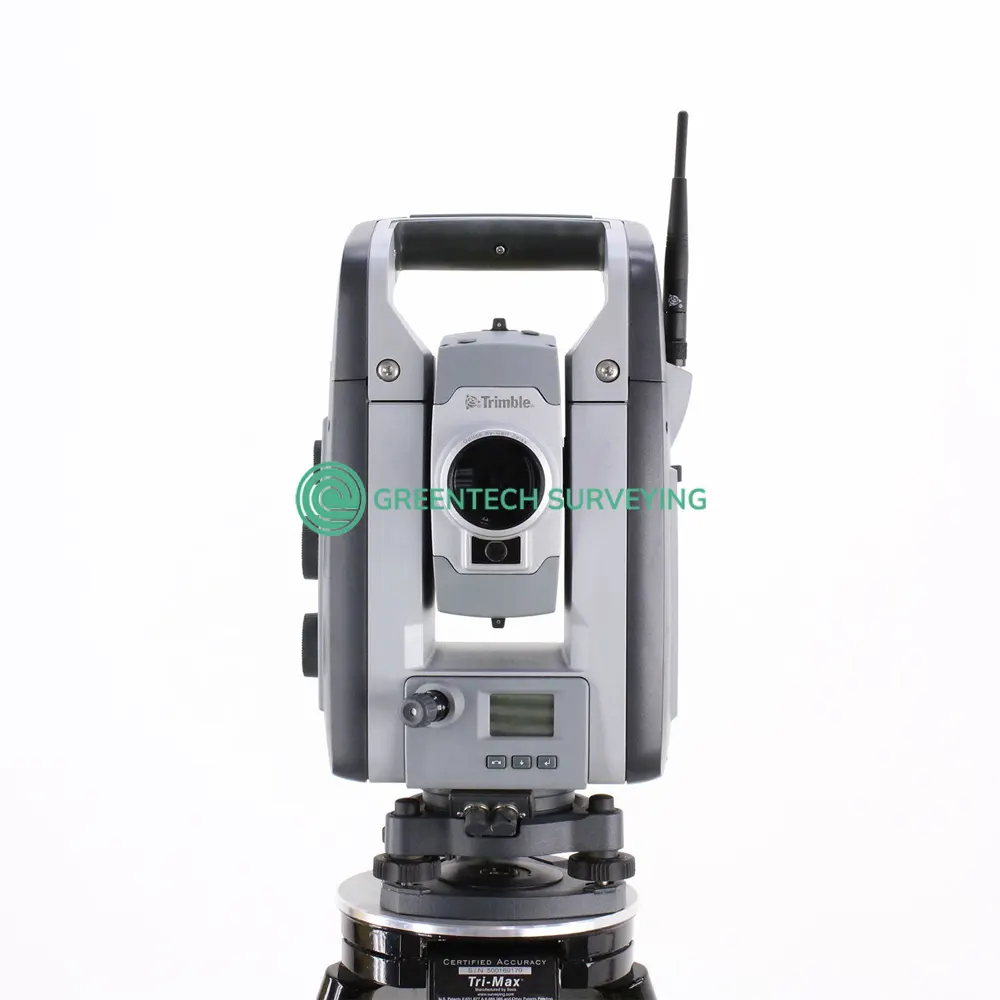

Trimble S8 1" DR HP Robotic Total Station

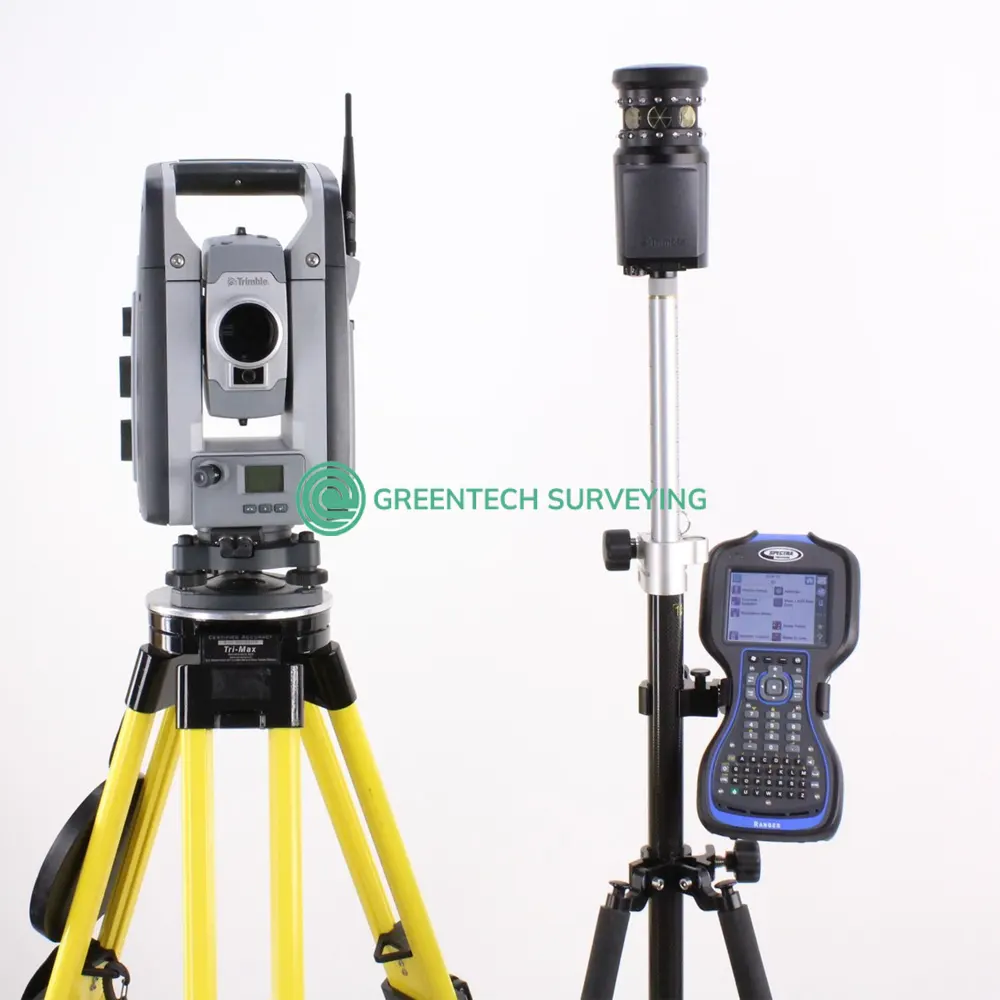

Selling used Trimble S8 1” DR HP HIGH PRECISION Robotic Total Station in Great Condition and Fresh Calibration, come with Ranger 3 Survey PRO, Trimble MT1000 Prism

$14,000

Used condition

Contact to buy

Trimble S8 HP Robotic Total Station is a high-performance robotic total station capable of tackling demanding monitoring, rail, mining and tunneling applications with optimal speed, accuracy and reliability. With HP, know you are achieving the highest level of accuracy

Package includes:

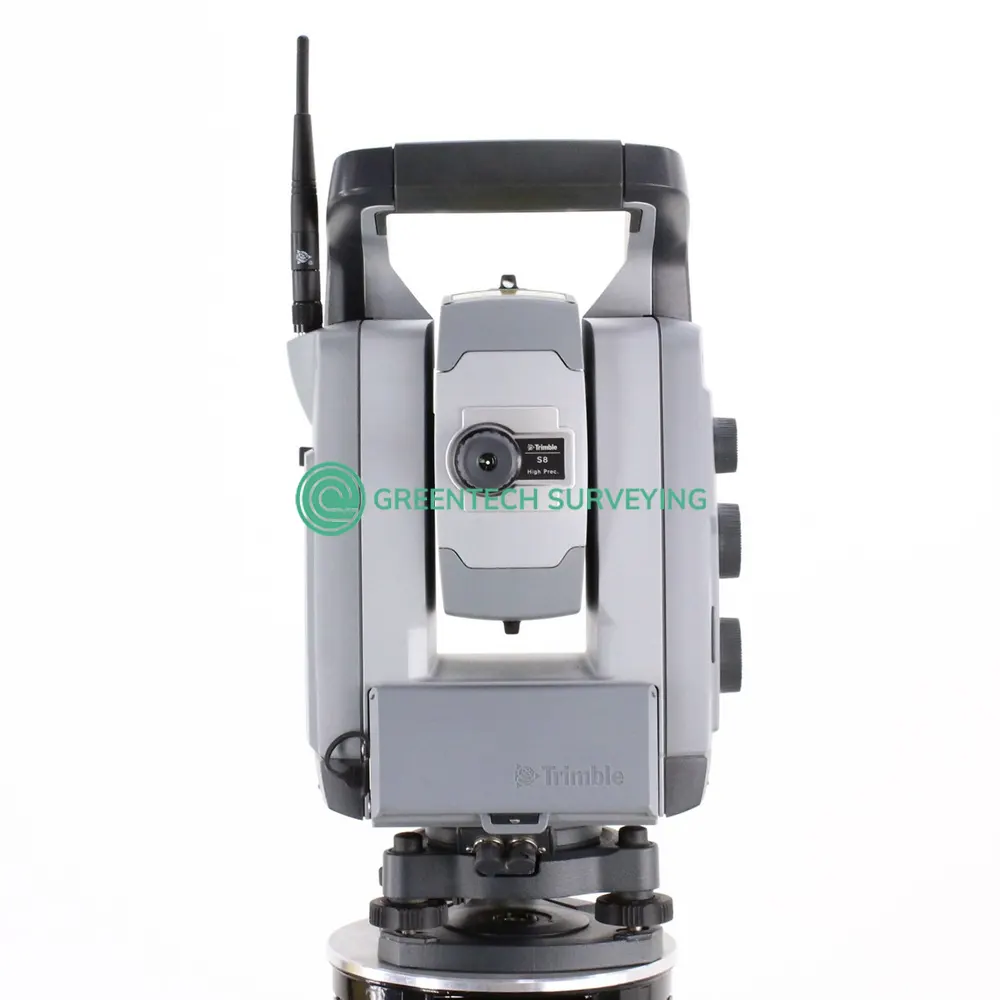

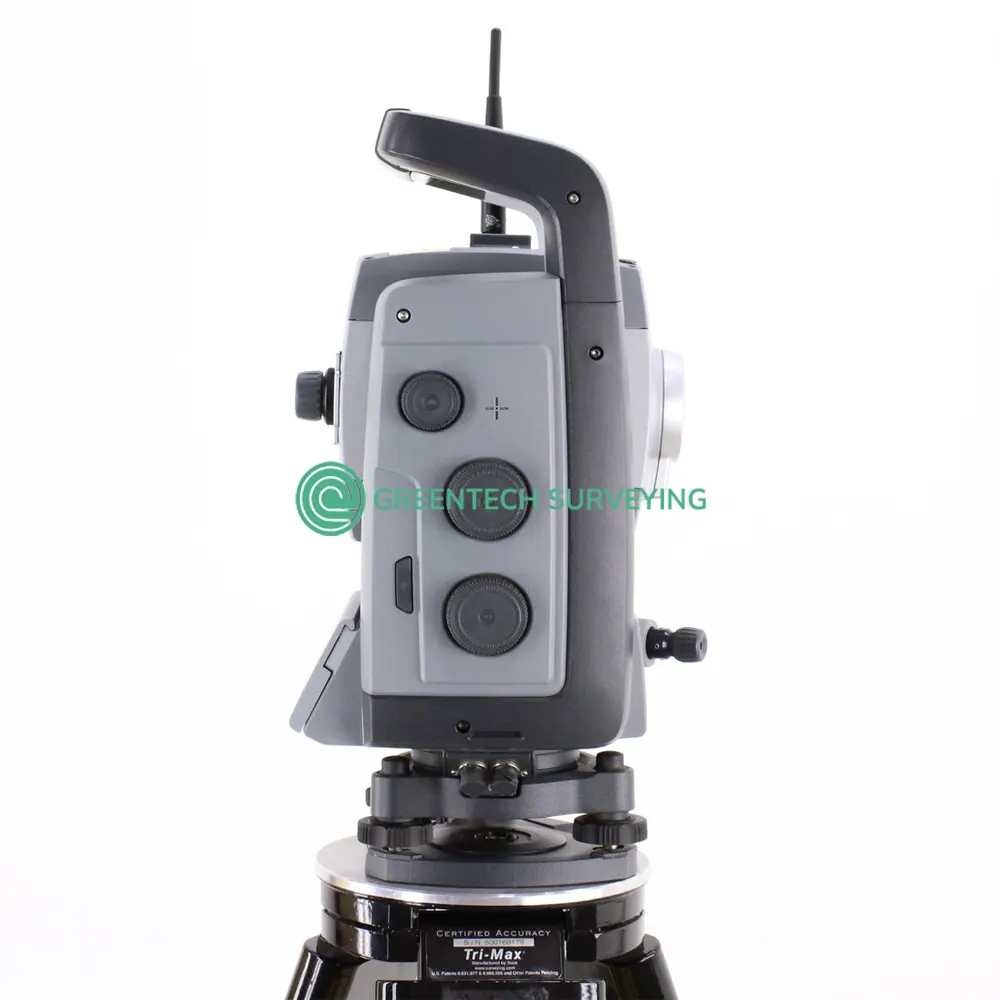

  • 1x Trimble S8 1” HP Robotic Total Station with Laser, Autolock, Robotic, Reflectorless
    Internal 2.4 GHz Radio with Antenna
    Current Calibration
    Firmware Version R12.5.54
    Vision Enabled
    Accuracy: Within 3/32” or 2.7mm at 500ft

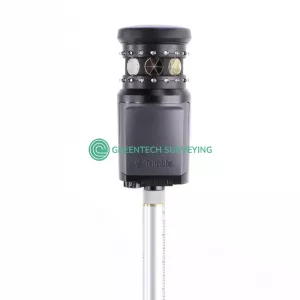

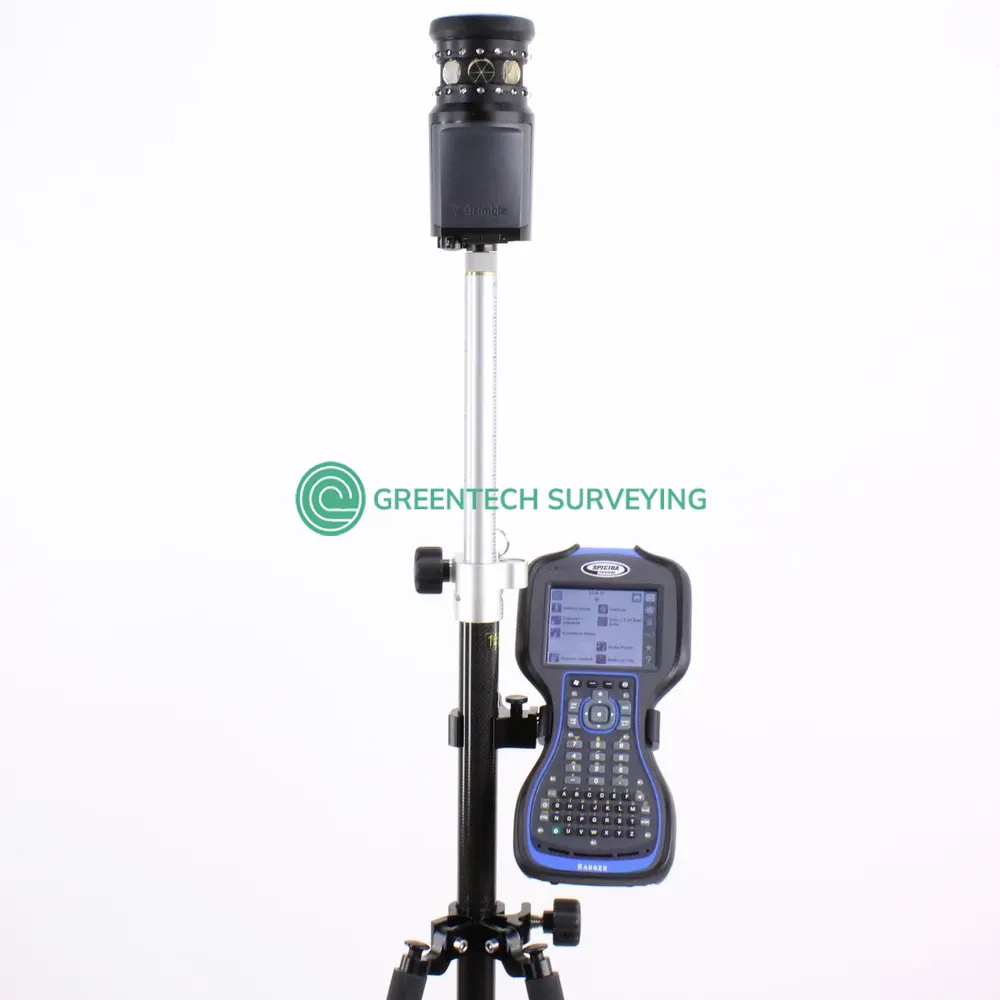

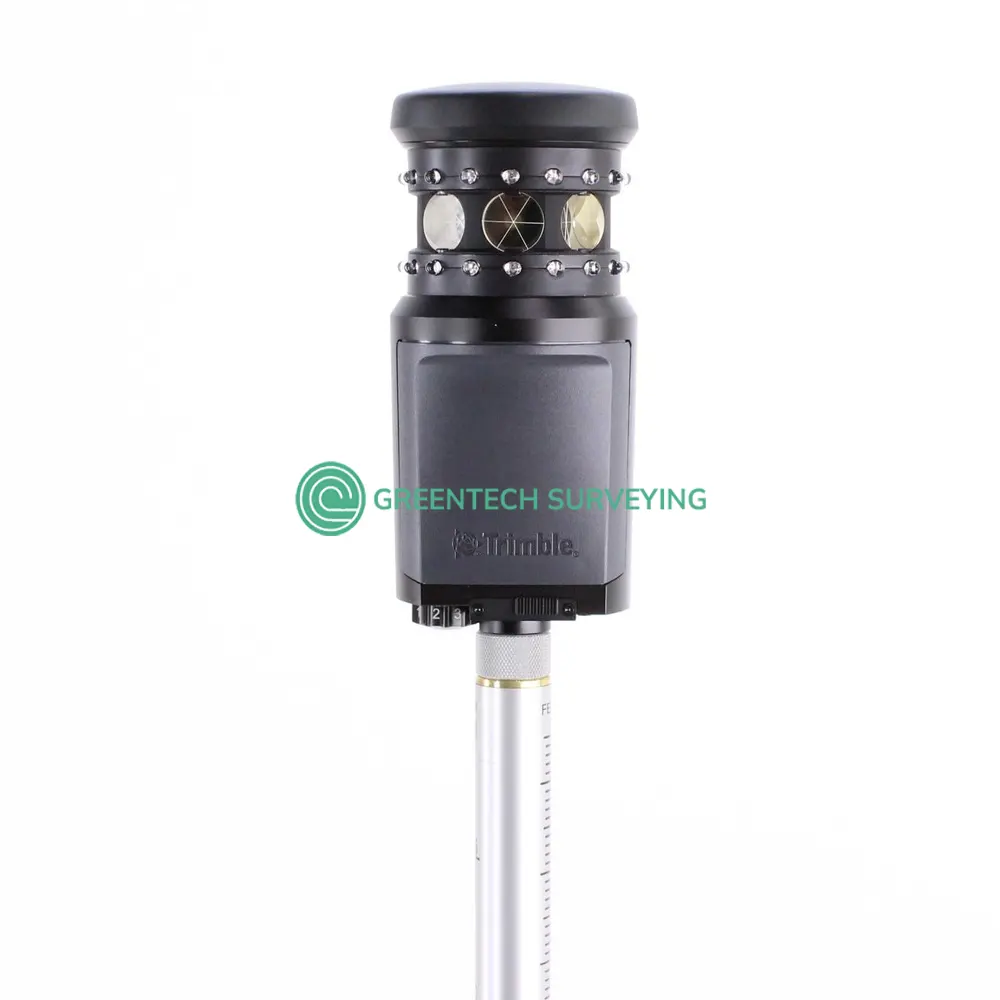

  • 1x Trimble MT1000 Prism

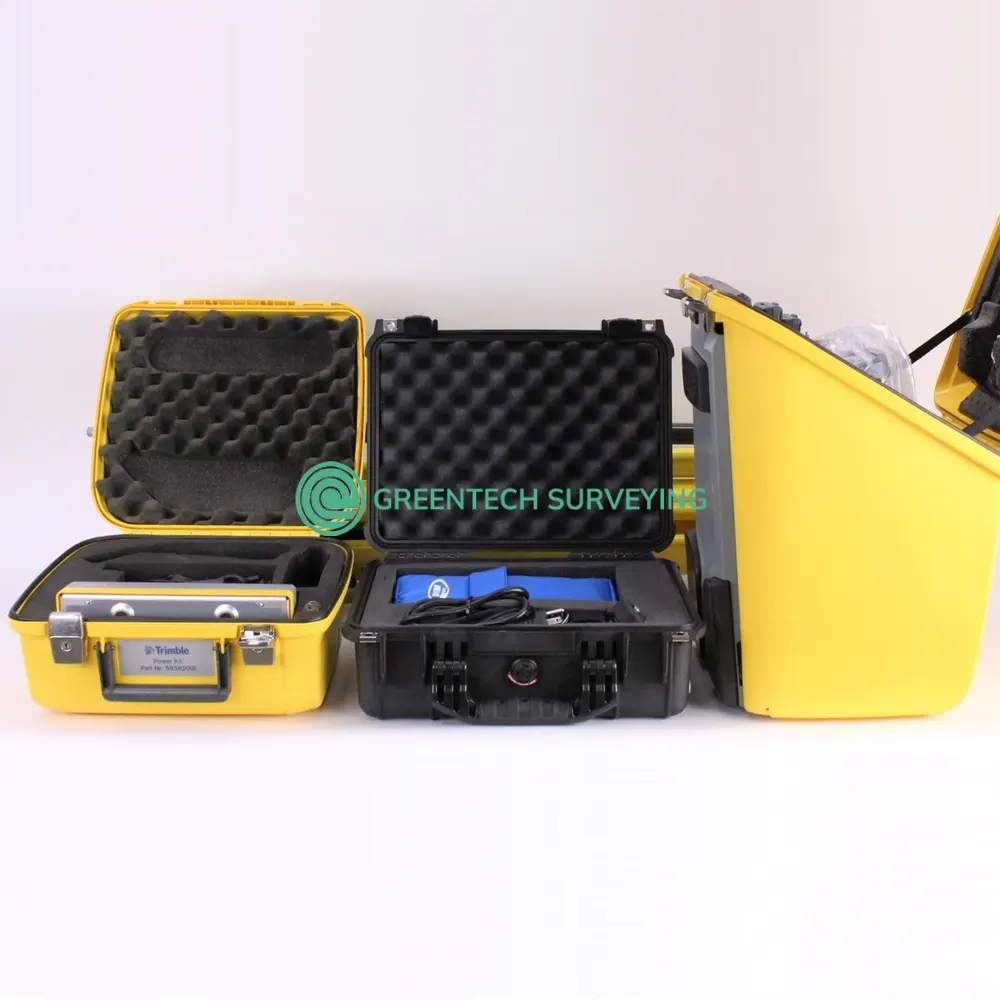

  • 1x Trimble Transport Case

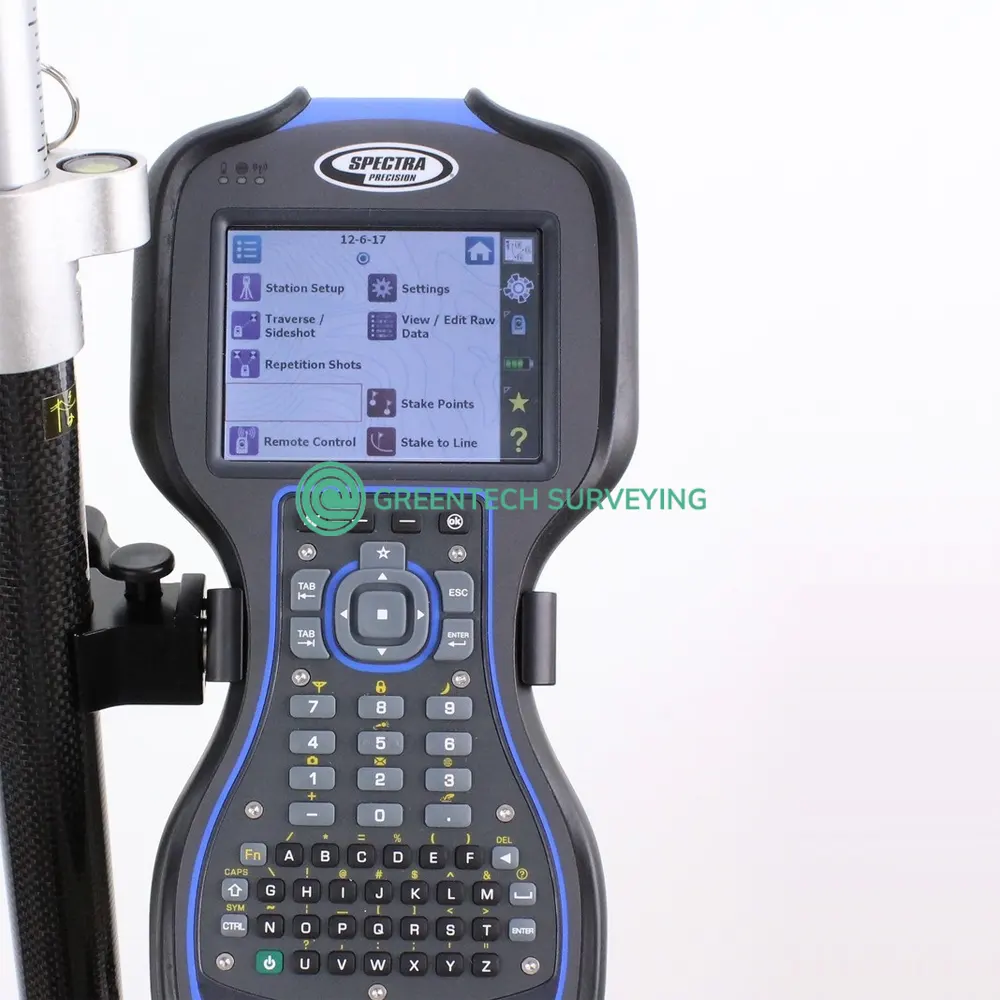

  • Spectra Precision Ranger 3 Data Collector
    Spectra Precision Survey Pro Version 6.1.0
    2.4 GHz Internal Radio and Antenna
  • 1x Rod Mounting Bracketa
  • 1x Ranger 3 Battery Charger with Power Supply
  • 1x Ranger 3 Wall Charger
  • Touchscreen with Stylus
  • 1x Transport Case
  • Trimble Power Pack
  • 2x Trimble Total Station Li Ion Batteries
  • 2x Trimble MT1000 Batteries
  • 1x Trimble 5-Bay Charger with Power Supply
  • 1x Trimble Transport Case
  • New Seco Trimax Tripod
  • New Seco Carbon Fiber Robotic Pole
  • New Seco Bipod

Key Features

  • 1” angle accuracy
  • Trimble HP EDM for optimal speed, accuracy and reliability
  • Trimble VISION, Long Range Finelock,3R Laser Pointer
  • Trimble L2P real-time equipment management
  • Intuitive Trimble Access Field Software
  • Trimble Business Center Office Software for quick data processing
  • Trimble 4D Control for monitoring management

TRIMBLE S8 HP Specifications

GENERAL SPECIFICATIONS

Leveling Circular level in tribrach: 8'/2 mm (8'/0.007 ft)
Automatic level compensator
  • Type: Centered dual-axis
  • Accuracy: 0.5” (0.15 mgon)
  • Range: ±5.4' (±100 mgon)
Servo system  MagDrive servo technology, integrated servo/angle sensor; electromagnetic direct drive
Rotation speed 115 degrees/s (128 gon/s)
Rotation time Face 1 to Face 2 2.6 s
Positioning speed180 degrees (200 gon) 2.6 s
Clamps and slow motions  Servo-driven, endless fine adjustment
Centering
  • Centering system: Trimble 3-pin
  • Optical plummet:  Built-in optical plummet
Magnification/shortest focusing distance 2.3×/0.5 m to infinity (1.6 ft to infinity)
Telescope
  • Magnification: 30 X
  • Aperture: 40 mm (1.57 in)
  • Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft)
  • Shortest focusing distance: 1.5 m (4.92 ft) to infinity
  • Illuminated crosshair: Variable (10 steps)
Autofocus Standard
Tracklight built in Not available in all models
Operating temperature –20º C to +50º C (–4º F to +122º F)
Dust and water proofing IP55
Humidity 100% condensing
Power supply
  • Internal battery: Rechargeable Li-Ion battery 11.1 V, 5.0 Ah
  • Operating time
    • One internal battery: Approx. 6.5 hours
    • Three internal batteries in multi-battery adapter: Approx. 18 hours
  • Robotic holder with one internal battery: 13.5 hours
  • Operating time with video robotic
    • One battery: 5.5 hours
    • Three batteries in multi-battery adapter: 17 hours
Weight
  • Instrument (Servo/Autolock®): 5.15 kg (11.35 lb)
  • Instrument (Robotic) : 5.25 kg (11.57 lb)
  • Trimble CU controller: 0.4 kg (0.88 lb)
  • Tribrach: 0.7 kg (1.54 lb)
  • Internal battery: 0.35 kg (0.77 lb)
Trunnion axis height 196 mm (7.71 in)
Communication USB, Serial, Bluetooth®
Security Dual-layer password protection

ROBOTIC SURVEYING

Autolock and Robotic range
  • Passive prisms: 500–700 m (1,640–2,297 ft)
  • Trimble MultiTrack Target: 800 m (2,625 ft)
Autolock pointing precision
at 200 m (656 ft) (standard deviation)
  • Passive prisms: <2 mm (0.007 ft)
  • Trimble MultiTrack™ Target: <2 mm (0.007 ft)
Shortest search distance 0.2 m (.65 ft)
Search time (typical) 2–10 s
FineLock
Available on Autolock and Robotic versions Pointing precision at 300 m (980 ft) (standard deviation): <1 mm (0.003 ft)

Range to passive prisms (min–max): 20 m–700 m (64 ft–2,297 ft)

Minimum spacing between prisms at 200 m (656 ft): 0.8 m (2.625 ft)

Long Range
  • Pointing precision at 2,500 m (8,200 ft) (standard deviation): <10 mm (0.039 ft)
  • Range to passive prisms (min.–max.): 20 m–2,500 m (64 ft–8,200 ft)
  • Minimum spacing between prisms at 2,500 m (8,200 ft): <10.0 m (32.808 ft)
GPS SEARCH/GEOLOCK WITH TRIMBLE MULTITRACK TARGET
GPS Search/GeoLock 360 degrees (400 gon) or defined horizontal and vertical search window
Solution acquisition time 15–30 s
Target re-acquisition time <3 s
Range Autolock and Robotic range limits



PERFORMANCE

Angle measurement accuracy 1” (0.3 mgon)

Angle display (least count)

0.1” (0.01 mgon)
Distance measurement
Accuracy (RMSE)
  • Prism mode
    • Standard: 1 mm + 1 ppm (0.003 ft + 1 ppm)
    • Tracking: 5 mm + 2 ppm (0.016 ft + 2 ppm)
  • DR mode
    • Standard measurement: 3 mm + 2 ppm (0.01 ft + 2 ppm)
    • Tracking: 10 mm + 2 ppm (0.032 ft + 2 ppm)




Measuring time
  • Prism mode
    • Standard: 2.5 s
    • Tracking: 0.4 s
    • Averaged observations: 2.5 s per measurement
  • DR mode
    • Standard: 3–15 s
    • Tracking: 0.4 s
Range (under standard clear conditions)
  • Prism mode
    • 1 prism: 3,000 m (9,800 ft)
    • 1 prism Long Range mode: 5,000 m (16,400 ft)
    • 3 prism Long Range mode: 7,000 m (23,000 ft)
    • Shortest range: 1.5 m (4.9 ft)
  • DR mode
    • White card (90% reflective)
      Good (Good visibility, low ambient light): >150 m (492 ft)
      Normal (Normal visibility, moderate sunlight, some heat shimmer): 150 m (492 ft)
      Difficult (Haze, object in direct sunlight, turbulence):  70 m (229 ft)
    • Gray card (18% reflective)
      Good (Good visibility, low ambient light): >120 m (394 ft)
      Normal (Normal visibility, moderate sunlight, some heat shimmer): 120 m (394 ft)
      Difficult (Haze, object in direct sunlight, turbulence):  50 m (164 ft)
    • Shortest range: 1.5 m (4.9 ft)
Camera
Chip Color Digital Image Sensor
Resolution 2048 x 1536 pixels
Focal length 23 mm (0.07 ft)
Depth of field 3 m to infinity (9.84 ft to infinity)
Field of view 16.5° x 12.3° (18.3 gon x 13.7 gon)
Digital zoom 4-step (1x, 2x, 4x, 8x)
Exposure Automatic
Brightness User-definable
Contrast User-definable
Image storage Up to 2048 x 1536 pixels
File format JPEG



EDM SPECIFICATIONS

Light source Laserdiode 660 nm; Laser class 1 in Prism mode Laser class 2 in DR mode
Laser pointer coaxial (standard) Laser class 2
Laser pointer non-coaxial Laser class 3R
Beam divergence Prism mode
  • Horizontal: 4 cm/100 m (0.13 ft/328 ft)
  • Vertical: 4 cm/100 m (0.13 ft/328 ft)
Beam divergence DR mode
  • Horizontal: 2 cm/50 m (0.066 ft/164 ft)
  • Vertical: 2 cm/50 m (0.066 ft/164 ft)
Atmospheric correction –130 ppm to 160 ppm continuously
