Creaform C-Track 780 CMM VXelements PolyWorks

Selling Creaform C-Track 780 CMM VXelements PolyWorks, everything is still excellent perfect condition, Been serviced and calibrated by Creaform authorized

$5,000

Used condition

Contact to buy

Selling Creaform C-Track 780 CMM VXelements PolyWorks, everything is still excellent perfect condition, Been serviced and calibrated by Creaform authorized, ready to working order and compliance with Creaform working standard.

The CREA FORM is a portable coordinate measuring machine (CMM) of 1st generation; it's an arm-free probing system that delivered high accuracy measurements when used with the C-Track dual-camera sensor.

Sale Includes

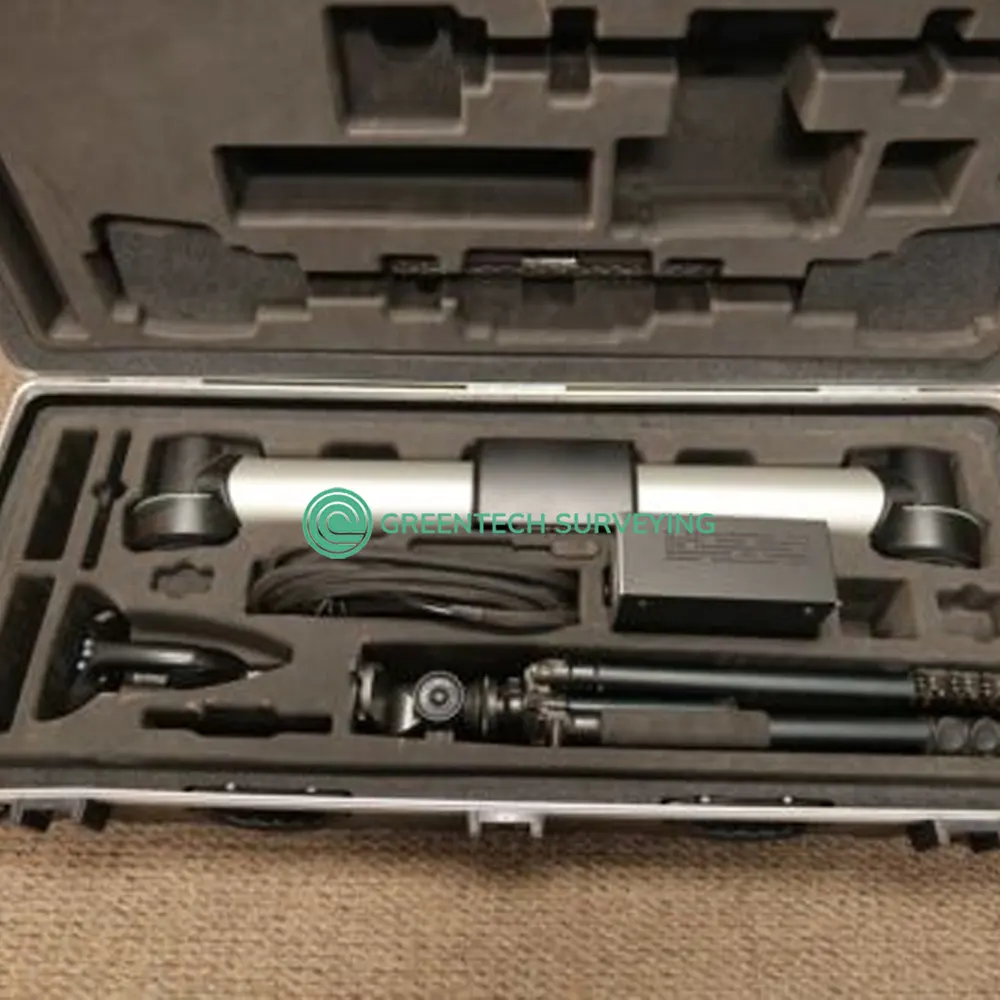

  • Creaform C-Track 780

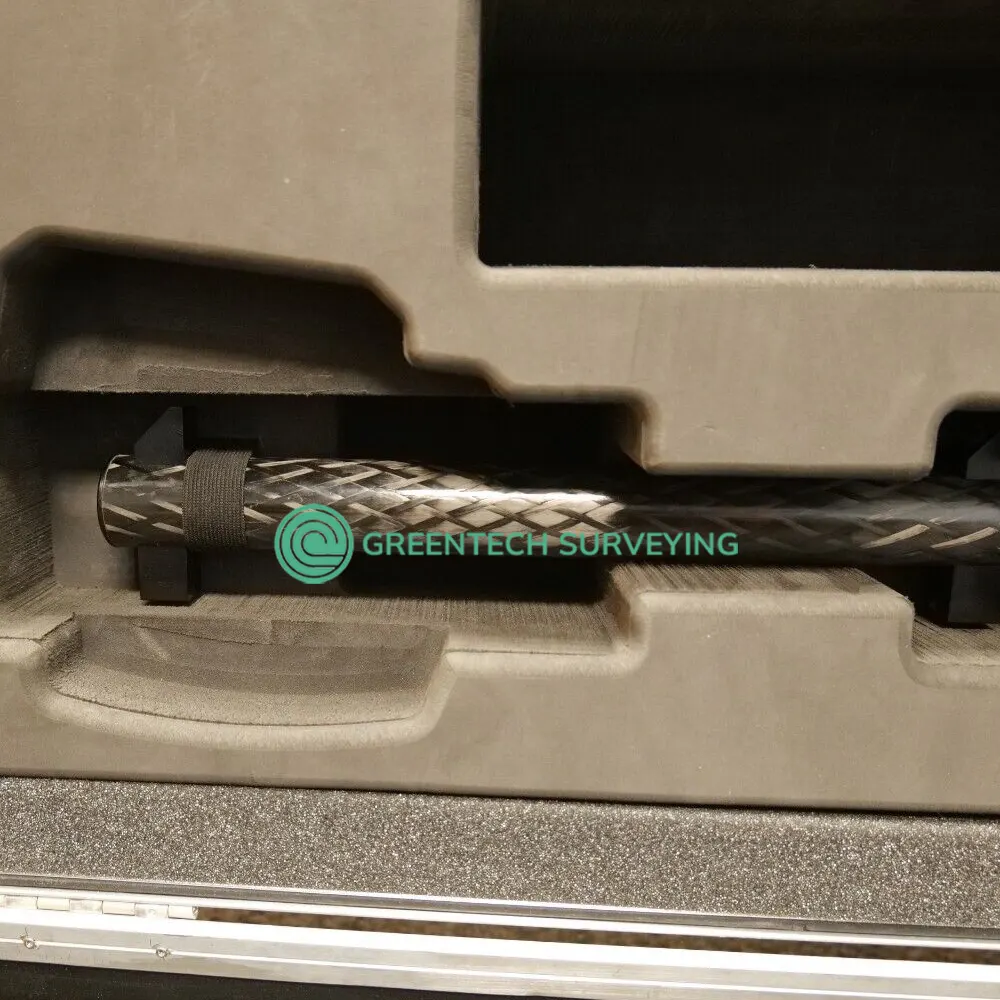

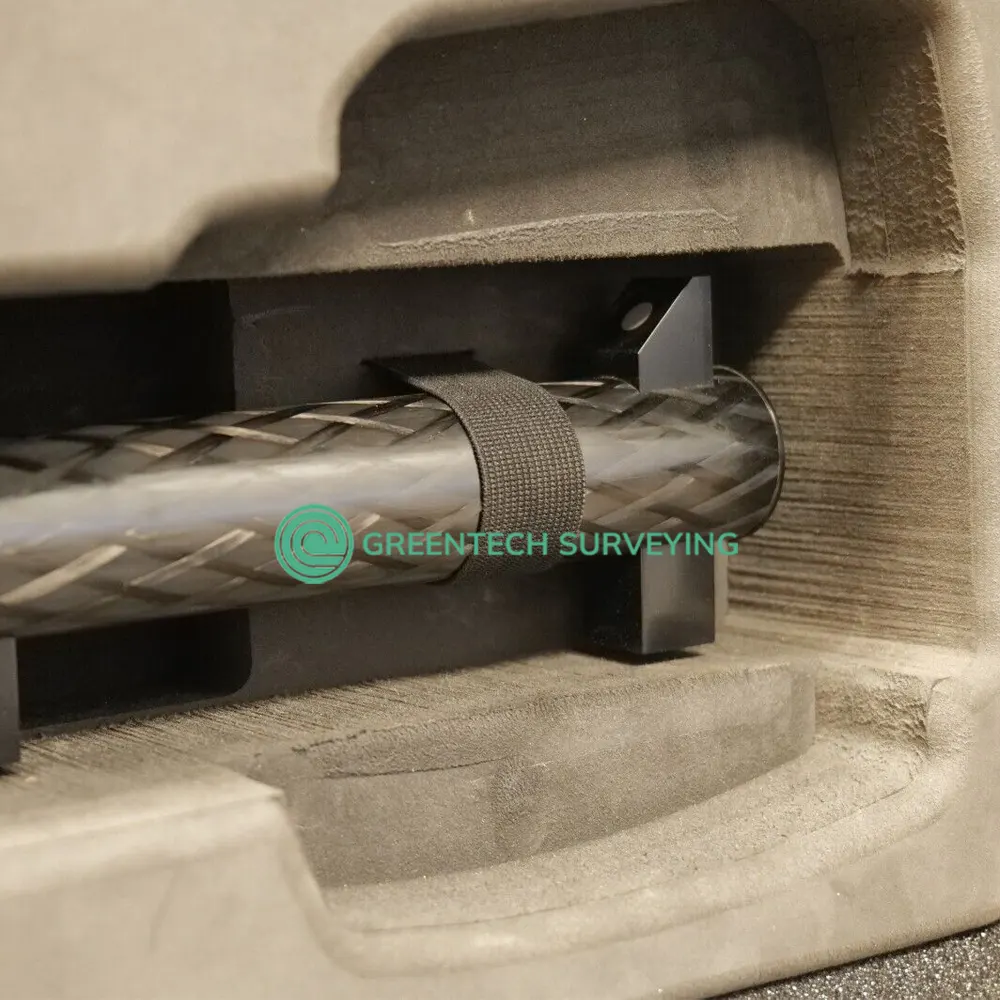

  • Calibration Bar

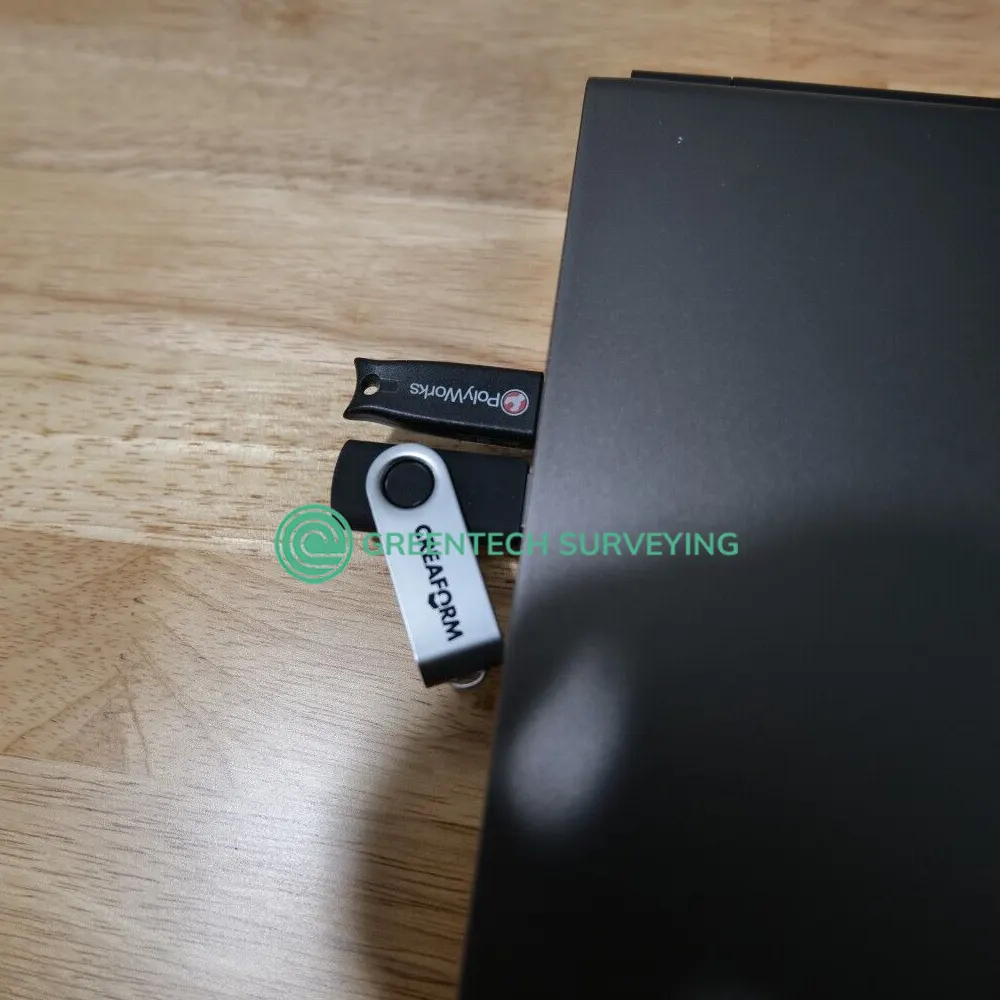

  • VXelements 6 Software with Key

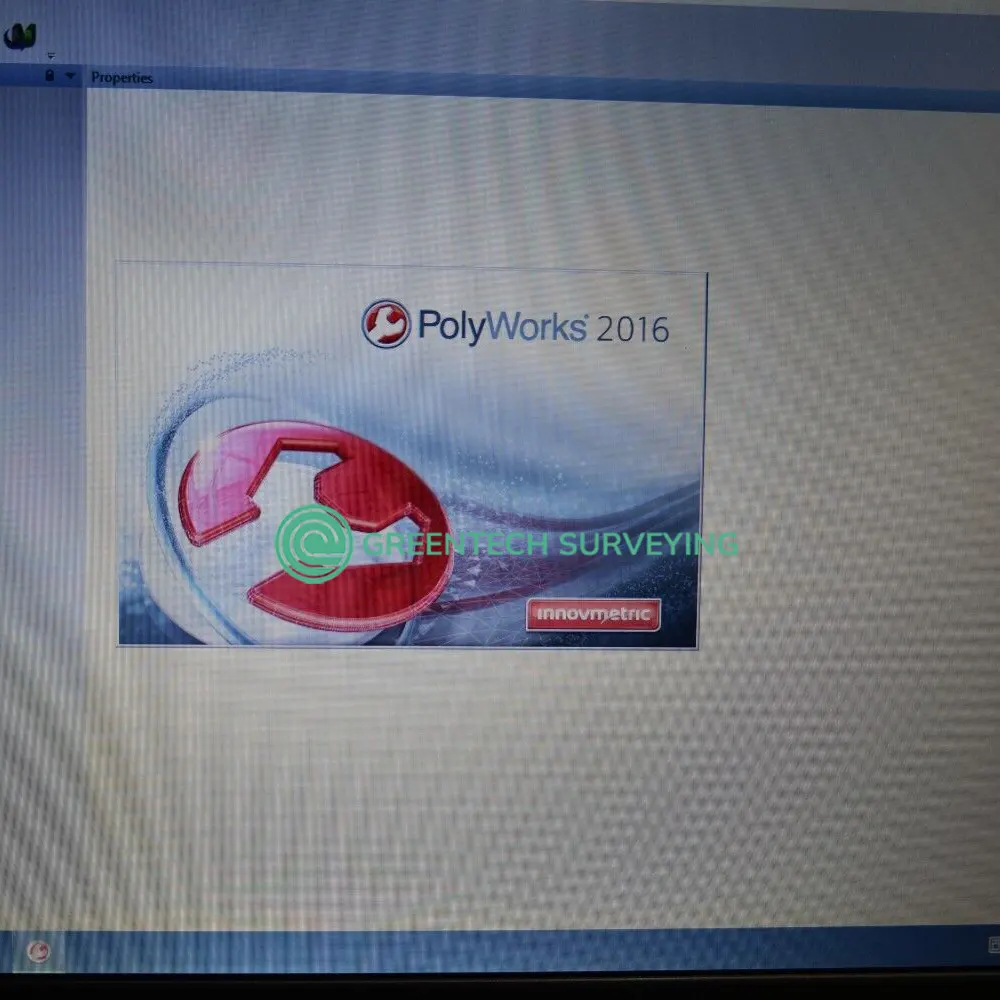

  • PolyWorks 2016 Software With Key
  • Dell Precision M6800 I7 Intel Processor 17.3'”
  • Software is installed on Laptop

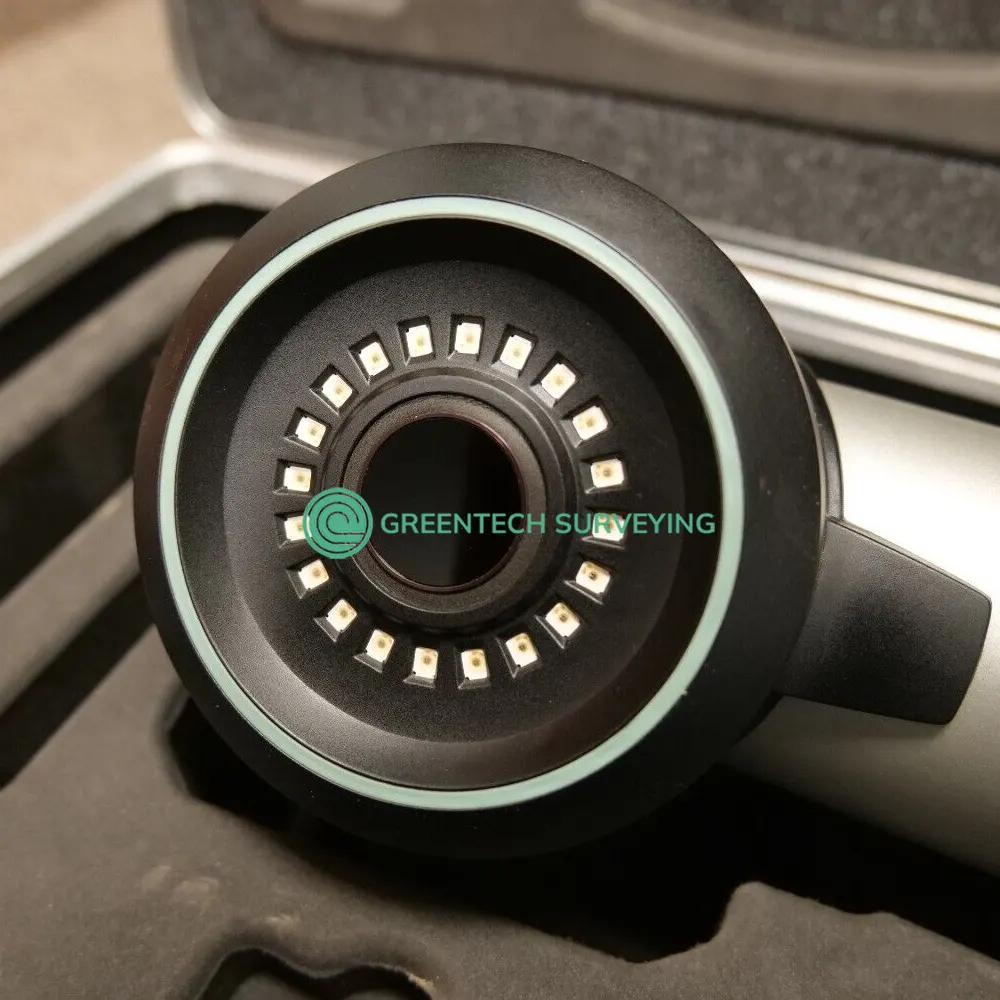

CREAFORM C-TRACK 780 Coordinate Measuring Machine (CMM)

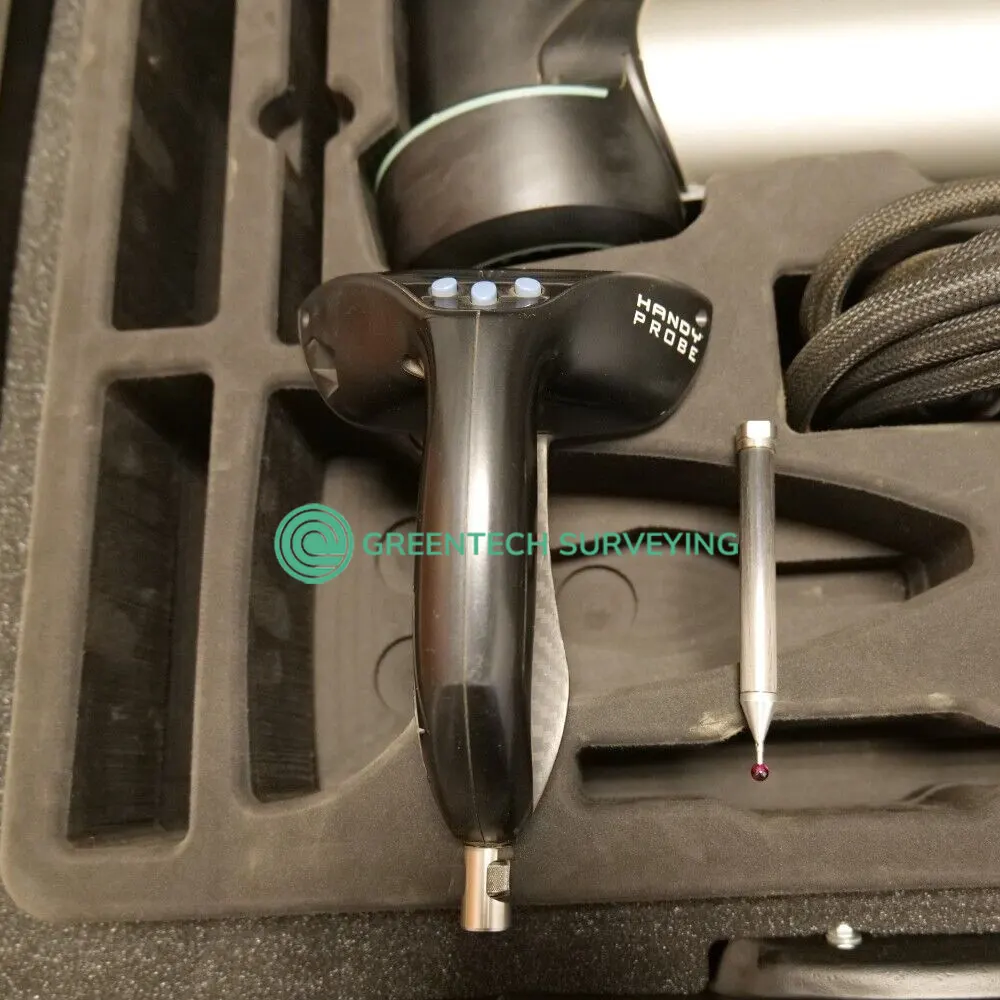

The HandyPROBE portable coordinate measuring machine (CMM) of 1st generation was an arm-free probing system that delivered high accuracy measurements when used with the C-Track dual-camera sensor. The HandyPROBE arm-free portable probing system and the C-Track dual-camera sensor form a unique duo that generates high-accuracy measurements with an accuracyof up to 22 μm and also increases the reliability and speed of the measurement process. This portable CCM was designed and optimized to operate in ”real life” shop floor conditions. Compared to other coordinate measurement technologies, the HandyPROBE 100% portable CMM allows total freedom of movement for significantly increased productivity and quality!

  • FASTER AND EASIER MEASUREMENT: Handheld and arm-free. wireless data transmission process allows the user to move freely around the part
  • LIGHTWEIGHT: weighs 450 g
  • TRUaccuracyTM TECHNOLOGY: Highly-accurate measurements, no matter the measurement environment (instabilit y, vibrations, thermal variations, etc.) or operator skills
  • USER-FRIENDLY: Intuitive system with a very short learning curve 5-minute installation
  • COMPATIBLE WITH ALL MAJOR SOFTWARE: Instant integration into your qc process
  • GREATER, EXTENDABLE MEASUREMENT VOLUME: Can be easily and dynamically extended without any loss of accuracy and without any conventional leapfrog
  • AUTOMATIC ALIGNMENT: The use of optical reflectors allows probing of many identical parts in rapid succession, no need for the operator tore-align data after moving the part or the c-track, resulting in less set-up and error accumulation measurement of parts in production without having to align every part
  • TRULY PORTABLE: Unequalled precision, mobilit y and flexibilit y - no matter where (lab, factory, off-site

TRUaccuracy TECHNOLOGY

Higher Measurement Accuracy. Creaform’s TRUaccuracy technology ensures highly-accurate measurements, regardless of the measurement environment (instability, vibrations, thermalvariations, etc.) or operator skills. With the dynamic referencing mode of the C-Track, the coordinate system can be literally ”locked” onto the part(s) being measured, thus maintaining part alignment during the entire 3D scanning process

  • With the automatic alignment function, manual operation is no longer needed during the alignment phase and root cause errors are drastically reduced.
  • With the fast user calibration process using a certified gauge, the HandyPROBE delivers constant accuracy during its entire life cycle.
  • With the continuous monitoring of parameters (temperature, accuracy, etc.), device accuracy is maintained throughout entire operation.

APPLICATIONS

The HandyPROBE is a powerful arm-free measurement system. Data acquired by this system may be processed in real-time using any major inspection and
metrology software. This highly-accurate device can carry out the following tasks:

Inspection

  • Part-to-CAD analysis
  • First article inspection
  • Supplier quality inspection
  • Conformity assessment of 3D models against original parts/production tooling
  • Conformity assessment of manufactured parts against originals
  • Alignment
  • Tooling certification
  • Multi-shot measurement (up to 30 points/sec.)
  • When used with a MetraSCAN 3D optical CMM scanner, allows full free form inspection and generates high density colour maps

Reverse Engineering

  • Reverse engineering of geometrical entities (spheres, cylinders, planes)
  • When used with a MetraSCAN 3D optical CMM scanner, allows faster and more accurate reverse engineering of mixed parts (geometrical and free form)

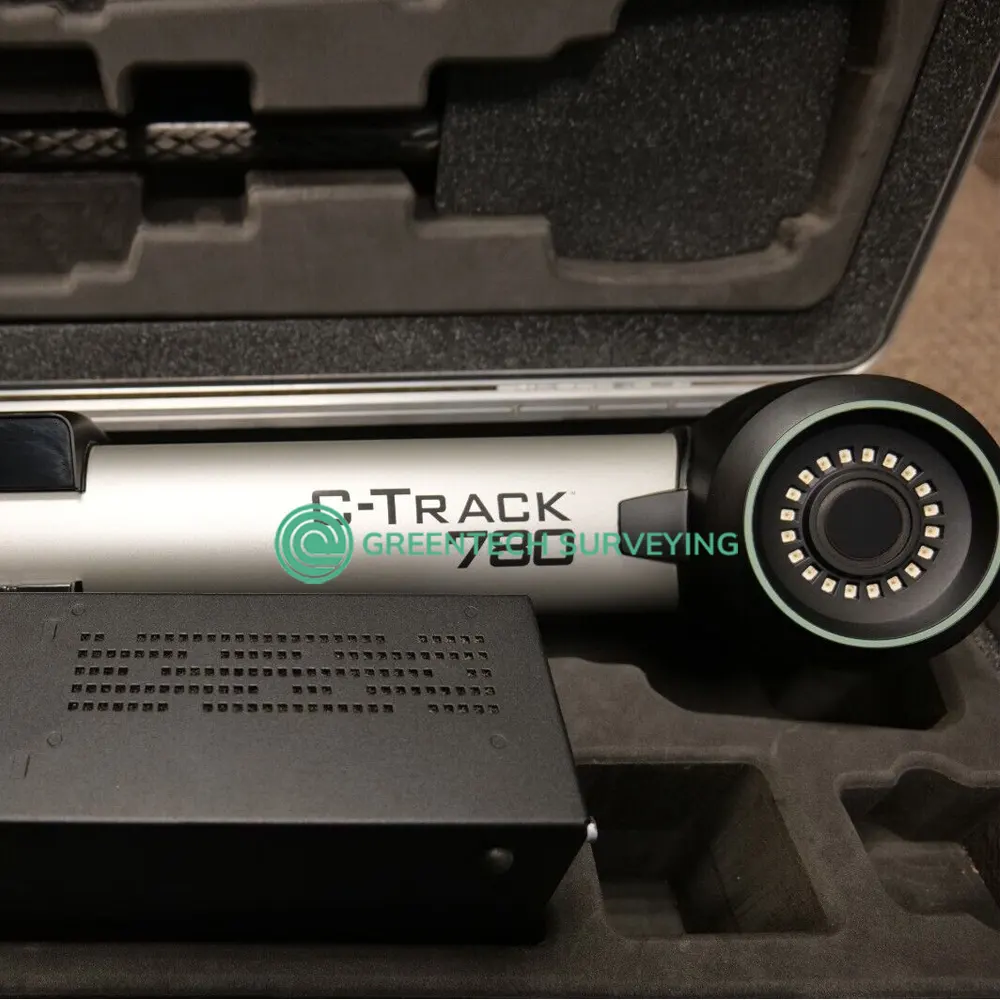

THE C-Track TM DUAL-CAMERA SENSORS

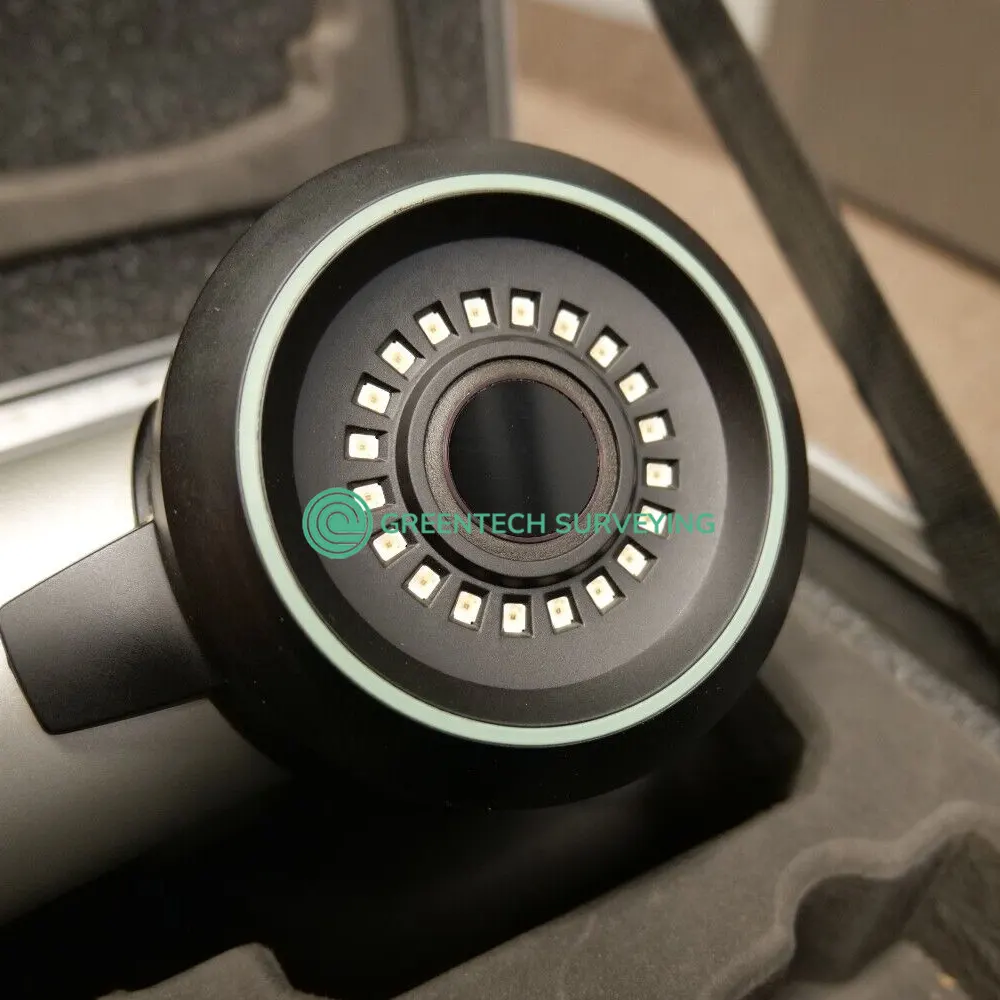

The C-Track dual-camera sensors are fitted with high quality optics and special lighting, enabling them to measure all reflectors within their operating space. In addition to tracking the whole system’s reference model, the C-Track ensure the exact localization of the HandyPROBE, perform continuous image acquisition and transmission, lighting of reflectors, management of the exchanges with the computer and storage of the sensor parameters

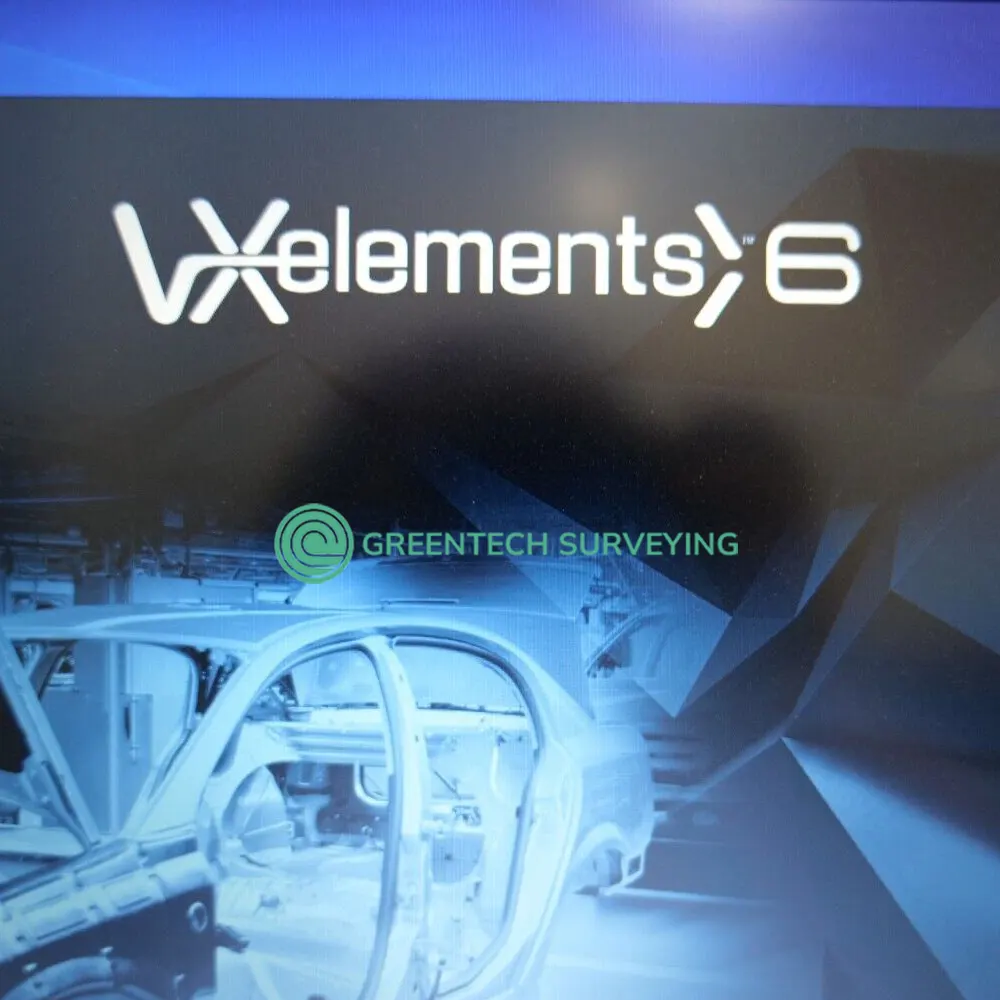

Creaform VXelements software

The HandyPROBE arm-free portable probing system comes with VXelements, the all-in-one 3D data acquisition software that powers its entire fleet of probing and measurement technologies. The software gathers all the essential elements and tools into a uniform, user-friendly and intuitive working environment. The VXprobe module allows users to interact with data acquired using a HandyPROBE and share it with any other VXelements component or third-party software.
