HandyPROBE Next Elite C-Track Optical CMM

HandyPROBE Next Elite for sale with C-Track Optical CMM, brand new 12-month Creaform Warranty, VXelements data acquisition software License

$30,000

Brand new condition

Contact to buy

HandyPROBE Next Elite for sale with C-Track Optical CMM, brand new 12-month Creaform Warranty, VXelements data acquisition software License

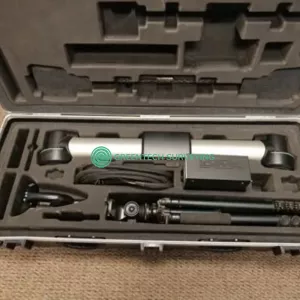

Creaform HandyPROBE Next Elite for sale includes;

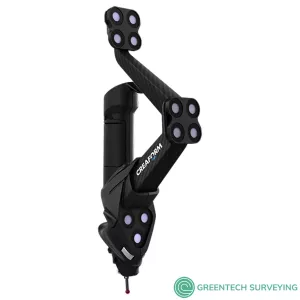

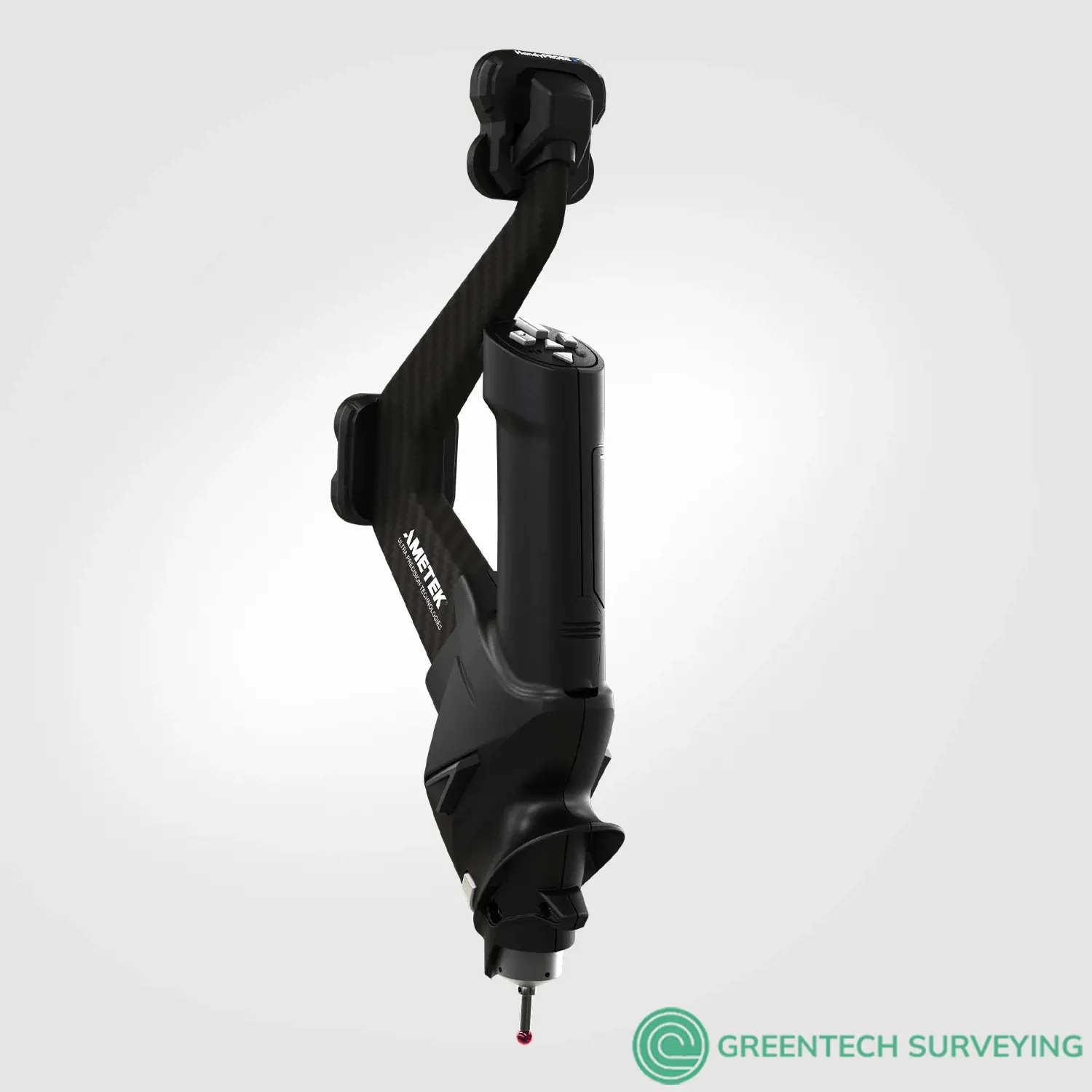

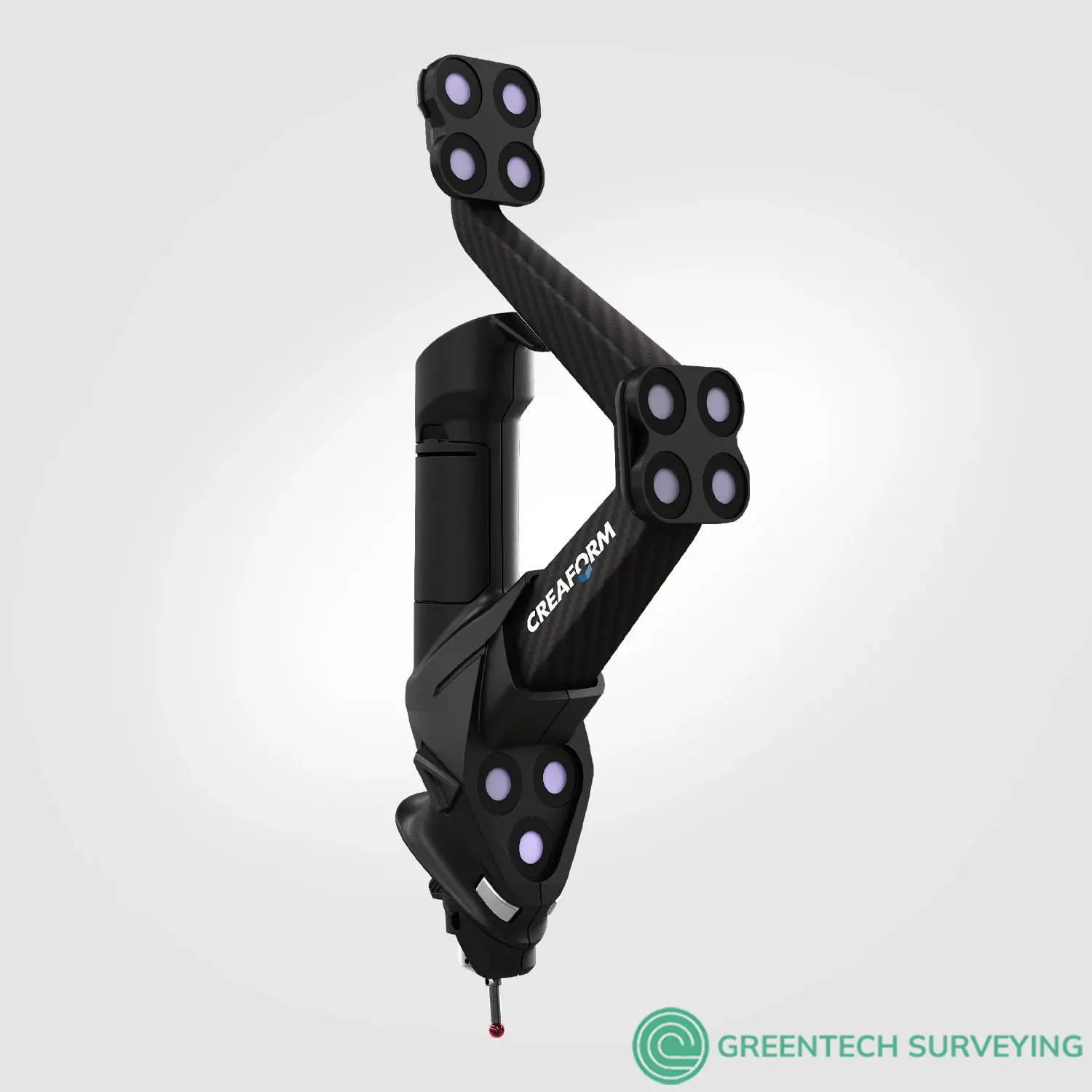

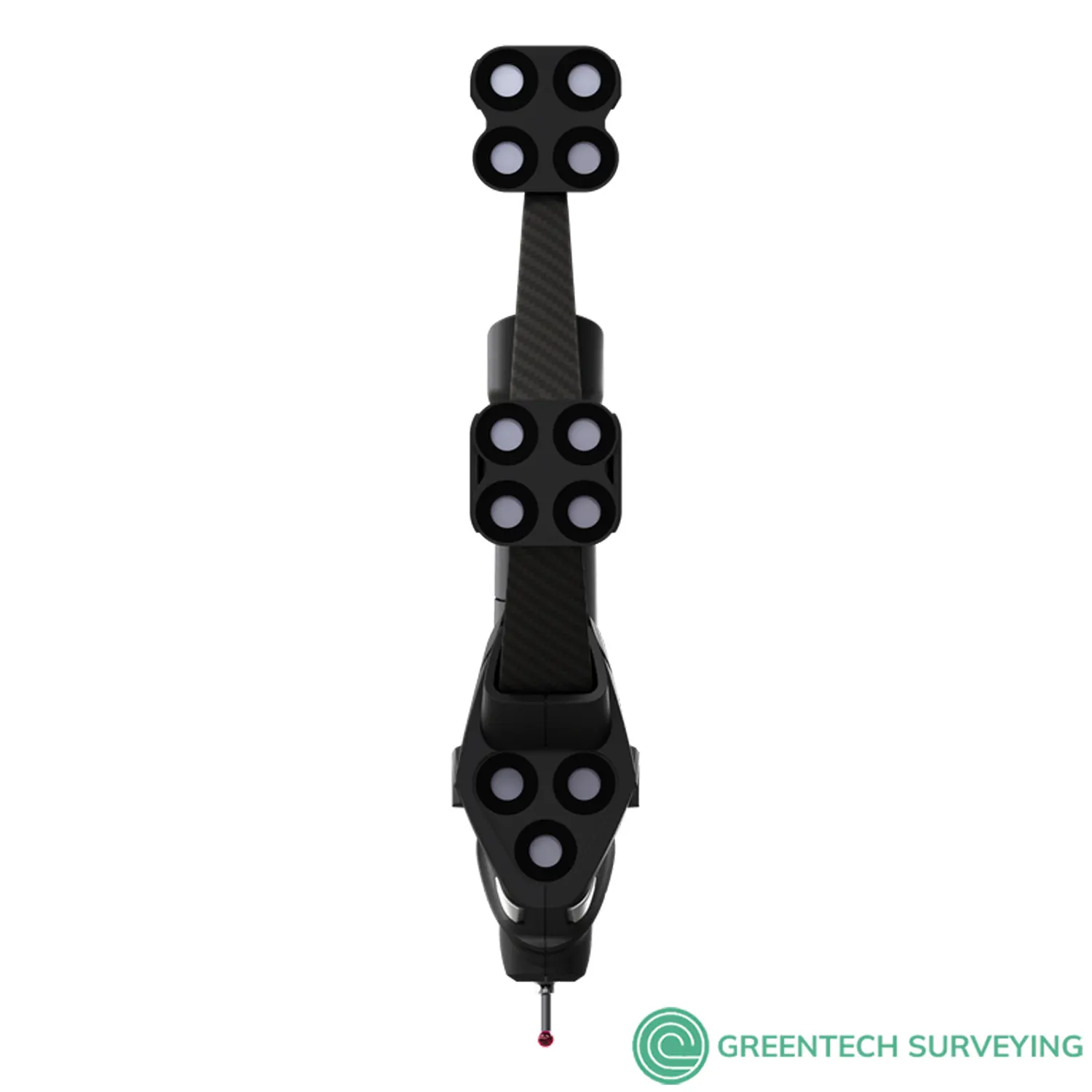

  • HandyPROBE Next Elite Arm-Free Shop Floor Probing System
  • C-Track Elite Optical CMM (4th Generation)
  • VXelements data acquisition software
  • Carrying Case
  • Power Supply + Custom Cables
  • Portable Tripod for C-Track
  • Calibration Kit
  • Interactive E-learning Subscription
  • 12-month Customer Care Program

VXELEMENTS 3D SCANNING SOFTWARE PLATFORM
Creaform’s VXelements provides a fully integrated 3D software platform that powers the entire fleet of 3D scanning and measurement technologies. It gathers all the essential elements (VXscan, VXprobe, VXshot) and tools into a user-friendly, simple and sleek working environment.

ADDITIONAL Software

  • REVERSE ENGINEERING: Creaform VXModel, GeoMagic Design X, GeoMagic for SOLIDWORKS, GeoMagic Wrap
  • INSPECTION: Creaform VX Inspect, GeoMagic Control X

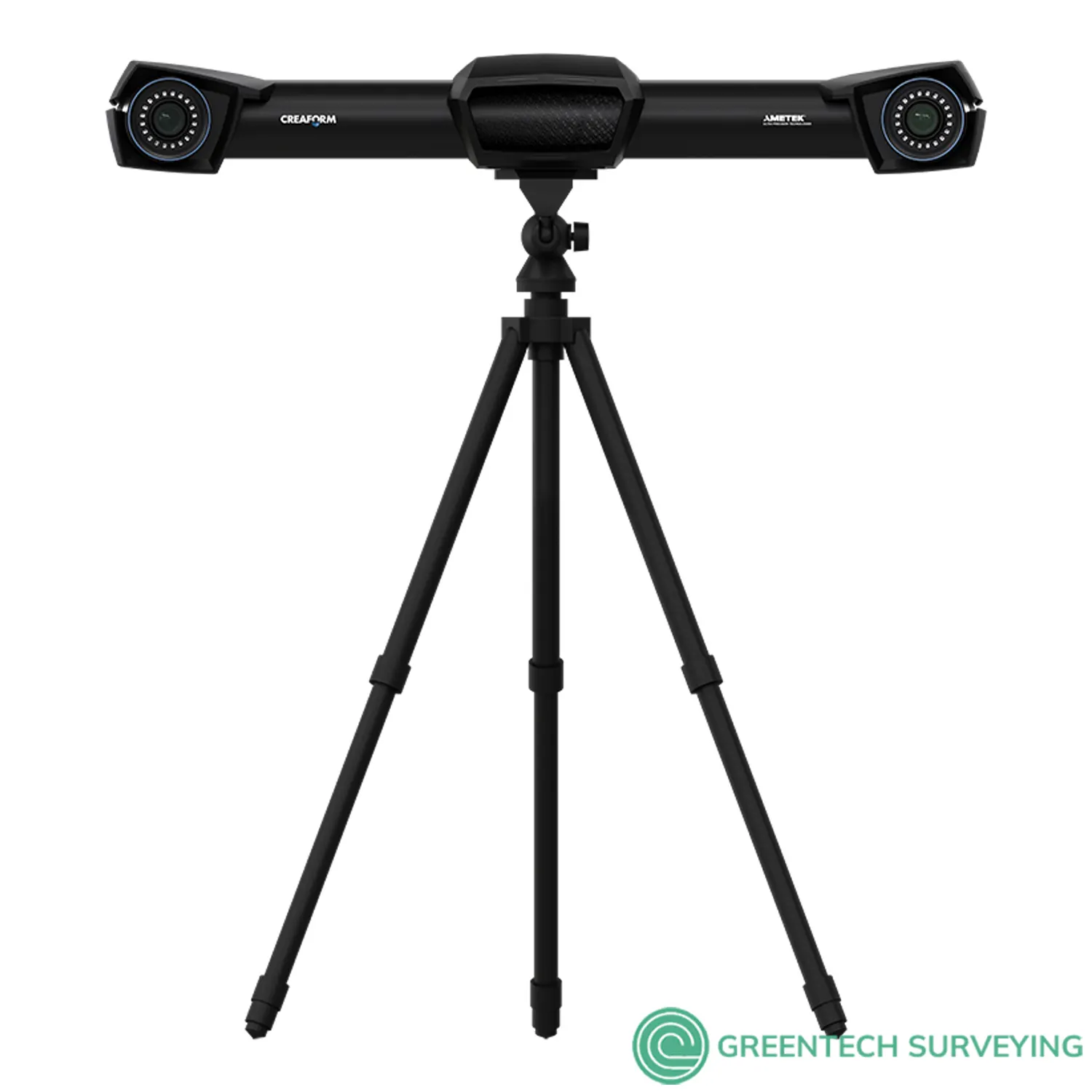

Included with both systems, the C-Track optical tracker is at the core of the Creaform optical CMM's ability to perform real-time dynamic referencing of its scanning and probing devices as well as targets on a part. Built with high-end optical components, the C-Track drives the metrology-grade measurements of the whole systems.

The HandyPROBE line-up is a portable optical CMM specifically designed for use on the shop floor. Due to its metrology-grade accuracy and dynamic referencing capability, the HandyPROBE delivers precise results, regardless of the measurement setup quality, the instabilities of the environment, and the user’s experience level.

Since it does not require any rigid measurement setup, the part, optical tracker, or wireless probe can be moved freely at any time during the measurement sequence, adding simplicity to the process. Because its measurement volume is flexible, it can be extended easily and dynamically without significant loss in accuracy, which comes with conventional leapfrog. In addition, the HandyPROBE can measure geometrical entities on parts of any size directly on the production floor.

ACCURACY
Dynamic referencing: Optical reflectors are used to create a reference system that is “locked” to the part itself, so accuracy is optimized for shop floor conditions.  Reliable acceptance test: Because the acceptance test follows the ISO 10360-12 standard and is ISO 17025 accredited, the HandyPROBE delivers accurate results, regardless of the measurement setup quality.

  • Metrology-grade measurements: accuracy of up to 0.020 mm, high repeatability and traceable certificate
  • Dynamic referencing: optical reflectors are used to create a reference system that is “locked” to the part itself, so users can move the object any way they want during measurement
  • Volumetric accuracy of 0.064 mm (ASME B89.4.22 standard)
  • Single point repeatability of 0.044 mm (ASME B89.4.22 standard)
  • Accurate measurement of parts ranging from 0.2 to 10 meters in size
  • No accuracy drift over time In your quality control with the easy field calibration procedure

PORTABILITY
Arm-free system: Because there is no physical link between the probe and the system, the HandyPROBE can be easily brought to wherever the part is. The portable system can also measure objects of any size for maximum versatility.

  • Optimized for use on the shop floor
  • Portable CMM: the system can be easily brought wherever the part is
  • Portable CMM case: the system, tripod and accessories fit into a single, portable carrying case
  • No physical link between the probe and the system for maximum versatility

SIMPLICITY
No rigid setup required: The part, optical tracker, and wireless probe can all be moved freely at any time during measurement in a wide and easily extendable measurement volume for maximum simplicity

  • No rigid setup required: the part and the system can be moved freely at any time during measurement
  • Greater and easily extendable measurement volume
  • Automatic alignment: optical reflectors allow for repetitive inspections without realignment

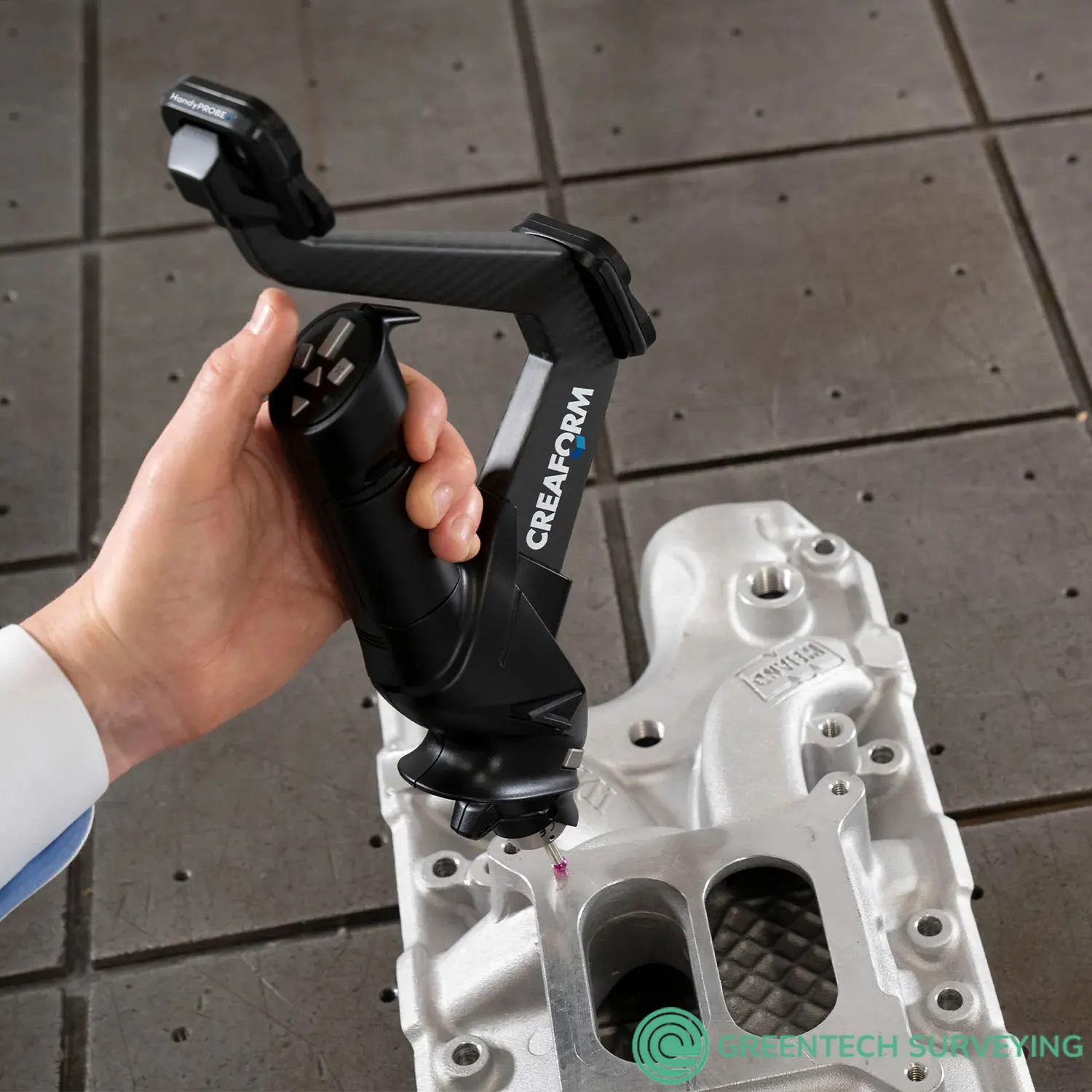

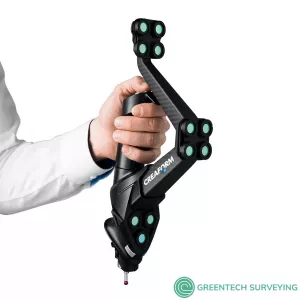

  • Ergonomic, wireless probe
  • Optional 3D scanning capabilities by adding the MetraSCAN 3D
  • Multi-function buttons for easier interaction with the software
  • Short learning curve and intuitive operation

HandyPROBE Next TECHNICAL SPECIFICATIONS

    HandyPROBE Next HandyPROBE Next | Elite
ACCURACY   0.030 mm (0.0012 in) 0.025 mm (0.0009 in)
VOLUMETRIC ACCURACY 9.1 m3 (320 ft3) 0.086 mm (0.0034 in) 0.064 mm (0.0025 in)
16.6 m3 (586 ft3) 0.122 mm (0.0048 in 0.078 mm (0.0031 in)
VOLUMETRIC ACCURACY (with MaxSHOT 3D or C–Link) (2) MaxSHOT Next 0.060 mm + 0.025 mm/m (0.0024 in + 0.0003 in/ft) 0.044 mm + 0.025 mm/m (0.0017 in + 0.0003 in/ft)
  MaxSHOT Next | Elite 0.060 mm + 0.015 mm/m (0.0024 in + 0.00018 in/ft) 0.044 mm + 0.015 mm/m (0.0017 in + 0.00018 in/ft)
MEASUREMENT RATE 80 measurements/s
PART SIZE RANGE (recommended) 0.2–6 m (0.7–20 ft)
SOFTWARE VXelements
WEIGHT Probe: 0.5 kg (1.1 lb)
C-Track: 5.7 kg (12.5 lb)
DIMENSIONS (LxWxH) Probe: 68 x 157 x 340 mm (2.7 x 6.2 x 13.4 in)
C-Track: 1031 x 181 x 148 mm (40.6 x 7.1 x 5.8 in)
OPERATING TEMPERATURE RANGE 5–40°C (41–104°F)
OPERATING HUMIDITY RANGE (non-condensing) 10–90%
CERTIFICATIONS EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
PATENTS FR 2,838,198, EP (FR, UK, DE, IT) 1,492,995
CERTIFICATIONS

EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE

(1) HandyPROBE Next and HandyPROBE Next|Elite performance assessment (ISO 17025 accredited) is based on partial procedure per ISO 10360-12 standard: Probing size error (6.2) and Length error (6.4). Performance is assessed on traceable sphere and length artefacts.

(2) The volumetric accuracy of the system when using a MaxSHOT 3D cannot be superior to the default accuracy for a given model.
