Prodim Proliner 8X CS 3D Digital Templating

Good deal for an excellent Prodim Proliner 8X CS 3D Digital Templating with a lifetime license key, almost new condition and used only few times. Everything is in immaculate condition with all accessories, ready to working for measuring and digital templating.

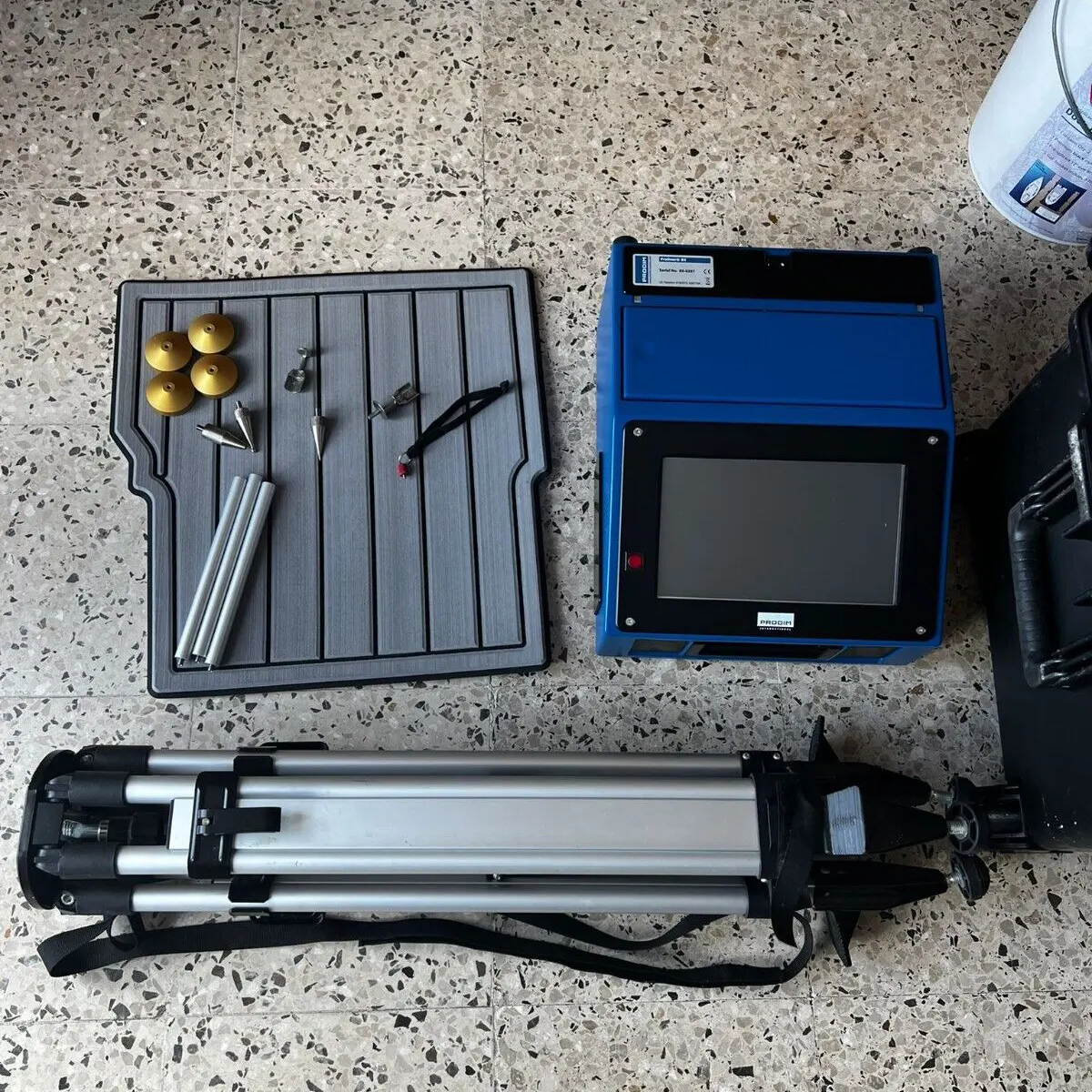

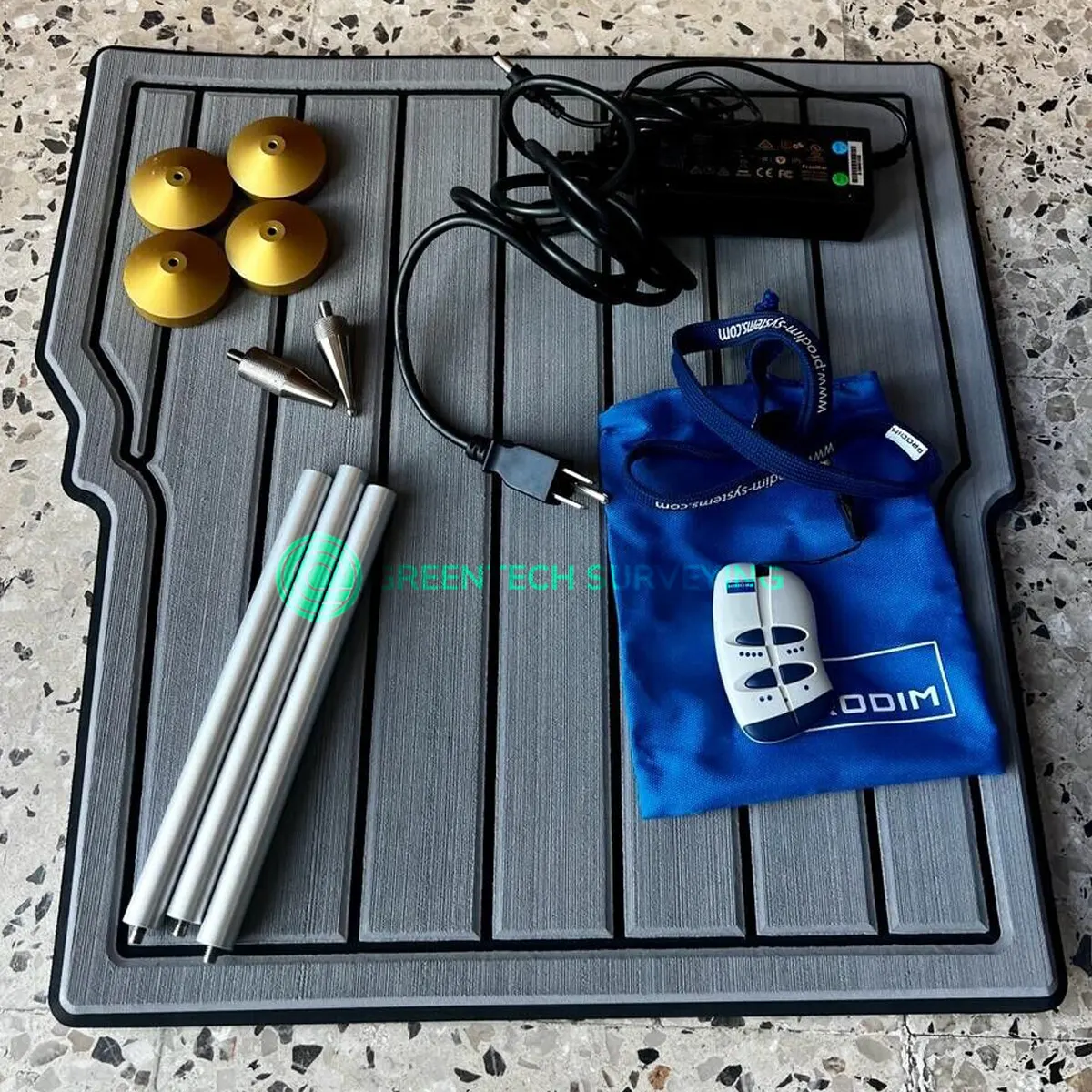

Sale includes;

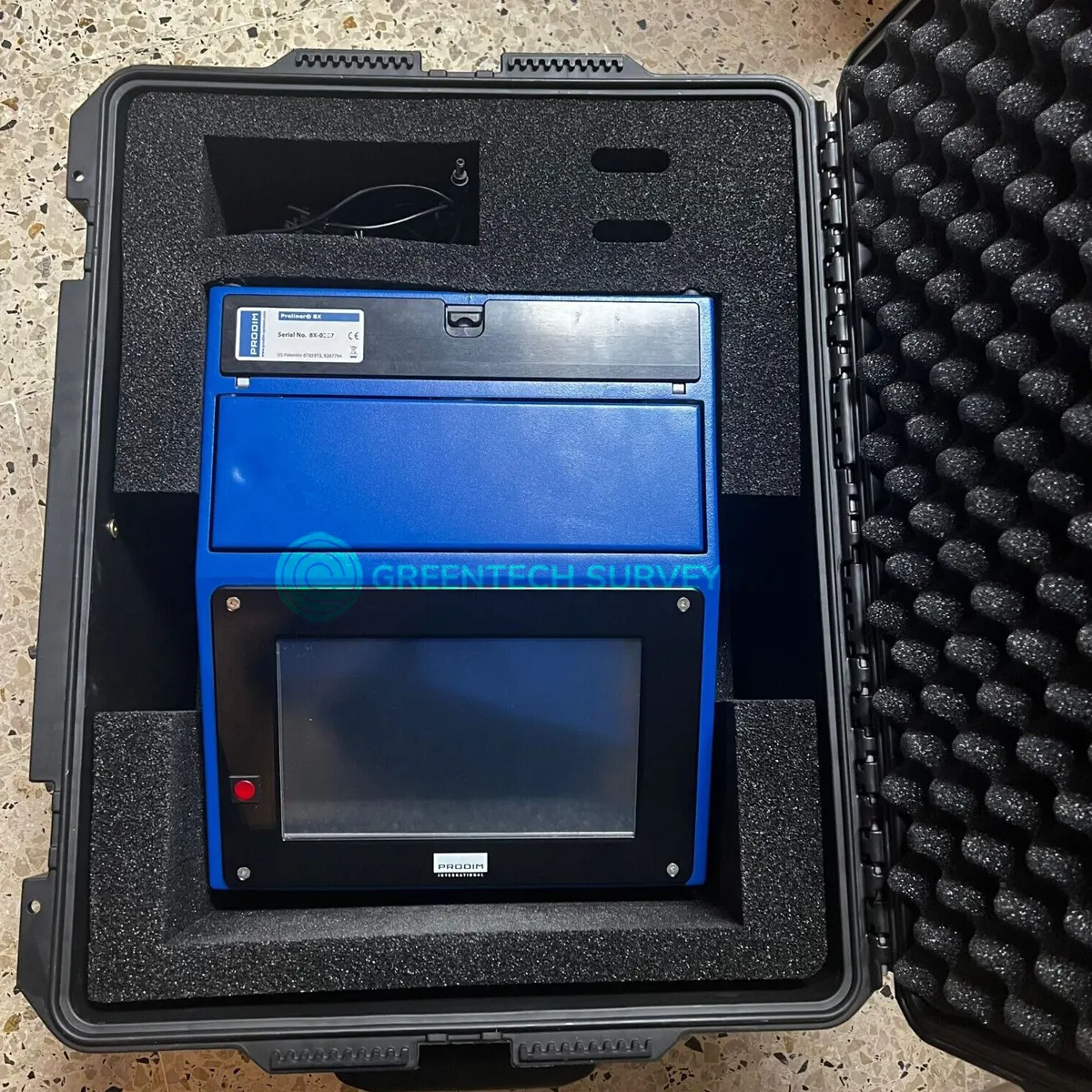

• Prodim Proliner 8X CS 3D Digital Templating Machine
• IPT Pen Assy
• Factory draw advanced licenced
• Remote control
• 2x Batteries, A/C Adapters
• 2x Scanner Attachments
• Tripod
• 4X Gold Proliner leap-pod kit

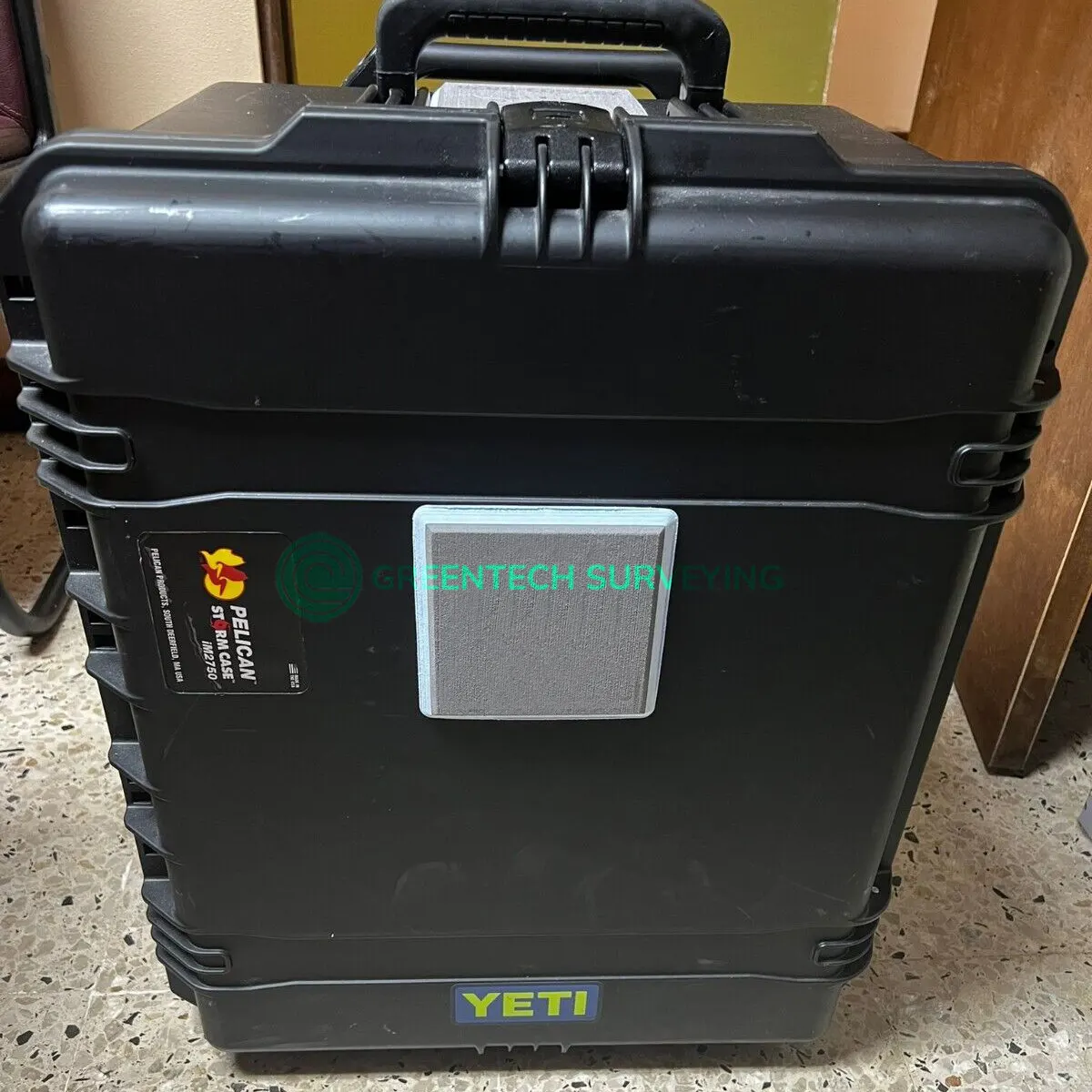

• Pelican case

Proliner Generation X – Get the best flow ever!

Proliner packages are based on the latest Proliner Generation X platform. Each Proliner model (7X, 8X, 10X) comes with improved hard- and software, including motion detection, dedicated templating apps and smartphone apps, all tuned for the job at hand!
Proliner CS Series serve all fabricator solutions, Proliner IS Series are meant for metrology solutions

The Proliner Principle is very simple: measuring with a wire. The Proliner has a measuring head that can be rotated in every direction and has a wire that can be stretched out for several meters. At the end of the wire is a metal measuring pen. With this measuring pen you can simply mark the relevant points. These points are directly translated into a digital DXF CAD file.

With the Proliner you can measure straight, curved and very complex shapes in an instant. You can measure any object in horizontal, vertical or slanting position. The digital drawing can be used to operate your CNC-machine, to print or cut your plots or as a bases for your design.

But the Proliner is more, besides being fast, user-friendly and accurate, it is durable and stands for long lasting reliability. Clients who bought the Proliner 10 years ago still use the Proliner every day to full satisfaction. Besides measuring, the Proliner is used for layout work, reverse-engineering and quality control.

The 2D/3D solution is used for measuring flat surfaces, like kitchen countertops, templates and doors for example. The 2D/3D solution rests on the technique and knowledge of 3D measuring.

The 3D solution is used for templating curved and complex shapes like bent glass, curved ship decks, boat covers, vehicle interiors, staircases, renovation and restoration projects and much more. The 3D solution is most versatile.

The Proliner's advantages

• Most accurate portable measuring tool
• Fast and easy digital measuring
• No hinder and inaccuracies from environmental conditions
• Leveling and targets are not required
• Check, change and finalize templates on-site
• Immediate digital output (DXF)
• Solid and build to last
• Application-based industry software

The Proliner 8 CS is a totally self-contained unit. Advanced in functionality and appearance, this model completes all your measurements on the job site without any problem. Dimensions can be checked and drawings can be edited directly on the Proliner comprehensive integrated CAD software. The Construct Series is the perfect solution for fabricators and installers. The CS machines are durable and designed to be used in tough working conditions. They are lightweight and easily carried on and off job sites. It is the true balance between performance and price.

Measure:

• 2D3D / can be upgraded to full 3D
• Fully portable
• No leveling and no targets required
• No hinder and inaccuracies from environmental conditions
• Integrated leap function to increase range and reach
• Continuous scribing
• Digitize large and small details

Software:

• Measure multiple planes / can be upgraded to full 3D
• Check dimensions
• Edit drawings
• Generate CAD files (DXF)
• Tangential contour for optimal CNC use
• Application-based industry software and templating apps available

Hardware:

• 10” touchscreen
• Weight (10 kg) / Compact housing (38x32x18 cm)
• Direct working range ≈ 15 m
• (without relocating the machine with the onboard leap function)
• Precision of 0.6 mm
• Built-in water-level sensors (check level and plumb)
• Bluetooth, USB, and UTP
• Full set of application-based accessories available

Advantages:

• Eliminate mistakes
• One-person operation
• Solid build and precise Prodim mechanics
• Less time on the job site
• No need for physical templates
• Immediate digital output ready for production
• No need for third-party computer
