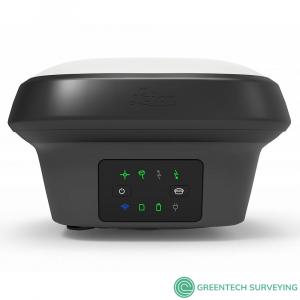

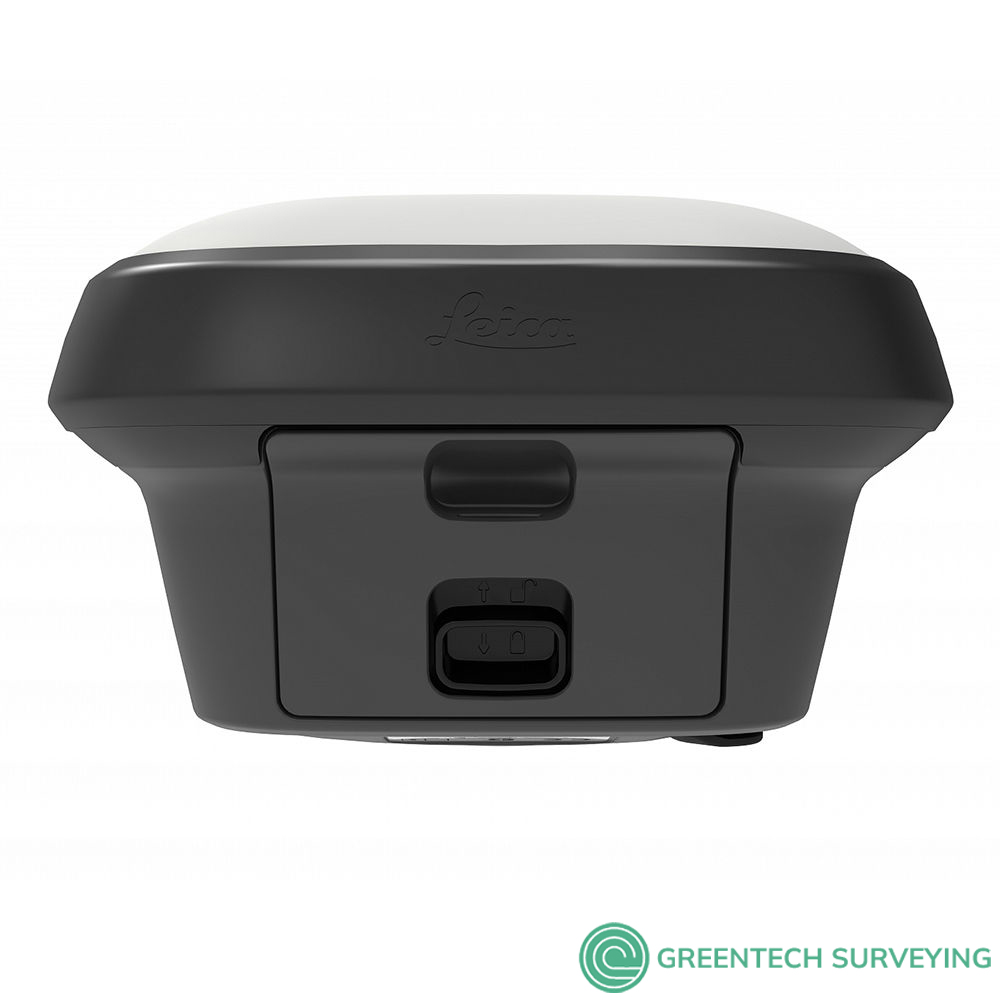

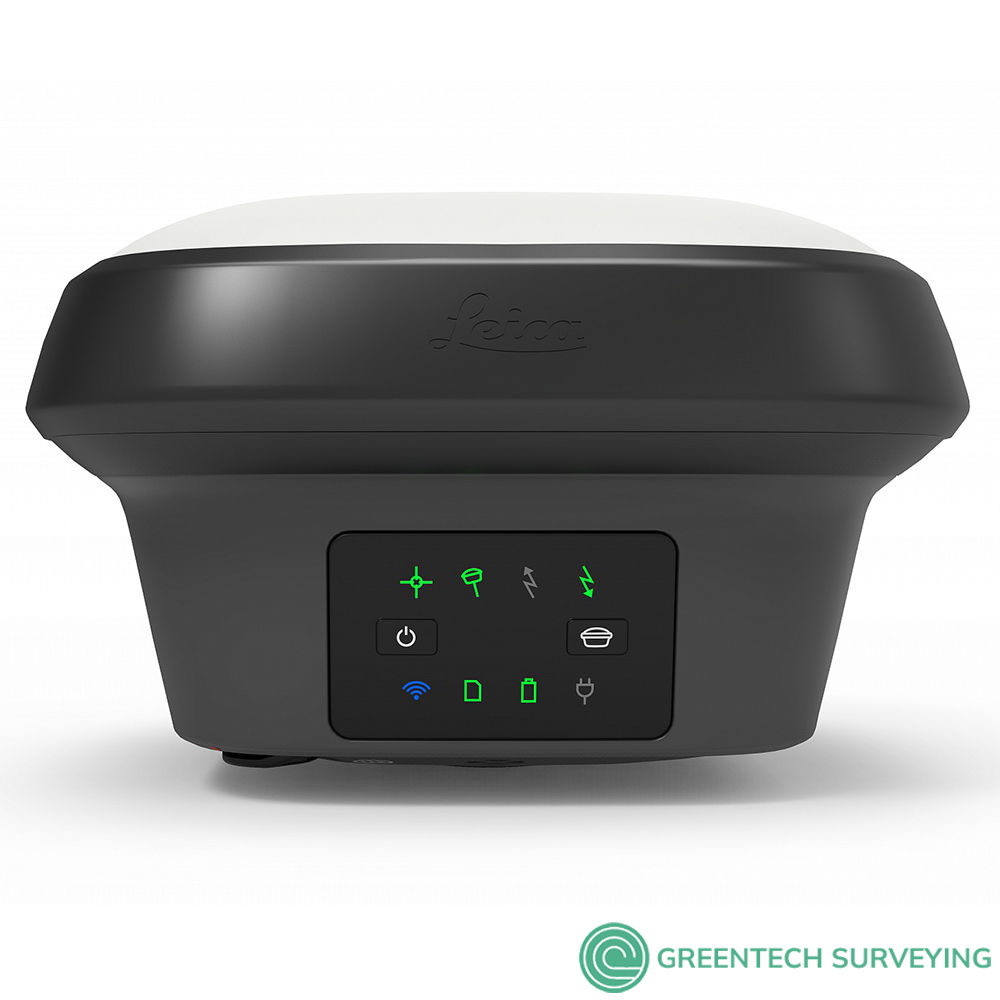

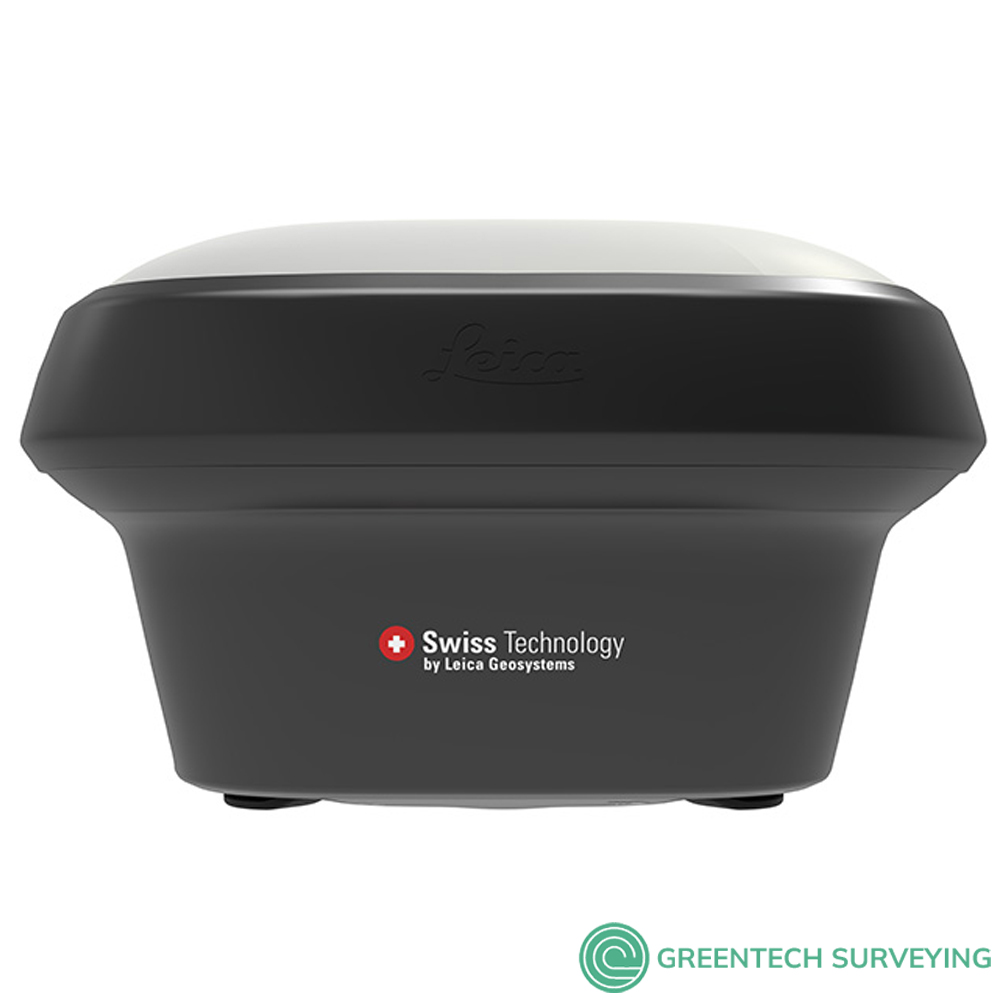

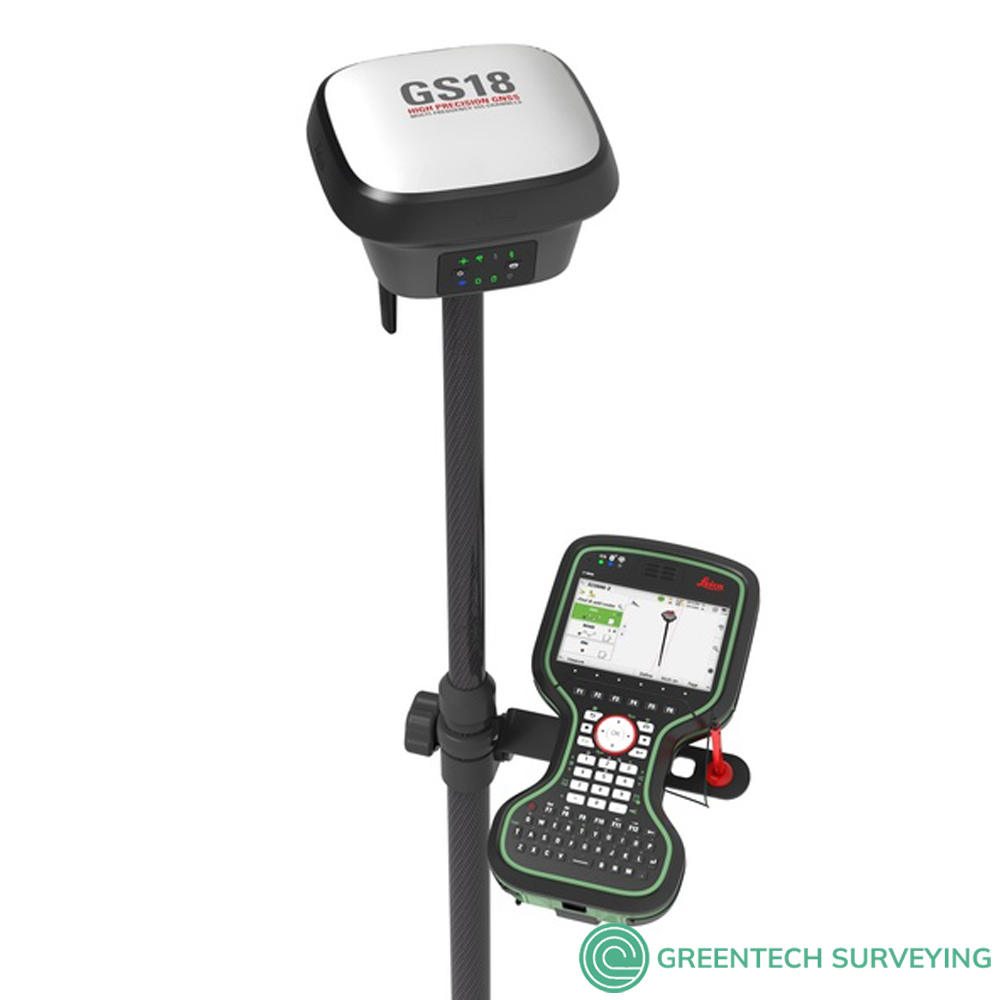

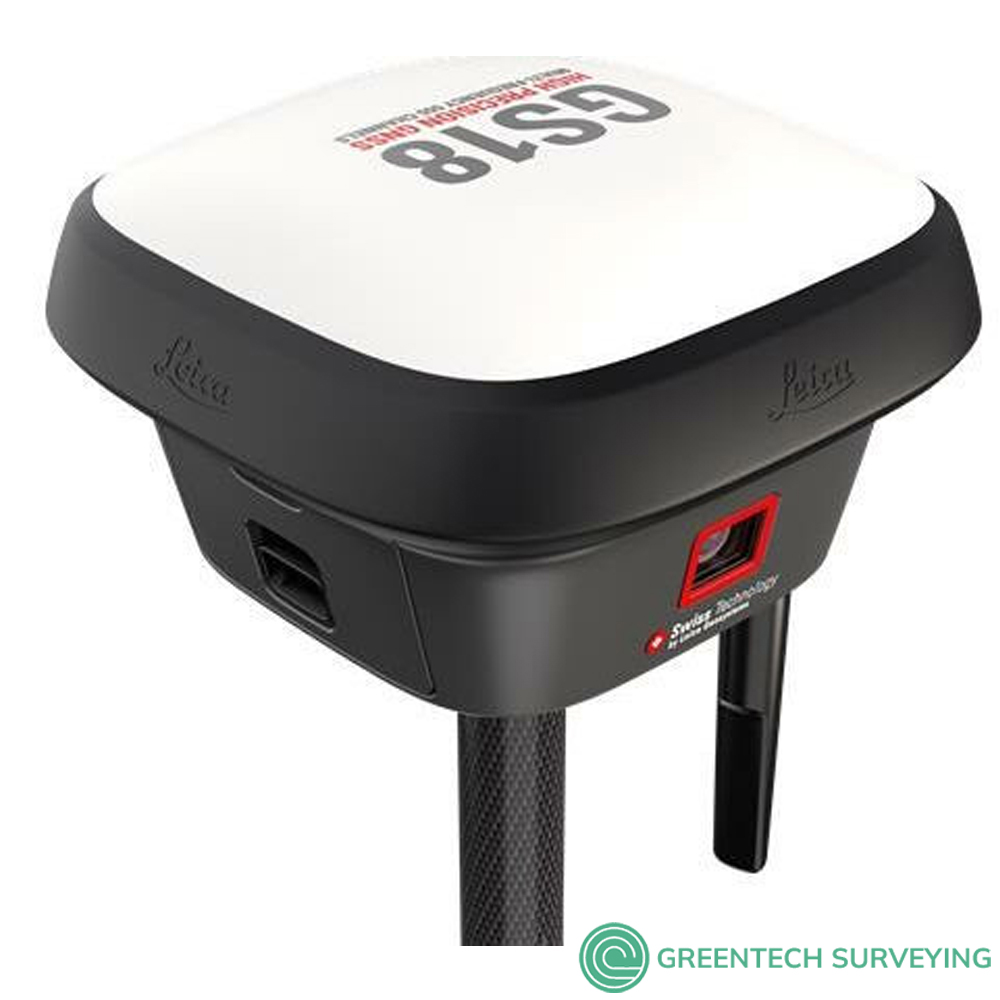

Leica GS18 GNSS Smart Antenna RTK Rover

Leica GS18 GNSS Smart Antenna RTK Rover for sale, the fastest and easiest-to-use GNSS smart antenna and RTK rover

$11,400

Brand new condition

Contact to buy

Leica GS18 World's Fastest GNSS RTK Rover

Leica GS18 GNSS RTK Rover for sale, a self-learning GNSS smart antenna. GS18 inherits all features of the Leica GS18 T except tilt compensation. However, the GS18 grows with your business: upgrade it to a tilt compensating system at any time. You save time by no longer needing to hold the pole vertical to level the bubble. This latest innovation, with industry-leading technology, combines GNSS and inertial measurement units (IMUs) to be the first true tilt compensation solution immune to magnetic disturbances and it is calibration-free.

Leica GS18T LTE&UHF Performance GNSS SmartAntenna (GPS/L5 Only) : US$11,400
Leica GS18T LTE&UHF Performance GNSS SmartAntenna (GPS/GLONASS/L5) : US$12,900
Leica GS18T LTE&UHF Performance GNSS SmartAntenna (GPS/GLONASS/Galileo/BeiDou/L5) : US$14.400

As you no longer need to watch and level the bubble, you can focus on your task at hand and save time over conventional surveying practices. Uninterrupted, accurate positioning when surrounded by or in close proximity to metallic objects – measure where others simply couldn’t before. The GS18T works directly out of the box without any calibration procedure.

The GS18 is an excellent companion to a surveyor that primarily works with a network RTK such as HxGN SmartNet. Like most of the Leica Geosystems GNSS smart antennas, the GS18 works as a rover and a base.

TILT COMPENSATION UPGRADE: Whenever you need the efficiency and safety improvements gained from tilted measurements, upgrade your GS18 to a tilt compensating rover. Any Leica Geosystems service can do the upgrade at any time.
ENGAGING SOFTWARE: The Leica Captivate field software is the perfect companion for the GS18. With easy-to-use apps, all measured and design data can be viewed and used, providing you with a clear understanding of your data in 2D and 3D view. Captivate spans industries and applications with little more than a simple tap, regardless of whether you work with GNSS, total stations or both.
IMPROVED PERFORMANCE: Multipath reduction and interference mitigation options in Captivate boost GNSS signal tracking quality under harsh environments, which improves RTK availability and accuracy. Also, an interference toolkit will enable filtering to remove in- and out-of-band distortions for even more robust GNSS signal tracking.
4G LTE & EXCELLENT MEASUREMENT QUALITY: Tracking multi-frequency signals comes as a standard to all Leica Geosystems GS sensors. Combined with an excellent GNSS antenna element and a position update rate of 20 Hz, the GS18 ensures reliable measurement quality.
INTERNAL MEMORY: Users with any GS18 model have the flexibility to log raw data into an SD card or the internal memory.
ACTIVE CUSTOMER CARE: Through Active Customer Care (ACC), a global network of experienced professionals is only a click away to guide you through any challenge. Control your costs with a Customer Care Package (CCP) which gives you peace of mind you are covered anywhere, anytime.

LEICA GS18 GNSS RTK ROVER TECHNICAL SPECIFICATIONS

GNSS TECHNOLOGY & SERVICES
Self-learning GNSS	Leica RTKplus	Adaptive on-the-fly satellite selection
HxGN SmartNet Global	HxGN SmartNet Pro	Network RTK and unlimited worldwide RTK bridging and PPP service
	HxGN SmartNet+	Network RTK and RTK bridging service
	HxGN SmartNet PPP	Unlimited worldwide RTK bridging and PPP service
Leica SmartCheck	Continuous check of RTK solution	Reliability 99.99%
Signal tracking	GPS \| GLONASS	L1, L2, L2C, L5 \| L1, L2, L2C, L3
	Galileo \| BeiDou	E1, E5a, E5b, AltBOC, E6 \| B1I, B1C, B2I, B2a, B3I
	QZSS \| NavIC	L1, L2C, L5, L62 \| L53
	SBAS \| TerraStar	WAAS, EGNOS, MSAS, GAGAN \| L-Band, IP
RAIM	Receiver Autonomous Integrity Monitoring	Detection and elimination of faulty satellite signals for enhanced position solution and GNSS integrity
Number of channels		555 (more signals, fast acquisition, high sensitivity)

MEASUREMENT PERFORMANCE & ACCURACY
Time for RTK initialisation		Typically 4 s
Real-time kinematic (Compliant to ISO17123-8 standard	Single baseline Network RTK	Hz 8 mm + 1 ppm \| V 15 mm + 1 ppm Hz 8 mm + 0.5 ppm \| V 15 mm + 0.5 ppm
RTK bridging	Up to 10 min bridging of RTK outages	Hz 2.5 cm \| V 5 cm
PPP	Initial convergence to full accuracy typically 10 min, Re-convergence < 1 min	Hz 2.5 cm \| V 5 cm
Post processing	Static (phase) with long observations Static and rapid static (phase)	Hz 3 mm + 0.1 ppm \| V 3.5 mm + 0.4 ppm Hz 3 mm + 0.5 ppm \| V 5 mm + 0.5 ppm
Code differential	DGNSS	Hz 25 cm \| V 50 cm

COMMUNICATIONS
Communication ports	Lemo \| Bluetooth® \| WLAN	USB and RS232 serial \| Bluetooth® v4.0 (BLE & BR/EDR), class 1.5 \| 802.11 b/g/n for field control communication only
Communication protocols	RTK data protocols NMEA output Network RTK	Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM NMEA 0183 v4.00 & v4.10 and Leica proprietary VRS, FKP, iMAX, MAC (RTCM SC 104)
Built-in LTE modem4	LTE frequency bands UMTS frequency bands GSM frequency bands	20, 8, 3, 1, 7 \| 13, 17, 5, 4, 2 \| 19, 3, 1 8, 3, 1 \| 5, 4, 2 \| 6, 19, 1 900,1800 \| 850,900,1800,1900 MHz
Built-in UHF modem5	Receive & transmit UHF radio modem	403 – 473 MHz, channel spacing 12.5 kHz, 20 kHz, 25 kHz, max. 1 W output power up to 28800 bps over air; 902 – 928 MHz (licence free in North America), max 1 W output power

GENERAL
Field controller and software	Leica Captivate software	Leica CS20 field controller, Leica CS30 & CS35 tablets
User interface	Buttons and LEDs Web server	On / Off and Function button, 8 status LEDs Full status information and configuration options
Data recording	Storage Data type and recording rate	Internal memory up to 4 GB, Removable SD card Leica GNSS raw data and RINEX data at up to 20 Hz
Power management	Internal power supply External power supply Operating time6	Exchangeable Li-Ion battery (2.8 Ah / 11.1 V) Nominal 12 V DC, range 10.5 - 26.4 V DC Typical time up to 8 h
Weight and dimensions	Weight \| Dimensions	1.20 kg / 3.50 kg standard RTK rover setup on pole \| 173 mm x 173 mm x 109 mm
Environmental	Temperature Drop Proof against water, sand and dust Vibration Humidity Functional shock	-40 to +65°C operating, -40 to +85°C storage Withstands topple over from a 2 m survey pole onto hard surfaces IP66 \| IP68 (IEC60529 \| MIL STD 810G CHG-1 510.6 I \| MIL STD 810G CHG-1 506.6 II \| MIL STD 810G CHG-1 512.6 I) Withstands strong vibration (ISO9022-36-08 \| MIL STD 810G 514.6 Cat.24) 95% (ISO9022-13-06 \| ISO9022-12-04 \| MIL STD 810G CHG-1 507.6 II) 40 g / 15 to 23 msec (MIL STD 810G 516.6 I)

TILT COMPENSATION UPGRADE
Tilt compensation	Increased measurement productivity and traceabilityCalibration-free, Immune to magnetic disturbances	Calibration-free, Immune to magnetic disturbances
Real-time kinematic tilt compensated	Not for static control points	Additional Hz uncertainty typically less than 8 mm + 0.4 mm/° tilt down to 30° tilt
