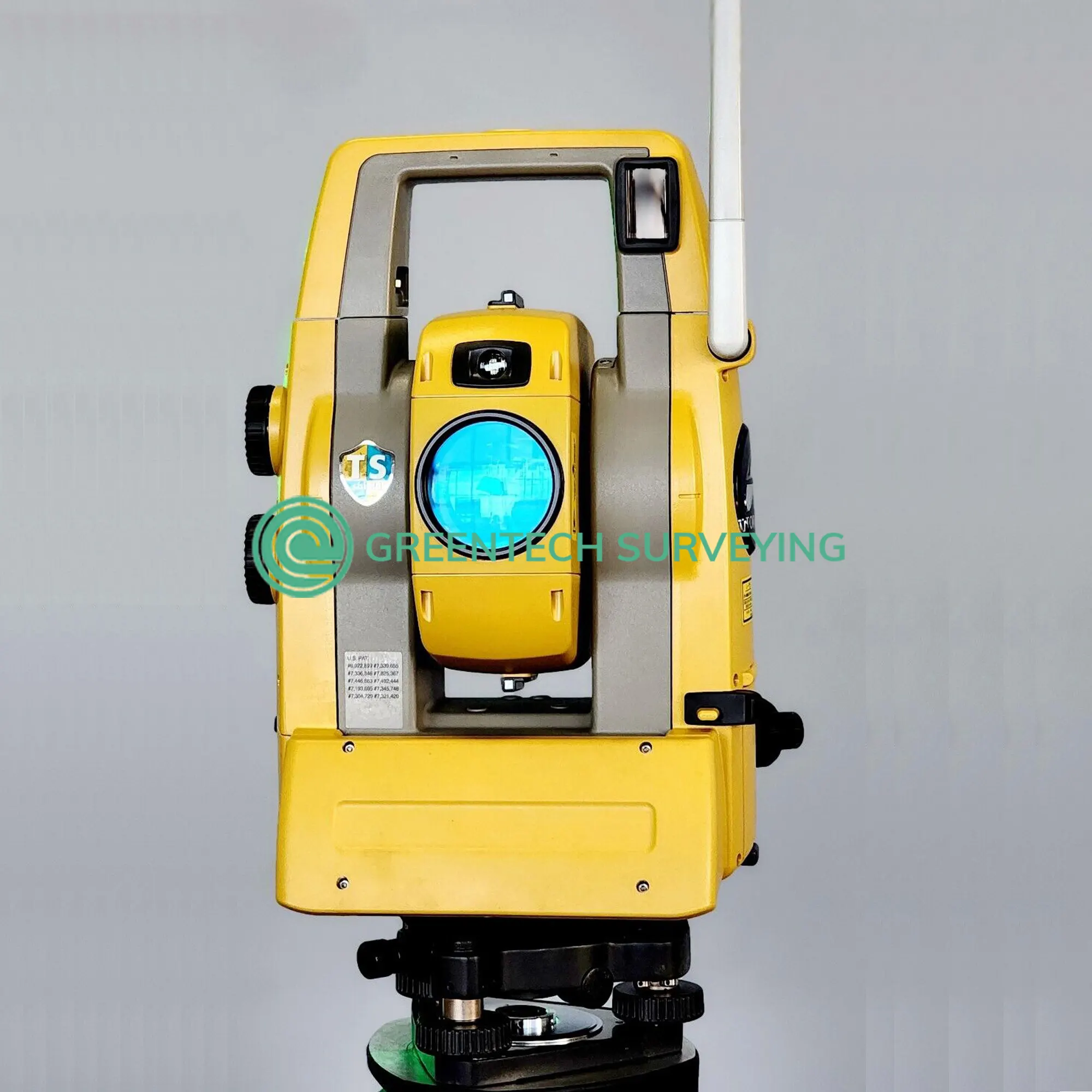

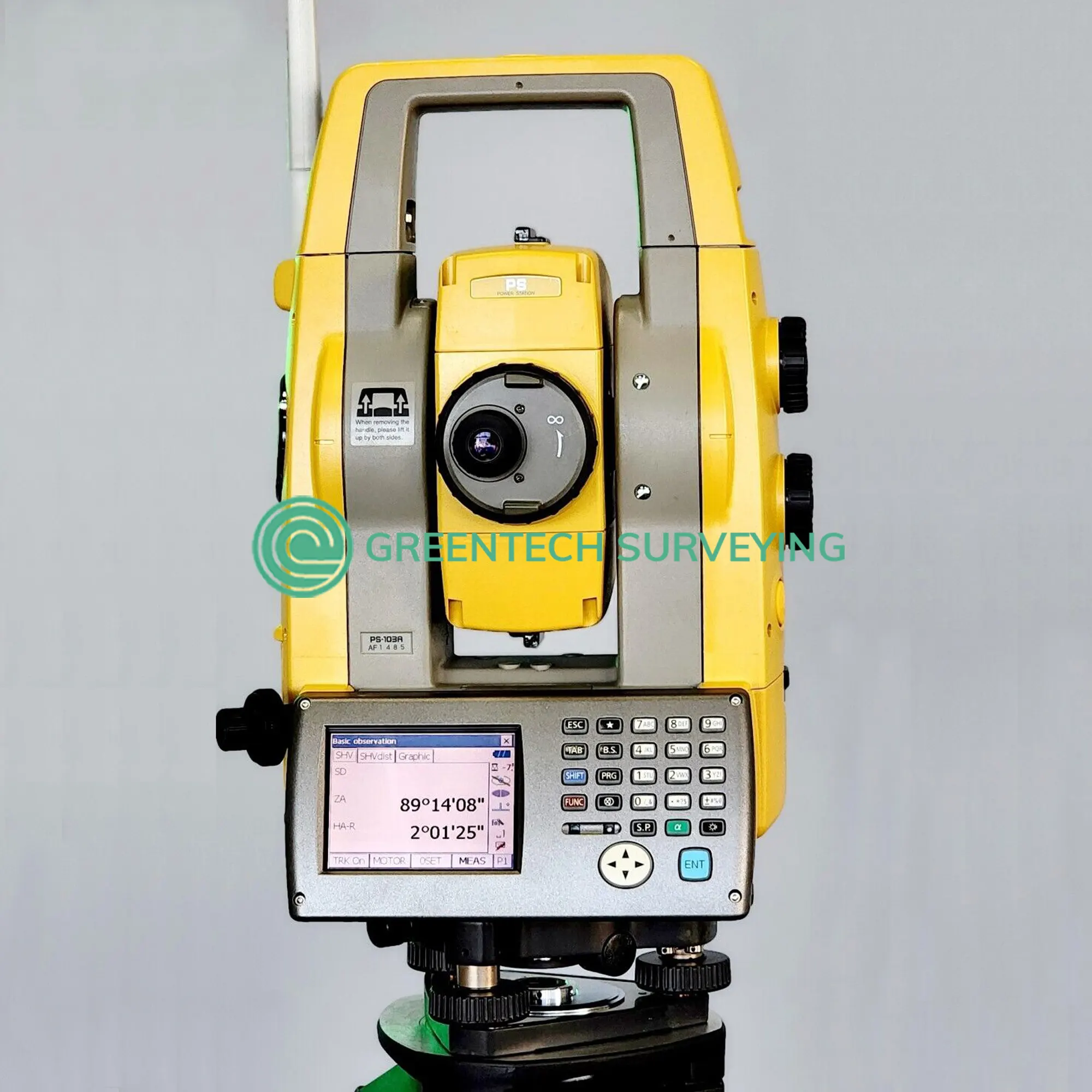

Topcon PS-103A 3 Robotic Total Station
Sale used Topcon PS-103A 3” Robotic Total Station RC-5 Remote and ATP1 Prism, clean unit and everything is in great and ready to working to survey
$2,500
Sale Topcon PS-103A 3” Robotic Total Station RC-5 Remote and ATP1 Prism, clean unit and everything is in great and ready to working to survey. The instrument has been tested, checked and calibrated by Topon authorized

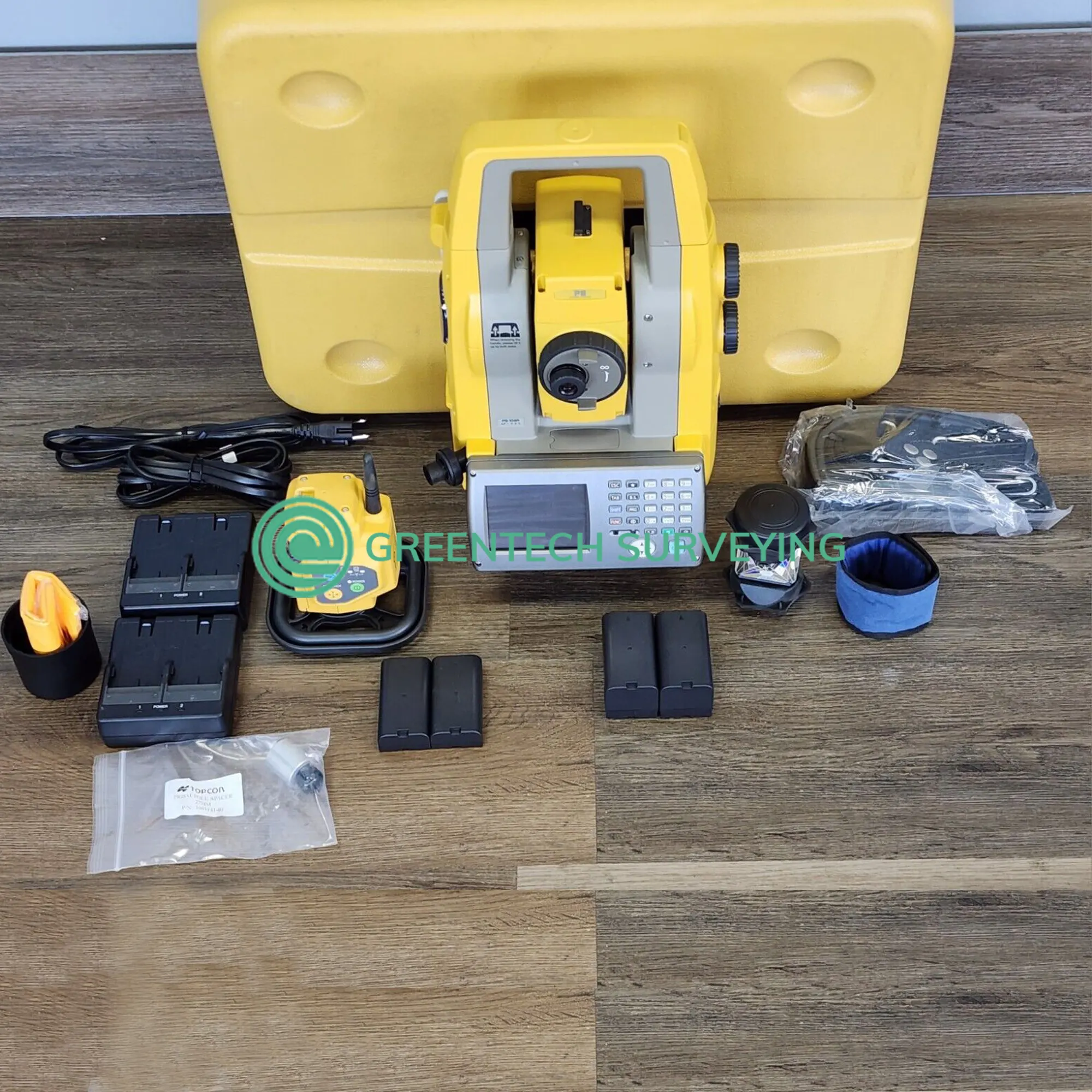

Package includes:
- Topcon PS-103A 3” Robotic Total Station

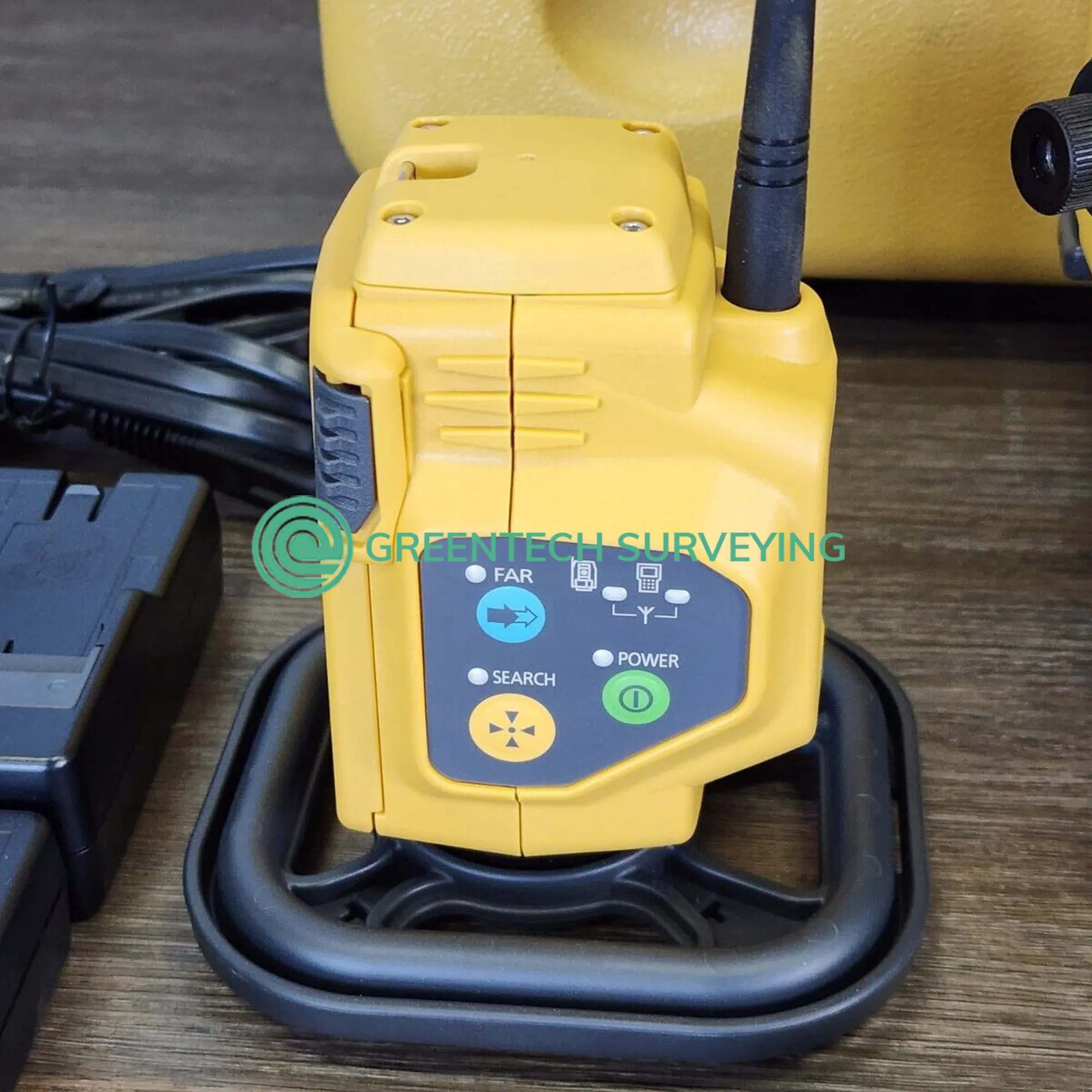

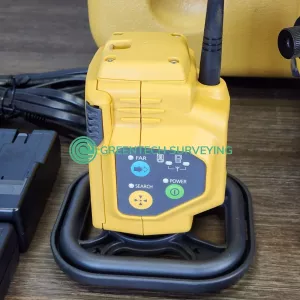

- Topcon RC5 Remote

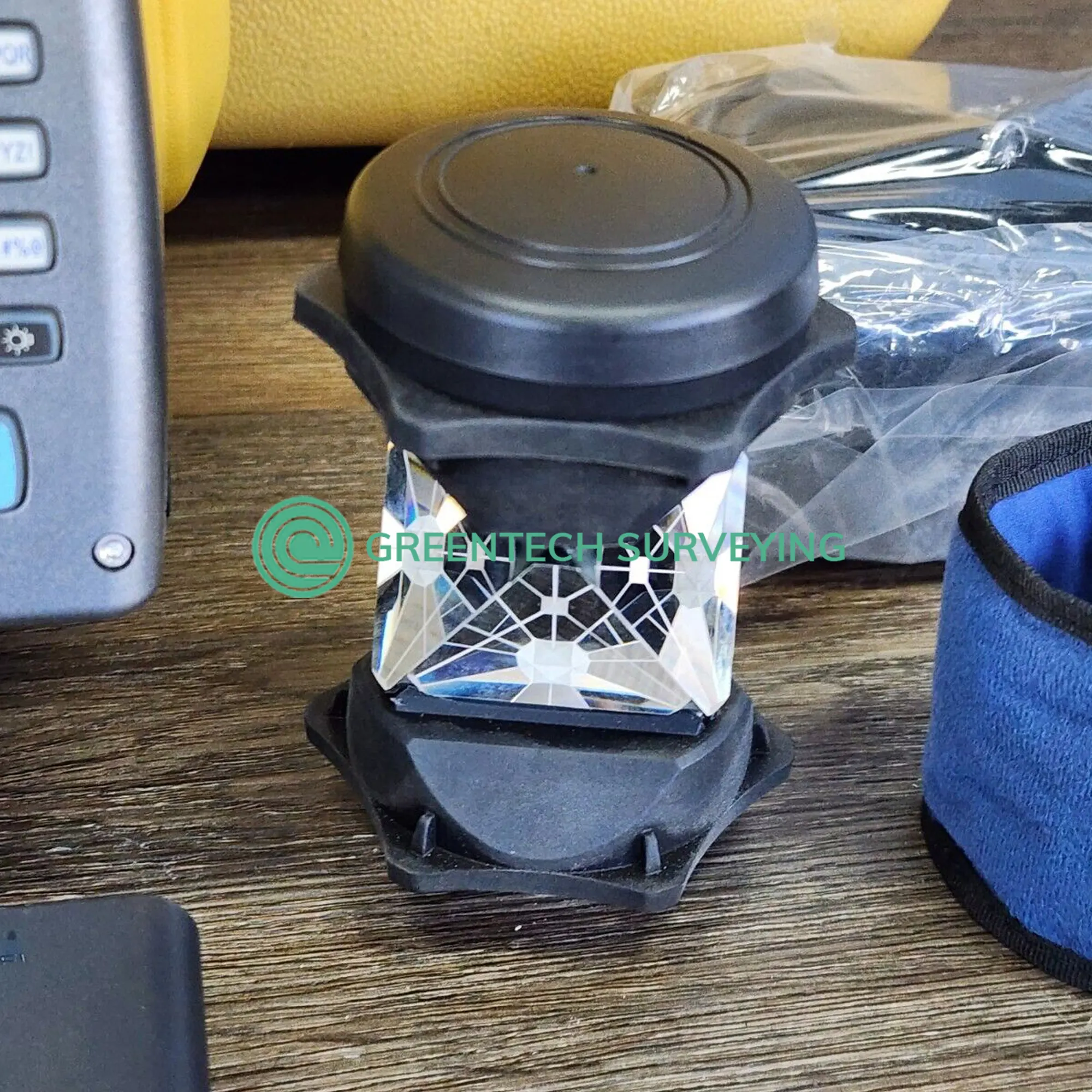

- Topcon ATP1 360 prism
- Topcon Prism adapter
- Two Topcon 2-Bay Chargers
- Two PS-103a Battery Packs
- Two RC5 battery packs
- Original Topcon Carrying Case for Instrument
- 30-day money back guarantee
The PS is a professional grade robotic total station. Advanced design provides an on-board data collection interface, exclusive LongLink communication, and an incredibly powerful EDM.
Work directly on the bright, color touchscreen or with the alpha-numeric keyboard, to achieve higher levels of production with MAGNET® Field on-board software. From building layout to earthwork volumes, and land surveying or control of your machines on site, the PS is the productive choice on a variety of applications.
A world’s first – TSshield™
Topcon is proud to offer another world’s first technology in all PS Series total stations – TSshield. Every instrument is equipped with a telematics-based multi-function communications module providing the ultimate security and maintenance capabilities for your investment.
If the activated instrument is lost or stolen, send a coded signal to the instrument and disable it. This feature secures the total station anywhere in the world.
In the same module you have daily connectivity to cloud-based Topcon servers that can inform you of available software updates and firmware enhancements.
PowerTrac™ tracking technology
The revolutionary PowerTrac engine dramatically increases power for prism tracking. Employing entirely new optics, laser system, and further advanced algorithms, PowerTrac provides the PS Series with unsurpassed ability to keep tracking a moving prism even under the toughest environmental conditions.
LongLink™
The exclusive LongLink™ communications functionality in every PS Series model provides operational capabilities never before offered in a robotic total station. With a 600 m wireless communication range, you can now operate the field controller from the “smart-spot” of the crew, the prism pole. Topcon’s new LongLink technology brings a whole new level of f lexibility to your manual field crew.
Topcon PS-103A Specifications
| Telescope | |
| Resolving power | 2.5” |
| Magnification | 30x |
| Angle Measurement | |
| Min. Resolution/Accuracy | 3” |
| Tilt Angle Compensation | |
| Compensation | Dual-axis compensator |
| Range | ±6’ |
| Distance Measurement | |
| Prism EDM Range | 6,000 m |
| Prism EDM Accuracy | 1.5 mm + 2 ppm |
| Non-Prism Range | 1,000 m |
| Non-Prism Accuracy | 2 mm + 2 ppm (0.3 - 200 m) |
| Measuring Time | Fine: 0.9 sec |
| Rapid: 0.6 sec | |
| Tracking: 0.4 sec | |
| Communications | |
|
|
| General | |
| Display | Color Touch TFT 240 x 320 Display (Dual Display) |
| Keyboard | 25 keys with illuminator (Single Keyboard) |
| Battery Operation | Up to 4 hours |
| Dust/Water Rating | IP65 |
| Wireless Connection | Bluetooth® Class 1 |
| Operating Temp | -20°C to 50°C |
