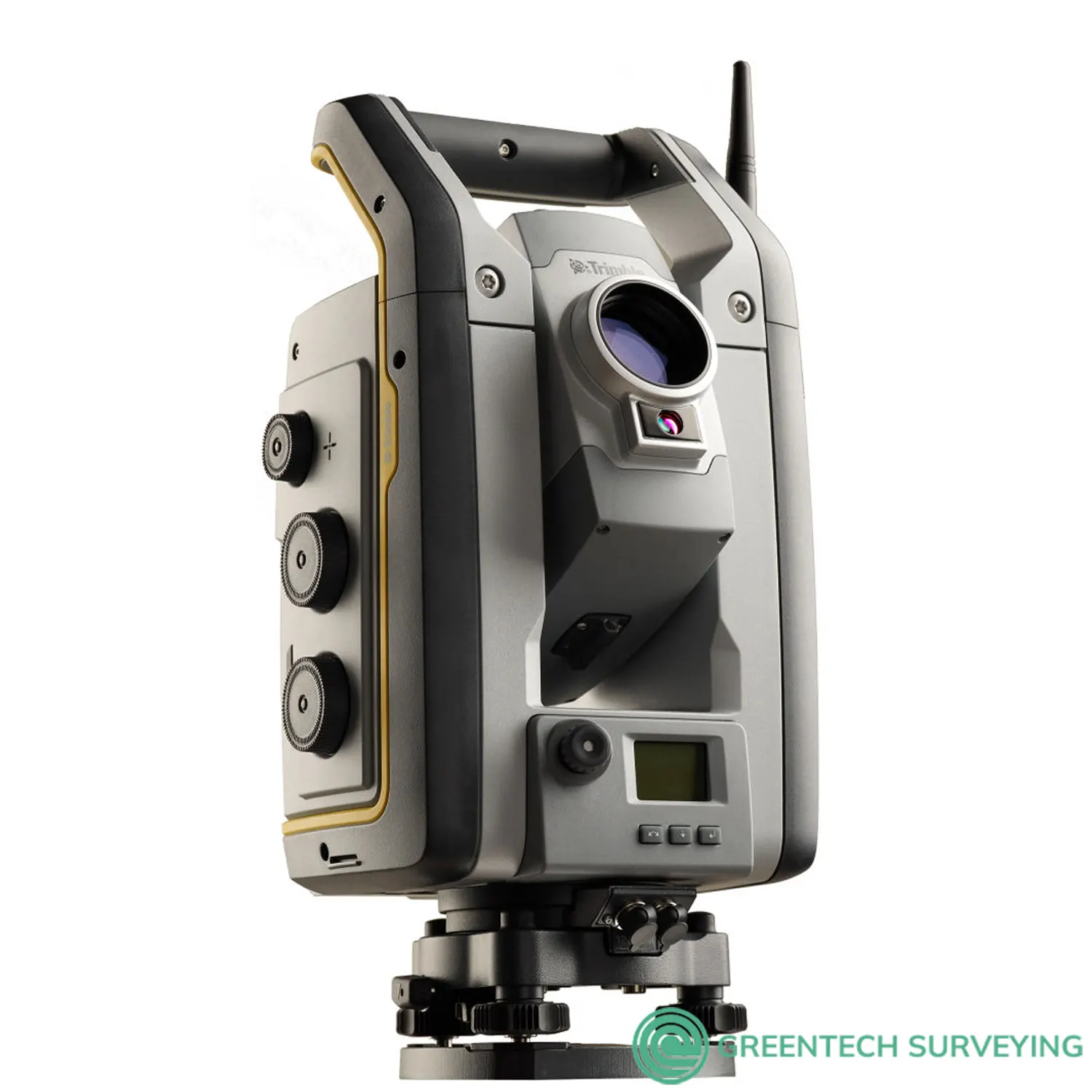

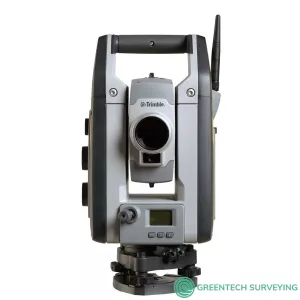

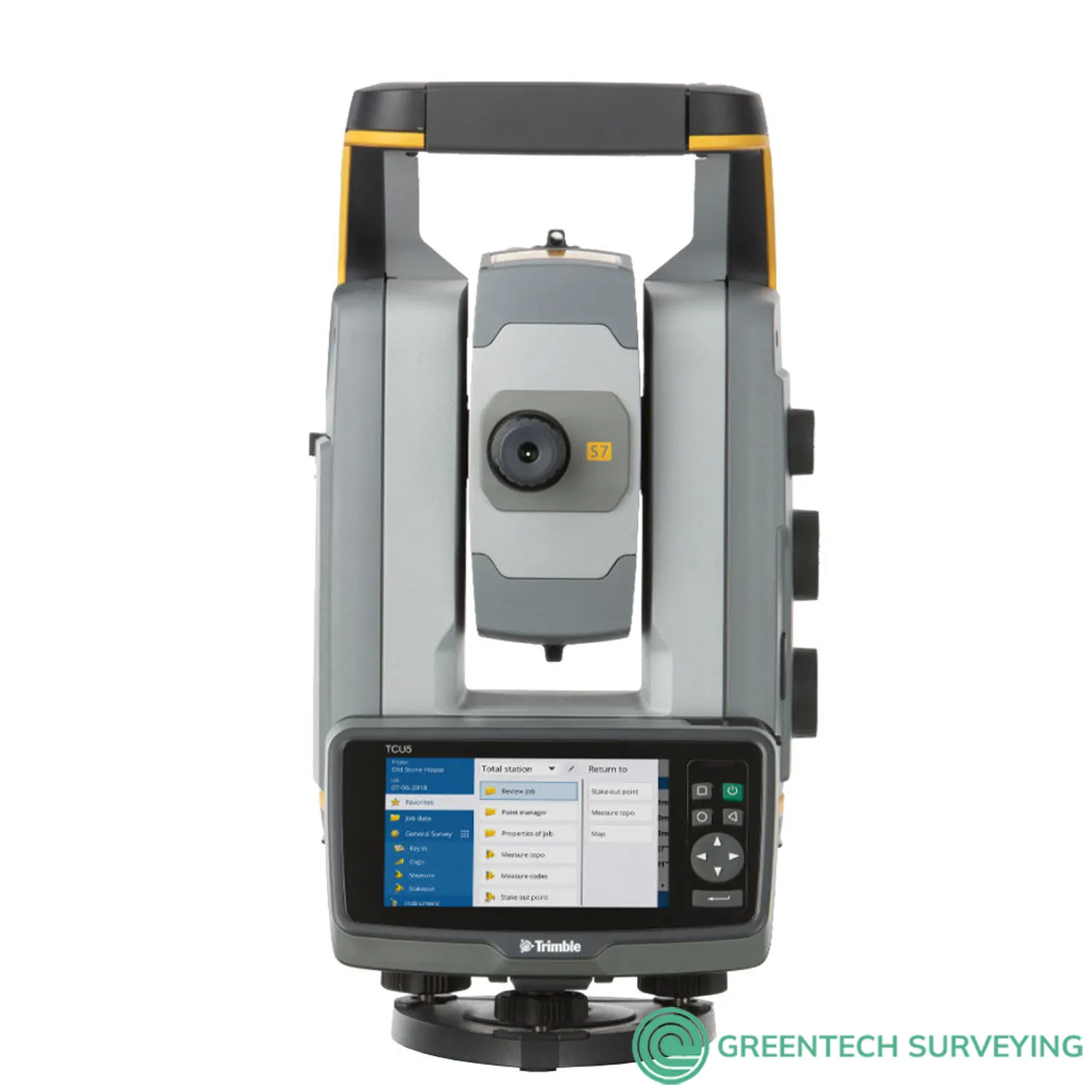

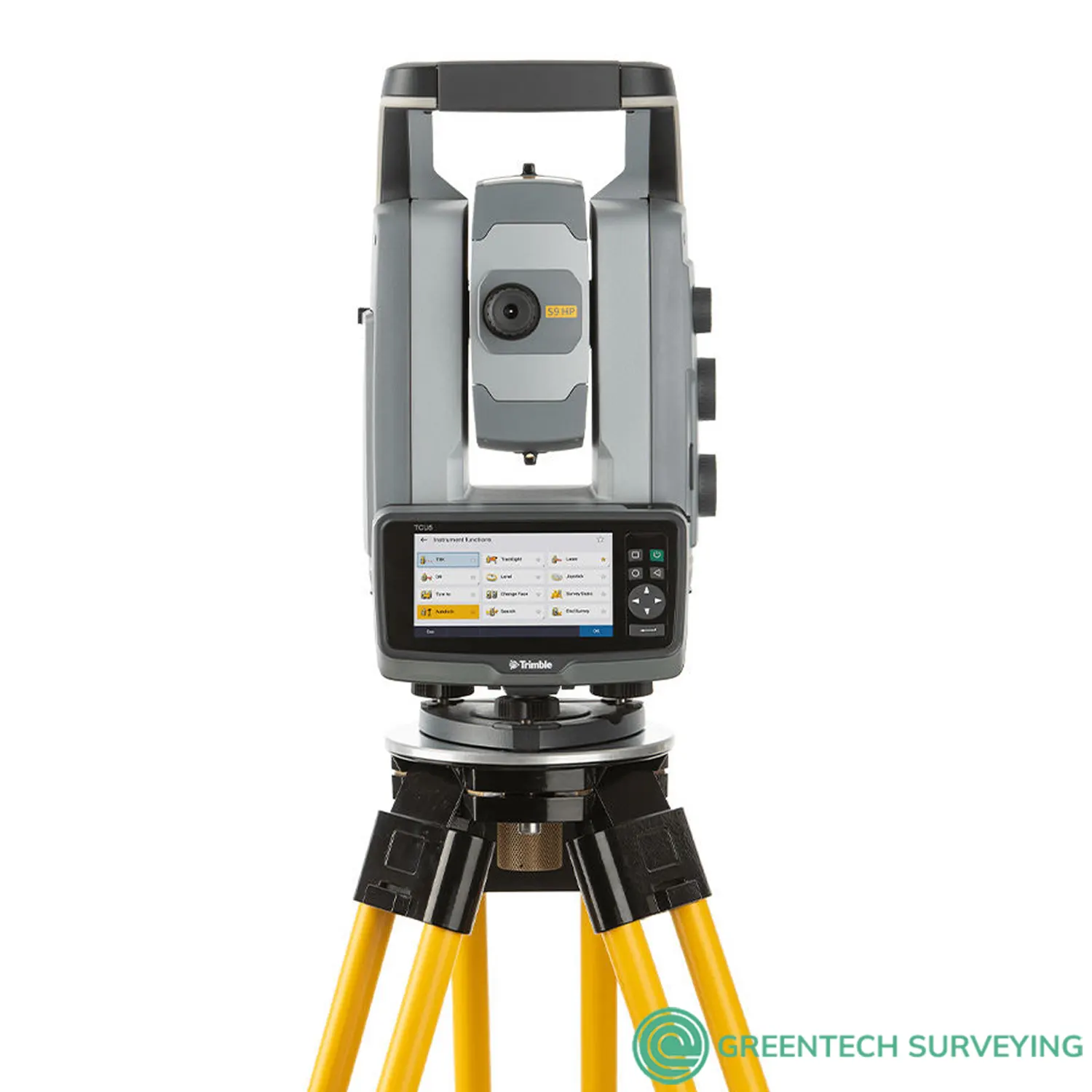

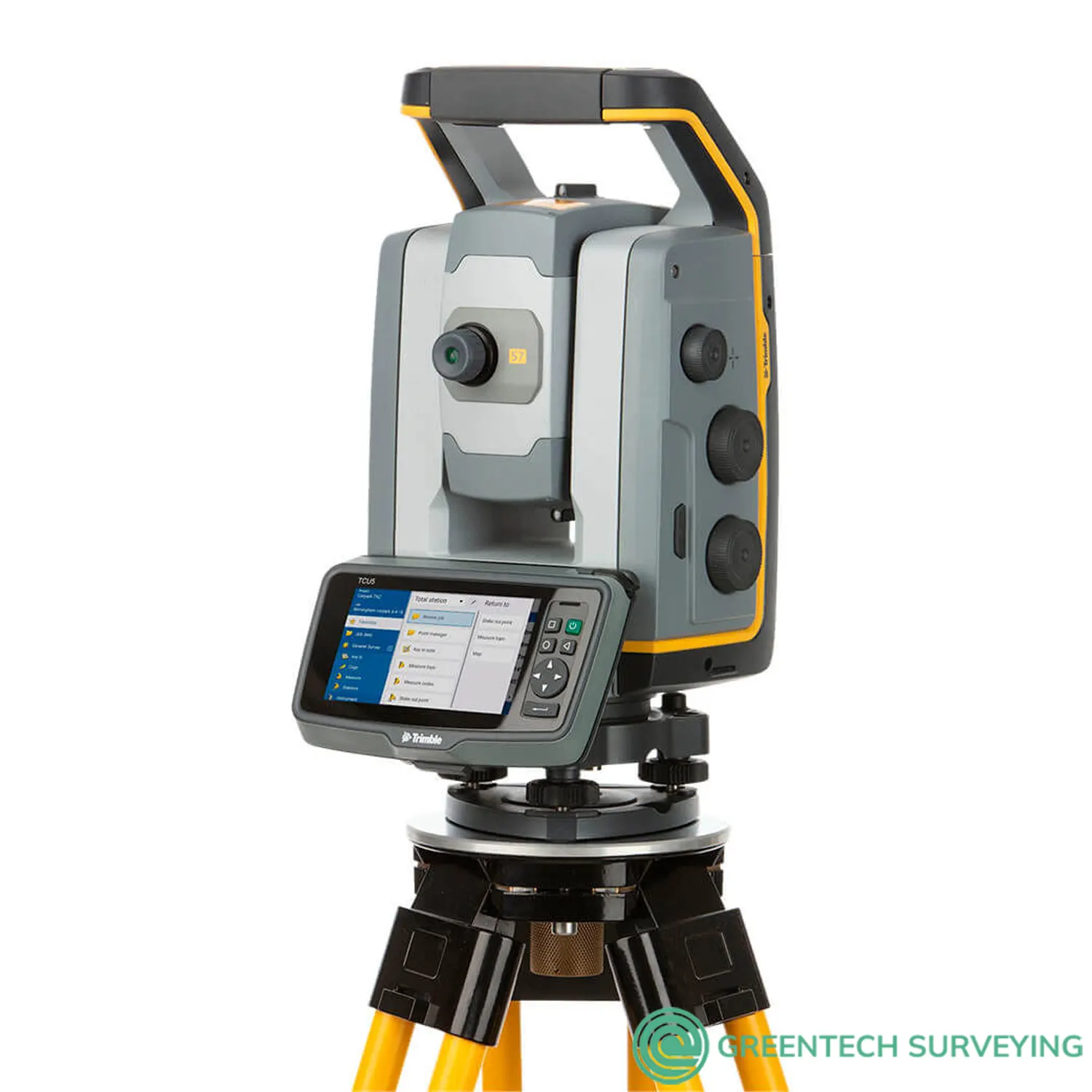

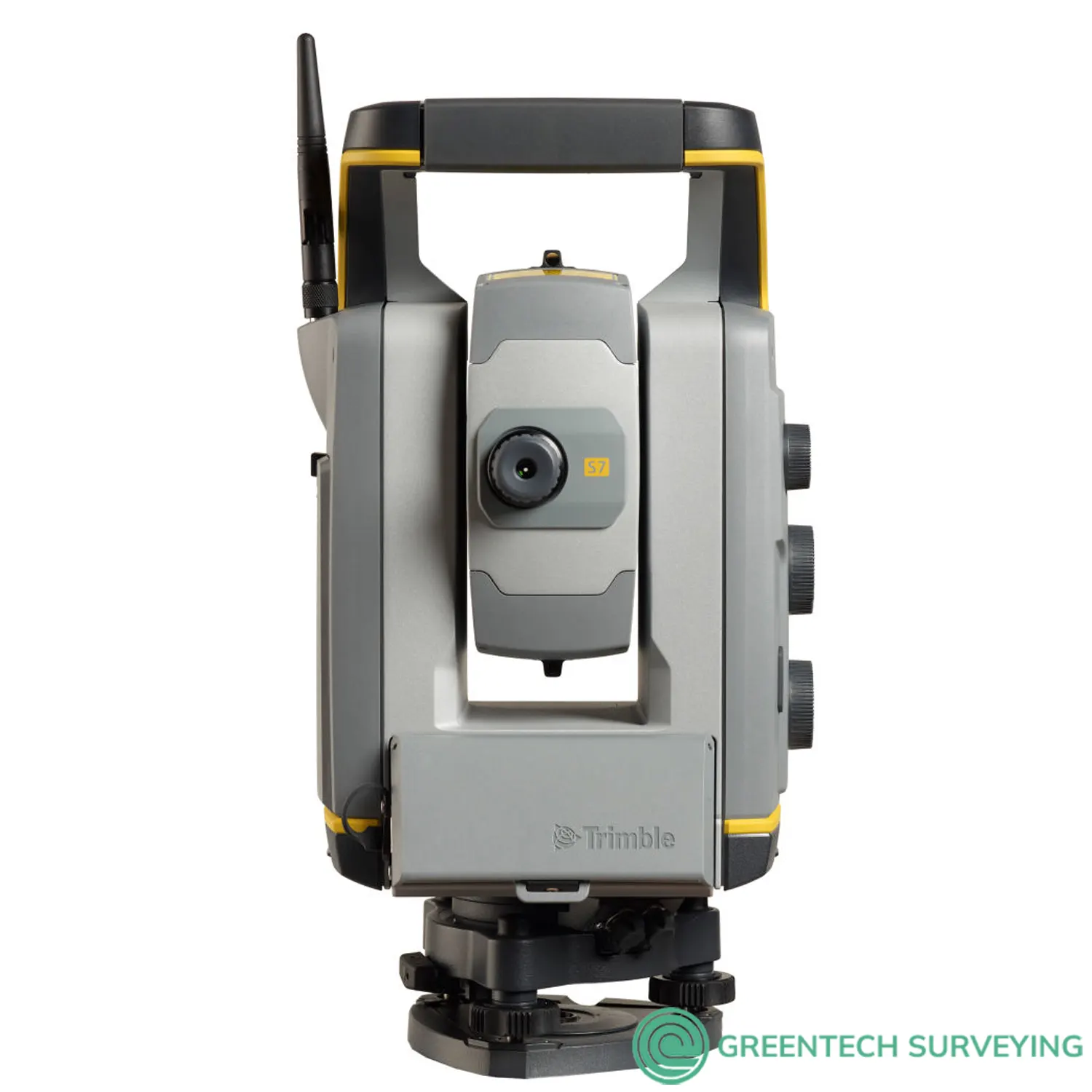

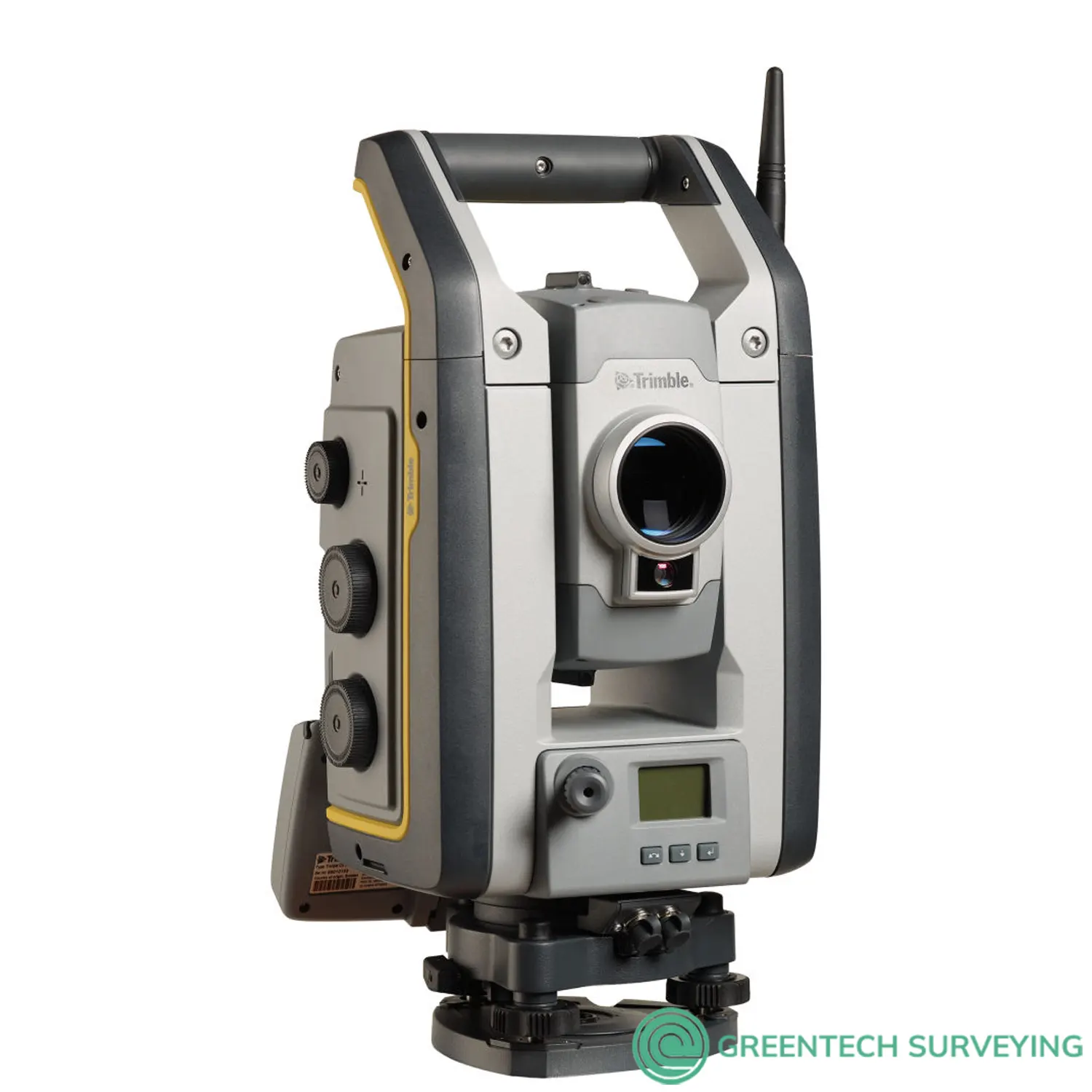

Trimble S7 Robotic Total Station

Trimble S7 Robotic Total Station for sale, Angular accuracy 1”, 2”, 3”, or 5”, EDM technology DR PLUS, combines scanning, imaging and surveying into one powerful solution with Trimble Access field software and Trimble Business Center office software.

THE MOST PRODUCTIVE  TOTAL STATION
The Trimble S7 Total Station combines scanning, imaging and surveying into one powerful solution. Now you only need one instrument on the job site to perform all your data capture. Create 3D models, high accuracy visual site documentation, point clouds, and more using the Trimble S7, Trimble Access field software and Trimble Business Center office software. The Trimble S7 is the ultimate system for  efficient surveying, allowing you to adapt to any situation and increasing your productivity in the field. The combination of SureScan, Trimble VISION, FineLock and DR Plus  technology, along with many other features, means you’ll be able to collect data faster and more accurately than ever before

Integrated 3D Scanning
Save time in the field and in the office with Trimble SureScan technology. Now you have the flexibility to perform feature-rich scans every day. Efficiently capture the information you need to create digital terrain models (DTMs), perform volume calculations and make topographic measurements faster than with traditional surveying methods. SureScan  technology enables you to collect and process data faster by focusing on collecting the right points, not just more points.

Improved Trimble VISION Technology
Trimble VISION technology gives you the power to direct your survey with live video images on the controller as well as create a wide variety of deliverables from collected  imagery. Capture measurements to prisms or reflectorless with point-and-click efficiency via video. Quickly document your site and add notes directly to the pictures in the field to ensure you never miss that critical information. Back in the office, you can use your Trimble VISION data for measurements, or to process 360-degree panoramas and high dynamic range (HDR) images for even clearer deliverables.

Superior Accuracy with Trimble DR Plus
Trimble DR Plus range measurement technology provides extended range of Direct Reflex measurement without a prism. Now you can measure further with fewer instrument set-ups and enhance your scanning performance. Trimble DR Plus, combined with the smooth and silent MagDrive™ servo technology, creates unmatched capability for quick measurements, withoutcompromising on accuracy.
Manage Your Assets
Know where your total stations are 24 hours a day with Trimble L2P technology. See where your equipment is at any given time and get alerts if your instrument leaves a job site or experiences unexpected equipment shock or abuse. Trimble AllTrak™ software lets you view usage and keep up-to-date on firmware, software and maintenance requirements. With Trimble L2P and AllTrak, you can rest assured knowing your equipment is up-to-date and where it should be.
Powerful Field and Office Software
Choose from a variety of Trimble controllers operating the feature rich, intuitive Trimble Access field software. Streamlined workflows like Roads, Utilities and Pipelines guide crews  through common project types, helping to get the job done faster with less distractions. Trimble Access workflows can also be customized to fit your needs. Back in the office, trust Trimble Business  Center to help you check, process and  adjust your optical and GNSS data in one software solution

Trimble S7 Robotic Total Station is a powerful instrument for surveyors. As a feature-rich robotic total station with an included radio, Trimble S7 total station enables single-user operation. It's the only instrument you need on the jobsite, maximizing your efficiency every day. Now you only need one instrument on the job site to perform all your data capture. Create 3D models, high accuracy visual site documentation, point clouds, and more using the Trimble S7, Trimble Access field software and Trimble Business Center office software.

The Trimble® S7 Total Station combines scanning, imaging and surveying into one powerful solution.

• Surveying, imaging and 3D scanning in one powerful solution
• Improved Trimble VISION technology for video robotic control, scene documentation and photogrammetric measurements
• Trimble DR Plus for long range and superior accuracy
• Complete field-to-office solution for quick data capture and processing
• Seamless integrated surveying with Trimble GNSS receivers

Features
The Trimble S7 is a powerful total station with all of the features and tools you need to maximize efficiency in the field and in the office:

• MagDrive, for exceptional speed and accuracy, reduce wear and tear, and smooth, silent operation
• FineLock, which detects targets without interference from surrounding prisms, ensuring target lock over long distances, and eliminating errors caused by interference
• SurePoint, ensures precise pointing and measuring by staying on target through virtually any situation, from windy weather to vibrations
• L2P technology and InSphere Equipment Manager
• Industry-leading field and office software for fast data collection and processing no matter the Trimble instrument

Features and capabilities

• Ultimate solo working: With the included radio operate from a distance with only one operator. Leverage Active Tracking technology to reliably track your prism, even in the most challenging environments.
• Built with Trimble MagDrive: Turn-to points with lightning-fast speeds, rotating at 115 degrees per second with precision Trimble MagDrive™ technology.
• Trusted setup with Trimble SurePoint: Trimble SurePoint technology eliminates errors in real time caused by small mislevelment, for example when a tripod shifts as the ground changes temperature.
• Do more in the field & office: Trimble provides a complete solution from field to office with Trimble Access field software and Trimble Business Center.

TRIMBLE S7 ROBOTIC TOTAL STATION SYSTEM SPECIFICATIONS

• Angular accuracy: 1”, 2”, 3”, or 5”
• EDM technology: DR PLUS
• EDM accuracy: 1.0 mm + 2 ppm (Prism)/2.0 mm + 2 ppm (DR)
• Maximum range: 5,500 m
• Technology standard on all models: Autolock, Magdrive, SurePoint, Active Tracking
• Model-dependant features: FineLock, VISION, SureScan

PERFORMANCE

Angle measurement

• Sensor type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Absolute encoder with diametrical reading
• Accuracy (Standard deviation based on DIN 18723) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1” (0.3 mgon) 2” (0.6 mgon), 3” (1.0 mgon), or 5” (1.5 mgon)
• Display (least count). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.1” (0.01 mgon)
• Automatic level compensator
  • Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centered dual-axis
  • Accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5” (0.15 mgon)
  • Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ±5.4’ (±100 mgon)

Distance measurement

• Accuracy (ISO)
  • Prism mode
    • Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 mm + 2 ppm (0.003 ft + 2 ppm)
• Accuracy (RMSE)
  • Prism mode
    • Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 mm + 2 ppm (0.0065 ft + 2 ppm)
    • Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 mm + 2 ppm (0.013 ft + 2 ppm)
• DR mode
  • Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 mm + 2 ppm (0.0065 ft + 2 ppm)
  • Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 mm + 2 ppm (0.013 ft + 2 ppm)
  • Extended range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 mm + 2 ppm (0.033 ft + 2 ppm)

Measuring time

• Prism mode
  • Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 sec
  • Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 sec
• DR mode
  • Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1–5 sec
  • Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 sec

Measurement range

• Prism mode5, 6
  • 1 prism. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 2,500 m (8,202 ft)
  • 1 prism Long Range mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,500 m (18,044 ft) (max. range)
• Shortest possible range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.2 m (0.65 ft)

DR mode

• Reflective foil 20 mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1,000 m (3,280 ft)
• Shortest possible range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 m (3.28 ft)

DR Extended Range Mode

• White Card (90% reflective) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2,200 m

Scanning

• Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . from 1 m up to 250 m (3.28 ft–820 ft)
• Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 15 points/sec
• Minimum point spacing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 mm (0.032 ft)
• Standard deviation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .1.5 mm @ ≤50 m (0.0049 ft @ ≤164 ft)
  • Single 3D point accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 mm @ ≤150 m (0.032 ft @ ≤492 ft)

EDM SPECIFICATIONS

• Light source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  Pulsed Laser diode 905 nm
• Beam divergence
  • Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 cm/50 m (0.06 ft/164 ft)
  • Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 cm/50 m (0.13 ft/164 ft)

SYSTEM SPECIFICATIONS
Leveling

• Circular level in tribrach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8'/2 mm (8'/0.007 ft)
• Electronic 2-axis level in the LC-display with a resolution of 0.3” . . . . . . . . . . . . . . . . . . . . . . . . .(0.1 mgon)

Laser class

• EDM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . Laser class 1
• Laser pointer coaxial (standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Laser class 2
• Overall product laser class. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   Laser class 2

Servo system

• MagDrive servo technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Integrated servo/angle sensor electromagnetic direct drive
• Rotation speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 degrees/sec (128 gon/sec)
• Rotation time Face 1 to Face 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 sec
• Positioning speed 180 degrees (200 gon). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.6 sec
• Clamps and slow motions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Servo-driven, endless fine adjustment

Centering

• Centering system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Trimble 3-pin
• Optical plummet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . Built-in optical plummet
• Magnification focusing distance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3×/0.5 m to infinity (1.6 ft to infinity)

Telescope
Magnification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . .30×
Aperture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 mm (1.57 in)
Field of view at 100 m (328 ft). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 2.6 m at 100 m (8.5 ft at 328 ft)
Focusing distance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 m (4.92 ft) to infinity
Illuminated crosshair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . .Variable (10 steps)
Autofocus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard

Camera
Chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Color Digital Image Sensor
Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2048 x 1536 pixels
Focal length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 mm (0.09 ft)
Depth of field. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . 3 m to infinity (9.84 ft to infinity)
Field of view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16.5° x 12.3° (18.3 gon x 13.7 gon)
Digital zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-step (1x, 2x, 4x, 8x)
Exposure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Spot, HDR, Automatic
Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . User-definable
Image storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . .Up to 2048 x 1536 pixels
File format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .JPEG
Compression ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . User-definable
Video streaming8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 frames/sec

Power supply

• Internal battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . .Rechargeable Li-Ion battery 11.1 V, 5.0 Ah
• Operating time
  • One internal battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .Approx. 6.5 hours
  • Three internal batteries in multi-battery adapter . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .Approx. 20 hours
  • Robotic holder with one internal battery . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .Approx. 13.5 hours
• Operating time for video robotic
  • One battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5 hours
  • Three batteries in multi-battery adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 hours

Weight and dimensions

• Instrument. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 kg (11.57 lb)
• Trimble CU controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 kg (0.88 lb)
• Tribrach. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.7 kg (1.54 lb)
• Internal battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . 0.35 kg (0.77 lb)
• Trunnion axis height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 mm (7.71 in)

Other

• Operating temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –20 ºC to +50 ºC (–4 ºF to +122 ºF)
• Storage temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .–40 ºC to +70 ºC (–40 ºF to +158 ºF)
• Dust and water proofing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP65
• Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4 GHz, USB, Serial, Bluetooth®10
• Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dual-layer password protection, L2P11

AUTOLOCK AND ROBOTIC SURVEYING

• Autolock and Robotic Range
  • Passive prisms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500–700 m (1,640–2,297 ft)
  • Trimble MultiTrack Target. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .800 m (2,625 ft)
  • Trimble ActiveTrack 360 Target. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500 m (1,640 ft)
• Autolock pointing precision at 200 m (656 ft) (Standard deviation)5
  • Passive prisms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2 mm (0.007 ft)
  • Trimble MultiTrack Target. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2 mm (0.007 ft)
  • Trimble ActiveTrack 360 Target. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2 mm (0.007 ft)
• Shortest search distance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.2 m (0.65 ft)
  • Type of radio internal/external. . 2.4 GHz frequency-hopping, spread-sprectrum radios
  • Search time (typical)7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10 sec

FINELOCK

• Pointing precision at 300 m (980 ft)
  • (standard deviation)6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <1 mm (0.003 ft)
  • Range to passive prisms (min–max)6. . . . . . . . . . . . . . . . 20 m–700 m (64 ft–2,297 ft)
• Minimum spacing between prisms at 200 m (656 ft) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8 m (2.625 ft)

GPS SEARCH/GEOLOCK

• GPS Search/GeoLock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360 degrees (400 gon) or defined horizontal and vertical search window
• Solution acquisition time12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15–30 sec
• Target re-acquisition time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <3 sec
• Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Autolock & Robotic range limits
