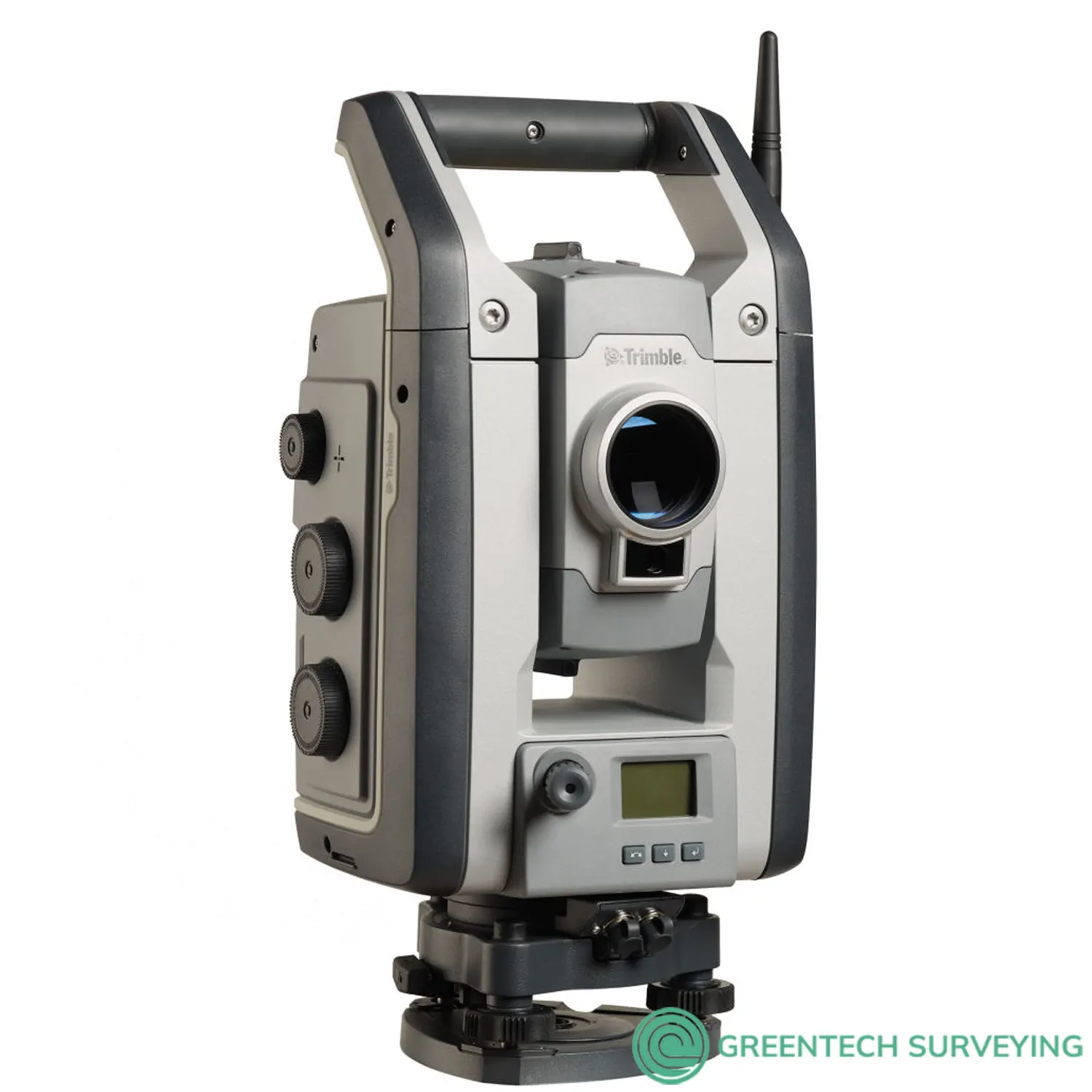

Trimble S9 Robotic Total Station

Trimble S9 Robotic Total Station for sale, angular accuracy 0.5” or 1”, DR PLUS EDM technology, EDM accuracy 1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR Maximum range 5,500 m

$29,000

Brand new condition

Contact to buy

Trimble S9 Robotic Total Station for sale, angular accuracy 0.5” or 1”, DR PLUS EDM technology, EDM accuracy 1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR, Maximum range 5,500 m, Autolock, Magdrive, SurePoint, FineLock, Active Tracking Technology, Long Range FineLock, Tracklight, VISION, SureScan Model-dependant features

The Trimble S9 total station is a high-performance robotic total station capable of tackling demanding monitoring, rail, mining and tunneling applications with optimal speed, accuracy and reliability. Whether your project involves monitoring, tunneling, or another highly specialized application, the Trimble S9 total station is the solution. It combines all of our top field technologies with our highest level of accuracy and our most advanced engineering features. The result is a high performance system built for the most demanding jobs.

  • Available 0.5” or 1” angle accuracy
  • Trimble DR Plus or DR HP EDM for optimal speed, accuracy and reliability
  • Optional Trimble VISION and SureScan technology
  • Complete field-to-office solution for quick data capture and processing
  • Trimble 4D Control software for monitoring management
  • Optional Trimble Sentinel device tracking solution

BENEFITS AND PERFORMANCE
Combining advanced technology and precision engineering, the Trimble S9 robotic total station delivers the measurements you need on specialized projects like monitoring and tunneling.

MEASURE UP TO EVERY TASK
Equipped with the Trimble DR Plus EDM, measure with optimal speed, accuracy and reliability on demanding jobs, giving you peace of mind with every measurement

TECHNOLOGIES TO EXPAND YOUR CAPABILITIES
Choose technology features to meet project demands, including angular accuracy, Trimble Long Range FineLock™, Trimble Tracklight®, Trimble VISION™ and Trimble Surescan.

KEY SPECIFICATIONS
Trimble S9 total station provides what you need to work with confidence and efficiency, no matter the project.

  • Angular accuracy: 0.5” or 1”
  • EDM technology: DR PLUS
  • EDM accuracy: 1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR
  • Maximum range: 5,500 m
  • Technology standard on all models: Autolock, Magdrive, SurePoint, FineLock, Active Tracking
  • Model-dependant features: Long Range FineLock, Tracklight, VISION, SureScan

FEATURES AND CAPABILITIES

  • GET THE RIGHT TOOLS,  CUSTOMIZE YOUR TOTAL STATION: Choose VISION, FineLock, Long Range FineLock or Tracklight technologies. Select the technology features to fit project demands, ensuring you have the tools you need to succeed.
  • FINELOCK TECHNOLOGY, PRECISION WHEN IT MATTERS MOST: FineLock technology detects targets without interference from surrounding prisms for high precision applications. Long range FineLock extends this functionality.
  • TRIMBLE VISION DOCUMENT YOUR WORK IN THE FIELD: Use Trimble VISION to live-stream video on the controller and simply tap in Trimble Access™ field software to aim your total station. Capture images to document shots and or panoramas to document station setups.
  • KEEP WORK MOVING, FIELD-TO-OFFICE WORKFLOWS: Customizable workflows in Access helps crews get the job done faster and more efficiently.
TRIMBLE ROBOTIC TOTAL STATIONS COMPARATION
  Angular Accuracy EDM Technology EDM Accuracy Maximum Range Technology Standard on All Models Model-dependent Features
Trimble SX12 1” Lightning 3DM 1 mm + 1.5 ppm (Prism) / 2 mm + 1.5 ppm (DR) 5,500 m Scanning, VISION, Autolock, Magdrive, SurePoint, Plummet Camera, Target Illumination Light Focusable Laser Pointer
Trimble S9 HP 0.5” or 1” DR HP 0.8 mm + 1 ppm (Prism) / 3.0 mm + 2 ppm (DR) 7,000 m Autolock, Magdrive, SurePoint, FineLock, Active Tracking Long Range FineLock, Tracklight, VISION
Trimble S9 0.5” or 1” DR PLUS 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) 5,500 m Autolock, Magdrive, SurePoint, FineLock, Active Tracking Long Range FineLock, Tracklight, VISION, SureScan
Trimble S7 1”, 2”, 3” or 5” DR PLUS 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) 5,500 m Autolock, Magdrive, SurePoint, Active Tracking FineLock, SureScan, VISION
Trimble S5 1”, 2”, 3” or 5” DR PLUS 1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) 5,500 m Autolock, Magdrive, SurePoint Tracklight, Active Tracking



TRIMBLE S9 AND S9 HP CONFIGURATIONS
  EDM Accuracy Servo Trimble Vision Sure scan FineLock Long Range FineLock Tracklight
Trimble S9 DR Plus 0.5” Robotic Yes Yes Yes No No
  DR Plus 0.5” Robotic No No Yes Yes No
  DR Plus 0.5” Robotic No No Yes No Yes
  DR Plus 1” Robotic or Autolock No No Yes Yes No
Trimble S9 HP DR HP 0.5” Robotic No No Yes Yes No
  DR HP 0.5” Robotic or Autolock No No Yes No Yes
  DR HP 0.5” Robotic or Autolock Yes No Yes No No
  DR HP 1” Robotic or Autolock Yes No Yes No No
  DR HP 1” Robotic or Autolock No No Yes No Yes
  DR HP 1” Robotic or Autolock No No Yes Yes No
  DR HP 1” Robotic No No Yes No No



TRIMBLE S9 AND S9 HP PERFORMANCE (DR PLUS)
Angle measurement
Sensor type Absolute encoder with diametrical reading
Accuracy 0.5” (0.15 mgon) or 1” (0.3 mgon)
Display (least count) 0.1” (0.01 mgon)
Automatic level compensator
  • Type
  • Accuracy
  • Range
  • Centered dual-axis
  • 0.5” (0.15 mgon)
  • ±5.4’ (±100 mgon)
Distance measurement
Accuracy (ISO)

Prism mode

  • Standard



1 mm + 2 ppm (0.003 ft + 2 ppm)
Accuracy (RMSE)

Prism mode

  • Standard
  • Tracking



  • 2 mm + 2 ppm (0.0065 ft + 2 ppm)
  • 4 mm + 2 ppm (0.013 ft + 2 ppm)

DR mode

  • Standard
  • Tracking



  • 2 mm + 2 ppm (0.0065 ft + 2 ppm)
  • 4 mm + 2 ppm (0.013 ft + 2 ppm)
Extended Range 10 mm + 2 ppm (0.033 ft + 2 ppm)
Measuring time

Prism mode

  • Standard
  • Tracking



  • 1.2 s
  • 0.4 s

DR mode

  • Standard
  • Tracking



  • 1–5 s
  • 0.4 s
Measurement Range

Prism mode (under standard clear conditions)

  • 1 prism
  • 1 prism Long Range mode
  • Shortest range



  • 2,500 m (8,202 ft)
  • 5,500 m (18,044 ft) (max. range)
  • 0.2 m (0.65 ft)
DR mode
  Good (Good visibility, low ambient light),
Normal (Normal visibility, moderate
sunlight, some heat shimmer),
Difficult (Haze, object in direct sunlight,
turbulence)
White card (90% reflective) 1,300 m (4,265 ft), 1,300 m (4,265 ft), 1,200 m (3,937 ft)
Gray card (18% reflective) 600 m (1,969 ft), 600 m (1,969 ft), 550 m (1,804 ft)

Reflective foil 20 mm 1000 m (3280 ft)
Shortest possible range 1 m (3.28 ft)

DR Extended Range Mode
White Card (90% reflective) 2200 m

Scanning
Range from 1 m up to 250 m (3.28 ft–820 ft)
Speed up to 15 points/sec
Minimum point spacing 10 mm (0.032 ft)
Standard deviation 1.5 mm @ ≤50 m (0.0049 ft @ ≤164 ft)
Single 3D point accuracy 10 mm @ ≤150 m (0.032 ft @ ≤492 ft)



TRIMBLE S9 AND S9 HP EDM SPECIFICATIONS (DR PLUS)
Light source Pulsed laserdiode 905 nm

Beam divergence

  • Horizontal
  • Vertical



  • 4 cm/100 m (0.13 ft/328 ft)
  • 8 cm/100 m (0.26 ft/328 ft)



TRIMBLE S9 AND S9 HP PERFORMANCE (DR HP)
Sensor type Absolute encoder with diametrical reading

Angle measurement

  • Angle accuracy
  • Angle display (least count)



  • 0.5” (0.15 mgon) or 1” (0.3 mgon)
  • 0.1” (0.01 mgon)

Automatic level compensator

  • Type
  • Accuracy
  • Range



  • Centered dual-axis
  • 0.5” (0.15 mgon)
  • ±5.4’ (±100 mgon)
Distance measurement
Accuracy (ISO)
  • Prism mode
    • Standard



0.8 mm + 1 ppm (0.0026 ft +1 ppm)

Accuracy (RMSE)

  • Prism mode
    • Standard
    • Tracking
  • DR mode
    Standard
    Tracking



  • 5 mm + 2 ppm (0.016 ft + 2 ppm)
  • 1 mm + 1 ppm (0.003 ft +1 ppm)



  • 3 mm + 2 ppm (0.01 ft + 2 ppm)
  • 10 mm + 2 ppm (0.032 ft + 2 ppm)
Measuring time
Prism mode
  • Standard
  • Tracking

DR mode

  • Standard
  • Tracking



  • 3 s
  • 0.4 s



  • 3–15 s
  • 0.4 s
Range

Prism mode (under standard clear conditions)

  • 1 prism
  • 1 prism Long Range mode
  • 3 prism Long Range mode
  • Shortest range)



  • 3,000 m (9,800 ft)
  • 5,000 m (16,400 ft)
  • 7,000 m (23,000 ft)
  • 1.5 m (4.9 ft)
DR mode
  Good (Good visibility, low ambient light),
Normal (Normal visibility, moderate
sunlight, some heat shimmer),
Difficult (Haze, object in direct sunlight,
turbulence)
White card (90% reflective) >150 m (492 ft), 150 m (492 ft), 70 m (229 ft)
Gray card (18% reflective) >120 m (394 ft), 120 m (394 ft), 50 m (164 ft)
Shortest range 1.5 m (4.9 ft)



TRIMBLE S9 AND S9 HP EEDM SPECIFICATIONS (DR HP)
Light source Laserdiode 660 nm

Beam divergence

  • Horizontal
  • Vertical



  • 4 cm/100 m (0.13 ft/328 ft)
  • 4 cm/100 m (0.13 ft/328 ft)

TRIMBLE S9 AND S9 HP EDM SYSTEM SPECIFICATIONS
Leveling

  • Circular level in tribrach. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8’/2 mm (8’/0.007 ft)
  • Electronic 2-axis level in the LC-display with a resolution of. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3” (0.1 mgon)

Servo system

  • MagDrive servo technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .integrated servo/angle sensor electromagnetic direct drive
  • Rotation speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 degrees/sec (128 gon/sec)
  • Rotation time Face 1 to Face 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 sec
  • Positioning speed 180 degrees (200 gon). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 sec
  • Clamps and slow motions. . . . . . . . . . . . . . . . . . . . . . . Servo-driven, endless fine adjustment

Centering

  • Centering system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Trimble 3-pin
  • Optical plummet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Built-in optical plummet
  • Magnification focusing distance. . . . . . . . . . . . . . . . . . . . . 2.3×/0.5 m–infinity (1.6 ft–infinity)

Telescope

  • Magnification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 30×
  • Aperture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mm (1.57 in)
  • Field of view at 100 m (328 ft) . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 m at 100 m (8.5 ft at 328 ft)
  • Focusing distance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 m (4.92 ft)–infinity
  • Illuminated crosshair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Variable (10 steps)
  • Autofocus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . Standard

Camera (Not available in all models)

  • Chip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Color Digital Image Sensor
  • Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2048 x 1536 pixels
  • Focal length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 mm (0.09 ft)
  • Depth of field. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 m to infinity (9.84 ft to infinity)
  • Field of view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.5° x 12.3° (18.3 gon x 13.7 gon)
  • Digital zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-step (1x, 2x, 4x, 8x)
  • Exposure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Spot, HDR, Automatic
  • Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . User-definable
  • Image storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Up to 2048 x 1536 pixels
  • File format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . JPEG
  • Power supply
  • Internal battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rechargeable Li-Ion battery 10.8 V, 6.5 Ah
  • External power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 V only external

Operating time

  • One internal battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Approx. 6.5 hours
  • Three internal batteries in multi-battery adapter. . . . . . . . . . . . . . . . . . . . Approx. 18 hours
  • Robotic holder with one internal battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.5 hours

Operating time for video robotic

  • One battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 5.5 hours
  • Three batteries in multi-battery adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 hours
  • Weight and Dimensions
  • Instrument (Autolock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.4 kg (11.35 lb)
  • Instrument (Robotic). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 kg (11.57 lb)
  • Trimble CU controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.4 kg (0.88 lb)
  • Tribrach. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7 kg (1.54 lb)
  • Internal battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.35 kg (0.77 lb)
  • Trunnion axis height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196 mm (7.71 in)

Laser Class (DR PLUS)

  • EDM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . Laser class 1
  • Laser pointer coaxial (standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Laser class 2
  • Overall product laser class. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Laser class 2
  • Laser Class (DR HP)
  • EDM. . . . . . . . . . . . . . . . . . . . . . . . . . . . Laser class 1 in Prism mode, Laser class 2 in DR mode
  • Laser pointer coaxial (standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Laser class 2
  • Overall product laser class. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Laser class 2

AUTOLOCK AND ROBOTIC SURVEYING

  • Passive prisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 m–700 m (1,640–2,297 ft)
  • Trimble MultiTrack Target. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800 m (2,625 ft)
  • Trimble ActiveTrack 360 Target (DR Plus EDM). . . . . . . . . . . . . . . . . . . . . . . . 500 m (1,640 ft)
  • Trimble ActiveTrack 360 Target (DR HP EDM). . . . . . . . . . . . . . . . . . . . . . . . . . . 100 m (328 ft)

Autolock pointing precision at 200 m (656 ft) (Standard deviation)

  • Passive prisms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<2 mm (0.007 ft)
  • Trimble MultiTrack Target. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<2 mm (0.007 ft)
  • Trimble ActiveTrack 360 Target. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<2 mm (0.007 ft)
  • Shortest search distance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 m (0.65 ft)
  • Type of radio internal/external. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.4 GHz frequency-hopping, spread-sprectrum radios
  • Search time (typical)8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–10 sec

FINELOCK

  • FineLock pointing precision at 300 m (980 ft) (standard deviation)4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <1 mm (0.003 ft)
  • Range to passive prisms (min–max)4. . . . . . . . . . . . . . . . . . . 20 m–700 m (64 ft–2,297 ft)
  • Minimum spacing between prisms at 200 m (656 ft). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.8 m (2.625 ft)
  • Long Range FineLock (not available in all models) Pointing precision at 2,500 m (8,200 ft) (standard deviation). . . . . . . . . . . . . . . <10 mm (0.039 ft)
  • Range to passive prisms (min.–max.)4, 9. . . . . . . . . . . . . 250 m–2,500 m (64 ft–8,200 ft)
  • Minimum spacing between prisms at 2,500 m (8,200 ft). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<10.0 m (32.808 ft)

GPS SEARCH/GEOLOCK

  • GPS Search/GeoLock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360 degrees (400 gon) or defined horizontal and vertical search window
  • Solution acquisition time10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–30 sec
  • Target re-acquisition time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<3 sec
  • Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Autolock & Robotic range limits

OTHER SPECIFICATIONS

  • Tracklight built in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Not available in all models
  • Operating temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . –20 ºC to +50 ºC (–4 ºF to +122 ºF)
  • Storage temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40 ºC to +70 ºC (–40 ºF to +158 ºF)
  • Dust and water proofing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IP65
  • Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100% condensing
  • Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USB, Serial, Bluetooth®7
  • Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Dual-layer password protection, L2P11
  • Tracking rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Hz

Related Products

Topcon-LN-150-Total-Station-Layout-Navigator

$5,500

More Contact to buy
Sokkia-IM-100-Reflectorless-Total-Station

$7,500

More Contact to buy
Trimble-SPS930-1-DR-300-plus-Robotic-Total-Station

$7,500

More Contact to buy
Leica-TS16-Robotic-Total-Station

$12,000

More Contact to buy
