Topcon Dual MC2 Cab Kit GX60 Machine Control
Topcon Dual MC2 Cab Kit GX-60 Machine Control GPS GNSS with Auto MC2 for MC-R3, everything is in good shape and ready to be installed and go to work on the field
$20,000
Topcon Dual MC2 Cab Kit GX60 Machine Control Box GPS GNSS with Auto MC2 for MC-R3, everything is in good shape and ready to be installed and go to work on the field. The GX-60 3D Control box has the 3D automatics option as well as several options enabled. The MC-R3 Dual mag box has the MC2 boards and Digital 2 UHF 450-470 radio. Comes with a 30-day money back guarantee.

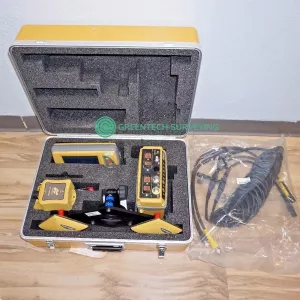

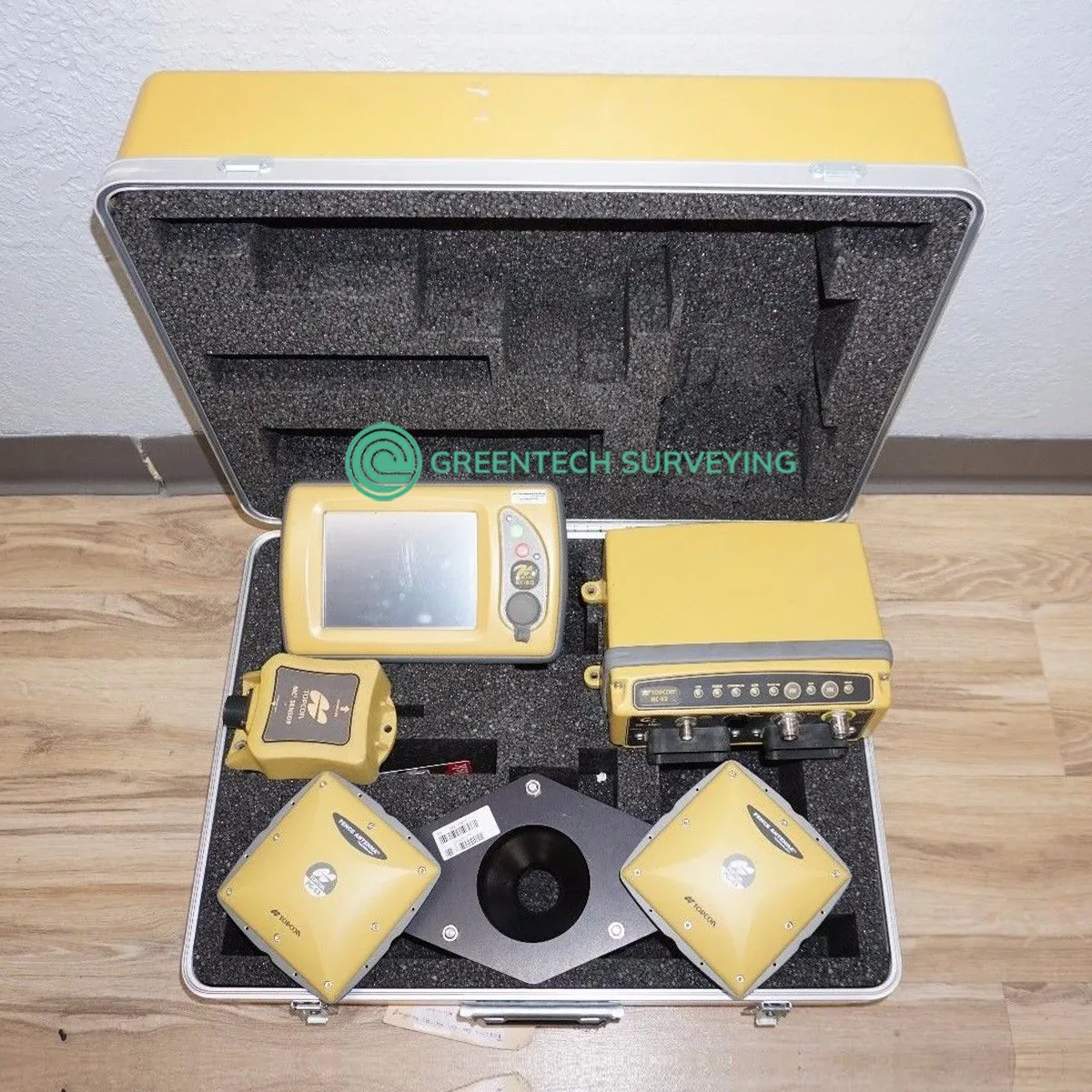

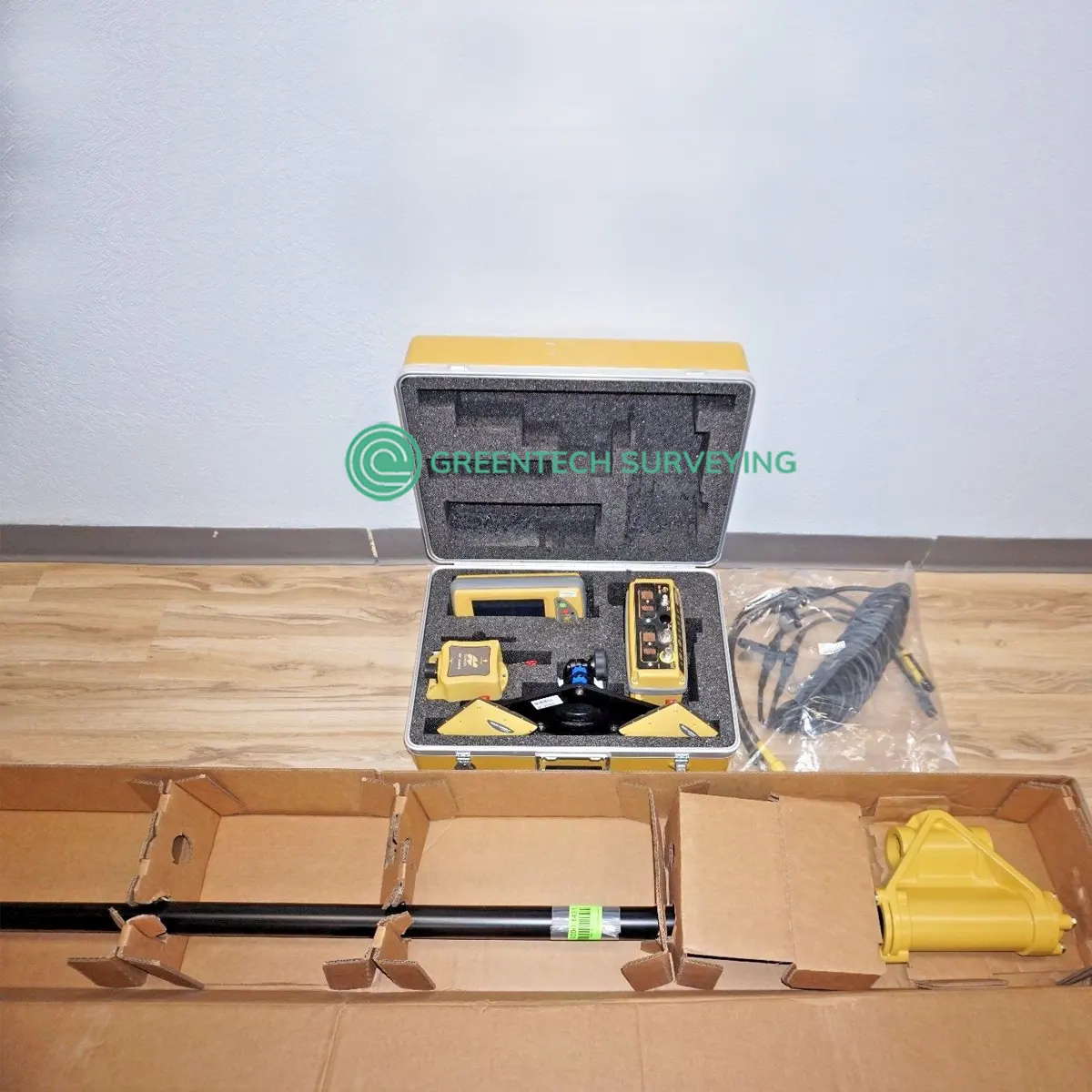

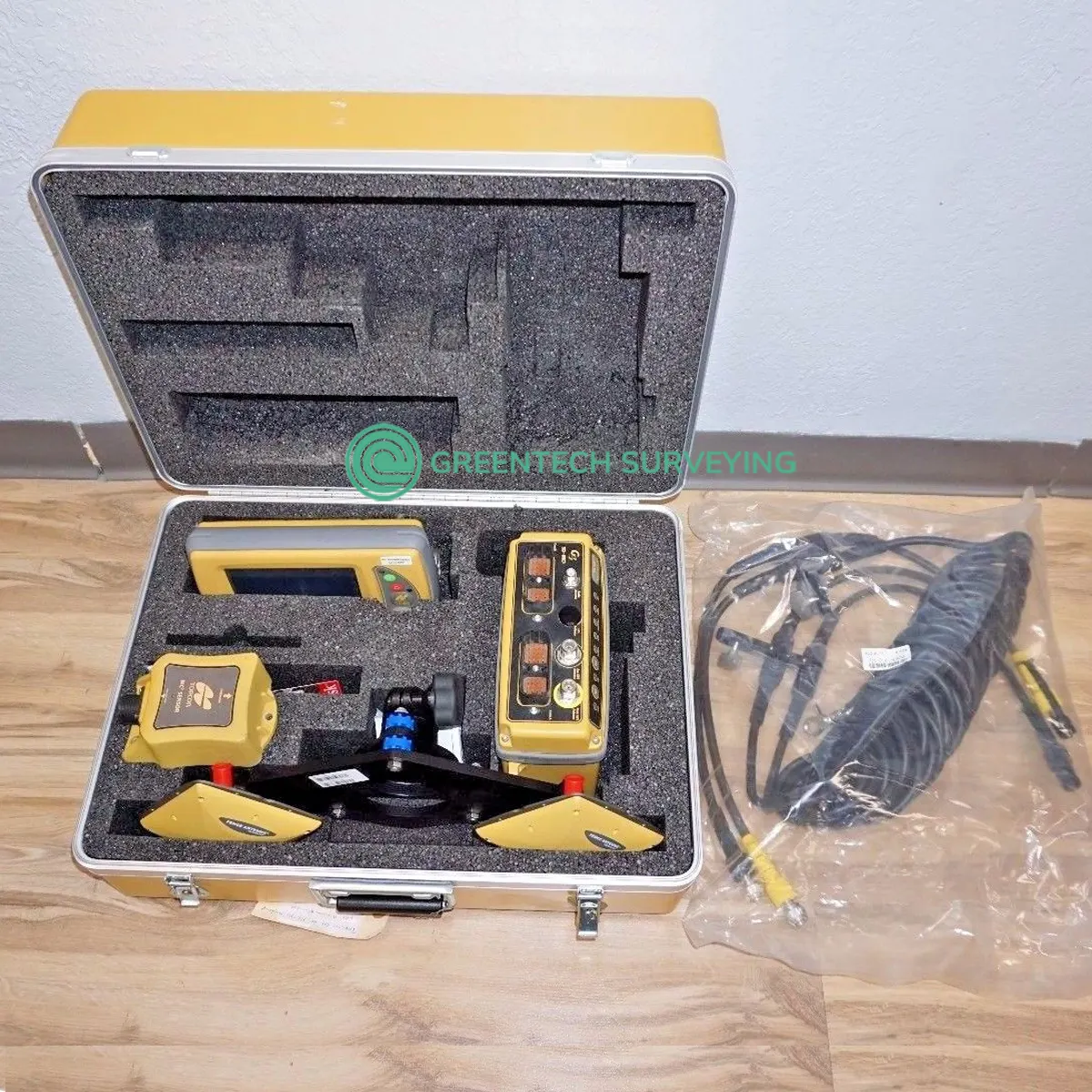

Includes;

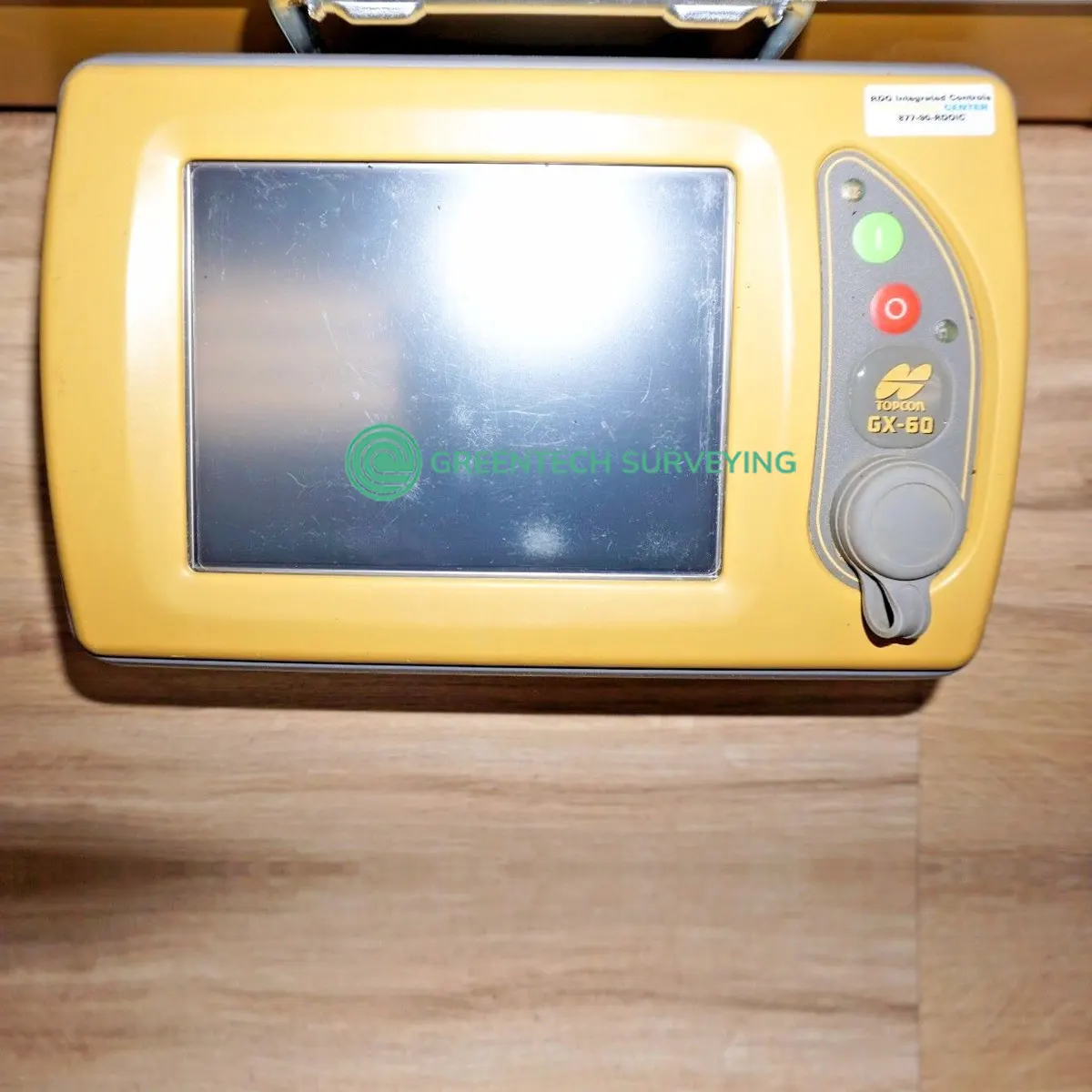

- 1X Topcon GX-60 3D Control Box, with Automatics Turned on
- Options enabled: Motorgrader, Dozer, Excavator, Elevating Scraper, Single Tow Scraper, Dual Tow Scraper, Wheel Loader, GPS (Topcon RTK), LaserZone Millimeter GPS, Multi-base RTK, Advanced Coordinate Systems, Automatic Blade Control, Sensor Input, As Built Mapping, Dual Mast Antenna, Dual mmGPS, Asphalt Paver, Avoidance Area, Milling Machine, Light Truck, Compactor

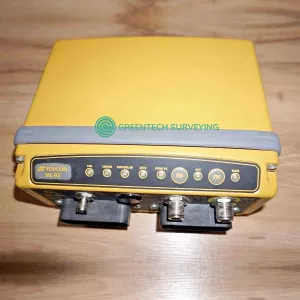

- 1X Topcon DUAL MC-R3 with MC2 enabled

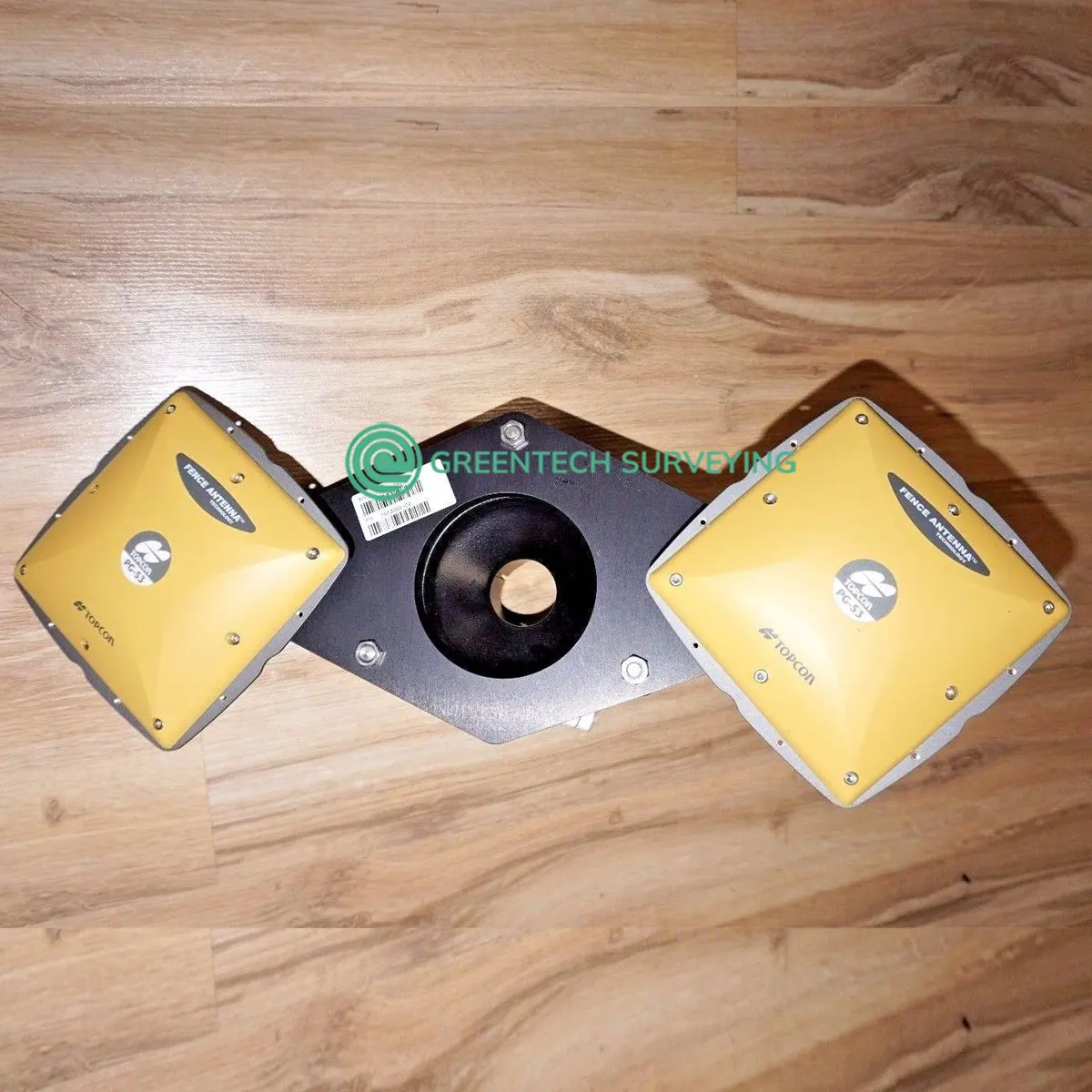

- 2X Topcon PG-S3 Antenna with MC Mount

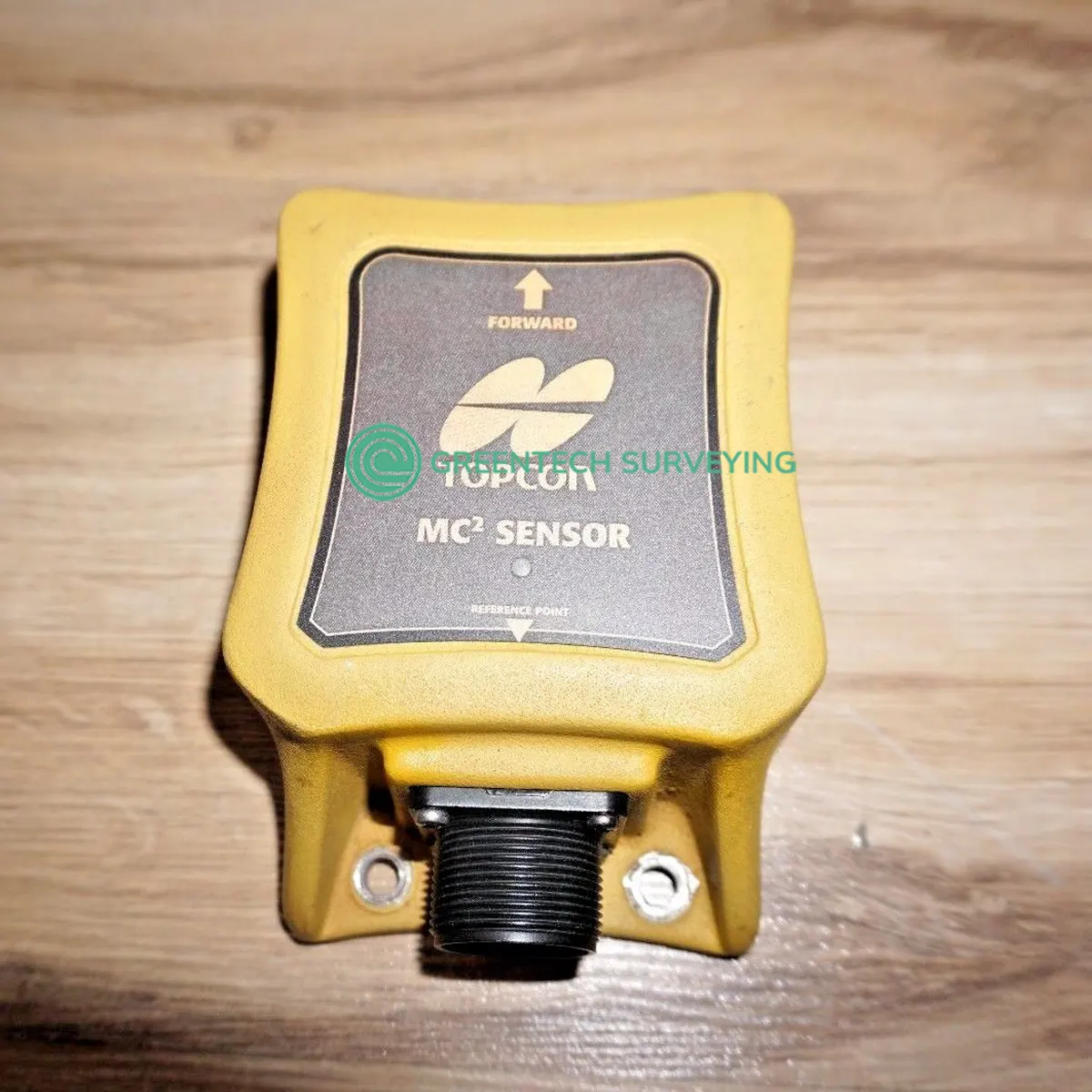

- 1X Topcon MC2 Sensor
- 1X Topcon Mast
- 1X Topcon Dual Antenna Cable
- 1X Carry Case’s
- 30-day money back guarantee
Specifications
|
Topcon GX-60 Control Box |
|
| Machine Types | Excavators, Dozers, Motor Graders, Asphalt Pavers, Concrete Pavers, Elevating/Single Tow Scrapers, and Wheel Loaders. |
| Topcon Solutions | 3D-MC, 3D-MC² (3D-MC squared), mmGPS (millimeter-GPS), and LPS (Robotic) systems |
| Hardware Components | MC-R3 receivers, G3-A1M GNSS receivers, and various Topcon sensors |
| System Type | Compatible with both single and dual antenna GNSS setups |
| Functions | Supports automatic blade control, as-built mapping, and 2D mode (laser/sonic) |
| Display | 6.5-inch color VGA sunlight-readable touch screen. |
| Operating System | Windows XP |
| Processor | Intel Celeron 650 MHz |
| Interfaces | USB, Ethernet, CAN, RS-485, and RS-232, and Bluetooth |
| Voltage | 10 to 30 VDC |
| Environmental Rating | MIL STD 810D (Method 506) or IPX6 for water/dust resistance. |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Mounting | Rugged cast aluminum housing |
| Topcon PG-S3 Antenna | |
| Machine Control Systems | Optimized for Topcon MC-R3 UHF receivers, commonly used on construction equipment (dozers, graders, excavators) |
| Signals Tracked | Supports GPS/GLONASS L1 and L2 frequencies, plus L-band |
| Correction Services | L-band for GNSS corrections |
| Performance | Features advanced Fence Antenna technology for improved tracking and high-accuracy positioning |
| Environmental Protection | IP67 |
| Durability | High shock and vibration tolerance suitable for heavy machinery |
| Connector | TNC female connector |
| Power | 3-18 VDC input, 55 mA typical consumption |
| Mounting | Standard 5/8-11 UNC-2B thread |
| Topcon MC-R3 Receiver | |
| Machine Compatibility | Designed for dozers, graders, and scrapers, with additional valve drivers |
| GNSS Tracking | 144 Channels; GPS, L2C, GLONASS, SBAS, and QZSS |
| Communication Ports | 2x Ethernet, 2x CAN, 2x GNSS, 2x Millimeter GPS, RS-485, RS-23 |
| Radio | GSM/CDMA/HSPA, 915SS and Digital UHFII |
| Radio Options | Available with internal Digital UHF II 450-470 MHz or FH915+ 900 MHz radio modules |
| System Upgrades | Compatible with 3D-MC2 (single or dual antenna) for, or example, doubled grading speed, and Laser System (LPS) |
| Dust/Water Rating | IP66 |
| Topcon MC2 Sensor | |
| Compatibility | Works with 3D-MCMAX, 3D-MC2, single/twin antenna GNSS, and mmGPS. |
| Sensor Technology | 9-axis (rotation and movement) with Inertial technology |
| Power Input | 9 to 32 VDC |
| Supply Current | 0.21A max at 12V, 0.11A max at 24V |
| Housing | Powder-coated cast aluminum with GORE-TEX |
| Operating Temp | -20°C to +60°C |
| Environmental Rating | IP66 |
