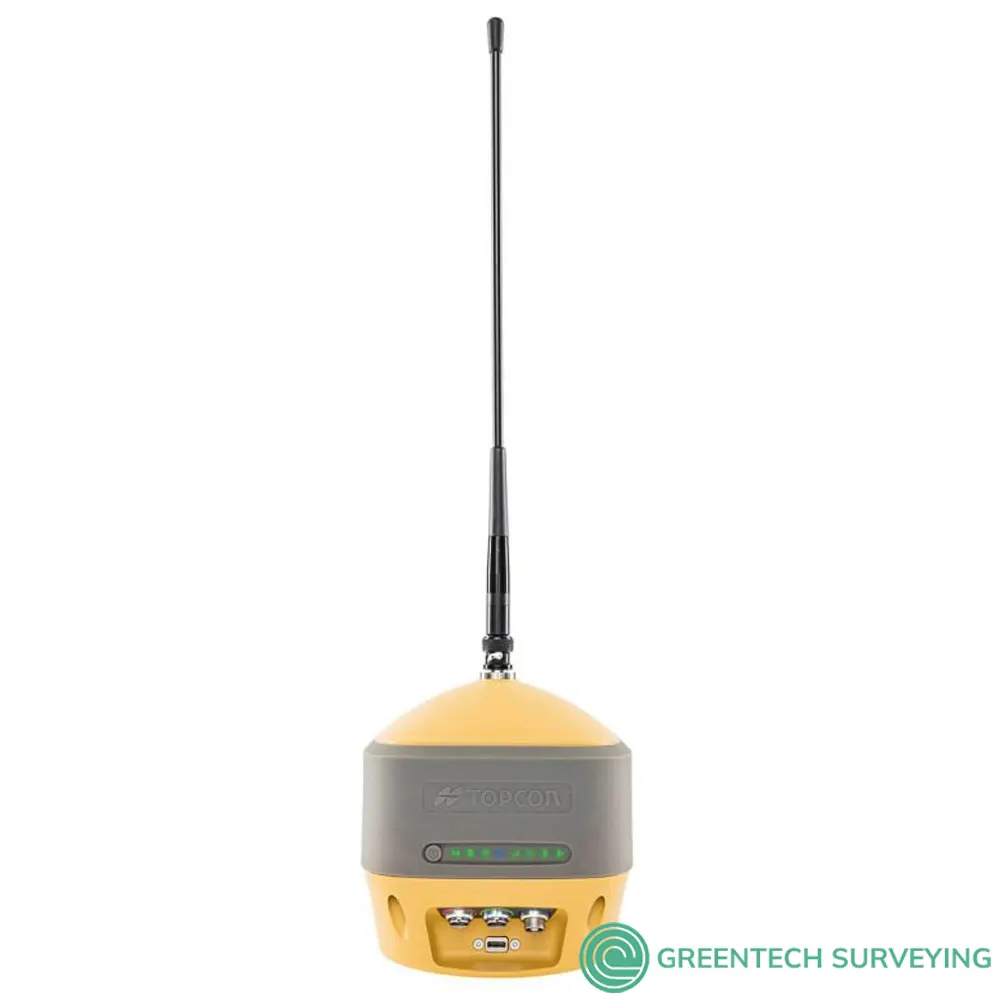

Topcon HiPer HR GNSS Receiver

Topcon HiPer HR GNSS Receiver for sale, a brand new with a 5-Year Topcon warranty, Topcon HiPer HR GNSS Multi-purpose GNSS receiver, Compact, rugged and advanced, the Hiper HR is the right receiver for a broad range of applications.

Modern Hybrid of  Positioning Technology

• Compact, lightweight, rugged design – capable of withstanding a 2 meter pole drop
• Five unique data communication options
• All signals, all satellites, all constellations
• Field tested, field ready IP67 design
• Compact form factor ideal for Millimeter GPS and Hybrid Positioning
• Revolutionary 9-axis IMU and ultra-compact 3-axis eCompass

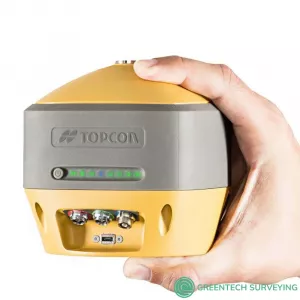

Better things in smaller packages
The HiPer HR is smaller and lighter, but don’t let it’s small size fool you. It’s not only packed with the most advanced GNSS technology, it is also built to withstand the harshest field environments. The HiPer HR is built with a rugged aluminum-alloy housing, not weak plastic, so it can take the punishment of the job site.Using Topcon’s patented Fence Antenna™ design and advanced GNSS chipset with Universal Tracking Channel technology, the receiver automatically tracks each and every satellite signal above – now and into the future.

All signals, all satellites, all constellations — All in a compact, rugged design, with an integrated IMU and eCompass. Only available on the Topcon HiPer HR.

Set yourself free to work, The HiPer HR GNSS receiver overcomes field challenges with a unique blend of technologies. If you're under tree cover, or can't get the pole plumb, or need to range widely from your base, or you need superb accuracy, or work in wet conditions, or all of the above, you'll be free to do your best work.

As part of the Elite Suite hybrid positioning solution, using network correction, mounted to a vehicle or grade checking with Millimeter GPS, or an almost countless number of applications, the HR combines the features to help you succeed.

• Next generation Fence Antenna for superior reception
• Rugged, waterproof IP67 environmental design
• Cellular, LongLink and Radio communications all integrated
• 452 Universal Tracking channels
• Unique 9-axis TILT compensation
• Internal Wi-Fi and multi-spectrum Bluetooth
• Removable, hot-swappable batteries

Topcon Integrated Leveling Technology (TILT)
By combining a 9-axis inertial measurement unit (IMU), along with a digital compass, the HR can accurately compensate for up to 15º of tilt on the rod. Now you can measure all the way to a building edge without using an offset. Or stretch to get an otherwise out-of-reach point. Just as with many other Topcon technologies, TILT™ is designed to solve real-world challenges, so your work gets easier, faster, and better.

BEST-IN-CLASS TECHNOLOGY HIPER HR

Better things in smaller packages
The HiPer HR is smaller and lighter, but don’t let its small size fool you. It’s not only packed with the most advanced GNSS technology, it is also built to withstand the harshest field environments. The HiPer HR is built with a rugged magnesium-alloy housing – not weak plastic – it can take the punishment of the job site.

Using the Topcon patented Fence Antenna® design and advanced GNSS chipset with Universal Tracking Channel technology, the receiver automatically tracks each and every satellite signal above – now and into the future. All signals, all satellites, all constellations — all in a compact, rugged design, with an integrated IMU and eCompass.

• Compact, lightweight, rugged design – capable of withstanding a 2 meter pole drop
• Five unique data communication options
• All signals, all satellites, all constellations
• Field-tested, field-ready IP67 design
• Compact form factor ideal for Millimeter GPS and Hybrid Positioning

Form and function: The most advanced GNSS technology available, yet compact enough to fit in the palm of your hand.
Highly configurable: Designed to grow with you, unique electronic option files empower you to activate  available features instantly – increasing functionality as project demands expand.
Superior performance: Standard with integrated cellular and LongLink wireless communication modules,  choose either long-distance UHF or convenient Spread Spectrum radio as well.
Future proof: Topcon Universal Tracking Channel technology tracks all GNSS signals currently  available and is designed to track the constellations and signals of tomorrow

HiPer HR is perfect for: Land Surveying Topography & As-Built Construction Survey/Layout Grade Management Site Work Road Work Landfill Layout & Survey

TOPCON HIPER HR, HIPER VR AND HIPER SR GNSS RECEIVERS COMPARATION
Topcon HiPer HR GNSS Receiver	Topcon HiPer VR GNSSS Receiver	Topcon HiPer SR GNSS Receiver
Receiver with integrated antenna and radio	Receiver with integrated antenna and radio	Receiver with integrated antenna
Description	Description	Description
Measurement, layout, field survey, grade checking, base or rover, Hybrid positioning ,TILT, network caster	Measurement, layout, field survey, grade checking, base or rover, Hybrid positioning, TILT	Measurement, layout, field survey, grade checking, base or rover, Hybrid positioning
Ideal Use	Ideal Use	Ideal Use
GPS GLONASS BeiDou Galileo SBAS QZSS IRNSS	GPS GLONASS BeiDou Galileo SBAS QZSS IRNSS	GPS GLONASS
Constellations tracked	Constellations tracked	Constellations tracked
UHF radio FH915+ spread spectrum radio LongLink Bluetooth 4G Cell (Europe) WI-FI L-band	UHF radio FH915+ spread spectrum radio LongLink Bluetooth 4G Cell (Europe) L-band	LongLink Bluetooth
Communications for corrections (availability varies by region)	Communications for corrections (availability varies by region)	Communications for corrections (availability varies by region)
Yes	Yes	Yes
Hybrid Positioning	Hybrid Positioning	Hybrid Positioning
Hot-swappable battery	Double-internal batteries	Internal battery
Battery	Battery	Battery
-40°C to 65°C	40°C to 65°C	-40°C to 65°C
Operating temperature	Operating temperature	Operating temperature
IP67	IP67	IP67
Dust and water resistance	Dust and water resistance	Dust and water resistance
115 mm x 115 mm x 132 mm	115 mm x 115 mm x 132 mm	115 mm x 115 mm x 132 mm
Dimensions	Dimensions	Dimensions
925 g	925 g	850 g
Weight	Weight	Weight

Documentation

• Topcon-HiPer-HR-GNSS-Receiver-Brochure.pdf
• Topcon-HiPer-HR-GNSS-Receiver-Datasheet.pdf
