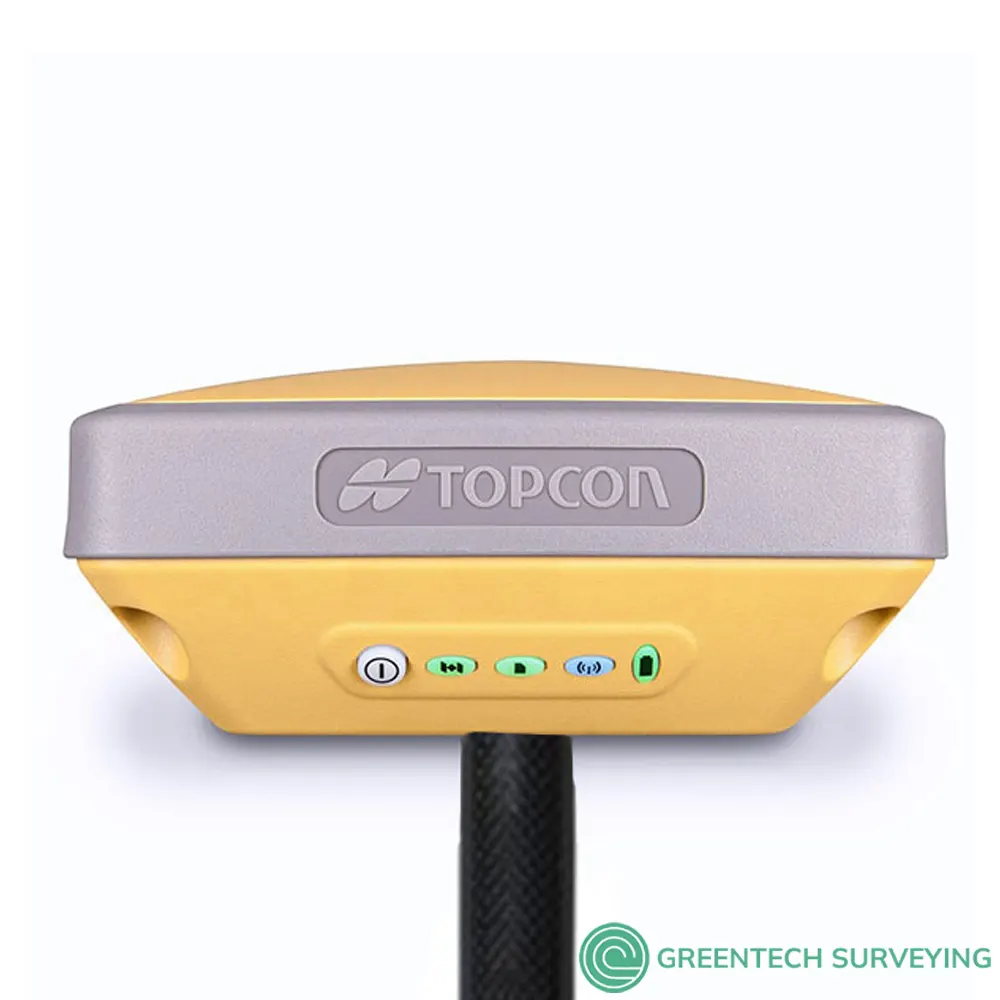

Topcon HiPer SR GNSS Receiver
$8,000
Topcon HiPer SR GNSS Receiver, an Advanced, ultra-compact and productive, From decades of Topcon GNSS evolution
Topcon HiPer SR GNSS Receiver offers two options of communication between base and rover. Intergrade license-free LongLink Bluetooth radio is perfect for smaller sites, or optional cellular connection allows this the unit to be a long-range receiver utilizing Topcon Magnet Relay. Many users prefer to use the SR as a Network rover as it is so small and light. You can also combine it with a robotic total station system, to create a Hybrid solution ready for any environment. With an integrated cellular modem, the new HiPer SR becomes an extended GNSS range site receiver and can be used in a variety of setup including MAGNET Relay, Network, and LongLinkTM. While bringing flexibility, the HiPer SR Cellular configuration still provides superior performance at an affordable price.

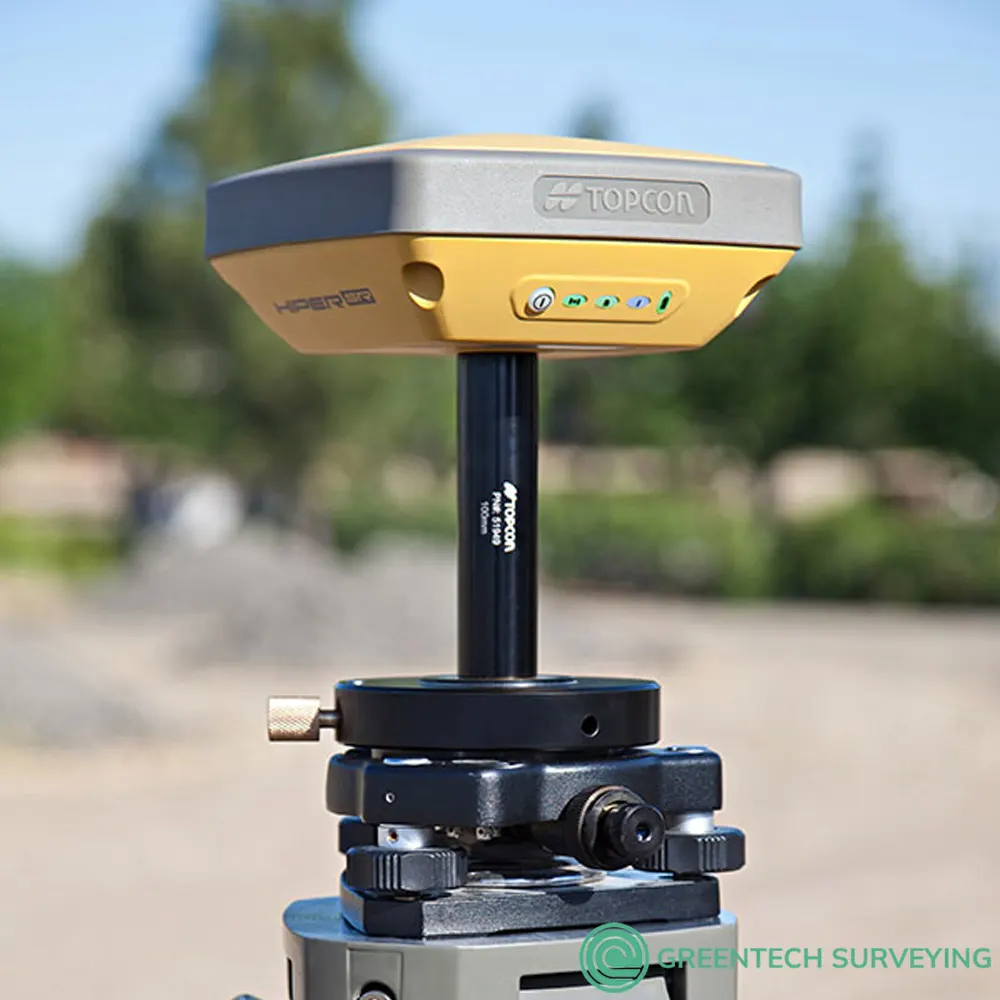

Topcon HiPer SR GNSS Receiver sale includes 2-year Topcon Warranty, Integrated Receiver, Antenna, Batteries, Memory, communications including Optical Tribrach, Tribrach Adapter, Topcon Heavy-Duty Wood Tripod
The Topcon HiPer SR is an entry-level receiver that tracks both GPS and GLONASS satellites. Like all Topcon receivers, it is made in the USA with a durable aluminum alloy shell and IP67 waterproof rating. It can withstand a 1m drop or 2 m pole drop. No matter what your site conditions are, the SR can handle it.

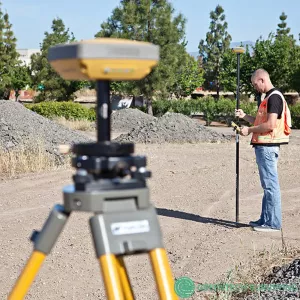

The SR can be used in a base rover set with Topcon’s interference-free Longlink communication. This allows connection from 300 m (1000 ft) making it an optimal site receiver. Other applications include using the SR as a rover in a base station network using cellular connections, or using a base and rover with cellular and Topcon’s Magnet relay. This allows RTK ranges of up to 35 km. This unit also pairs with the Topcon R4T-BT radio to make a low-cost addition to any Topcon UHF receiver.
The HiPer SR is a great way to get into GPS/GNSS GeoPositioning. Whether you are a surveyor needing positioning options, a contractor looking to set up work sites, or even an MEP contractor looking to layout, the HiPer SR is an easy way to start.
Configuration: HiPer SR LongLINK Base & Rover, HiPer SR LongLINK Base, HiPer SR LongLINK Rover, HiPer SR Network (Only) Rover, HiPer SR GPS + Glonass
FEATURES & BENEFITS
- 226-channel Vanguard Technology
- Universal Tracking Technology
- Advanced Fence AntennaTM Technology
- Compact, lightweight, rugged design
- Fully integrated LongLinkTM
- Cellular (optional) configuration*
- Dual SIM Card Support (micro)
- Sealed battery providing up to 20 hours of operation
- Hybrid ready
INTEGRATED TECHNOLOGY: The integrated receiver design includes a GNSS receiver board based on Vanguard technology, industry leading Fence Antenna™, internal long life batteries, memory storage, optional cellular configuration, and Topcon’s innovative LongLink™ wireless communication technology. The Topcon HiPer SR delivers world class positioning and navigation capability to your application by tracking signals from multi constellation satellite systems, including GPS, GLONASS, QZSS, and SBAS.
PERFORMANCE: In addition to ruggedness, the HiPer SR is the most versatile configurable, compact receiver system available. Use just 2 units in many configurations, depending on the demands of the project site. Use as a job site base and rover with interference-free LongLink communication up to 300m, or base and rover with MAGNET Relay cellular communication RTK up to 35km baselines. A pair of HiPer SR receivers can also be used as 2 network rovers with internal SIM cards, 2 network rovers with internet capable field controllers, 2 dual frequency static receivers, or in conjunction with a robotic instrument for Hybrid Positioning. All these configurations from just 2 receivers that can fit into any laptop carrying bag. That's versatile performance!
POWER: Topcon's HiPer SR provides you the power to work through the toughest conditions all day long, and then some! It's Topcon's leading edge GNSS technology in a smart, compact, ultra-rugged package. With it's lightweight design and magnesium housing the HiPer SR is guaranteed to survive a 2m on the pole drop to concrete. And the sealed long-life power supply keeps you working for up to 20 hours between charges.
SIMPLE AND SOPHISTICATED: Daily setup routines are made easy through the HiPer SR’s LongLink intelligence feature. More than just a wireless Bluetooth connection, LongLink serves to automatically connect multiple HiPer SR rovers to your mobile base. Just power them on and let the system do the rest. Combine your Topcon HiPer SR receiver with a robotic total station system, to create a Hybrid solution ready for any environment.
This entry-level GNSS solution is ideal for interference-free, short-range, wireless communication between base and rover. With an optional, internal, dual-SIM cellular modem the HiPer SR can also be used as a MAGNET Relay mobile base, adding flexibility to your portfolio for your various project scenarios.
- Capable of tracking GPS and GLONASS constellations
- Universal Tracking Channels capable of all-in-view tracking
- Hybrid Positioning ready
- Signal scrubbing Fence Antenna to provide ultimate signal lock
- Highest accuracy positioning for RTK, network, and more
ALL THAT YOU NEED AND NOTHING MORE: A single carrying case containing two of your Topcon HiPer SR receivers empowers you to make radically different choices based on the project in front of you. Straight forward, two units perform with minimal effort using a base to rover LongLink communication method. As the project size grows, each of the two HiPer SR receivers quickly morph into two unique network rover receivers. Further, same two HiPer SR units are also flexible enough to host a MAGNET Relay mobile reference station session. No project too large, no environment too harsh.
MAGNET Relay service
n cellular mode, the global MAGNET Relay RTK service allows a HiPer SR receiver to be used as a mobile base hosting and “relaying” corrections for up to 10 rovers. MAGNET Relay is an RTK forwarding service that allows users to broadcast in-field base stations to their own private Company Account within the MAGNET Enterprise secure service for distributing the base station RTK messages to their own rover receivers
| TOPCON HIPER SR GNSS RECEIVER TECHNICAL SPECIFICATION | |
| GNSS TECHNOLOGIES (SIGNAL TRACKING | |
| GPS | L1 C/A, L1C, L1P(Y), L2P(Y), L2C, L5 |
| GLONASS | L1 C/A, L1P, L2C/A, L2P, L3C |
| SBAS | WAAS/EGNOS/MSAS |
| QZSS | L1 C/A, L1C, L2C, L5 |
| Universal Tracking Channels | 226 Topcon’s patented GNSS signal tracking technology (US 7764226 B1) |
| GNSS Antenna | Integrated Full wave Fence Antenna™ technology with internal ground plane |
| POSITIONING PERFORMANCE | |
| Precision Static | H: 3 mm + 0.1 ppm | V: 3.5 mm + 0.4 ppm |
| Static/Fast Static | H: 3 mm + 0.5 ppm | V: 4 mm + 0.5 ppm |
| RTK | H: 10 mm + 1 ppm | V: 15 mm + 1 ppm |
| COMMUNICATIONS | |
| Cellular | Optional HSPA+/CDMA internal cellular module |
| LongLink | Up to 328.1 m / 1000 ft |
| Bluetooth | Yes |
| Ports | 1 Serial, 1 USB |
| DATA FORMAT AND MEMORY | |
| Real-time Output formats | TPS, RTCM, CMR/CMR+, NMEA |
| Internal Memory | 2 GB |
| Update Rate | Up to 10Hz |
| POWER | |
| External Power Supply | 6.5 – 30.0 V DC |
| Battery | Li-ion 5,000 mAh, 7.4 V |
| Operating time | RX mode – 17 hr. Refer to Operator's manual for more information |
| HARDWARE | |
| Dimensions (W x H) | 15.0 cm x 6.4 cm (5.90 in x 2.52 in) |
| Weight | 0.85 kg (1.87 lb) |
| Ingress Protection | Dust and water IP67 |
| Vibration | MIL-STD 810G |
| Drop | Survive 2m pole drop on concrete surface |
| Operating Temperature | -40° C to +65° C (-40° F to +149° F) with external power |
| Humidity | 100% |
| TOPCON HIPER HR, HIPER VR AND HIPER SR GNSS RECEIVERS COMPARISONS | ||
 |
 |
 |
| Topcon HiPer HR GNSS Receiver | Topcon HiPer VR GNSSS Receiver | Topcon HiPer SR GNSS Receiver |
| Receiver with integrated antenna and radio | Receiver with integrated antenna and radio | Receiver with integrated antenna |
| Description | Description | Description |
| Measurement, layout, field survey, grade checking, base or rover, Hybrid positioning ,TILT, network caster | Measurement, layout, field survey, grade checking, base or rover, Hybrid positioning, TILT | Measurement, layout, field survey, grade checking, base or rover, Hybrid positioning |
| Ideal Use | Ideal Use | Ideal Use |
|
GPS |
GPS GLONASS BeiDou Galileo SBAS QZSS IRNSS |
GPS GLONASS |
| Constellations tracked | Constellations tracked | Constellations tracked |
| UHF radio FH915+ spread spectrum radio LongLink Bluetooth 4G Cell (Europe) WI-FI L-band |
UHF radio FH915+ spread spectrum radio LongLink Bluetooth 4G Cell (Europe) L-band |
LongLink Bluetooth |
| Communications for corrections (availability varies by region) | Communications for corrections (availability varies by region) | Communications for corrections (availability varies by region) |
| Yes | Yes | Yes |
| Hybrid Positioning | Hybrid Positioning | Hybrid Positioning |
| Hot-swappable battery | Double-internal batteries | Internal battery |
| Battery | Battery | Battery |
| -40°C to 65°C | 40°C to 65°C | -40°C to 65°C |
| Operating temperature | Operating temperature | Operating temperature |
| IP67 | IP67 | IP67 |
| Dust and water resistance | Dust and water resistance | Dust and water resistance |
| 115 mm x 115 mm x 132 mm | 115 mm x 115 mm x 132 mm | 115 mm x 115 mm x 132 mm |
| Dimensions | Dimensions | Dimensions |
| 925 g | 925 g | 850 g |
| Weight | Weight | Weight |
