Trimble Dual MS995 CB460 GCS900 Machine Control Kit

Sale Trimble Dual MS995 CB460 GCS900 Machine Control Kit, pre-owned Trimble Dual MS995 Machine control kit. System is fully operating condition, both MS995 receivers have GPS, GNSS, Galileo, and L5 enabled. The CB460 has 3D Autos for Dozer and Rubber Tire Dozer and The SNR930 radio is 900MHz.

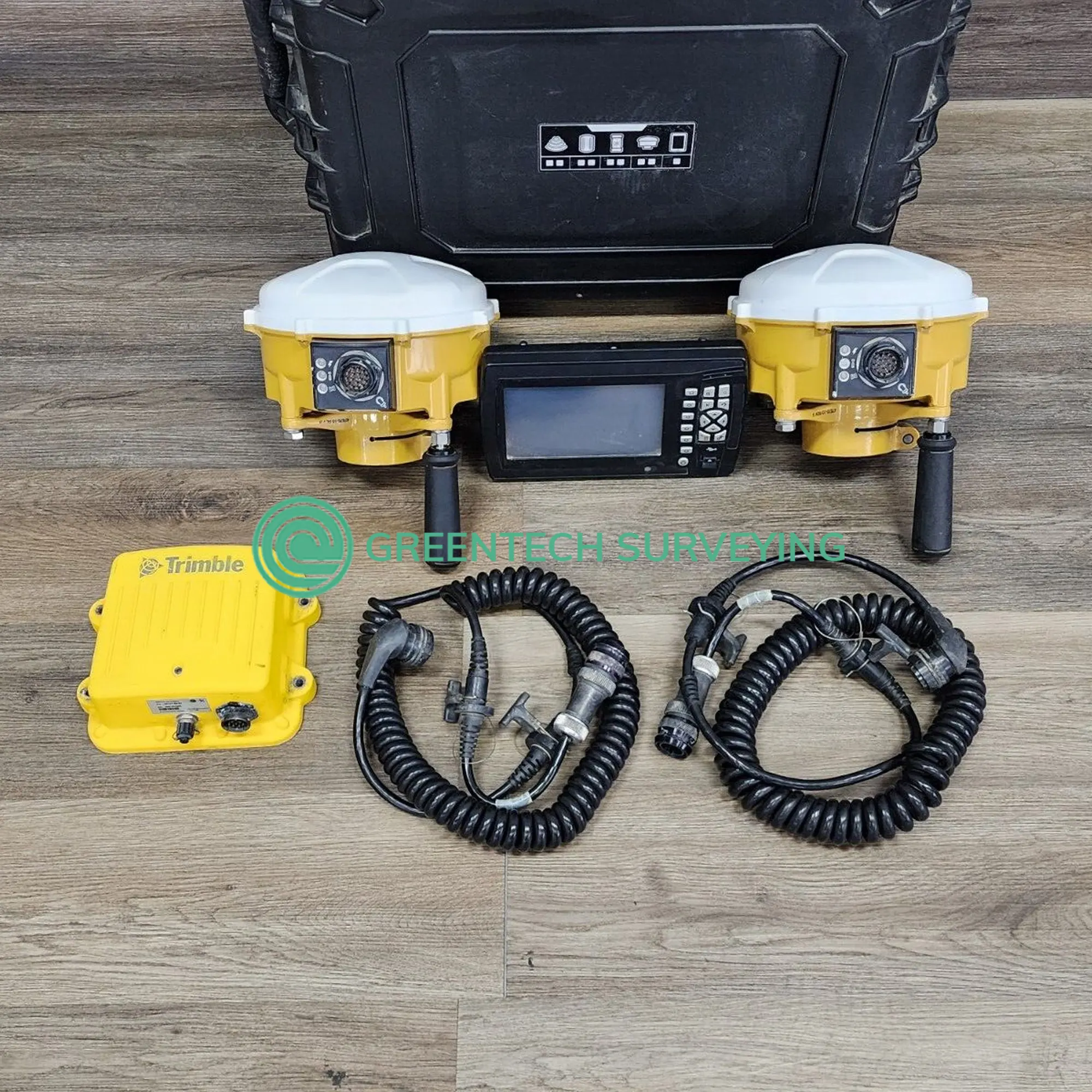

Pacakge includes:

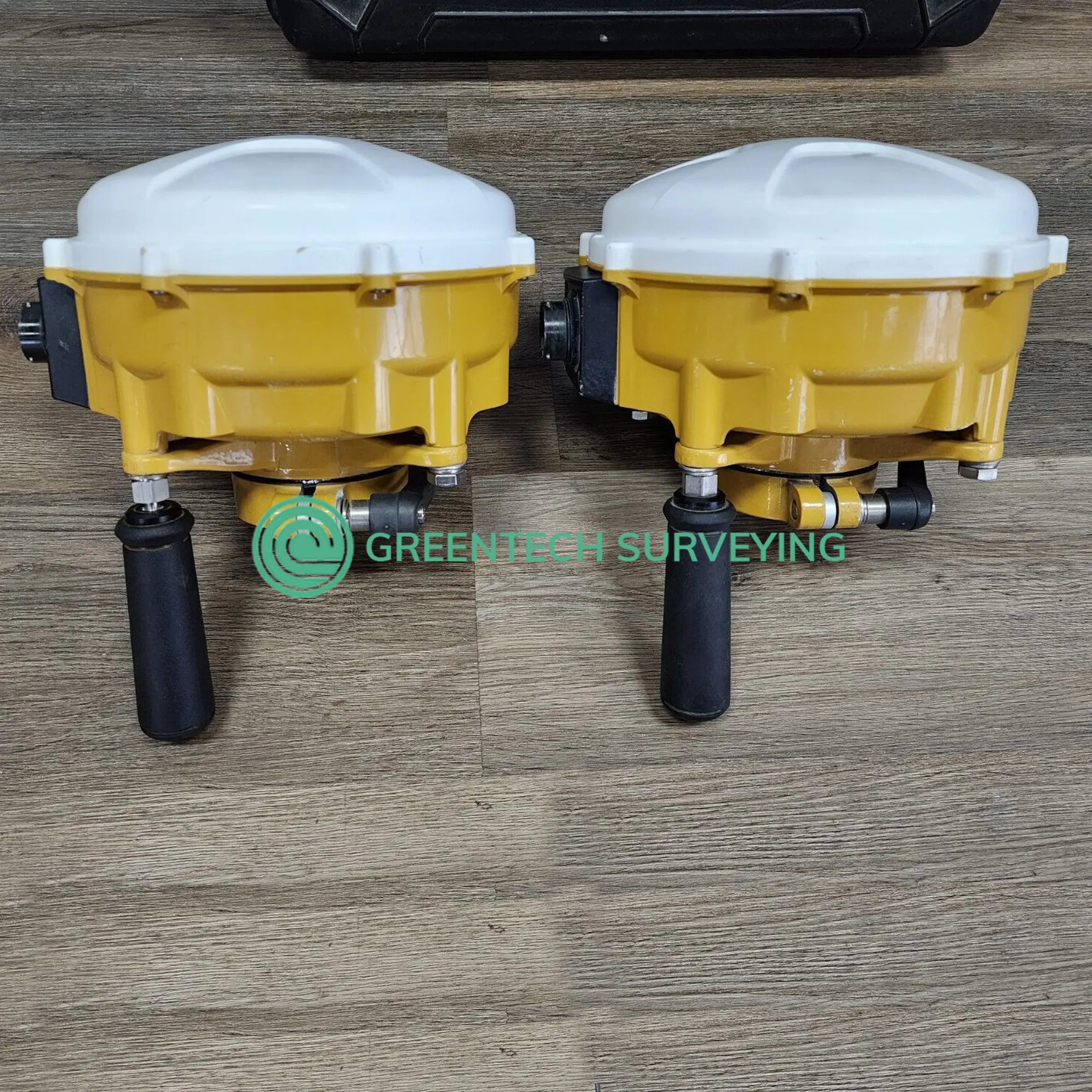

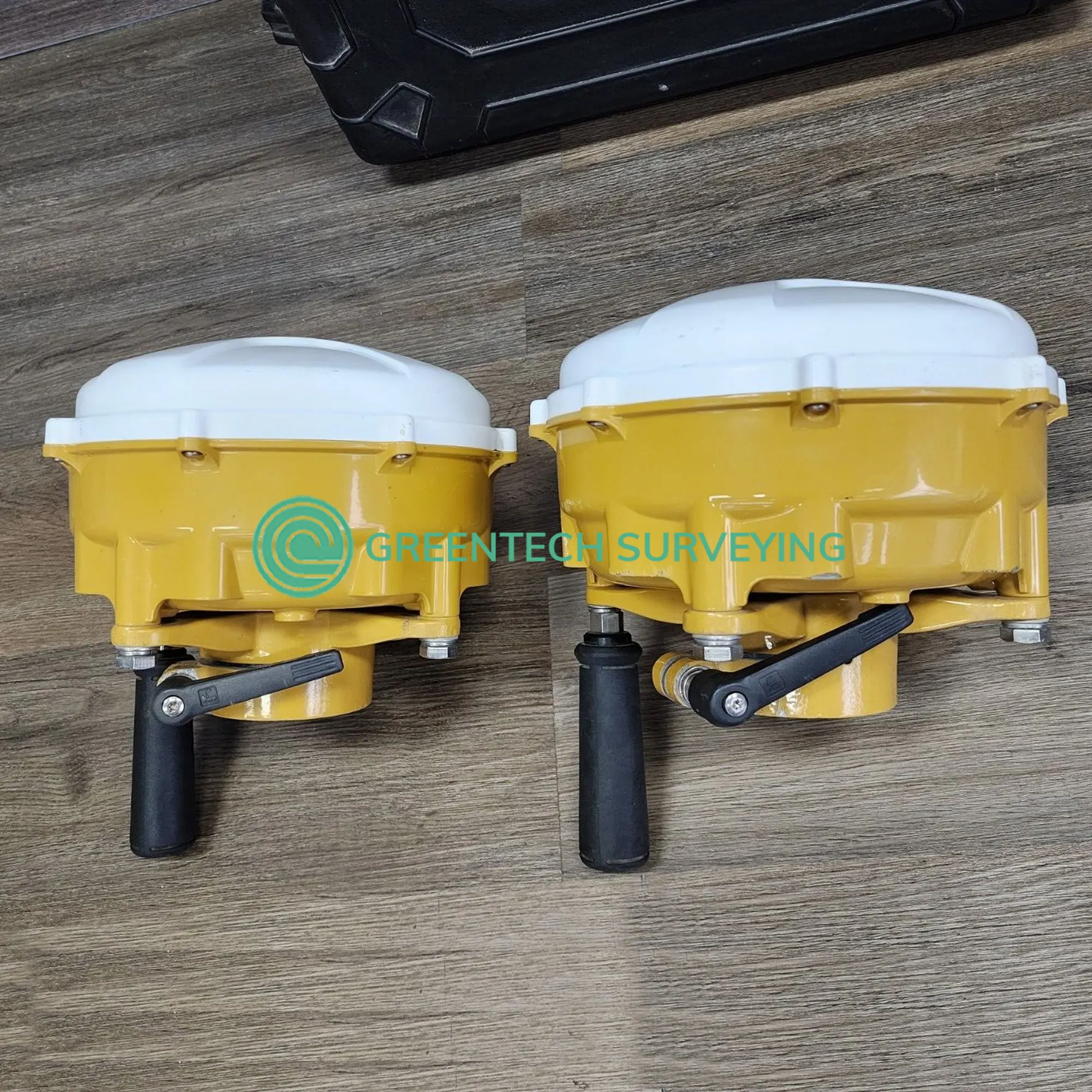

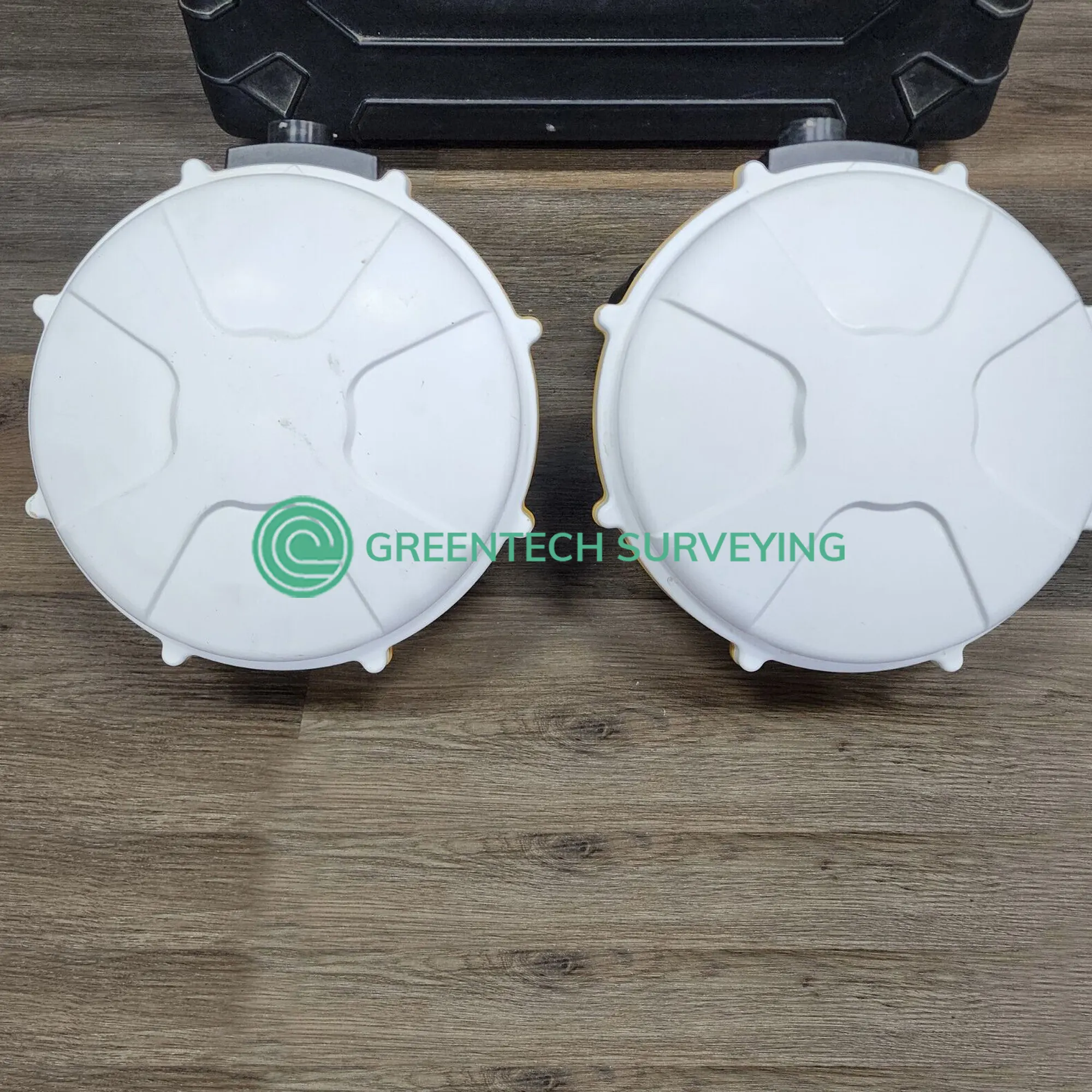

• Two Trimble MS995 GPS/GNSS/Galileo Receiver Heads

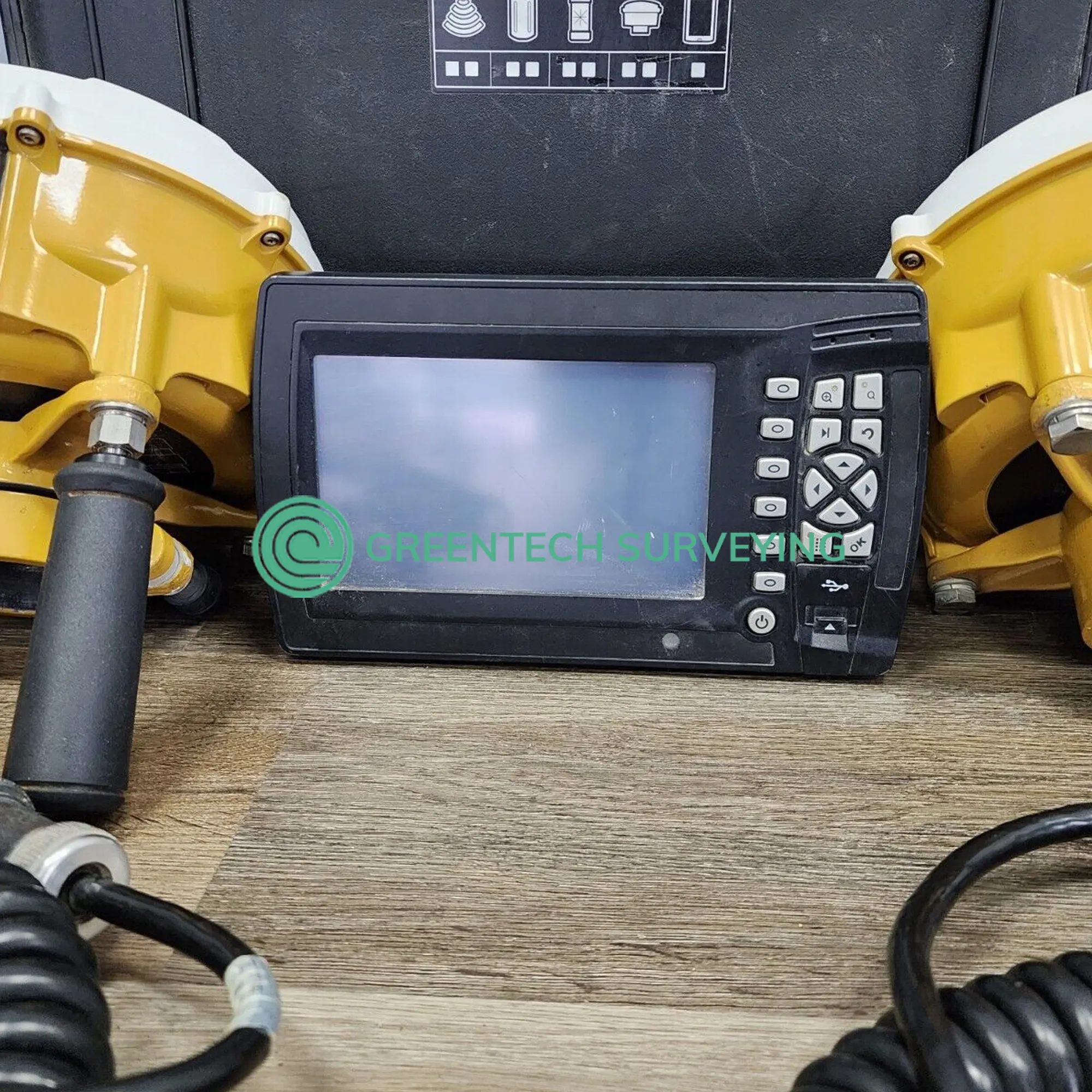

• Trimble CB460 MC Display/Control Box

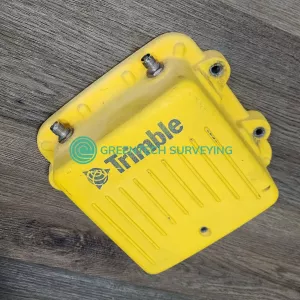

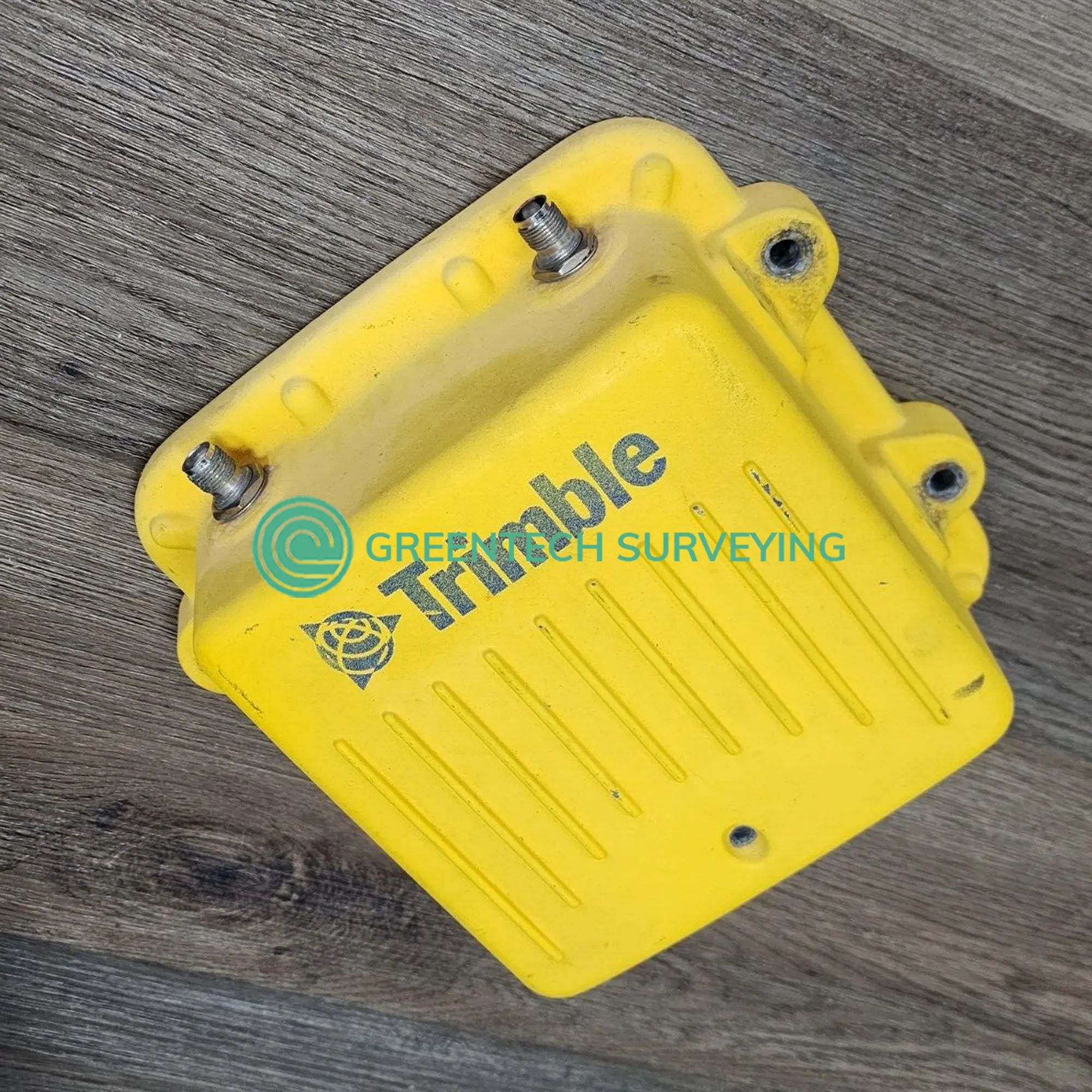

• Trimble SNR930 900MHz MC radio
• Two Trimble Coil Cables
• Trimble Carrying Case
• 6-month wrranty
• 30-day money back guarantee

TRIMBLE GNSS MS995 SMART ANTENNA
The Trimble® MS995 is an integrated GPS+GNSS receiver, antenna, and isolation system all in a single, extremely rugged housing. It uses the advanced Trimble® RTK engine for faster initialization times when satellite lock is lost and enhanced performance near obstructions.

TRIMBLE GCS900 GRADE CONTROL FOR TERRAIN LEVELERS AND TRENCHERS
The Trimble® GCS900 for terrain levelers and trenchers is available in 2D and 3D configurations. 3D configurations use either a Single MS995 with Cross Slope Sensors or Dual MS995 GPS Smart Antenna’s to accurately control the machine. 2D systems use an LR410 Laser Receiver, cross slope sensors and Spectra Precision® rotating laser to control the elevation only. Most new Vermeer machines are standard Trimble Ready for quick installations.

SINGLE GPS SYSTEM
A Single GPS system uses one Trimble® MS995 GNSS receiver and cross slope sensors to accurately control the cutting head depth & pitch.

DUAL GPS SYSTEM
A Dual GPS Systems uses two Trimble® MS995 GNSS receivers to accurately control the cutting head depth and pitch.

Key features and benefits

• An advanced RTK engine for faster initialization times when satellite lock is lost and enhanced performance near obstructions
• Support for the GPS modernized L2C and the planned L5 signals
• Support for GLONASS, Galileo, BeiDou
• Support for SBAS systems (including: WAAS, EGNOS, MSAS, QZSS)
• Single, rugged cab or blade mountable unit - GPS antenna, receiver and isolation system
• 3 LED indicators that provide instant operational feedback
• Single cable connector (high cycle count connector)
• 100% sealed housing
• Meets EU Restriction on Hazardous Substance (RoHS) directives
• TCP/IP capable using a serial PPP connection
• An easy to use removable mounting bracket with quick release adjustment ratchet

Tracking and performance

Tracks up to 44 Satellites with 220 Tracking Channels: GPS: L1C/A, L2C, L2E (Trimble Method for tracking L2P), and L5 Code with
Full Cycle Carrier

• SBAS: L1C/A and L5 (for WAAS, EGNOS, MSAS and QZSS)
• Fully operational during P-code encryption
• Upgradeable to GLONASS: L1C/A, L2C/A, and L2P Code with Full Cycle

Carrier

• Upgradeable to Galileo: L1 CBOC, E5A, E5B & E5AltBOC8
• Upgradeable to BeiDou: B1, B2

Measurements

• Advanced Trimble® Maxwell™ 6 Custom GPS chip Trimble R-Track™ technology for tracking the new L2C Civil Signal, L5 Signal for GPS modernization and GLONASS
• High-precision multiple correlator for L1, L2 and L5 pseudorange measurements
• Unfiltered, unsmoothed pseudo-range measurements data for low noise, low multi-path error, low time domain correlation and high dynamic response • Very low noise L1, L2 and L5 carrier phase measurements with <1mm precision in a 1 Hz bandwidth
• L1, L2 and L5 Signal-to-Noise ratios reported in dB-Hz
• Proven Trimble low elevation tracking technology

Trimble MS995 GNSS Smart Antenna Specifications
