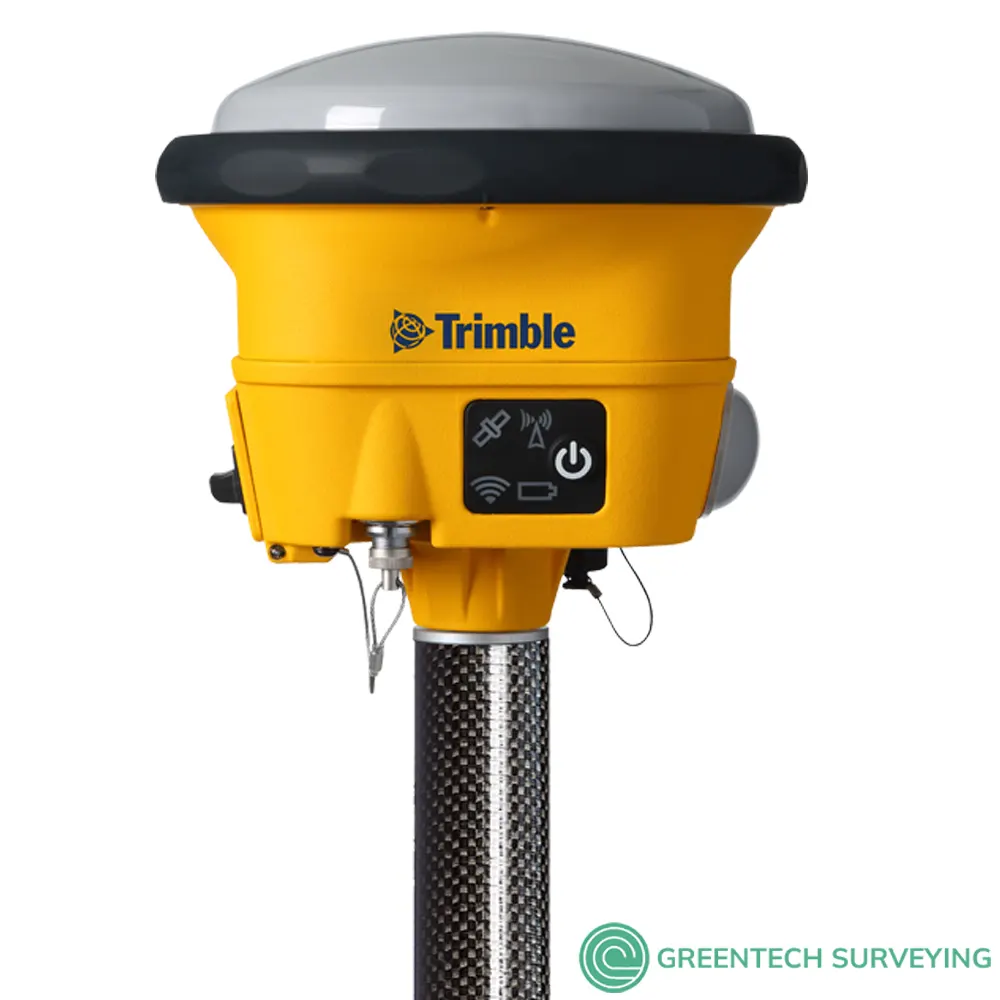

Trimble R780 GNSS Receiver
Trimble R780 Integrated GNSS Receiver with 8 mm H/15 mm V Max. Precision, 336 Channels, Integrated Antenna, Receive & Transmit UHF Radio
$7,000
Trimble R780 Integrated GNSS System for sale, Highly accurate GNSS receiver built to handle the toughest survey environments, Features 8 mm H/15 mm V Max. Precision, 336 Channels, Integrated Antenna, Receive & Transmit UHF Radio
The Trimble R780 GNSS receiver is a highly accurate GNSS system built to handle the toughest survey environments. Powered by industry-leading Trimble GNSS positioning technologies, the ultra-rugged R780 elevates productivity in one adaptable, scalable system. Enjoy the freedom to choose the configuration and features tailored precisely to meet the needs of your job, and the flexibility to add more functionality as requirements change. Build the receiver you need today. Scale with ease tomorrow.
The Trimble R780 GNSS System delivers accuracy, speed, and flexibility for maximum productivity. Its powerful Trimble ProPoint™ GNSS positioning engine computes positions based on any combination of GNSS constellations and signals. So, if you’re surveying among trees, near buildings, or in a mixed tree-and-urban environment the R780 can handle the job, even with tilt compensation enabled.
Survey faster with Trimble Inertial Platform™ technology for magnetically immune Inertial Measurement Unit (IMU)-based tilt compensation, which helps surveyors to quickly and accurately layout and measure points without precisely leveling the survey rod. The system is immune to magnetic interferenc and also features real time automatic IMU integrity monitoring to detect and alert the user of sensor biases introduced by time, temperature or physical shocks.
Instead of a pre-configured system, the Trimble R780 provides features and benefits in one flexible, scalable system. Choose the configuration - base & rover, rover only, or base only - and the features you need right now, and add further features as your requirements evolve.
ULTIMATE PERFORMANCE
- Trimble Maxwell™ 7 GNSS ASIC: Track the latest signals from all GNSS constellations with EVEREST™ Plus multipath mitigation, interference detections, and protection against GNSS spoofing.
- Trimble ProPoint™ technology: Constellation-agnostic, robust positioning engine enables greater accuracy, reliability, and productivity in challenging GNSS environments.
- Trimble TIP™ technology: Survey faster with Inertial Measurement Unit (IMU) based tilt compensation that helps you quickly, accurately, and safely stake out or measure points without levelling the pole.
- Trimble CenterPoint RTX: Receive GNSS corrections wherever you are via satellite/IP with unrivaled speed and accuracy for a PPP solution.
- Trimble xFill® technology: Reduce downtime in the field with continuous RTK coverage during correction outages from an RTK base station or VRS network.
TOTAL FLEXIBILITY
- Choose the configuration level that suits your needs: Base & Rover, Rover Only, Base Only
- Purchase only the features you need today, with the ability to easily upgrade as your requirements change in the future
BUILT FOR ANY ENVIRONMENT
- Compact, ultra-rugged design absorbs the hardest drops and shocks on the job site. No more downtime with equipment that doesn’t work
- Protect your life’s work by adding a Trimble Protected protection plan* for worry-free ownership over and above the standard Trimble product warranty
Trimble R780 Works With;
- Trimble Access
- Trimble Business Center
- Survey CAD software
- Trimble TSC5
- Trimble TSC7
- Trimble TDC600
- Trimble T100
- Trimble T7
- Trimble SX12: Collect survey data, VISION™ imagery, and high-speed scans easily
- Trimble S9: A high performance system built for the most demanding jobs
- Trimble S7: Delivers powerful performance with simple operation
- Trimble S5: The no nonsense workhorse that works efficiently and dependably while maintaining the highest possible accuracy
TRIMBLE R780 GNSS SYSTEM DATASHEET
| PERFORMANCE SPECIFICATIONS | |||
| GNSS TECHNOLOGY | |||
| Constellation agnostic, flexible signal tracking, improved positioning in challenging environments1 and inertial measurement integration with Trimble ProPoint GNSS technology Increased measurement and stakeout productivity and traceability with Trimble TIP™ technology IMU-based tilt compensation Trimble RTX worldwide corrections Advanced Trimble Maxwell 7 technology Trimble EVEREST Plus™ multipath signal rejection Spectrum Analyzer to troubleshoot GNSS jamming Anti-spoofing capabilities Japanese LTE Filtering below 1510 MHz allows antennas to be used 100 m away from Japanese LTE cell tower Iridium Filtering above 1616 MHz allows the antenna to be used 20 m away from Iridium transfer |
|||
| SATELLITE TRACKING | |||
| GPS: L1C, L1 C/A, L2E (L2P), L2C, L5 GLONASS: L1C/A, L1P. L2C/A, L2P, L3 Galileo: E1, E5A, E5B and E5AltBOC, E6 2 BeiDou: B1, B2, B3, B1C, B2A QZSS: L1 C/A, L1C, L1S, L2C, L5, LEX/L6 IRNSS: L5 SBAS: L1 C/A (EGNOS/MSAS GAGAN/SDCM), L1 C/A and L5 (WAAS) L-Band: Trimble RTX |
|||
| POSITIONING PERFORMANCE | |||
| STATIC GNSS SURVEYING | |||
| High-Precision Static | |||
| Horizontal | 3 mm + 0.1 ppm RMS | ||
| Horizontal | 3.5 mm + 0.4 ppm RMS | ||
| Static and Fast Static | |||
| Horizontal | 3 mm + 0.5 ppm RMS | ||
| Horizontal | 5 mm + 0.5 ppm RMS | ||
| REAL TIME KINEMATIC SURVEYING | |||
| Single Baseline < 30 km | |||
| Horizontal | 8 mm + 1 ppm RMS | ||
| Vertical | 15 mm + 1 ppm RMS | ||
| Network RTK4 | |||
| Horizontal | 8 mm + 0.5 ppm RMS | ||
| Vertical | 15 mm + 0.5 ppm RMS | ||
| RTK start-up time for specified precisions 5 | 2 to 8 seconds | ||
| TRIMBLE INERTIAL PLATFORM (TIP) TECHNOLOGY | |||
| TIP Compensated Surveying | |||
| Horizontal | RTX + 8 mm + 0.5 mm/° tilt (up to 30°) RMS | ||
| Horizontal | RTX + 8 mm + 0.5 mm/° tilt (up to 30°) RMS | ||
| IMU Integrity Monitor | Bias monitoring | Temperature, age and shocK | |
| TRIMBLE RTX CORRECTION SERVICES | |||
| CenterPoint RTX | |||
| Horizontal | 2 cm RMS | ||
| Vertical | 5 cm RMS | ||
| RTX convergence time for specified precisions in Trimble RTX Fast regions | < 1 min | ||
| RTX convergence time for specified precisions in non RTX Fast regions | < 3 min | ||
| RTX QuickStart convergence time for specified precisions | < 5 min | ||
| TRIMBLE xFILL | |||
| Horizontal | RTK 9 + 10 mm/minute RMS | ||
| Vertical | RTK 9 + 20 mm/minute RMS | ||
| TRIMBLE xFILL PREMIUM | |||
| Horizontal | 3 cm RMS | ||
| Vertical | 7 cm RMS | ||
| POSITIONING PERFORMANCE Cont. | |||
| CODE DIFFERENTIAL GNSS POSITIONING | |||
| Horizontal | 0.25 m + 1 ppm RMS | ||
| Vertical | 0.50 m + 1 ppm RMS | ||
| SBAS | Typically < 5 m 3DRMS | ||
| HARDWARE | |||
| PHYSICAL | |||
| Dimensions (W×H) | 13.9 cm x 13 cm (5.5 in x 5.1 in) including connectors | ||
| Weight | 1.55 kg (3.42 lb) receiver only including radio and battery | ||
| Temperature | |||
| Operating | -40 C to +65 C (-40 F to +149 F | ||
| Storage | -40 C to +75 C (-40 F to +167 F) | ||
| Humidity | 100%, condensing | ||
| Ingress protection | IP68 Certified per IEC-60529: waterproof/dustproof (1 m submersion for 1 hour | ||
| Shock and vibration | |||
| Pole drop | Designed to survive a 2 m (6.6 ft) pole drop onto concrete | ||
| Shock | Non-operating: 75 Gs at 6msec | ||
| Shock | Operating: 40 Gs at 10msec | ||
| Vibration | Mil-Std-810G, FIG 514.6E-1 Cat 24, Mil-Std-202G, FIG 214-1, Condition D | ||
| ELECTRICAL | |||
| Internal | Rechargeable, removable Lithium-ion battery in internal battery compartment Internal battery operates as a UPS during an ext power source failure Internal battery will charge from external power source as long as source can support the power drain and is more than 11.8 VDC Integrated charging circuitry |
||
| External | External power input with over-voltage protection on Port 1 (7-pin Lemo 2-key) Minimum 10.8 V, Maximum 28 VDC, shutdown optimized for 12 V lead acid battery operation Power source supply (Internal/External) is hot-swap capable in the event of power source removal or cut off DC external power input with over-voltage protection on Port 1 (Lemo) Receiver automatically turns on when connected to external power |
||
| Power consumption | 3.2 W in rover mode with internal receive radio 5.2 W in base mode with internal 0.5 W transmit radio |
||
| Operating times on internal battery | |||
| Rover | 5.5 hours; varies with temperature | ||
| Base station | 5.5 hours; varies with temperature | ||
| 450 MHz systems | Approximately 4 hours; varies with temperatur | ||
| 900 MHz systems | Approximately 4 hours; varies with temperatur | ||
| COMMUNICATIONS AND DATA STORAGE | |||
| Lemo (Serial 1) | 7-pin Lemo 2-key, Power Input, USB. Optional USB to RS232 serial cable. Receiver supports RNDIS communications over USB | ||
| Wi-Fi | Client or Access Point. Receive or transmit corrections. Wi-Fi b/g/n | ||
| Bluetooth® wireless technology | Fully-integrated sealed 2.4 GHz Bluetooth module | ||
| Integrated radios (optional) | Fully-integrated, fully-sealed internal 403-473 MHz; Internal 900 MHz; Rx/Tx | ||
| Channel spacing (450 MHz) | 12.5 kHz or 25 kHz spacing available | ||
| Sensitivity (450 MHz) | -114 dBm (12 dB SINAD | ||
| 450 MHz output power | 0.5 W, 2.0 W, depending on the local required licensing | ||
| Frequency approvals (403–473 MHz) | Worldwide, depending on the local required licensing | ||
| Positioning rates | 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 H | ||
| Data storage | 9 GB internal data logging. Moving base and heading | ||
| Data fomat | CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 input and output 24 NMEA outputs, GSOF, RT17, and RT27 output | ||
| CERTIFICATIONS | |||
| FCC Part 15 Subpart B (Class B Device), Part 15.247, Part 90 Canadian ICES-003 (Class B), RSS-GEN, RS-102, RSS-247 IEC62368-1 2nd Edition CISPR 32, EN 55032, EN55035 RCM mark, AS/CISPR 32, AS/NZS 4768 Japan MIC CE mark, Radio Equipment Directive (RED 2014/53/EU) RoHS compliance WEEE compliance |
|||
| TRIMBLE PROTECTED PROTECTION PLANS | |||
| Add a Trimble Protected protection plan for worry-free ownership over and above the standard Trimble product warranty. Added enhancements include coverage for wear & tear, environmental damage, and more. Accidental damage is covered with Premium plans, available only at point-of-sale in selected regions. For details, visit trimbleprotected.com or contact a local Trimble distributor. |
|||
